Add a playback and recording deck to your broadcast studio, live production, or digital signage environment with the HyperDeck Extreme 4K HDR from Blackmagic Design. The HyperDeck Extreme 4K supports up to UHD 4K video and allows you to save H.265 files and utilize 3D LUTs, internal cache, and HDR support for video playback.

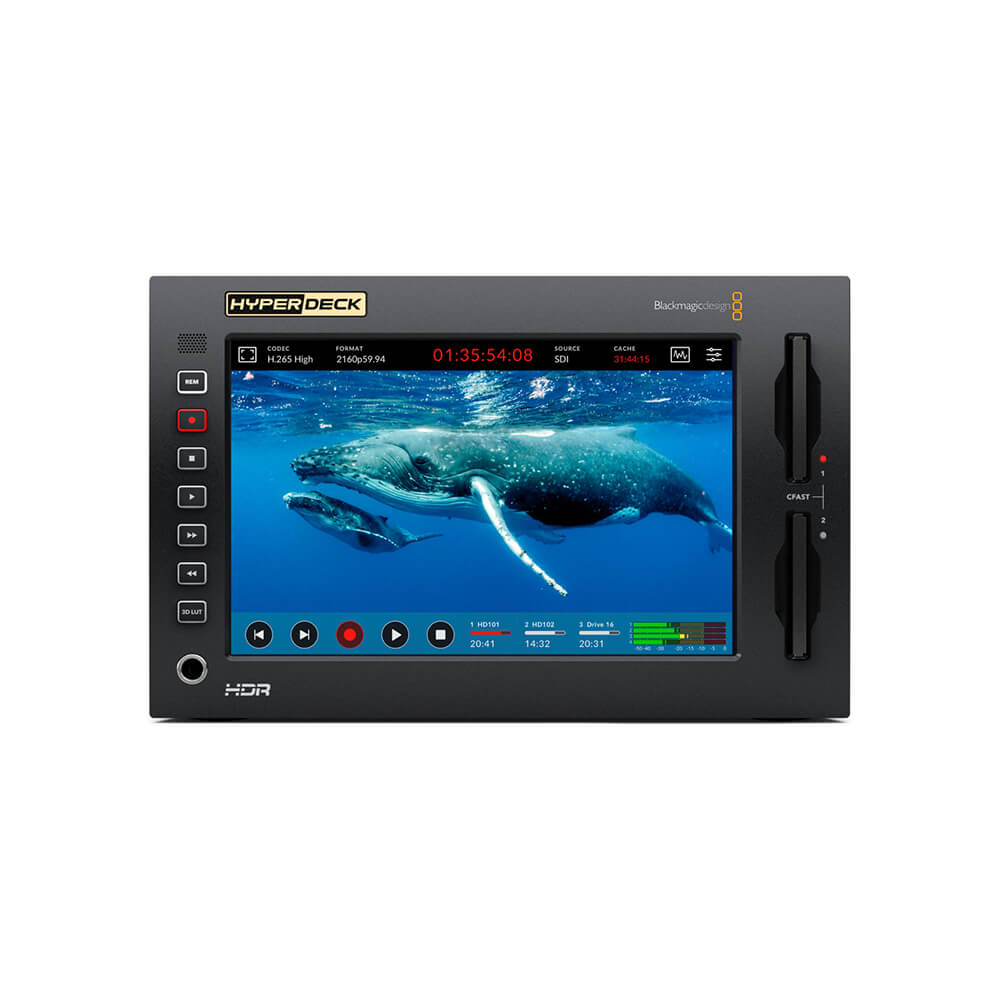

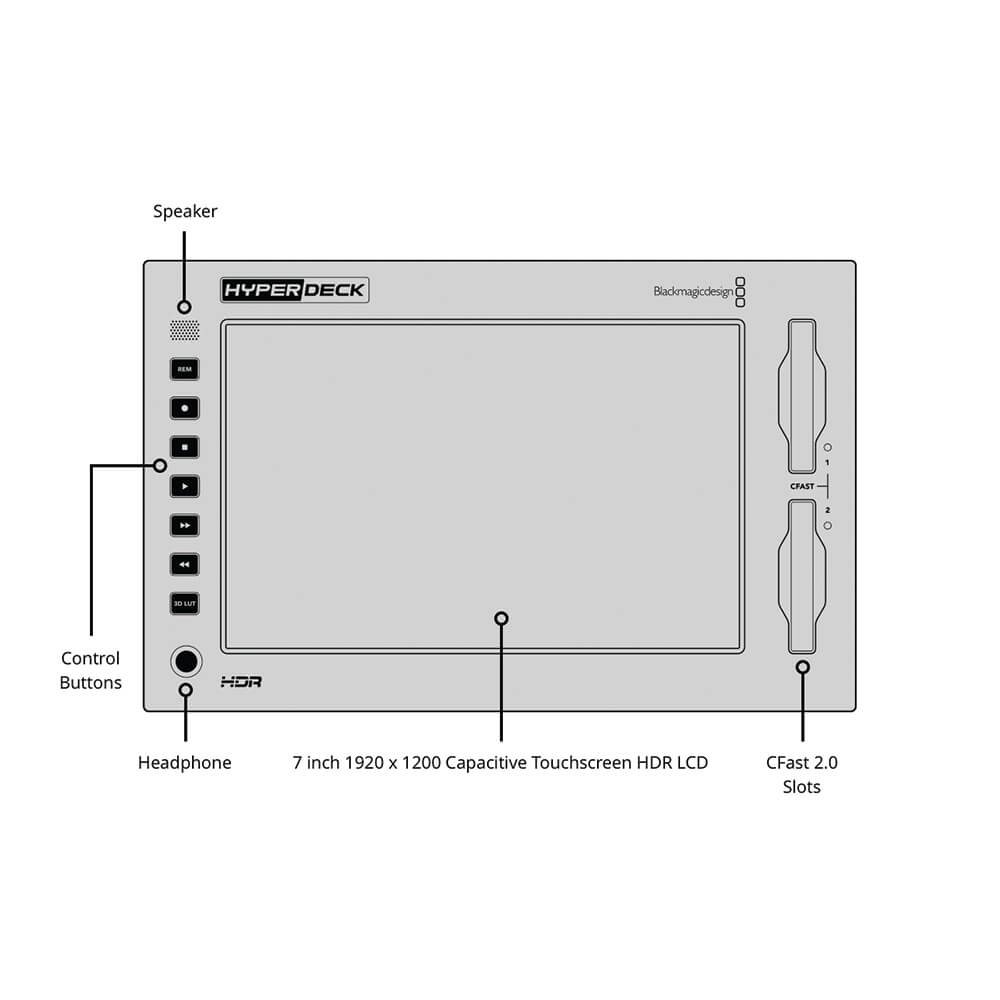

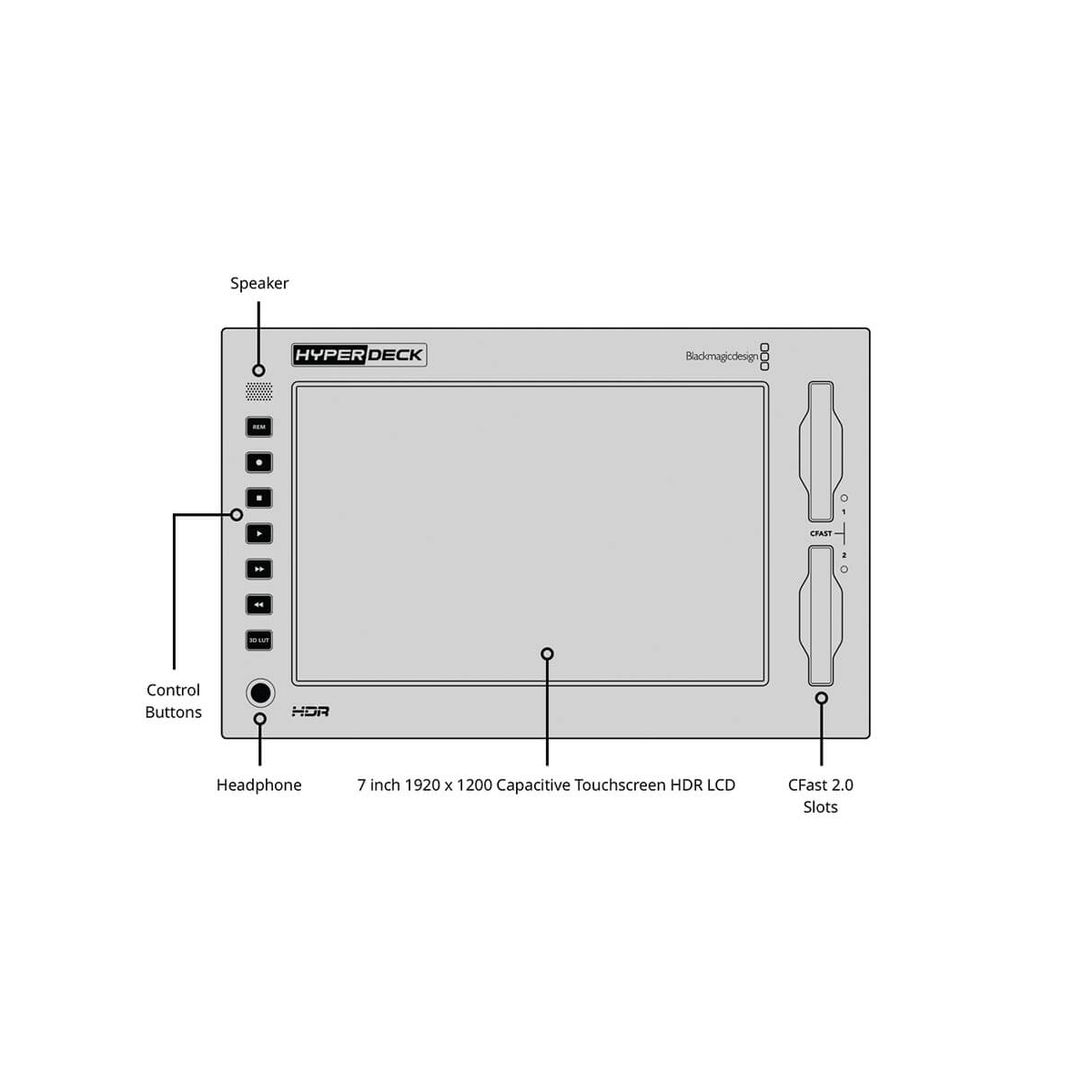

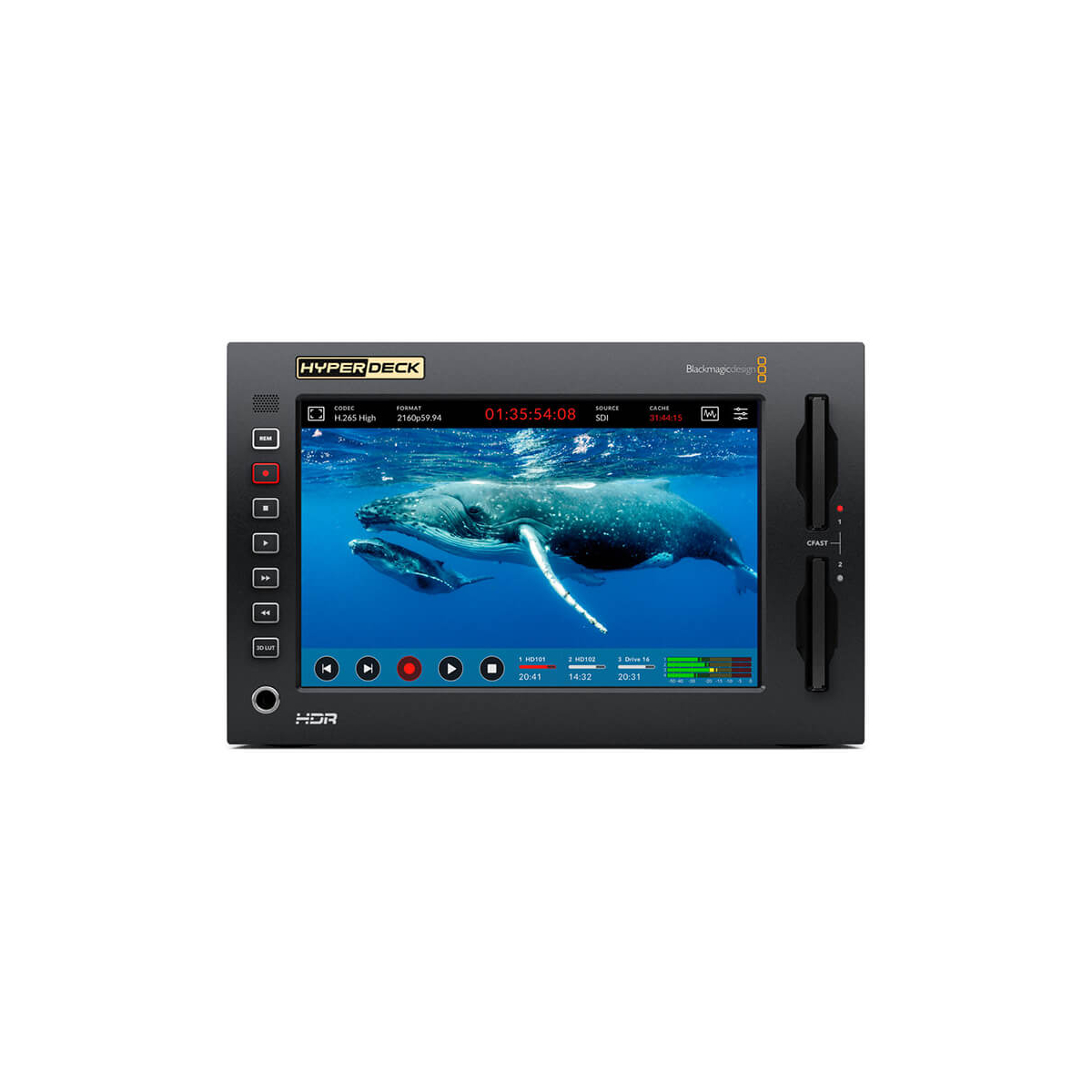

The HyperDeck features a 7" capacitive touchscreen LCD screen that provides a clean image and controls, scopes, and monitoring tools that you can control and configure with a swipe or a button press. It features 12G-SDI and HDMI inputs and outputs, two CFast media slots for recording, and allows you to record your video stream to an optional disk via USB Type-C.

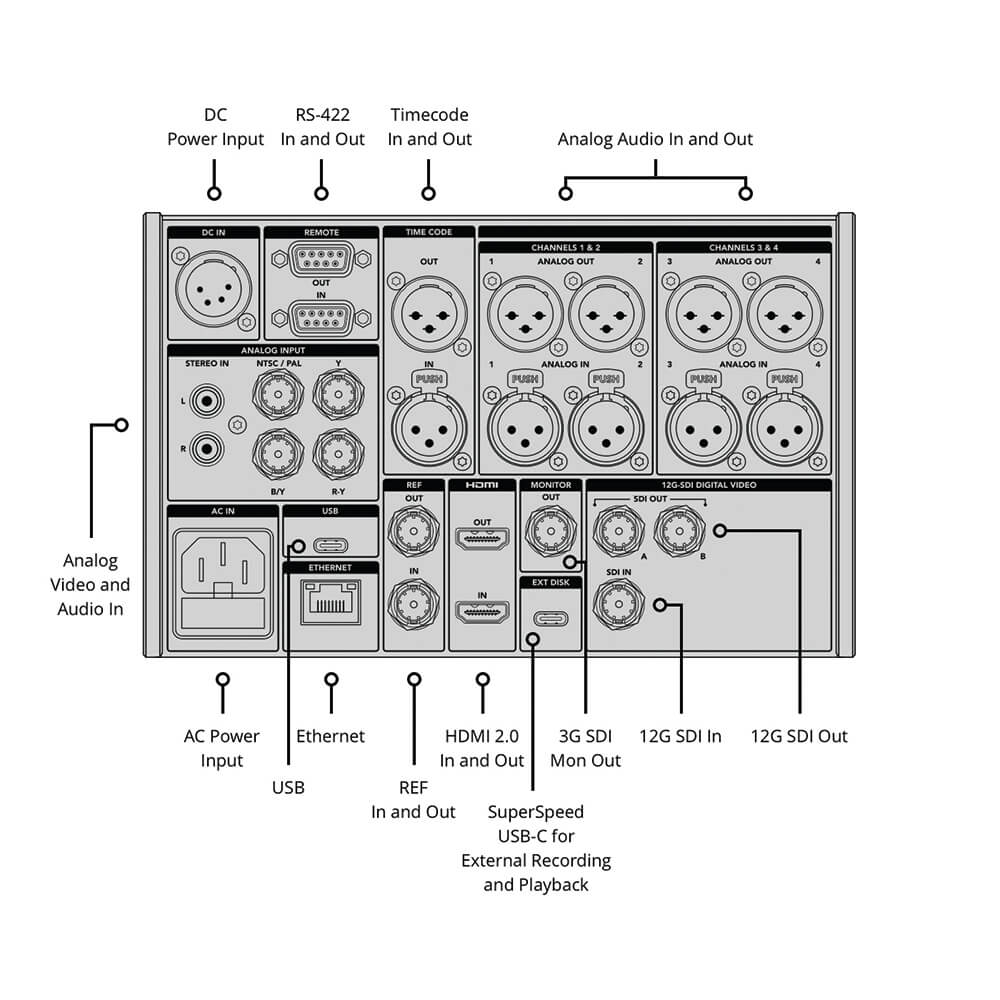

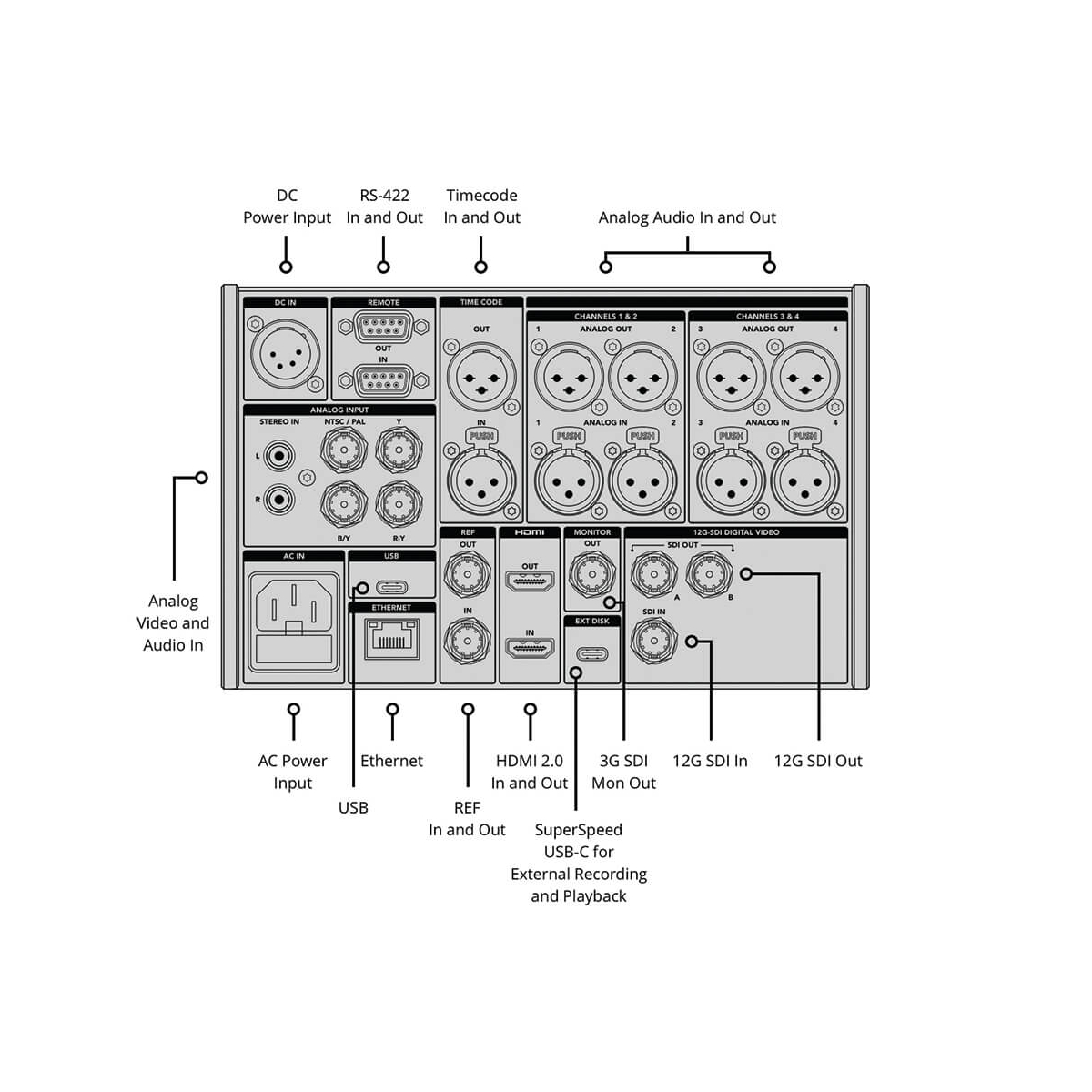

If you want to fit streaming into your legacy production rack, the HyperDeck can be controlled via RS-422 as traditional broadcast decks. The unit also features a 3G-SDI monitor output, component analog audio and video inputs, 3-pin XLR inputs and outputs, timecode I/O, and reference I/O. The unit also supports built-in media caching that can be upgraded to avoid cards and disks filling up and losing data.
Blackmagic Design HyperDeck Extreme 4K Specification General |
|
Compatibility | Blackmagic Design ATEM Mini |
Inputs / Outputs |
|
USB I/O | 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Female Output |
Video I/O | 1 x BNC (12G-SDI) Input 2 x BNC (12G-SDI) Output 1 x BNC (Component) Input 1 x HDMI 2.0 Input 1 x HDMI 2.0 Output 1 x BNC (3G-SDI) Monitor Output 1 x USB-C Output |
Audio I/O | 4 x XLR 3-Pin Input 4 x XLR 3-Pin Output 1 x 2RCA Inpu |
Power |
|
Power Source | AC Input (Built-In) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 12 VDC |
Power Consumption | 190 W |
Environmental |
|
Operating Temperature | 32 to 72°F / 0 to 40°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Storage Humidity | 0 to 90% (Non-Condensing) |
Physical |
|
Dimensions | 13.15 x 8.28 x 5.14" / 33.4 x 21.03 x 13.06 cm |
Weight | 7.94 oz / 225 g |
