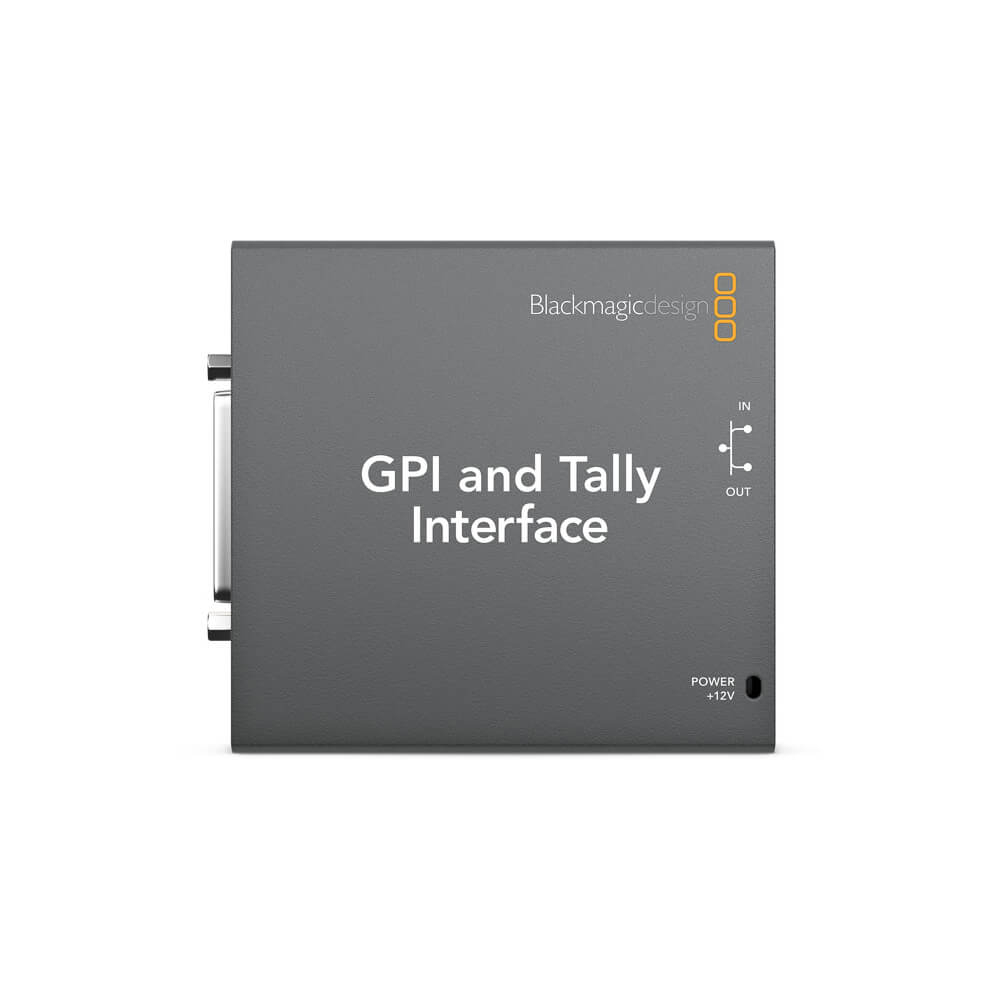

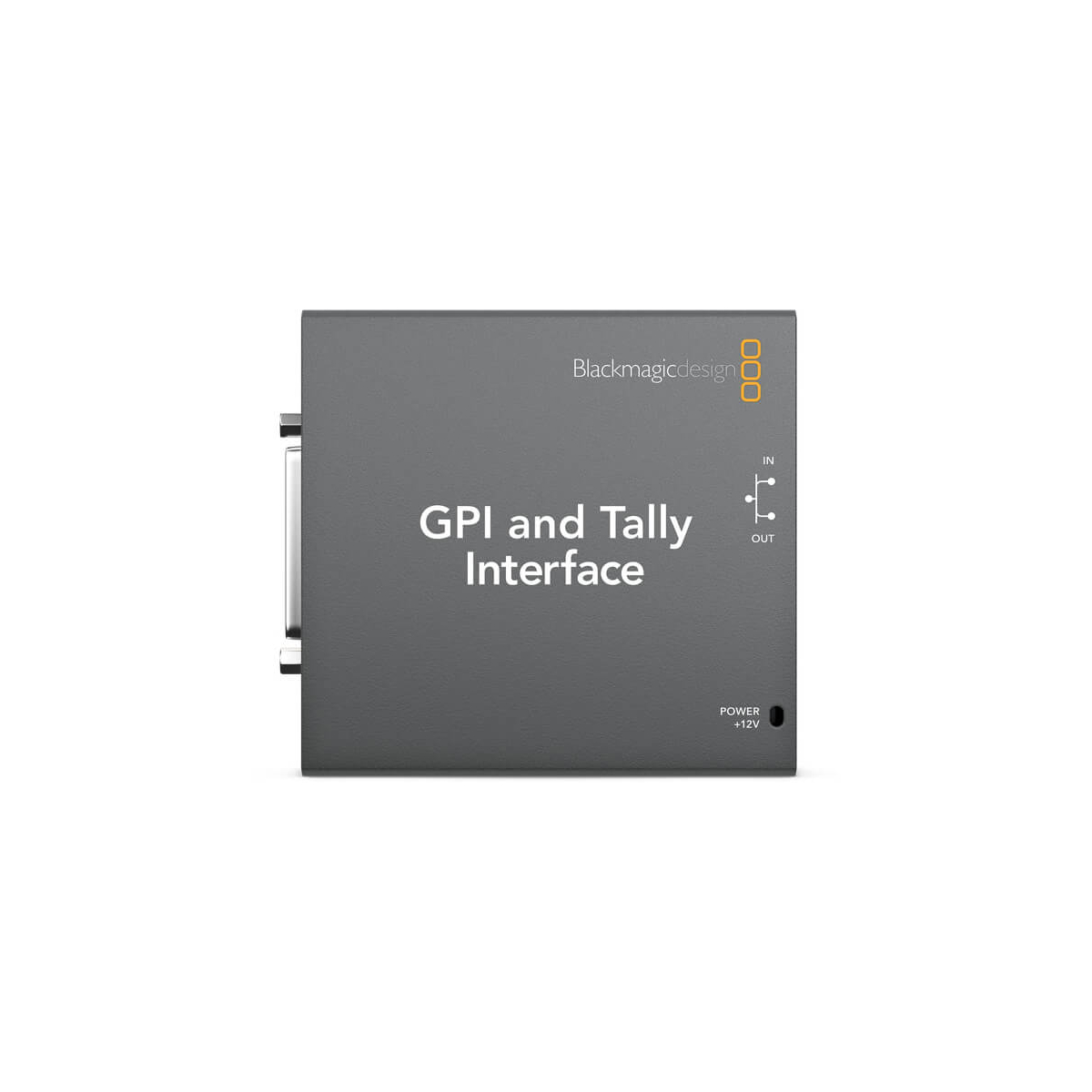

The Blackmagic Design GPI & Tally Interface for ATEM Production Switchers is designed to display tallies to indicate the on-air status of video signals. It features 8 contact closure inputs and 8 contact closure outputs for connecting to ATEM switchers and Videohub routers for operation. Additionally, the GPI & Tally Interface can be used with multiple interfaces to increase the number of inputs and outputs.
- Displays tallies for indicating the on-air status of video signals
- 8 contact closure inputs & 8 contact closure outputs
- Compatible with ATEM switchers and Videohub routers
- Connect to multiple interfaces offering enhance flexibility in operation
Blackmagic Design GPI & Tally Interface Specification |
|

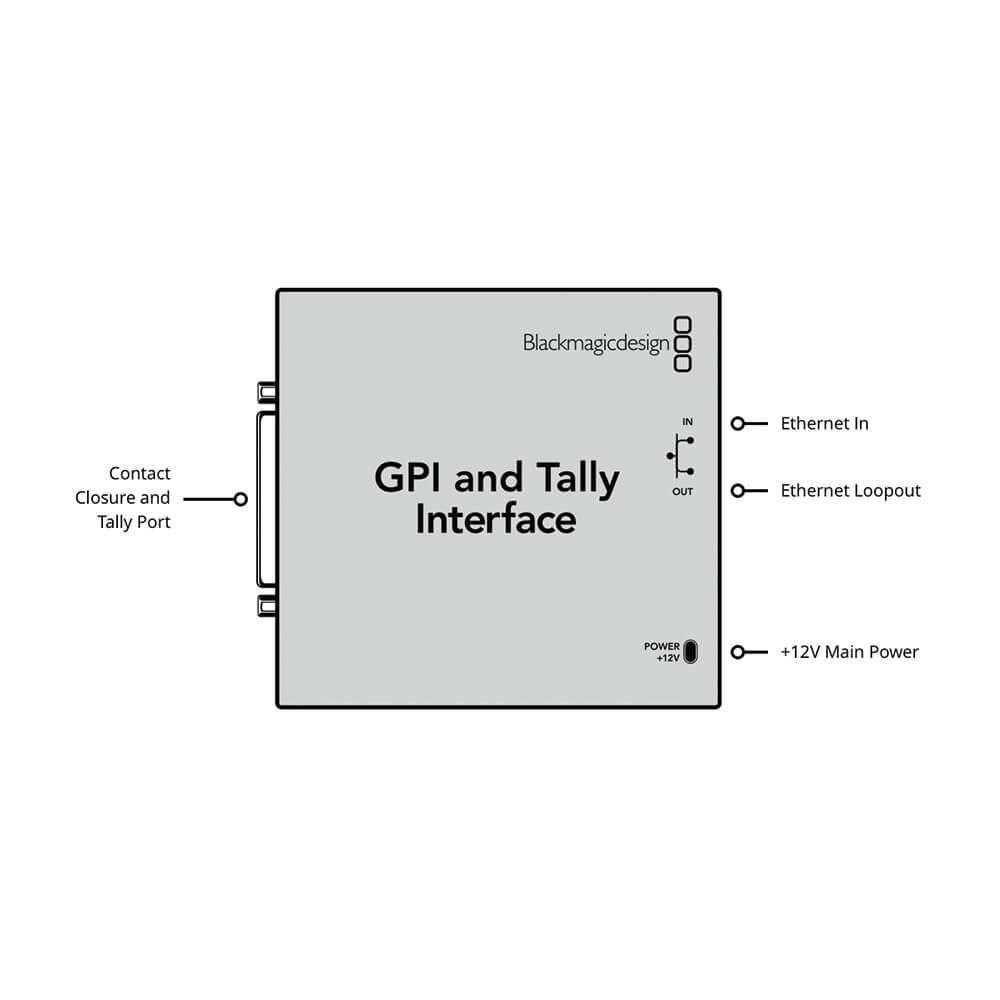

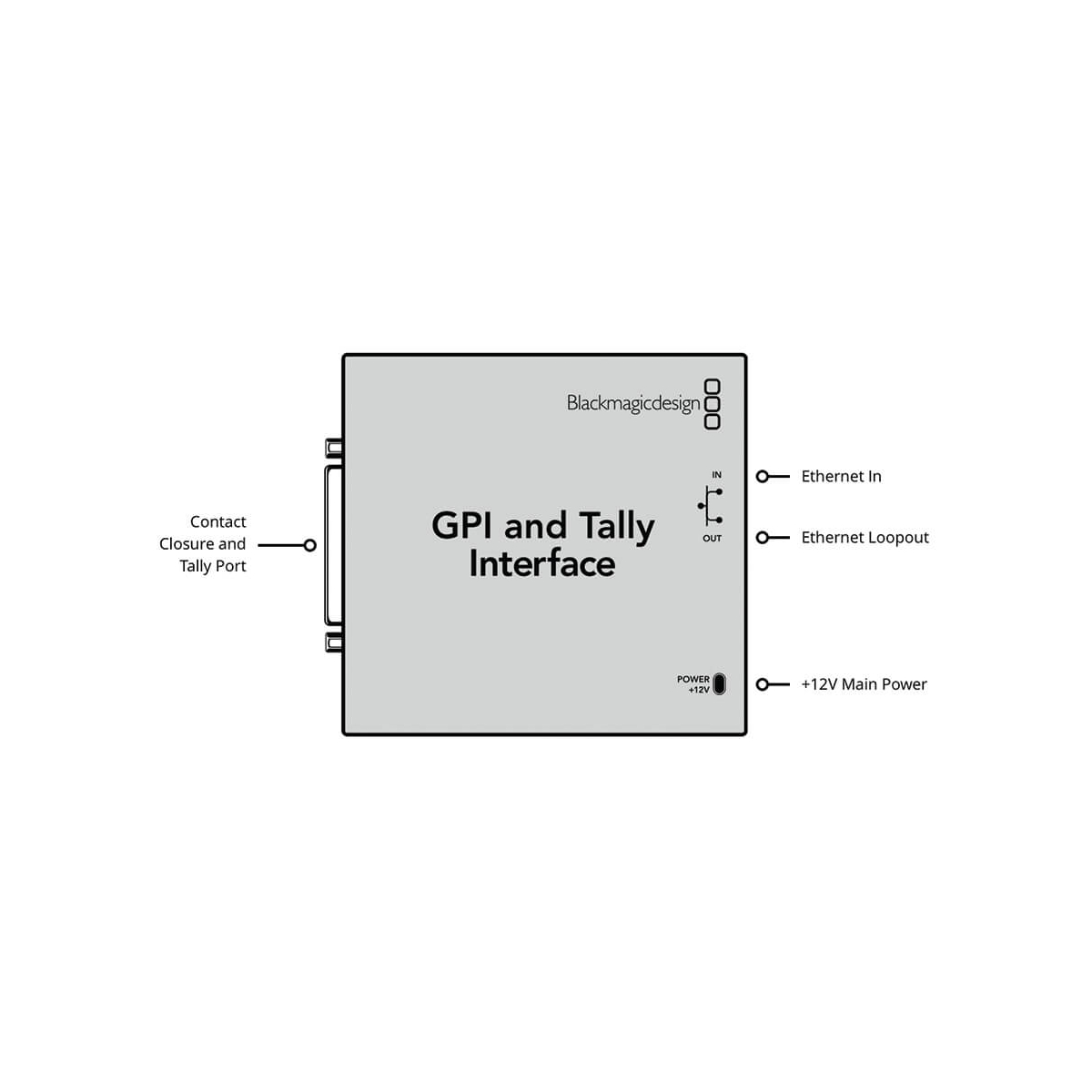

Connections | dd |

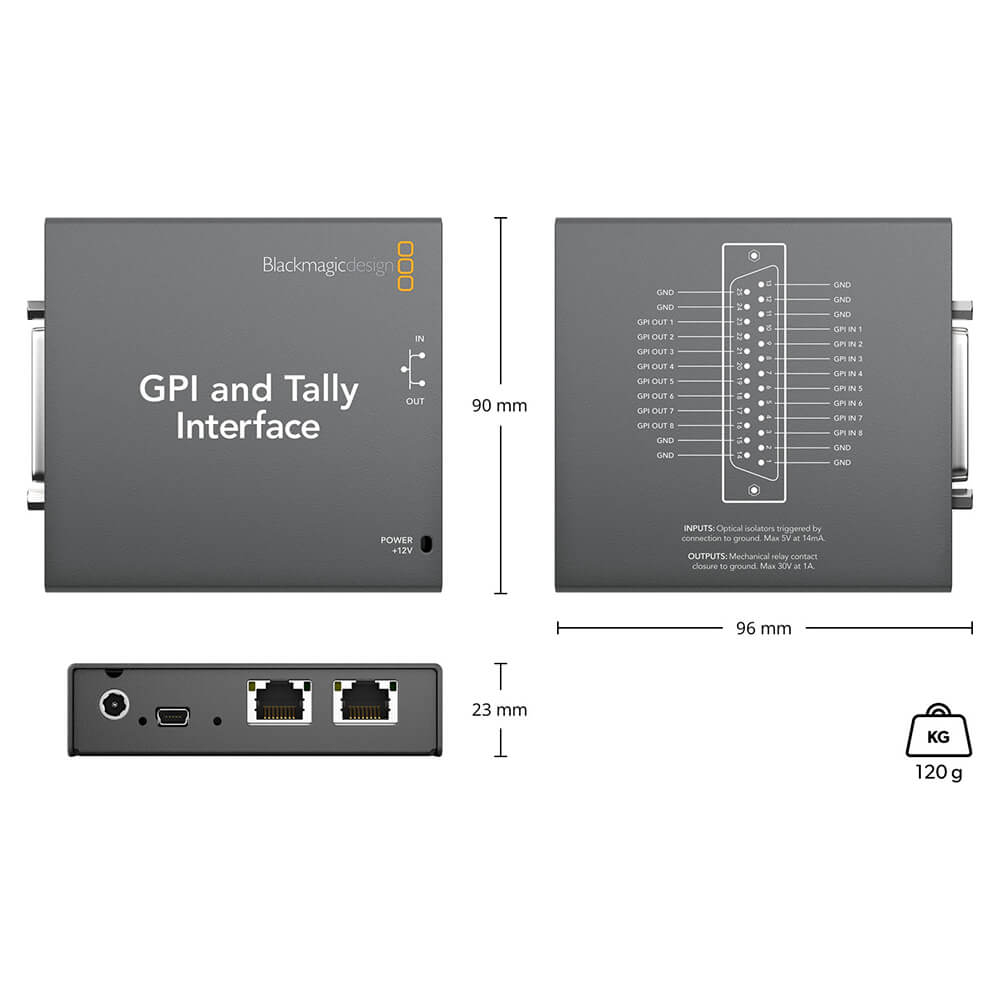

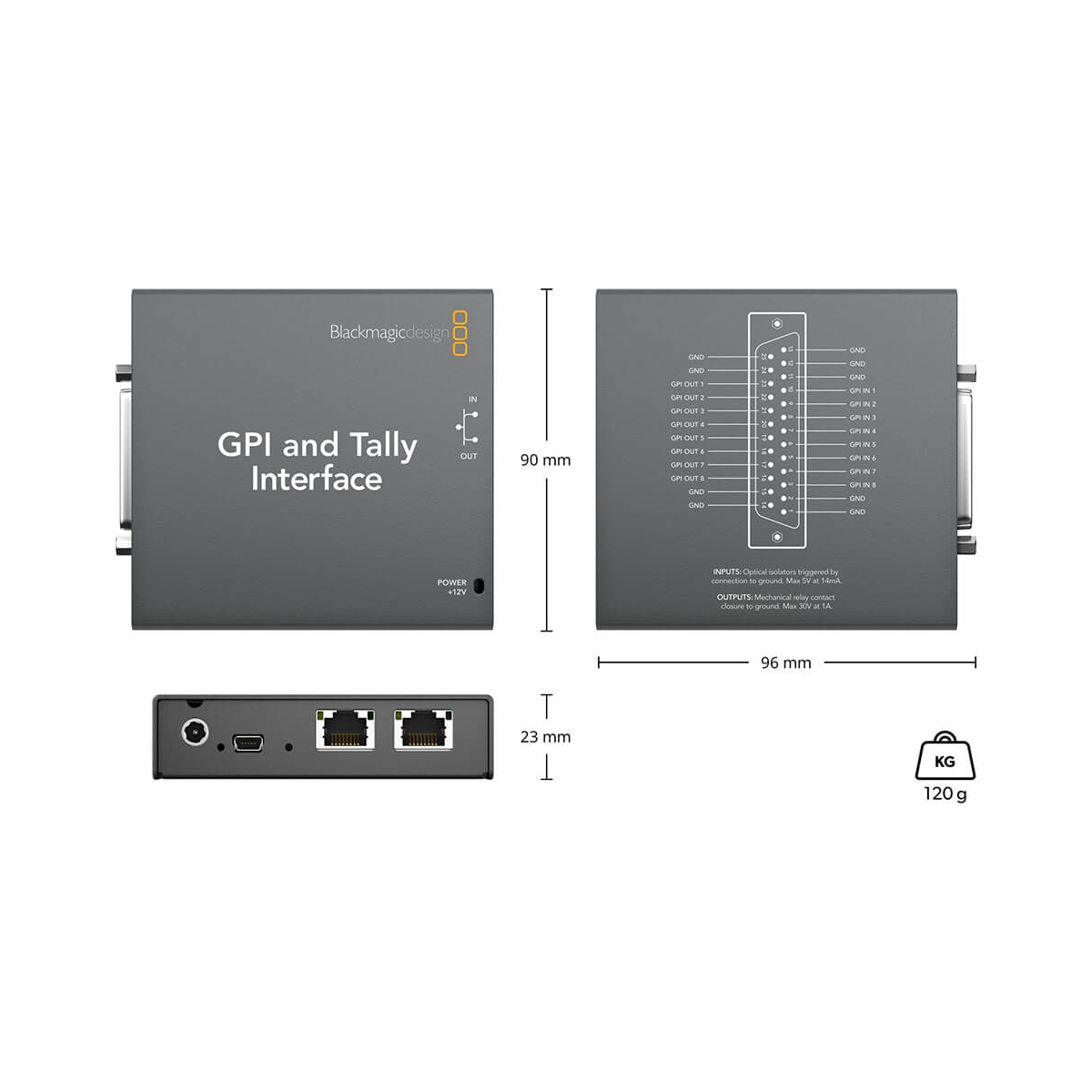

Contact Closure | 25 pin D-type connector providing 8 up to isolated inputs and 8 relay contact closure outputs |
Inputs | Optical isolators triggered by connection to ground (maximum 5 V @ 14 mA) |
Outputs | Mechanical relay contact closure to ground (maximum 30 V @ 1 A) |
Ethernet | 10 / 100 BaseT with loop through for connecting to other Ethernet enabled equipment |
Computer Interface | 1 x USB 2.0 high speed interface for configuration and firmware updates |
Software Included | Configured via ATEM Switcher utility |
Firmware Upgrade | Firmware built into software driver. Loaded at system startup or via updater software |
Operating System | Microsoft Windows 7 and Apple Mac OS X |
Power Supply | 12 V power supply included with international socket adapters for all countries |
