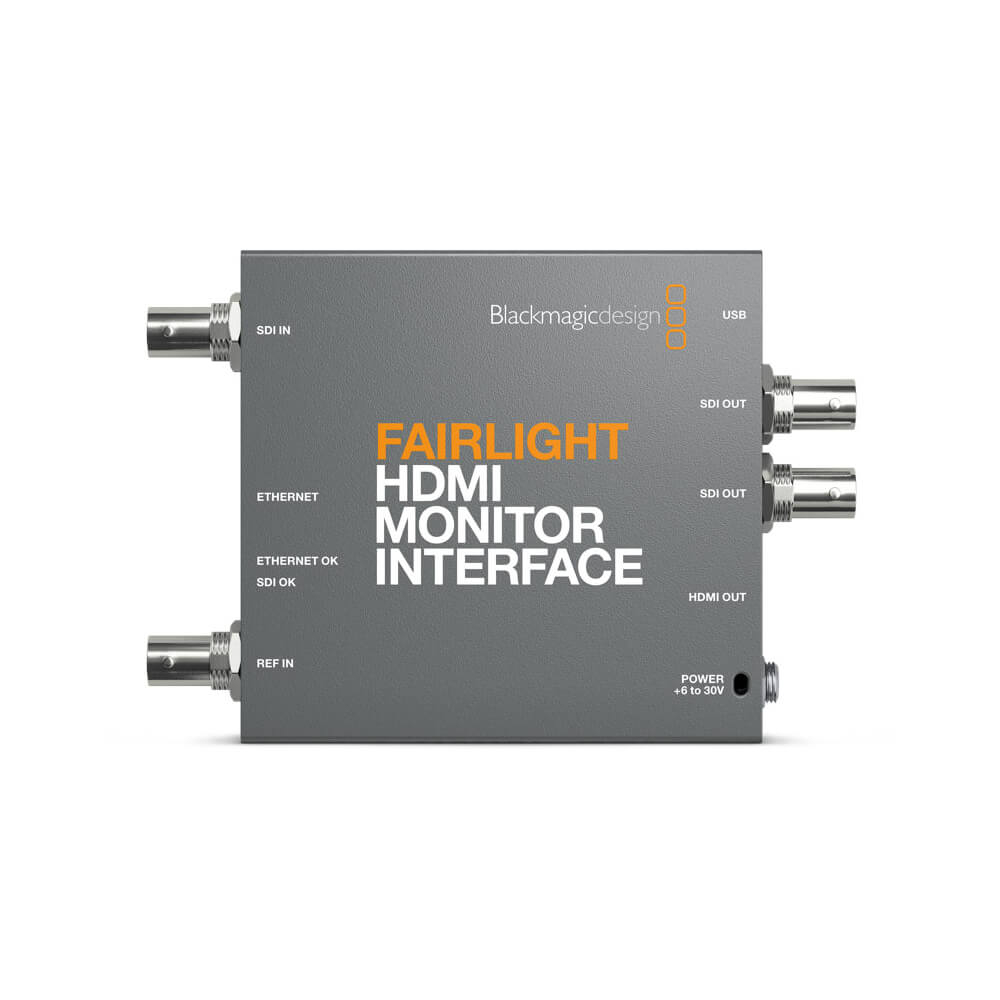

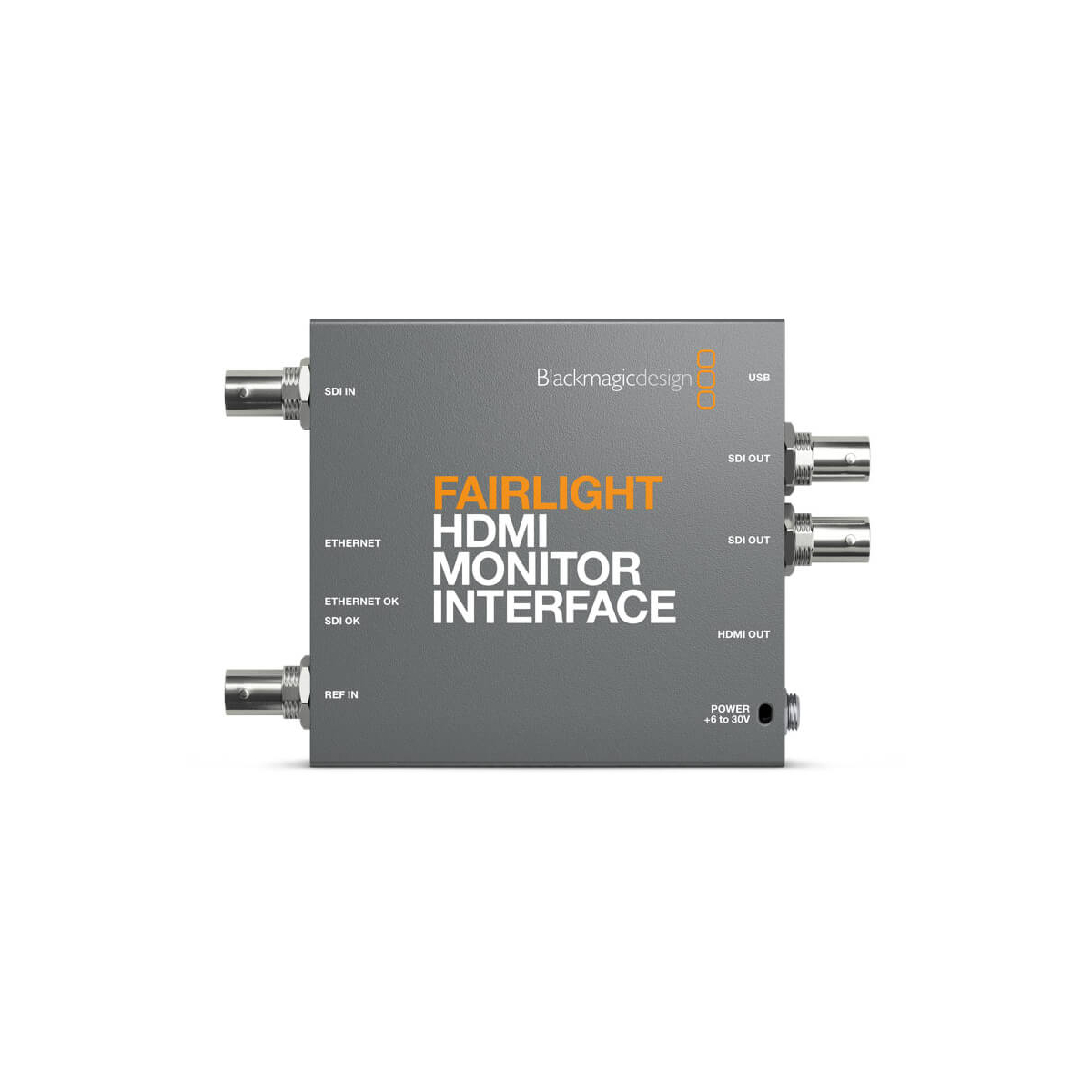

Make your existing HDMI monitor compatible with a Fairlight console by utilizing the Blackmagic Design Fairlight HDMI Monitor Interface, a compact video signal converter that changes the Ethernet data from a Fairlight Console Channel Control to standard HDMI format. It also features an Ethernet/SDI input switch to select the SDI input for lip sync checks.

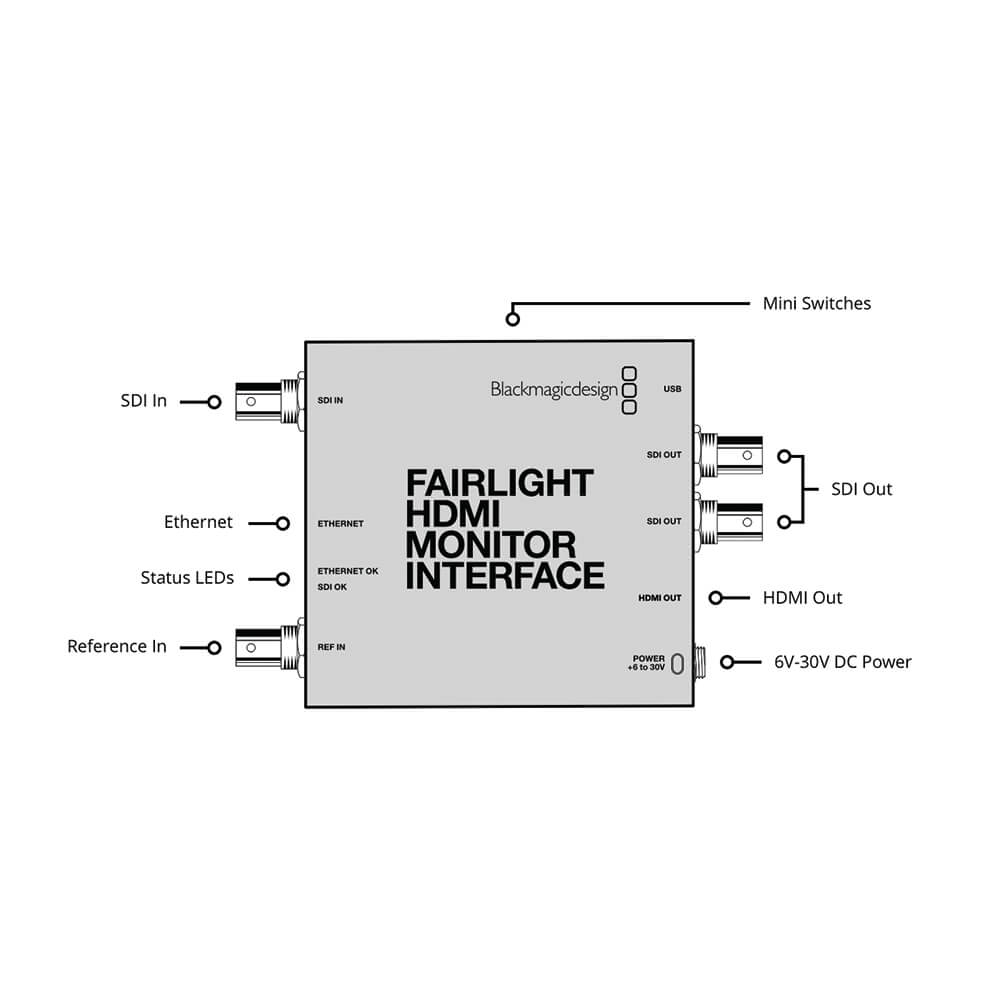

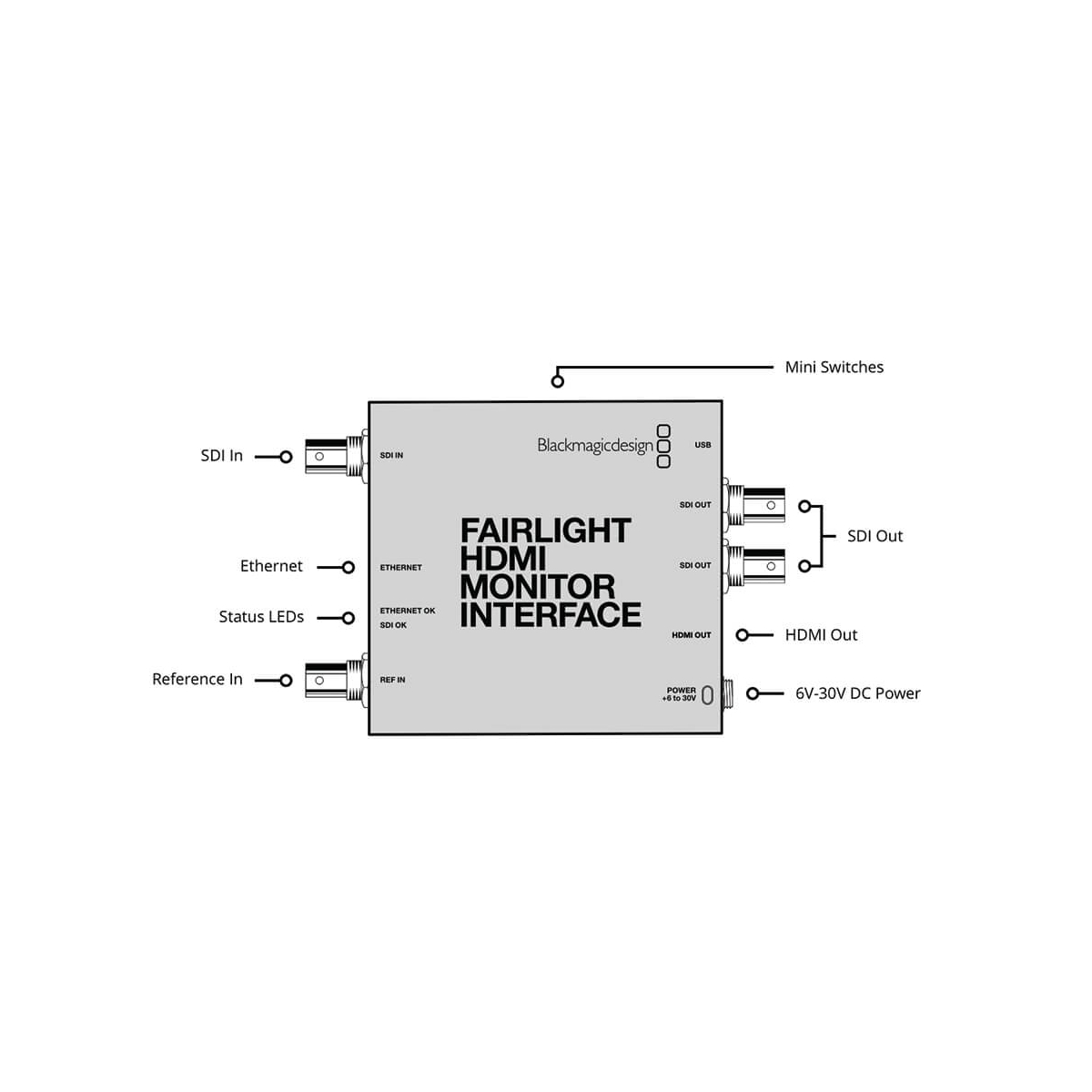

In addition to the HDMI Type-A output for connection to your HDMI display, this interface incorporates two SDI outputs to allow hookup to a remote SDI monitor. LEDs are present for easy verification of valid Ethernet and SDI input signal. Configuration and updates are handled through USB and power is provided via the included external power supply.
Blackmagic Design RESFA/MONINT Specification |
|
Video Inputs | 1 x RJ45 Female 1 x BNC (3G-SDI) Female |
Input Video Format | SDI (4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps |
Audio Input Connectors | None |
Video Outputs | 2 x BNC (3G-SDI) Female 1 x HDMI Female |
Output Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps HDMI 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
Audio Output Connectors | None |
Power |
|
Power I/O | 1 x Barrel (6 to 30 VDC) Input |
Power Consumption | 12 VDC (6 W) |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% |
General |
|

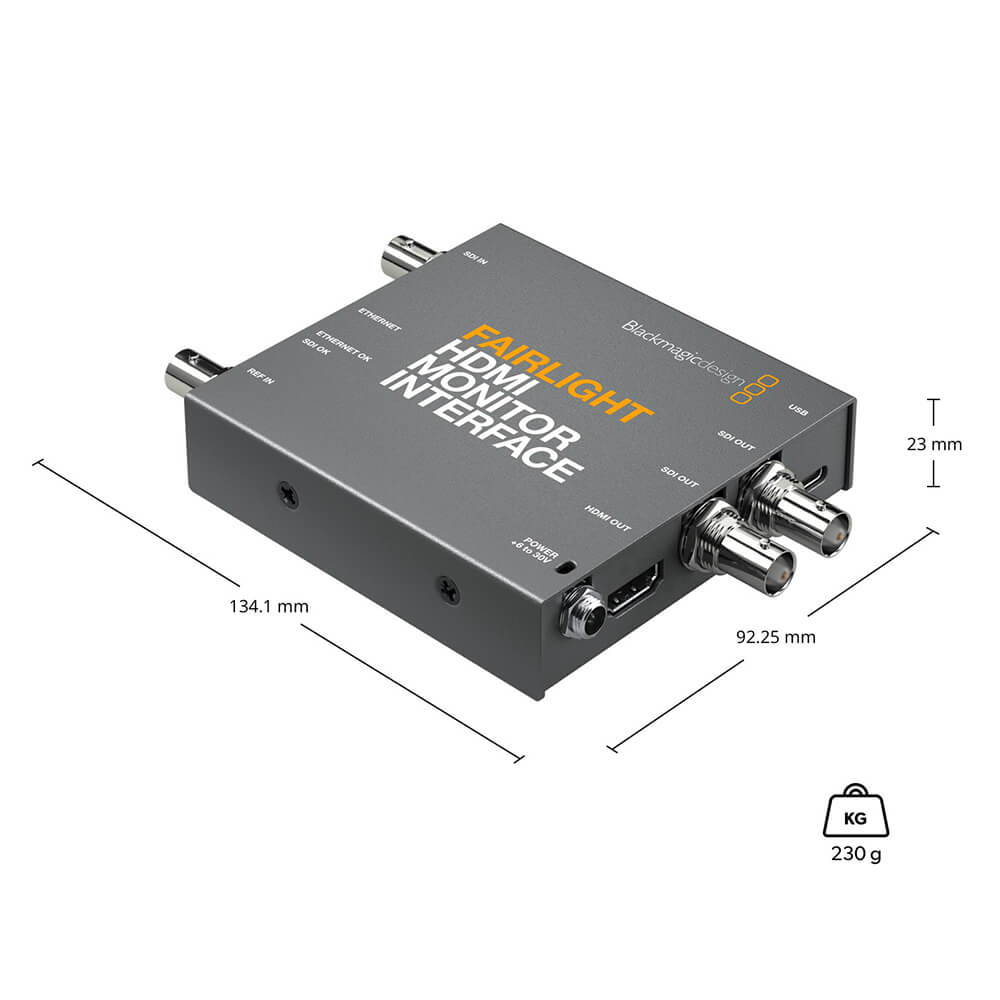

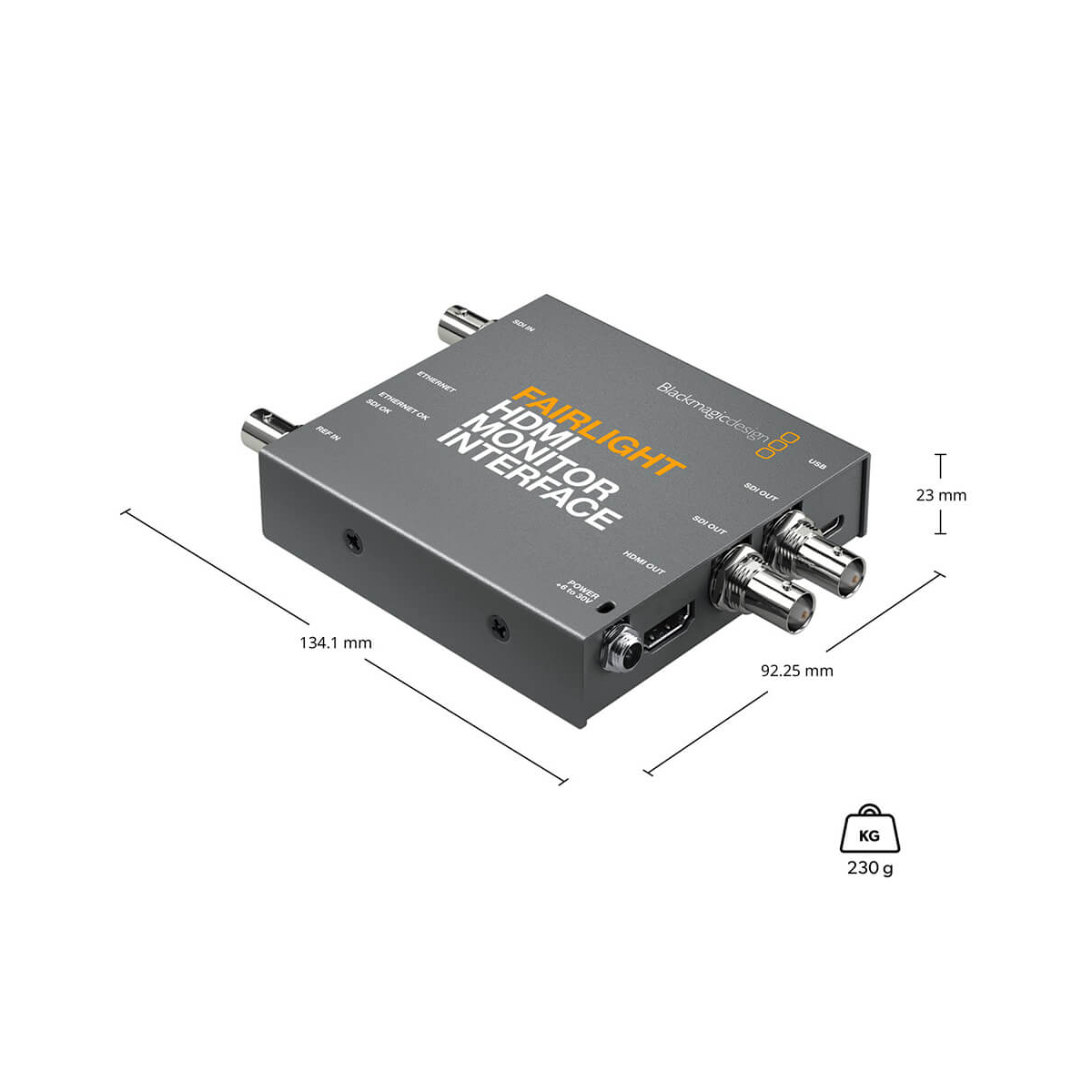

Dimensions | 5.28 x 3.63 x 0.9" / 13.41 x 9.22 x 2.29 cm |
Weight | 8.1 oz / 230 g |
