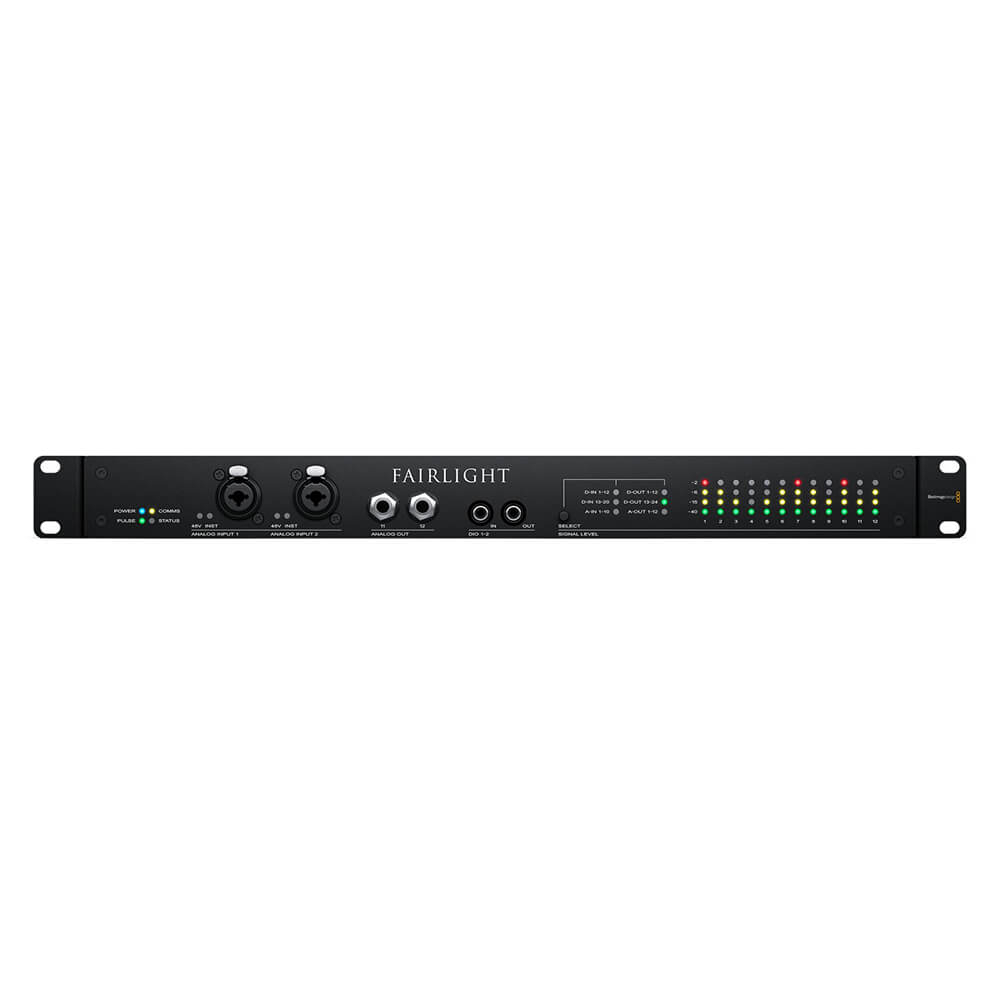

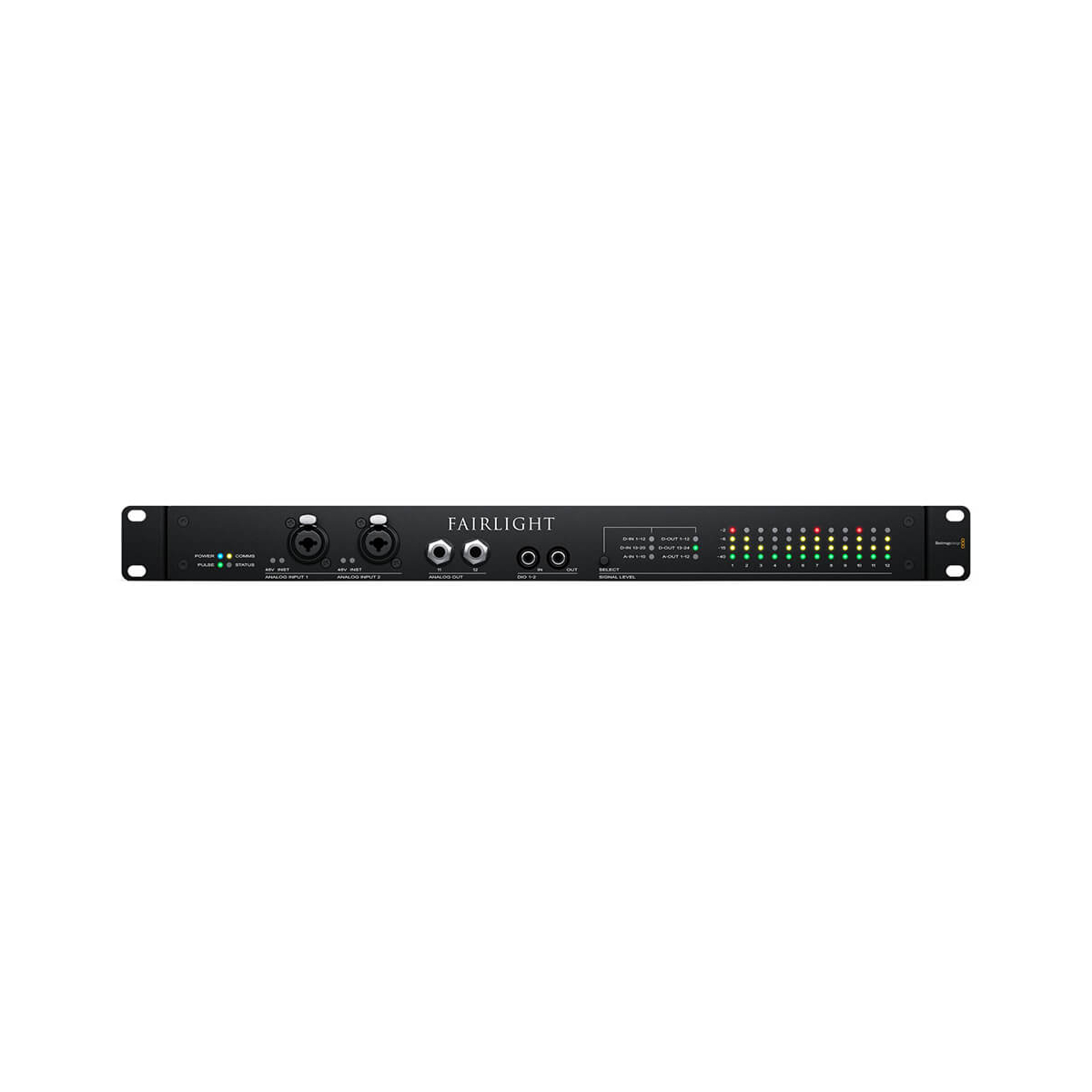

Fairlight Audio Interface is a professional audio post production I/O interface with an extensive variety of analog and digital inputs and outputs, preamps for microphones and instruments, built in sample rate conversion, sync at any standard frame rate and dual 9‑pin control ports! Fairlight Audio Interface requires Fairlight Audio Accelerator and connects to the Fairlight Audio Interface with a supplied proprietary interface cable.
Fairlight Audio Interface

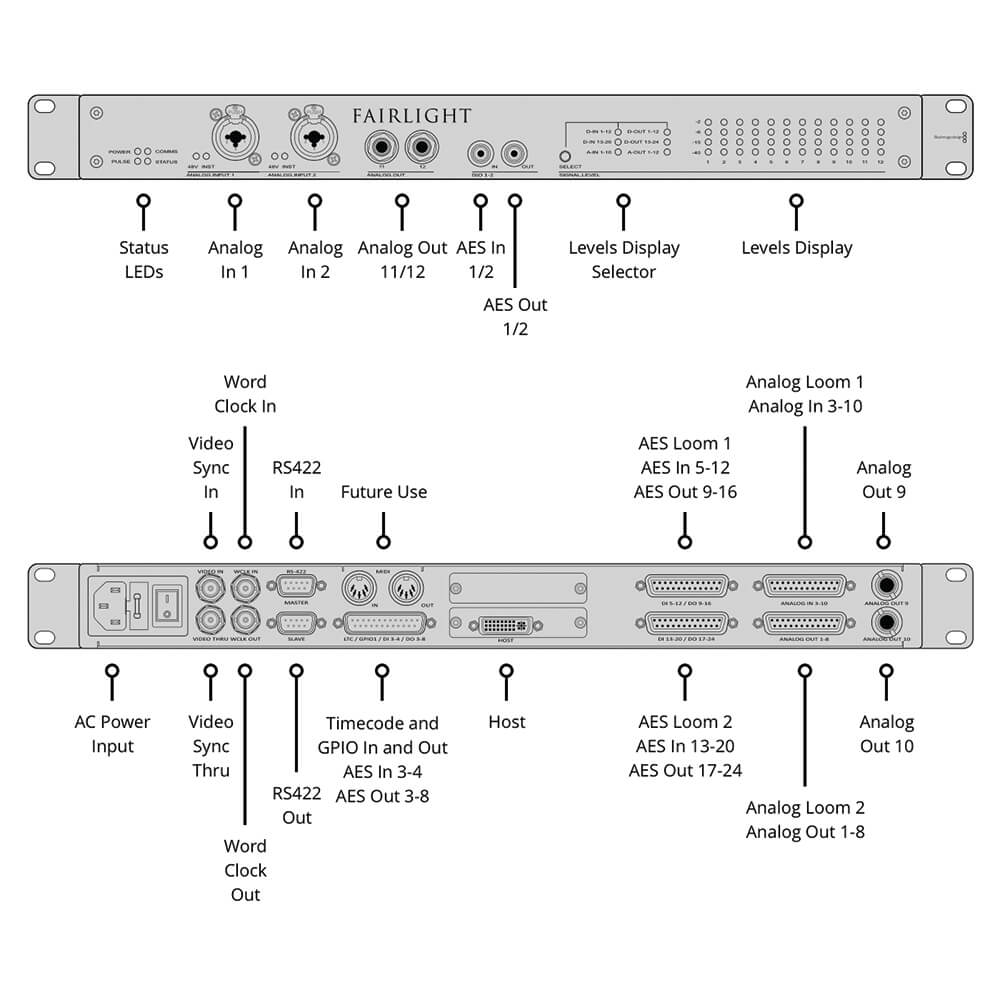

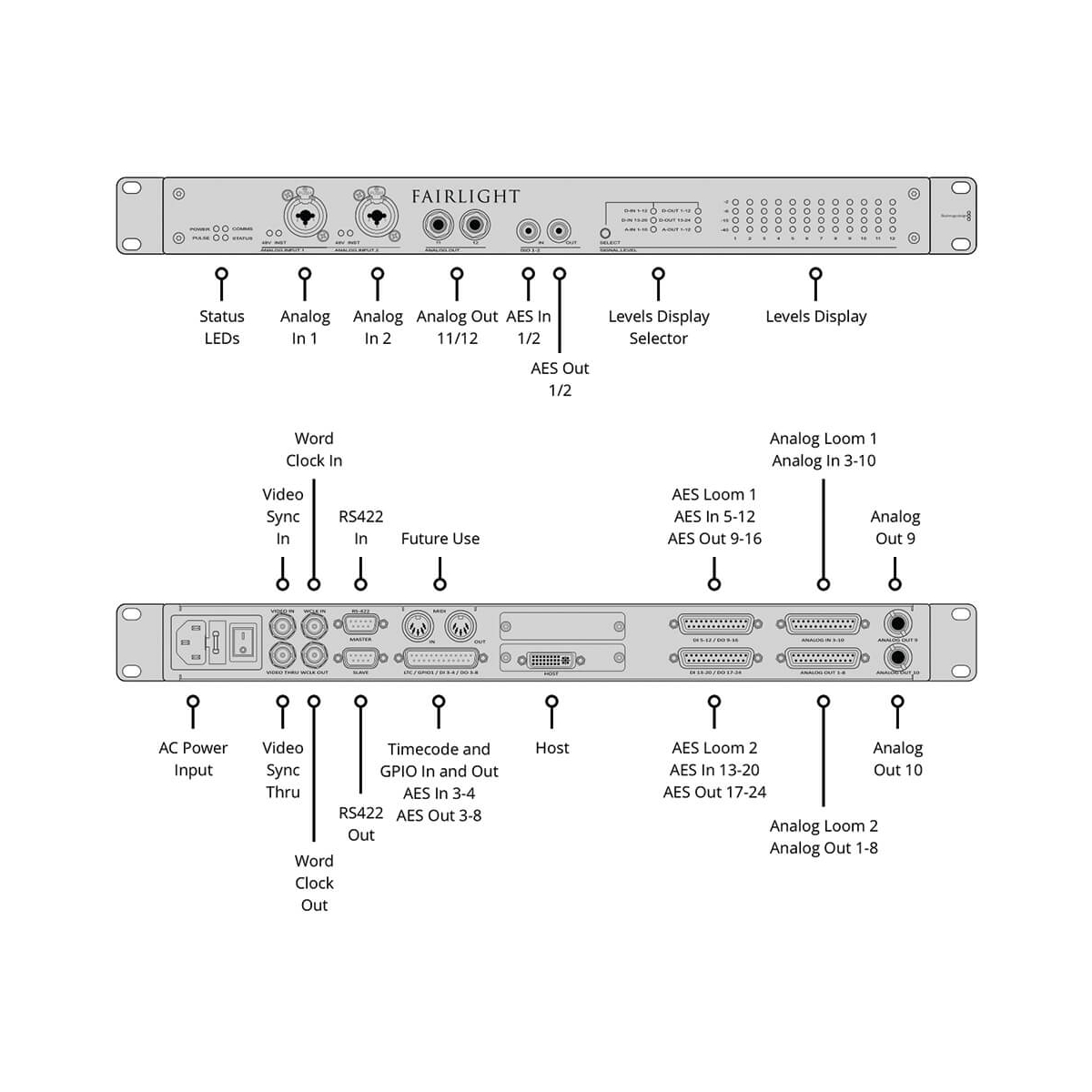

Connections
Analog Audio Inputs :
2 x remote controlled XLR/TRS microphone inputs with 48v phantom power / instrument preamps.
8 x +24dBu balanced analog inputs.
Analog Audio Outputs :
12 x +24dBu balanced analog outputs with mute protection.
Digital Audio Inputs :
9 x fully transformer coupled AES stereo digital inputs.
1 x S/PDIF input with sample-rate conversion.
Digital Audio Outputs :
11 x AES stereo digital outputs.
1 x stereo digital S/PDIF output.
Standard 25pin Tascam interface for Analog and AES looms.
Sync Input :
1 x 75 ohm BNC Reference input. Tri‑Sync or Black Burst.
1 x 75 ohm BNC word clock input.
Sync Output :
1 x 75 ohm BNC Reference loop out. Tri‑Sync or Black Burst.
1 x 75 ohm BNC word clock regenerated output.
Sync to all common frame rates and formats including HD Tri‑level sync, video sync, word‑clock and AES/EBU.
Device Control :
1 x RS-422 9-pin machine control input.
1 x RS-422 9-pin machine control output.
Timecode :
Timecode input and output with regeneration.
MIDI :
For future use
GPIO :
GPI and GPO connections for cough and ‘On‑Air’ control
Product Specifics
Sample Rate :
44.1, 48, 96, 192 kHz
Max Input :
Inputs 1-2 (mic): +2.5dBu
Inputs 1-2 (instrument): +24dBu
Inputs 3-10 (Line): +24dBu
Gain Range :
Inputs 1-2: Mic Inputs: 50dB gain range (+21.5 to +71.5dB)
Inputs 1-2 : Instrument Setting: 50dB gain range (+0 to +50dB)
Mic E.I.N (unweighted) :
Inputs 1-2: -127dBu @40dB (61.5dB)
Gain: 150 ohm source, 20Hz - 20kHz THD+N (mic input)
Inputs 1-2: Inputs 1-2:
THD+N (line input) :
Inputs 1-2 : <0.001%@ 1kHz, -1 dBFS after 0dB gain (unweighted)
Inputs 3-10 : <0.001 % @ 1 kHz (unweighted)
Dynamic Range (line input) :
Inputs 1-2 : 108dB @ 0dB gain (unweighted)
Inputs 3-10 : 110dB (unweighted)
Input Frequency Response :
+0.05/-0.05dB, 20Hz - 20kHz
Input Impedance :
Inputs 1-2 (XLR) : 2k ohm
Inputs 1-2 (1/4"): >1M ohm
Inputs 3-10: 15k ohm
Max Output :
Outputs 1-12 : +24 dBu
THD+N (Line Outputs) :
Outputs 1-12 : <0.002%
Dynamic Range (Line Output) :
Outputs 1-12 : 109 dB (unweighted)
Output Frequency Response :
+0.05/-0.5dB, 20Hz - 20kHz
Output Impedance :
Outputs 1-12 : 50 ohms
Operating Systems
Mac 10.15 Catalina or later.
Windows 10, 64-bit.
Power Requirements
Power Supply :
Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.
Power Usage :
40W
Power Management :
Automatically powered-on/off only when the Fairlight Audio Accelerator is powered on.
Environmental Specifications
Operating Temperature :
0° to 40°C (32° to 104°F)
Storage Temperature :
-20° to 60°C (-4° to 140°F)
Relative Humidity :
0% to 90% non-condensing
Warranty
1 Year Limited Manufacturer's Warranty.
- Fairlight Audio Interface
- Fairlight Audio Interface multi-pin cable to connect to Fairlight Audio Accelerator.
