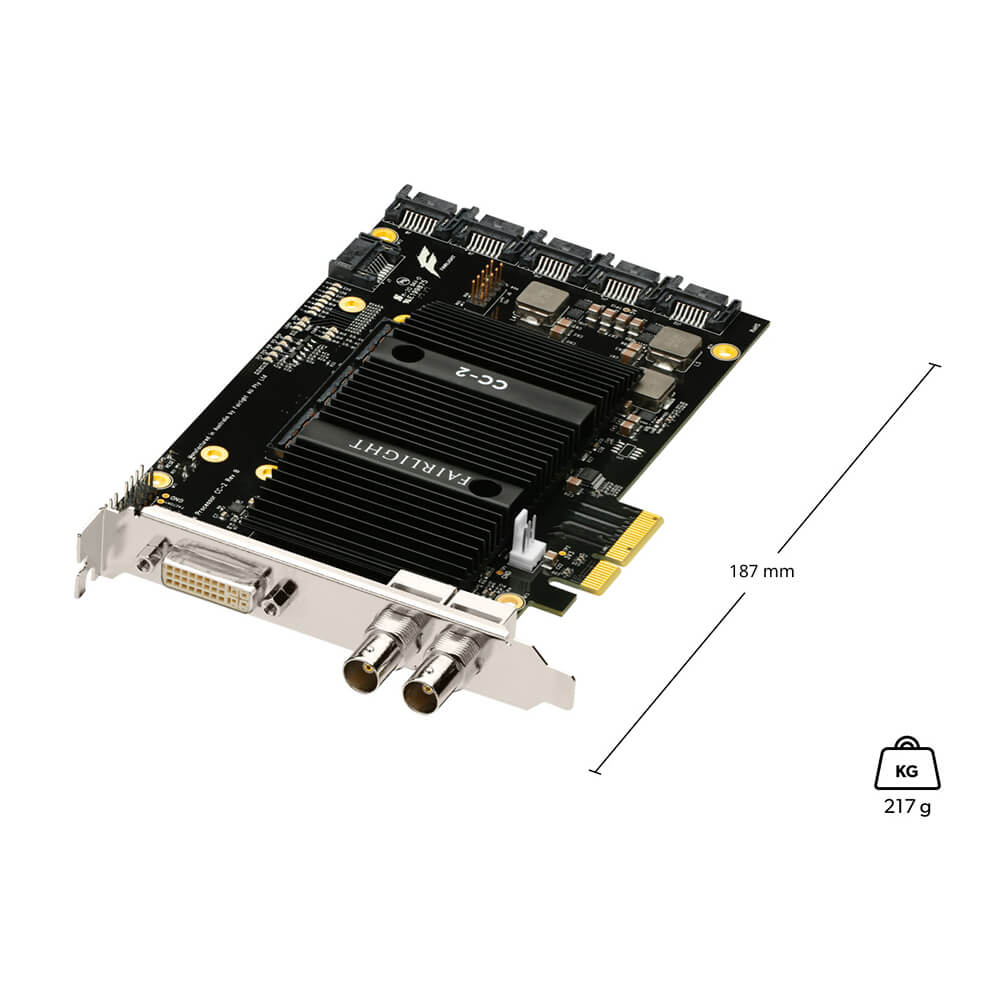

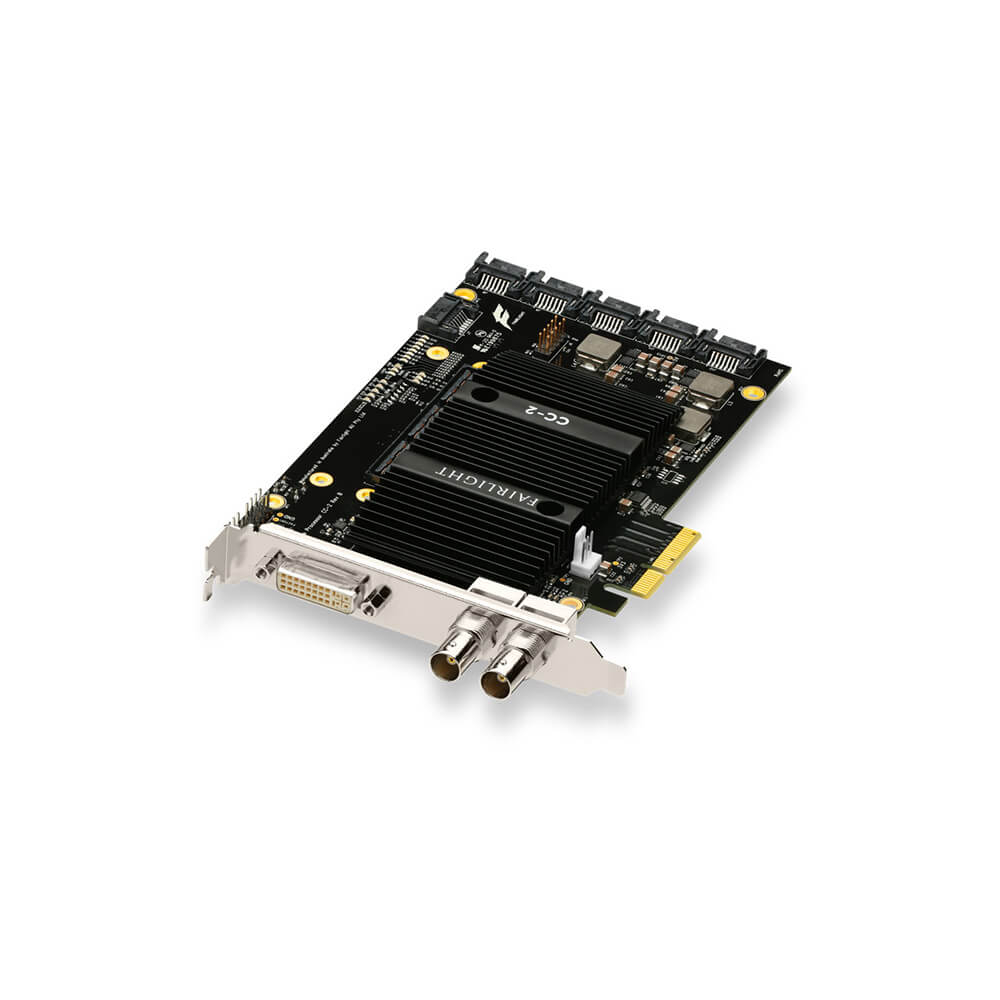

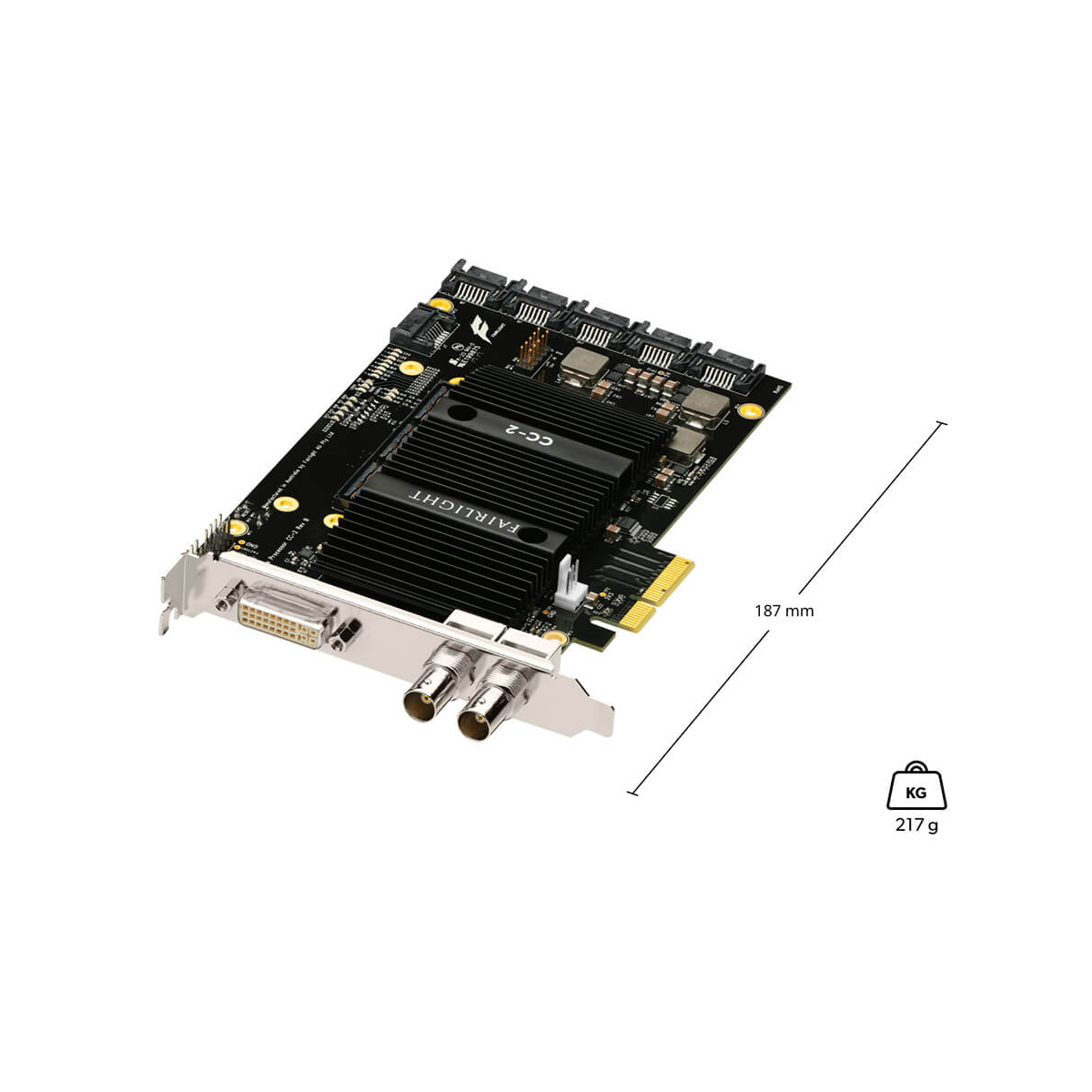

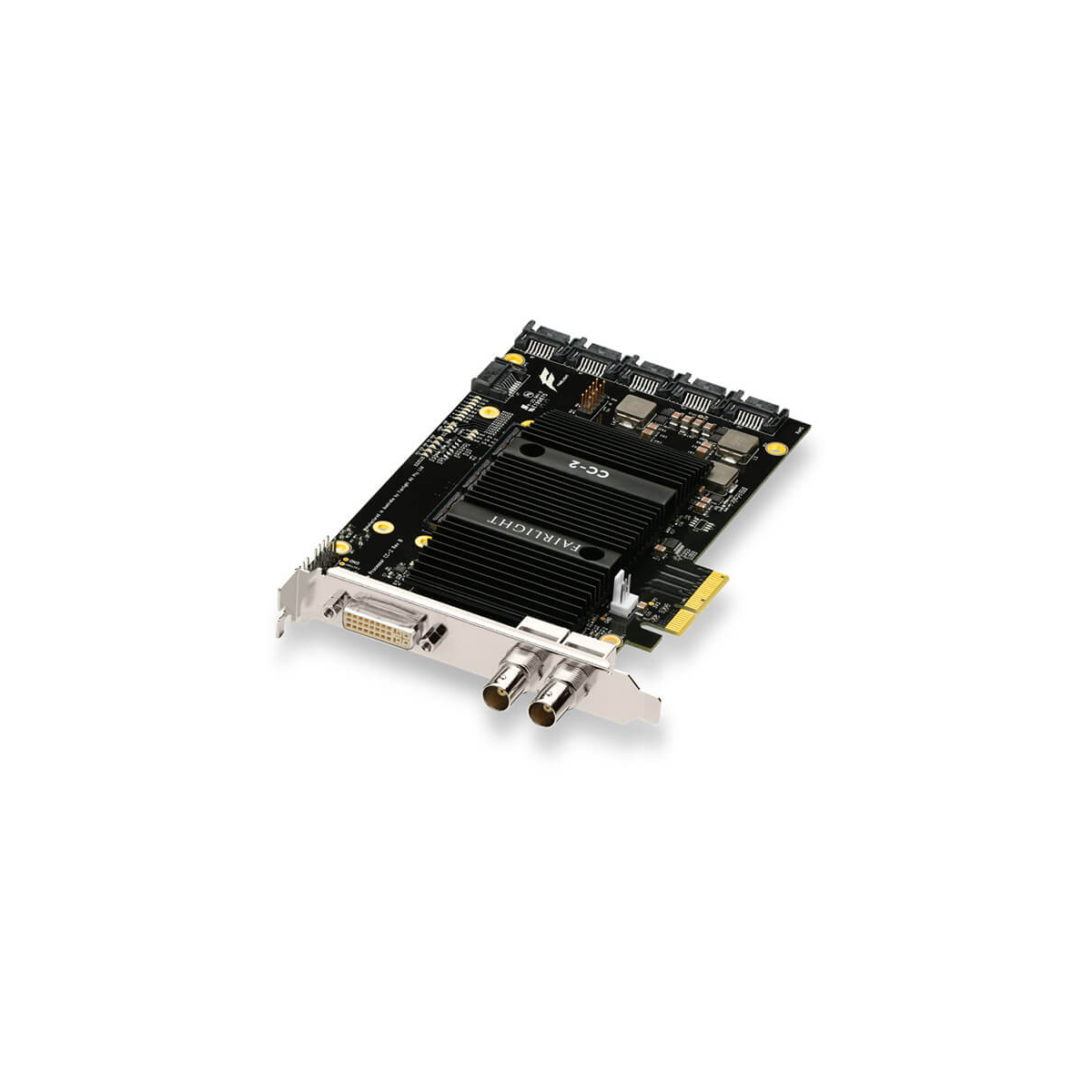

Greatly expand the audio capabilities of your DaVinci Resolve 17 system with the Blackmagic Design Fairlight PCIe Audio Accelerator, a half-length PCIe card that supports up to 2000 tracks (all with ultralow latency), 256 buses plus 512 bus elements, 128 record channels, 64-channel MADI I/O, and up to 16 different speaker sets.
With its high-resolution audio formats, potent channel and bus facilities, and compliance with complex surround setups, the Fairlight PCIe Audio Accelerator takes the performance of your DaVinci Resolve 17 system to a level that can satisfy the most demanding power user. Refine every track and bus with up to six Resolve, VST, or Audio Units plug-ins, multiband EQ, and full plug-in automation.
Blackmagic Design DV/RFL/AUDACC2 Specification |
|
OS Compatibility | macOS 10.15 or Later Windows 10 (64-Bit) |
Bit Depth | 32-Bit Floating Point Processing |
Sample Rates | 44.1, 48, 96, and 192 kHz |

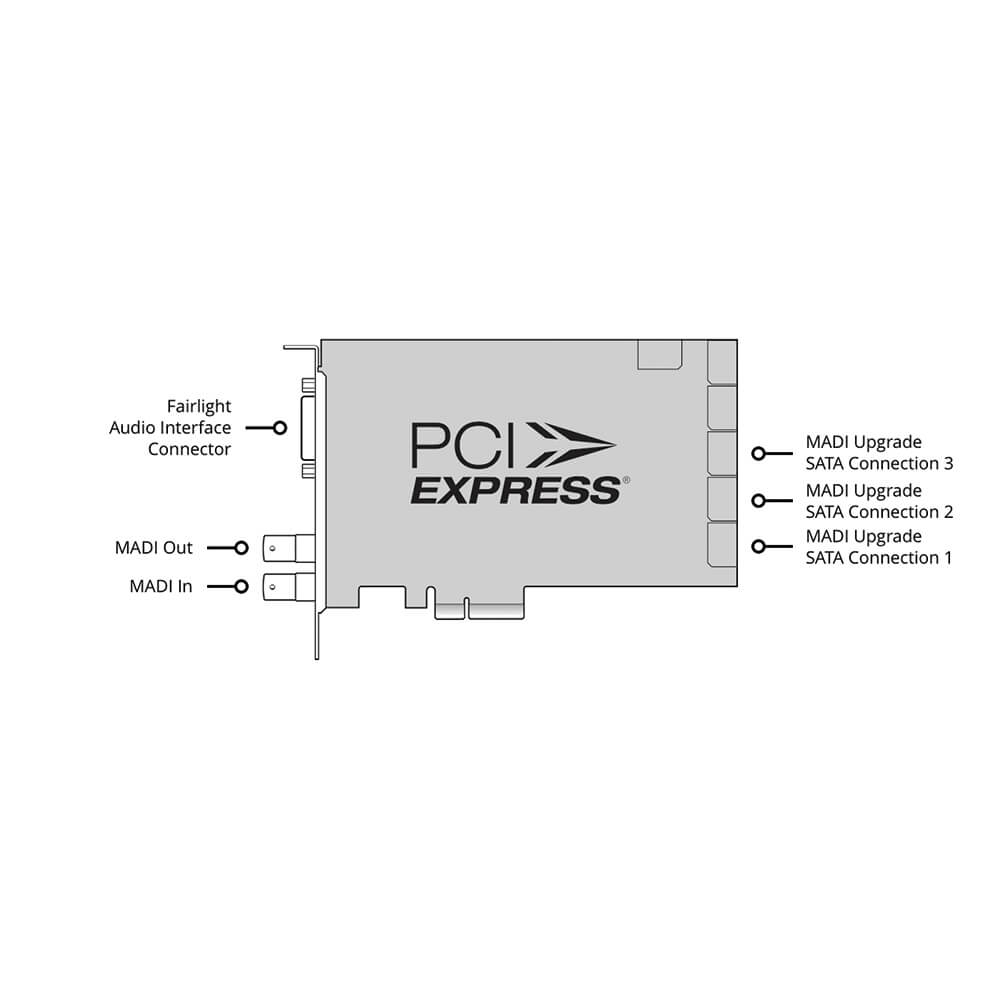

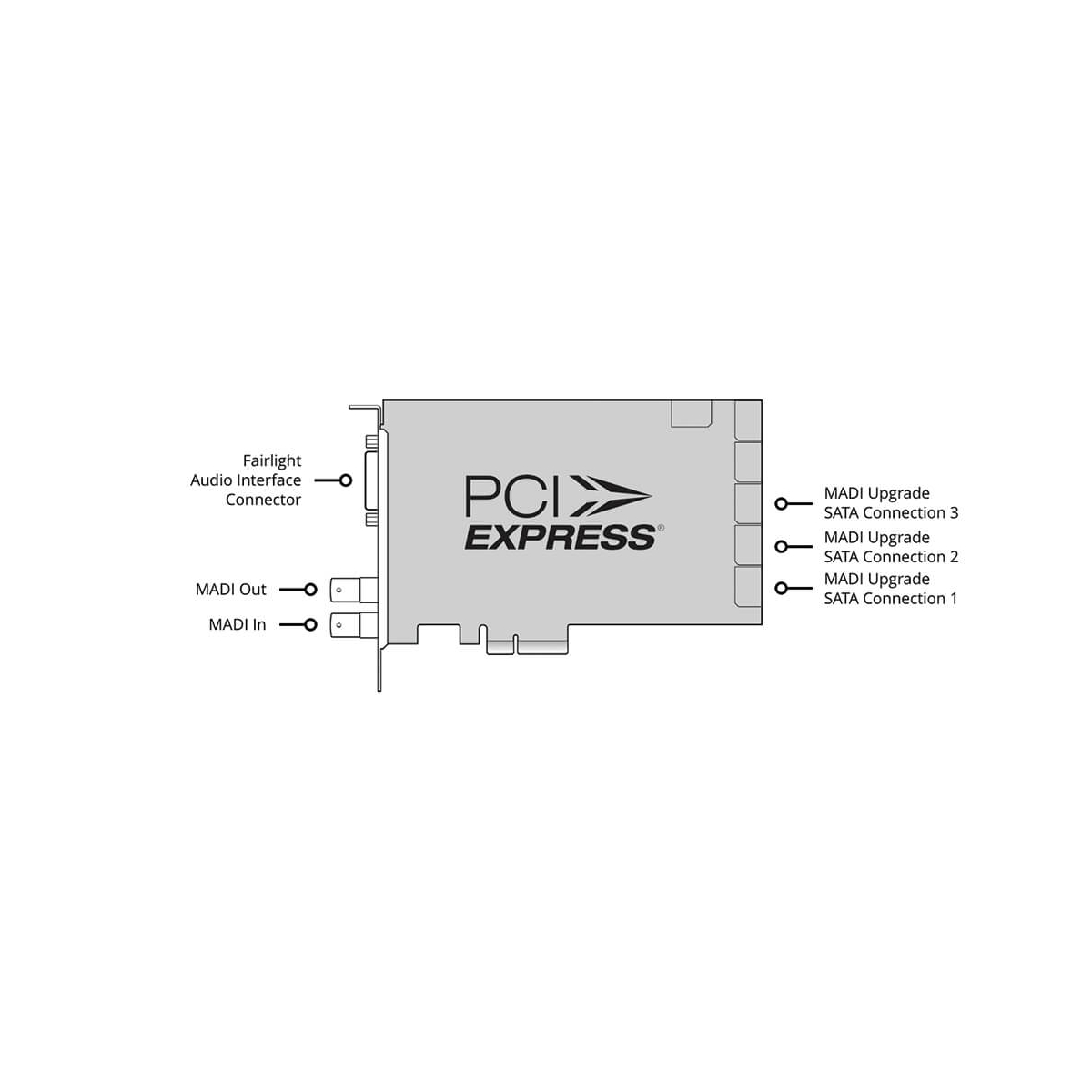

Ports | 1 x BNC Female MADI Input 1 x BNC Female MADI Output 1 x Proprietary Multipin Fairlight Audio Interface Connector |
Expansion Capabilities | Supports Fairlight Audio MADI Upgrade via SATA Connectors 1, 2, and 3 |
PCIe Card Length | Single Half-Length PCIe x4 Board |
Impedance | BNC Input and Output: 75 Ohms |
Tracks | 2000 Mono Audio Tracks at 48 kHz 1000 Mono Audio Tracks at 96 kHz 500 Mono Audio Tracks at 192 kHz |
Channels | 64 Input Channels at 48 kHz 64 Output Channels at 48 kHz 128 Record Channels at 48 kHz 64 Record Channels at 96 kHz 32 Record Channels at 192 kHz |
Channel Formats | Mono, Stereo, 5.1, 7.1 up to 26.0, and Other 3D Channel Formats |
Busses | 256 Buses plus 512 Bus Elements at 48 kHz 256 Buses plus 256 Bus Elements at 96 kHz 256 Buses plus 128 Bus Elements at 192 kHz |
Power Usage | 14 W |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Relative Humidity | 0 to 90% Noncondensing |
PCIe Card Length | 7.4" / 18.7 cm |
Weight | 7.7 oz / 216.9 g |
