【Blackmagic Design】DeckLink Studio 4K

  • 6G-SDI Input/Output
  • 4K HDMI Input/Output
  • PCIe Interface
  • Supports SD, HD, 2K, and 4K Formats
  • UHD / DCI 4K 4:2:2 via 6G-SDI or HDMI
  • 1080p 4:4:4 by Single-Link 3G-SDI
  • Analog I/O via Breakout Cable
  • Genlock, RS-422, SD/HD Keyer
  • Down/Up/Cross Conversions
  • Mac OS X, Windows, and Linux Compatbile

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
BDLKSTUDIO4K
Write Your Own Review
You're reviewing:【Blackmagic Design】DeckLink Studio 4K
Your Rating

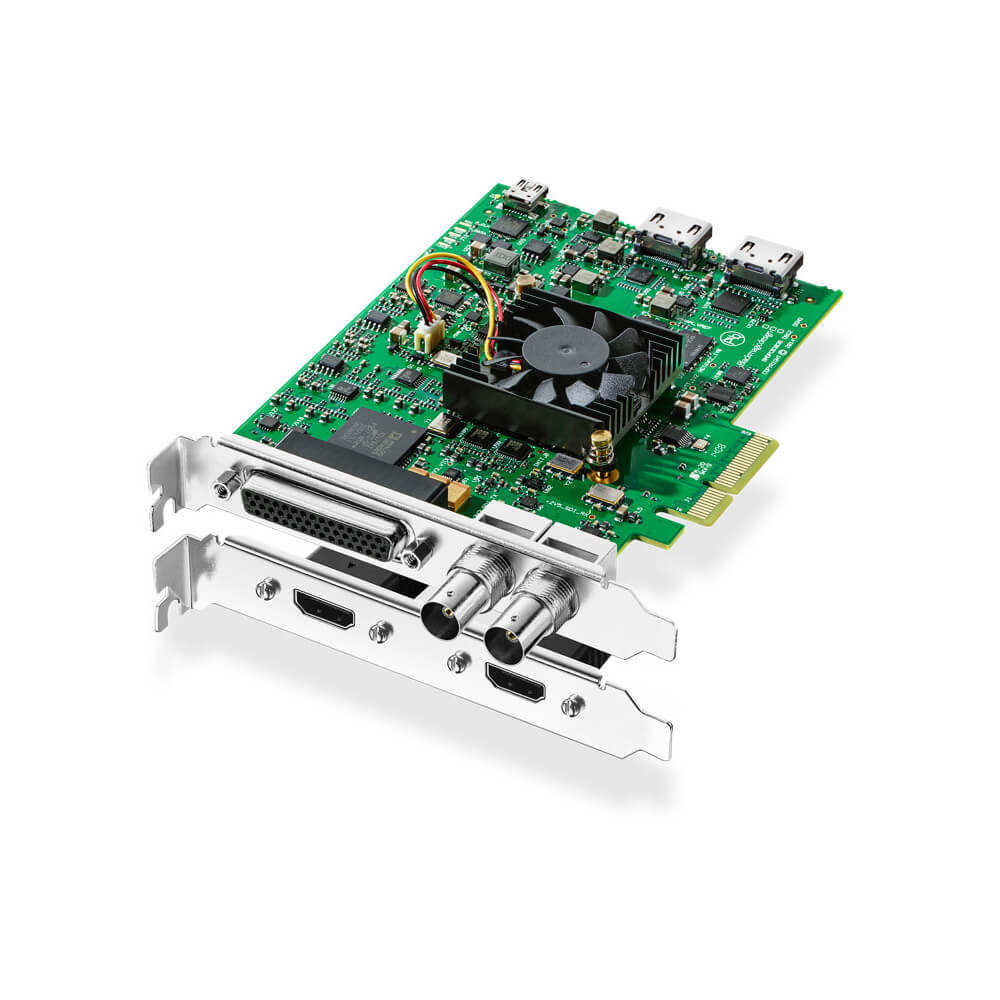

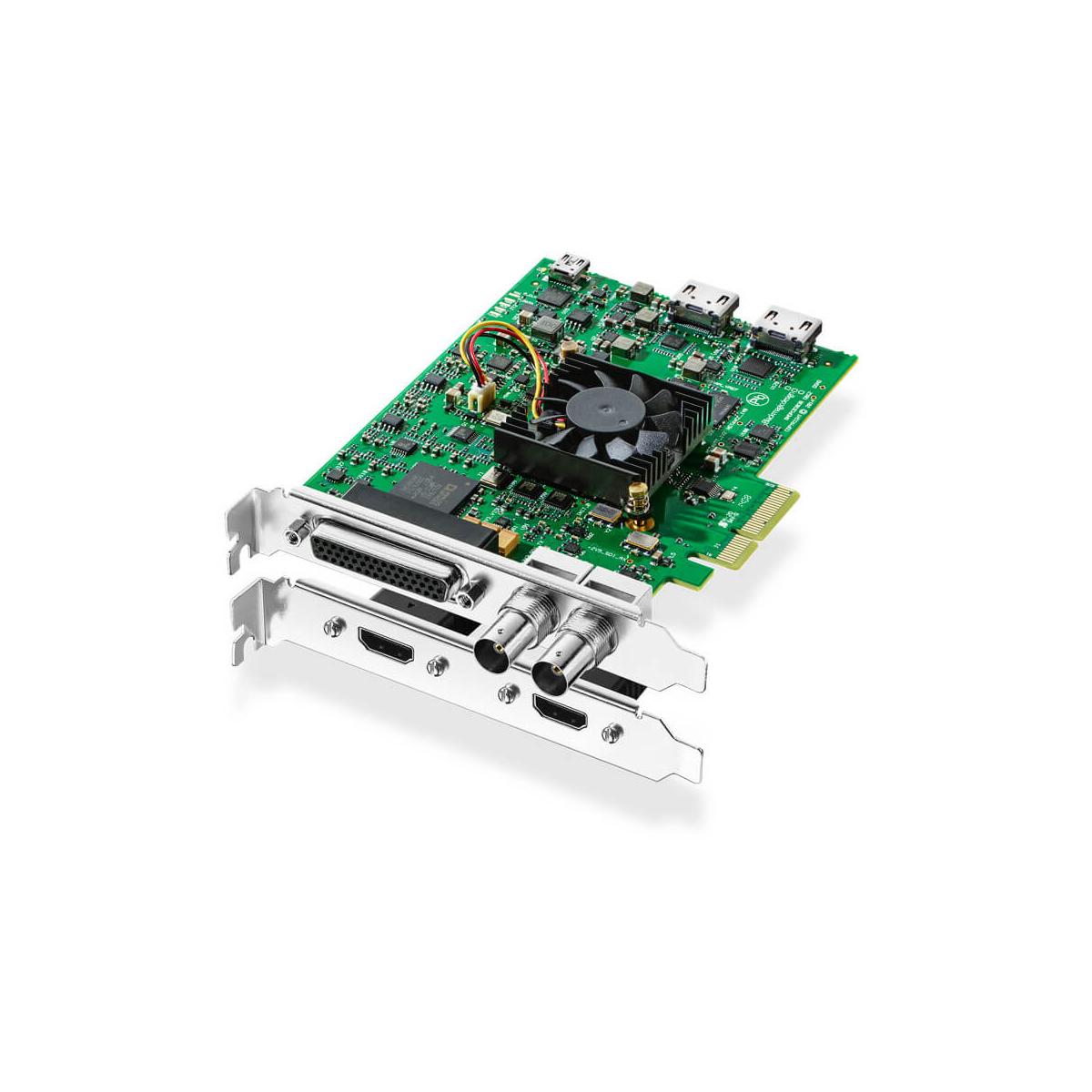

The DeckLink Studio 4K Capture & Playback Card from Blackmagic Design features 6G-SDI and 4K HDMI inputs/outputs which support resolutions from SD to Ultra HD 4K (3840x2160) and DCI 4K (4096x2160). Additionally, the DeckLink Studio 4K offers a wide range of video and audio connections via an included breakout cable. These connections consist of analog component, S-Video, composite video, two channels of AES/EBU audio, and four channels of balanced analog audio. The card also provides RS-422 deck control, a reference input, and a down converted SD output.

DeckLink Studio 4K offers flexible format and system support, letting you work with compressed video formats such as ProRes and DNxHD, as well as 10-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. DeckLink Studio 4K is compatible with Mac, Windows, and Linux based workstations.


Key Features

  • PCIe capture/playback card compatible with Mac, Windows, and Linux based workstations and servers
  • Multi-rate SDI and HDMI connections accept SD, HD, 2K, and 4K resolutions
  • 10-bit, 4:2:2 UHD 4K or DCI 4K by single-link 6G-SDI
  • 10-bit, 4:4:4 1080p by single-link 6G-SDI
  • 8-bit RBG / 10-bit YUV HDMI output
  • HD to SD down-conversion
  • SD to HD up-conversion
  • Hardware cross conversion between 720p and 1080p on playback
  • RS-422 deck control
  • Internal SD keying
  • Reference input
  • Blackburst and tri-sync
  • Supports 16 channels of embedded SDI and 8 channels of embedded HDMI audio in HD, 2K, and 4K resolutions (8 channels of embedded SDI audio in SD)

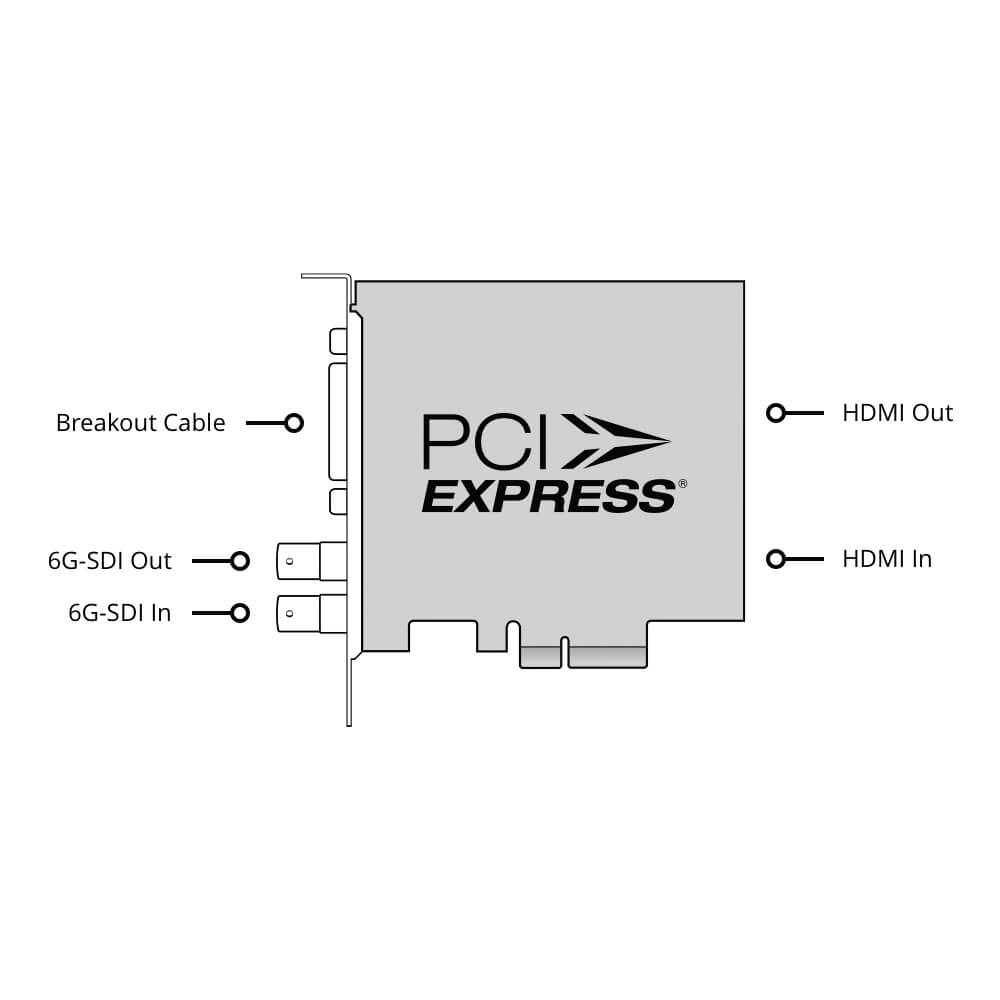

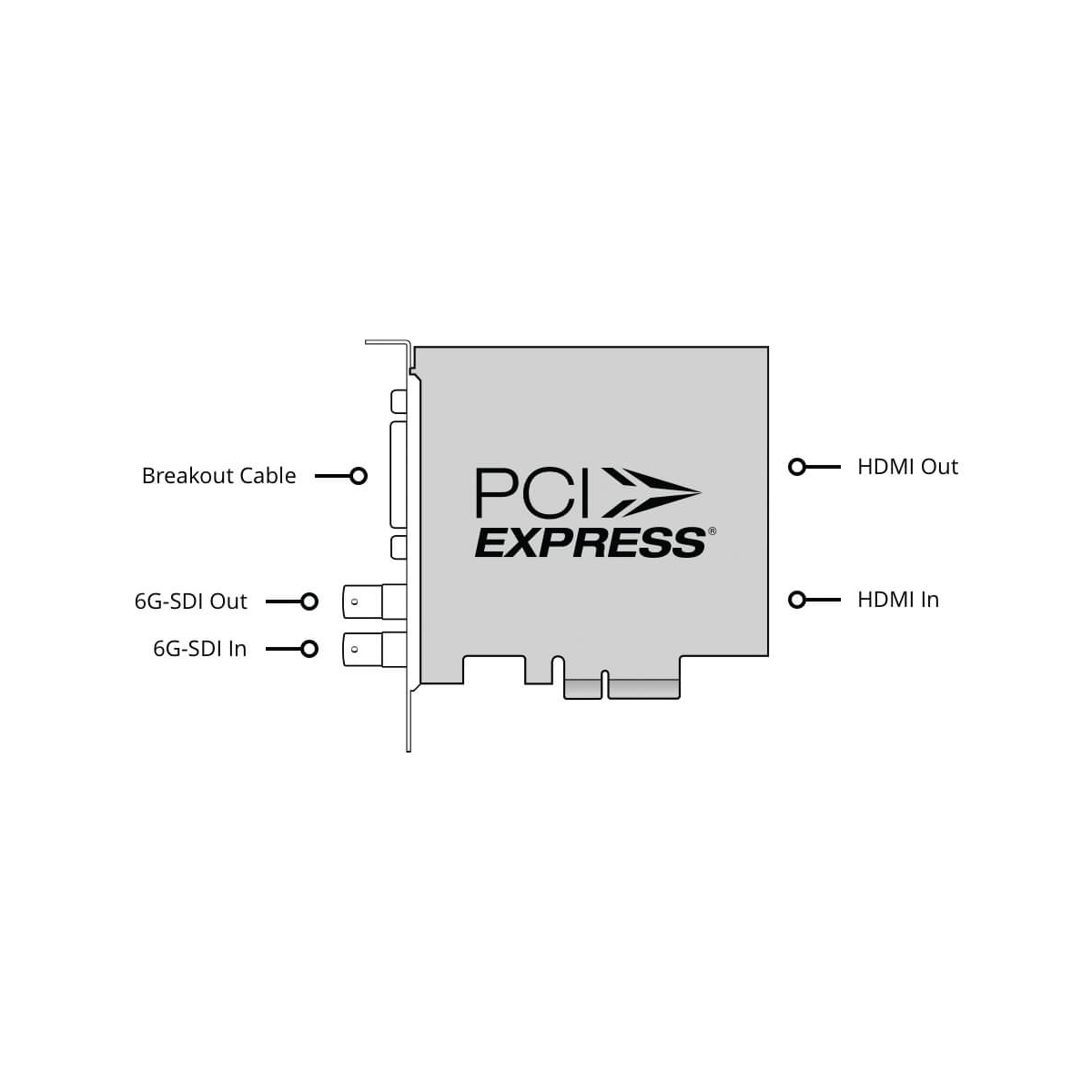

1 x 10-bit 6G-SDI via BNC Connector

Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4

Blackmagic Design Studio 4K Specification

SDI Video Input

1 x 10-bit 6G-SDI via BNC Connector

Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4

SDI Video Output

1 x 10-bit 6G-SDI via BNC Connector

Supports 6 Gb/s 4:2:2 and 3 Gb/s 4:4:4

Analog Video Input Via included breakout cable:
1 x Component YUV on three BNC connectors (HD and SD)
1 x Composite
1 x S-Video
HDMI Video Input 1 x HDMI Type A
HDMI Video Output 1 x HDMI Type A
SDI Audio Input 16 Channels embedded in HD, 2K, and 4K; 8 Channels embedded in SD
SDI Audio Output 16 Channels embedded in HD, 2K, and 4K; 8 Channels embedded in SD
HDMI Audio Input 8 Channels embedded
HDMI Audio Output 8 Channels embedded
Analog Audio Input 4 Channels of professional balanced analog audio via 1/4" jack connectors (via included breakout cable)
Analog Audio Output 4 Channels of professional balanced analog audio via 1/4" jack connectors (via included breakout cable)
Channels 3 & 4 can switch to AES/EBU outputs
AES/EBU Audio Input 2 Channels unbalanced with sample rate converter (via included breakout cable)
AES/EBU Audio Output 2 Channels unbalanced (via included breakout cable)
Analog outputs 3 and 4 can switch to AES/EBU outputs for audio 3 & 4 and 5 & 6 output, for a total of 6 AES/EBU output audio channels
Sync Input Blackburst in SD, 720p50, 720p59.94, 1080i50 and 1080i59.94 formats or Tri-Sync in any HD, 2K, or 4K format
Device Control RS-422 deck control port (Sony-compatible)
Serial ports TxRx direction reversible under software control
Computer Interface PCI Express 4 lane generation 2, compatible with 4, 8, and 16 lane PCIe slots
Codecs Supported AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 (HQ), Apple ProRes 422, Apple ProRes (LT), Apple ProRes 422 (Proxy), Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10 bit 4:4:4
Format Support

SD
625/25 PAL
525/29.97 NTSC

HD
720p 50/59.94/60
1080i 50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080p 23.98/24/25/29.97/30/50/59.94/60

2K
2048x1080p 23.98/24/25

4K
3840x2160p 23.98/24/25/29.97/30
4096x2160p 23.98/24/25

SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, ITU-R BT.656, and ITU-R BT.601
SDI Metadata Support VITC read for 3:2 pulldown removal
VANC capture and playback using up to 3 lines of video in file
HD RP188
Closed captioning
Audio Sampling 24-bit, 48 kHz
Video Sampling 4:2:2 and 4:4:4 (4K is 4:2:2)
SDI Color Precision 10-bit
Color Space REC 601, REC 709
HDMI Configuration HDMI automatically configures to connected display
HDMI Resolution Pixel-for-pixel up to 4K resolutions
HDMI Color Precision 8-bit RGB, 10-bit YUV
HDCP Compatible No. HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Multiple Rate Support SDI video connections are switchable between SD, HD, 3G, and 6G formats
Colorspace Conversion Hardware based, real-time
HD Down Conversion Built in, high quality hardware down converter outputs HD-SDI on SDI output, SD on SD-SDI, Composite and S-Video outputs when working in HD video formats on playback. Switch analog video to Component and choose HD or SD output. Selectable between letterbox, anamorphic 16:9 and center cut 4:3 styles.
HD Up Conversion Built in, high quality hardware up-conversion from SD to 720HD or 1080HD on playback. Selectable between 4:3 pillarbox, 14:9 pillarbox and 16:9 zoom. HD outputs via HD-SDI, HDMI and component analog.
Cross Conversion Built-in, high-quality hardware cross conversion from 1280x720 to 1920x1080 and 1920x1080 to 1280x720 on playback
Real-Time Effects Apple Final Cut Pro internal effects
Adobe Premiere Pro CC Mercury Playback Engine effects
Avid Media Composer internal effects
Blackmagic Design DaVinci Resolve
Supported Operating Systems Mac OS X 10.8 Mountain Lion, Max OS X 10.9 Mavericks or later
Windows 7 or Windows 8
Linux
Supported Applications Apple Final Cut Pro X, Adobe Premiere Pro CC, Avid Media Composer, Adobe After Effects, Nuke - The Foundry, DaVinci Resolve, Avid Pro Tools, Steinberg Cubase, Autodesk Smoke, Adobe Photoshop, Steinberg Nuendo, Avid Symphony, Avid News Cutter, Tools On Air just:in & live:cut & just:play & just:live, Softron OnTheAir, MovieRecorder and OnTheAir CG, Flash Media Encoder, Wirecast, Livestream Procaster, Resolume Avenue 4, Sony Vegas Pro, Corel VideoStudio Pro X4, CyberLink Power Director, MAGIX Video Pro X4, Vidcaster Pro & Studio & Broadcast, Uniplay, Playbox AirBox, CasparCG, Magicsoft CG, Xsplit Broadcaster, Imagine Communications Velocity & InfoCaster
Software Included

Media Express, Disk Speed Test, LiveKey, Blackmagic System Preferences and Blackmagic driver on Mac OS X

Media Express, Disk Speed Test, LiveKey, Blackmagic Control Panel and Blackmagic driver on Windows 7 and Windows 8

Media Express, Blackmagic Control Panel and Blackmagic driver on Linux

Internal Software Upgrade Firmware built into software driver; loaded at system start or via updater software
EMC certifications FCC, CE and C-Tick
Operating Temperature 32 to 104° F (5 to 40°C)
Storage Temperature -4 to 113°F (-20 to 45°C)
Relative Humidity 0 to 90%, non-condensing

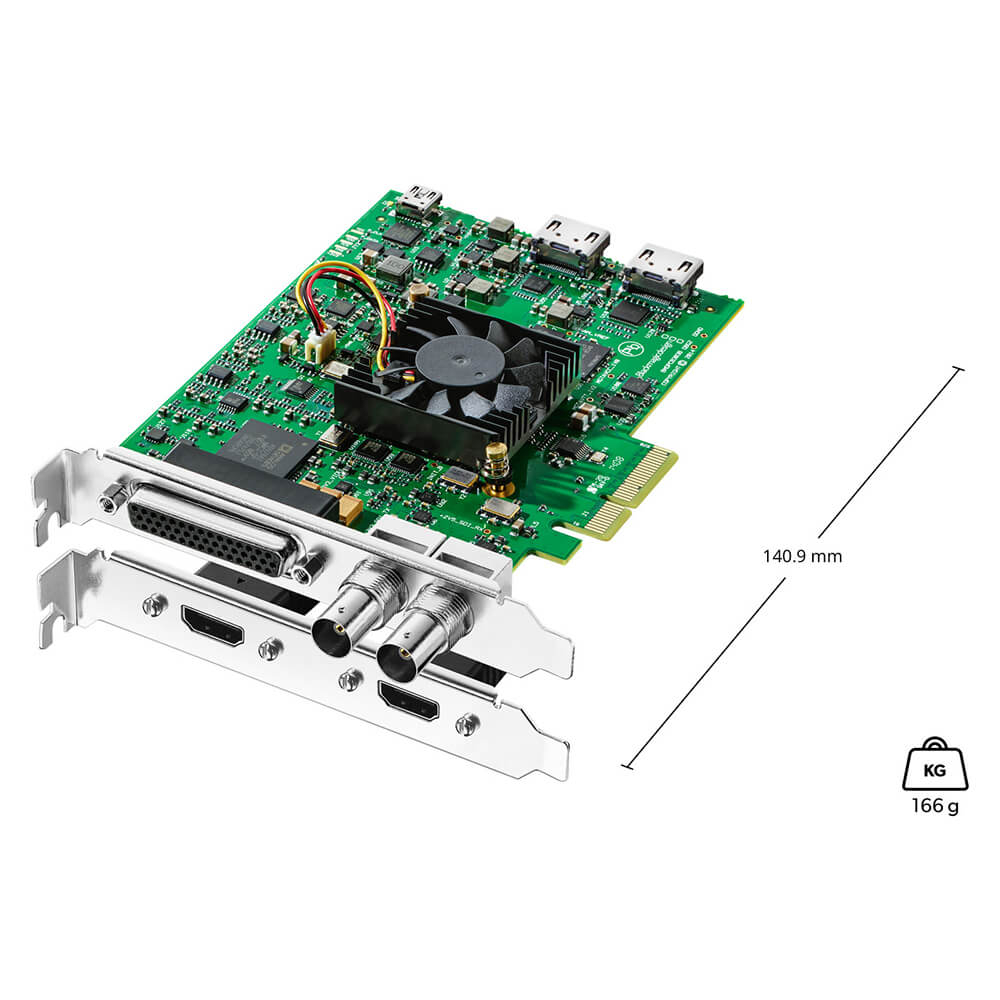

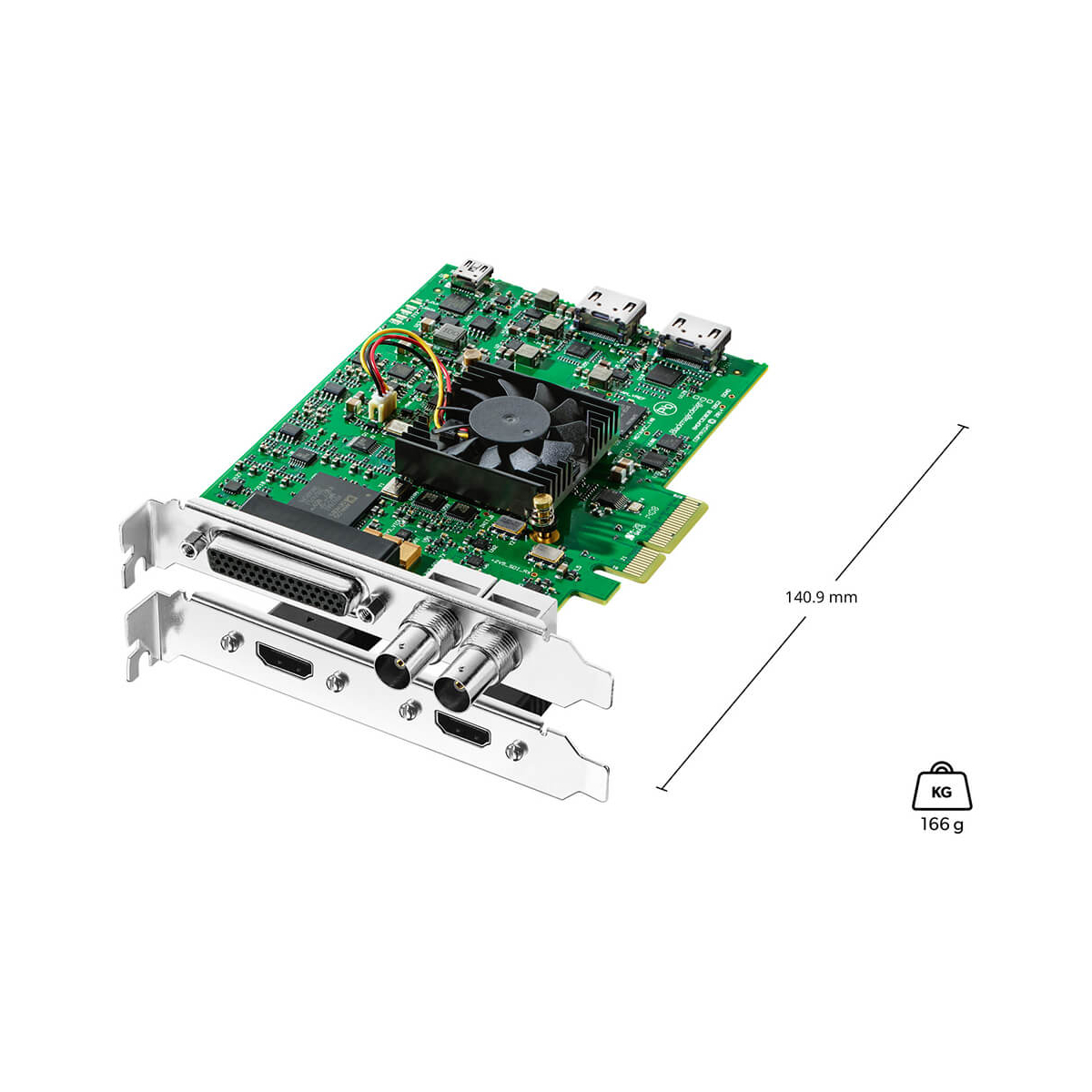

Length 5.55" (14.10 cm)
Weight 5.9 oz (167.3 g)
  • DeckLink Studio 4K

  • Breakout cable for analog and RS-422 control.

  • HDMI bracket

  • 3 Year Limited Manufacturer's Warranty.
