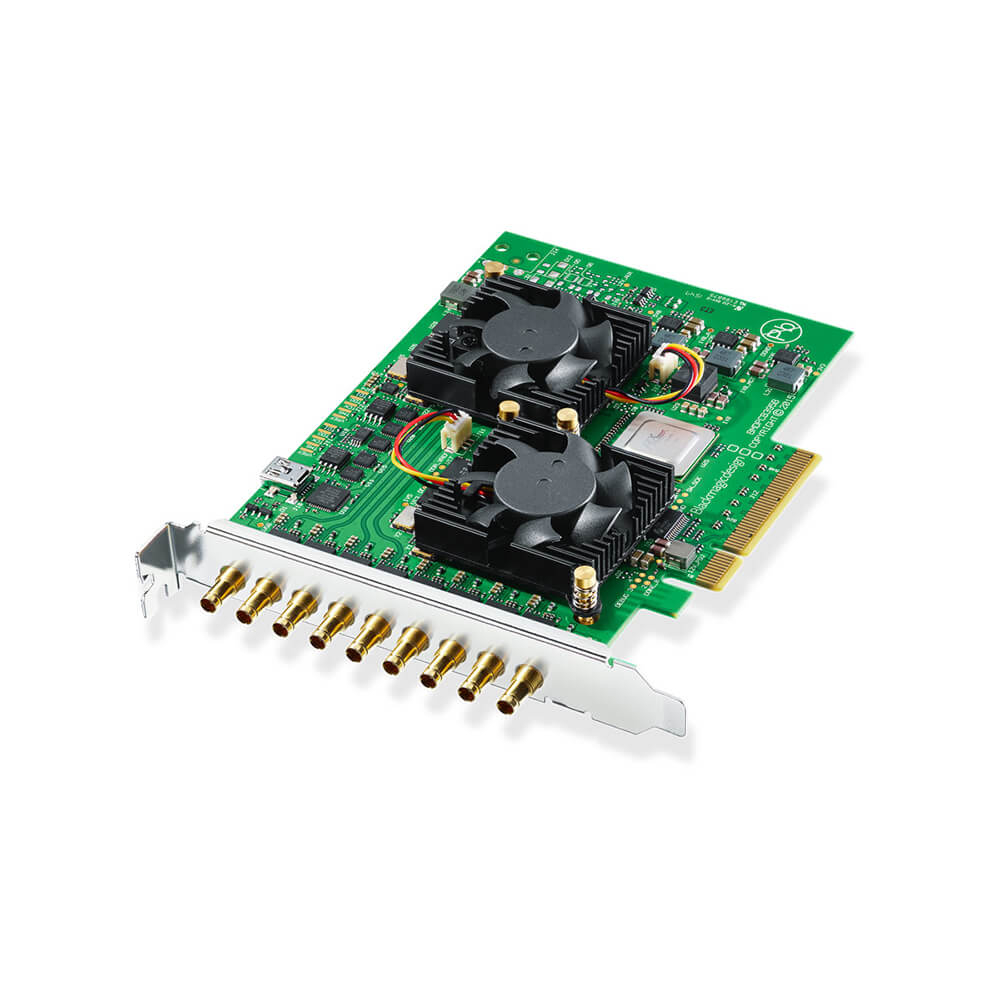

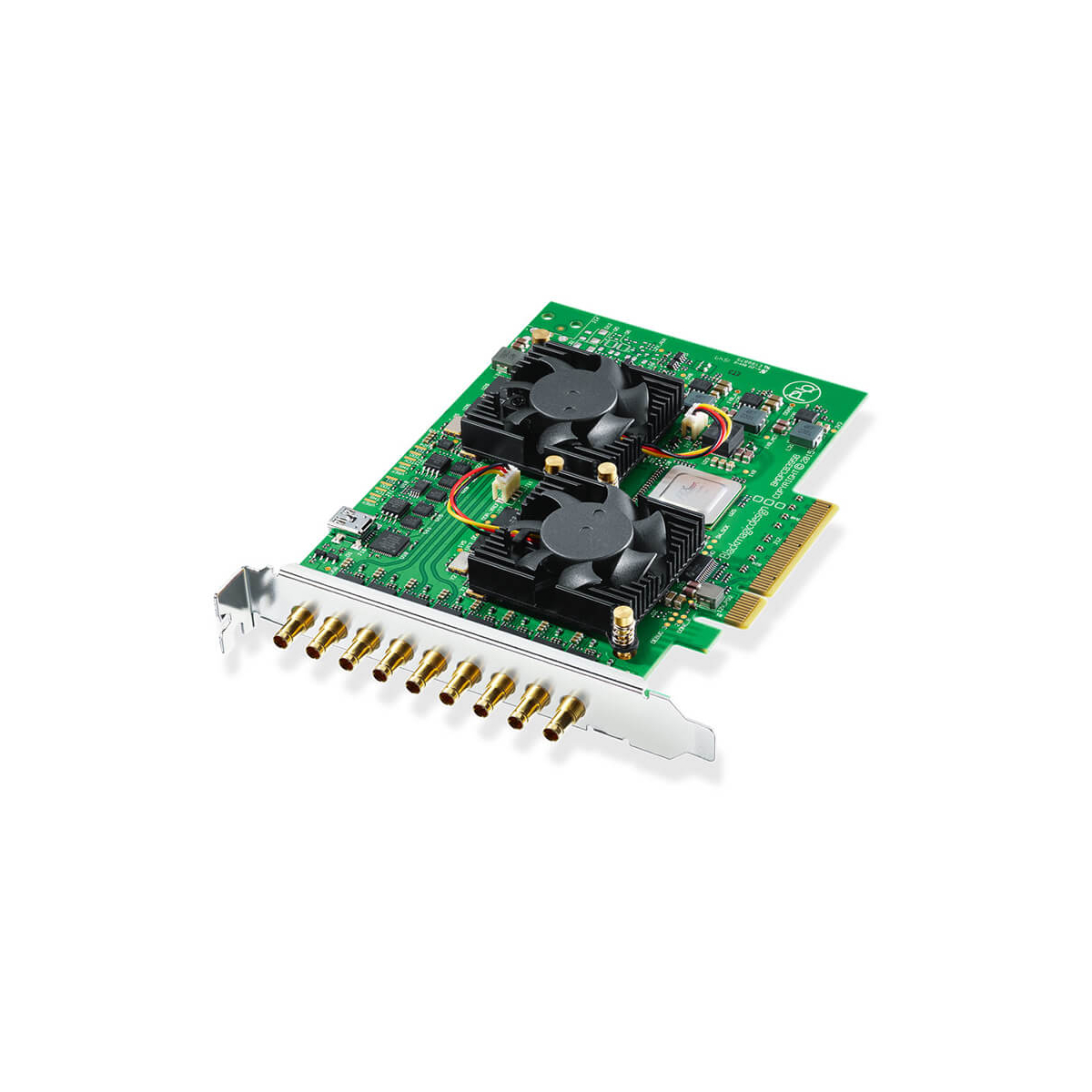

The Blackmagic Design DeckLink Quad 2 is an 8-lane PCIe card that features eight bidirectional, 12-bit SD/HD/3G-SDI Micro-BNC connectors that are independently configurable to provide any combination of eight capture or playback channels at up to 1080p60. The card supports compressed video formats such as ProRes and DNxHD, as well as uncompressed 10-bit 4:2:2 and 4:4:4 video, making it ideal for use in both live broadcast and post-production. It is compatible with Mac, Windows, and Linux computers, and is supported by a wide range of software applications. For use with applications that don't capture video on their own, Blackmagic's Media Express software is included, allowing you to capture, organize, and manage your media.
Blackmagic Design Quad 2 Specification |
|
System Connection | PCIe 2.0 x8 |

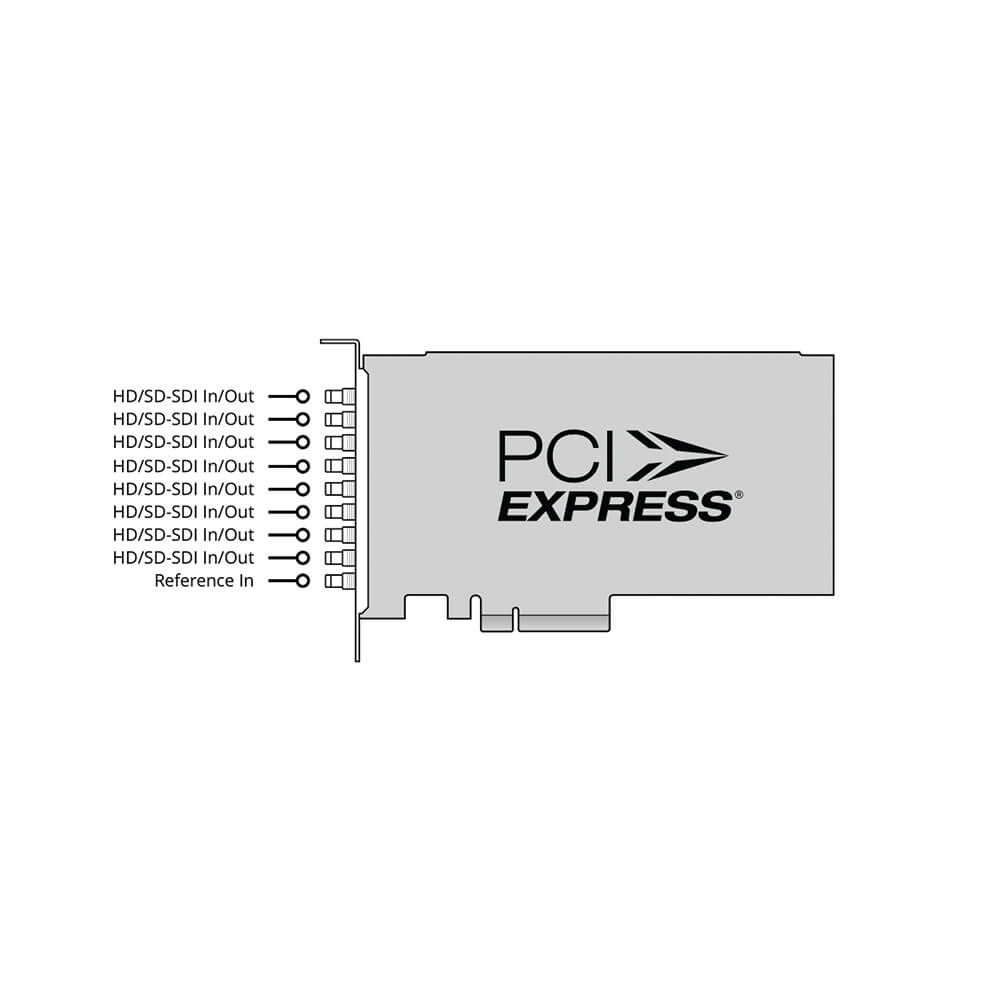

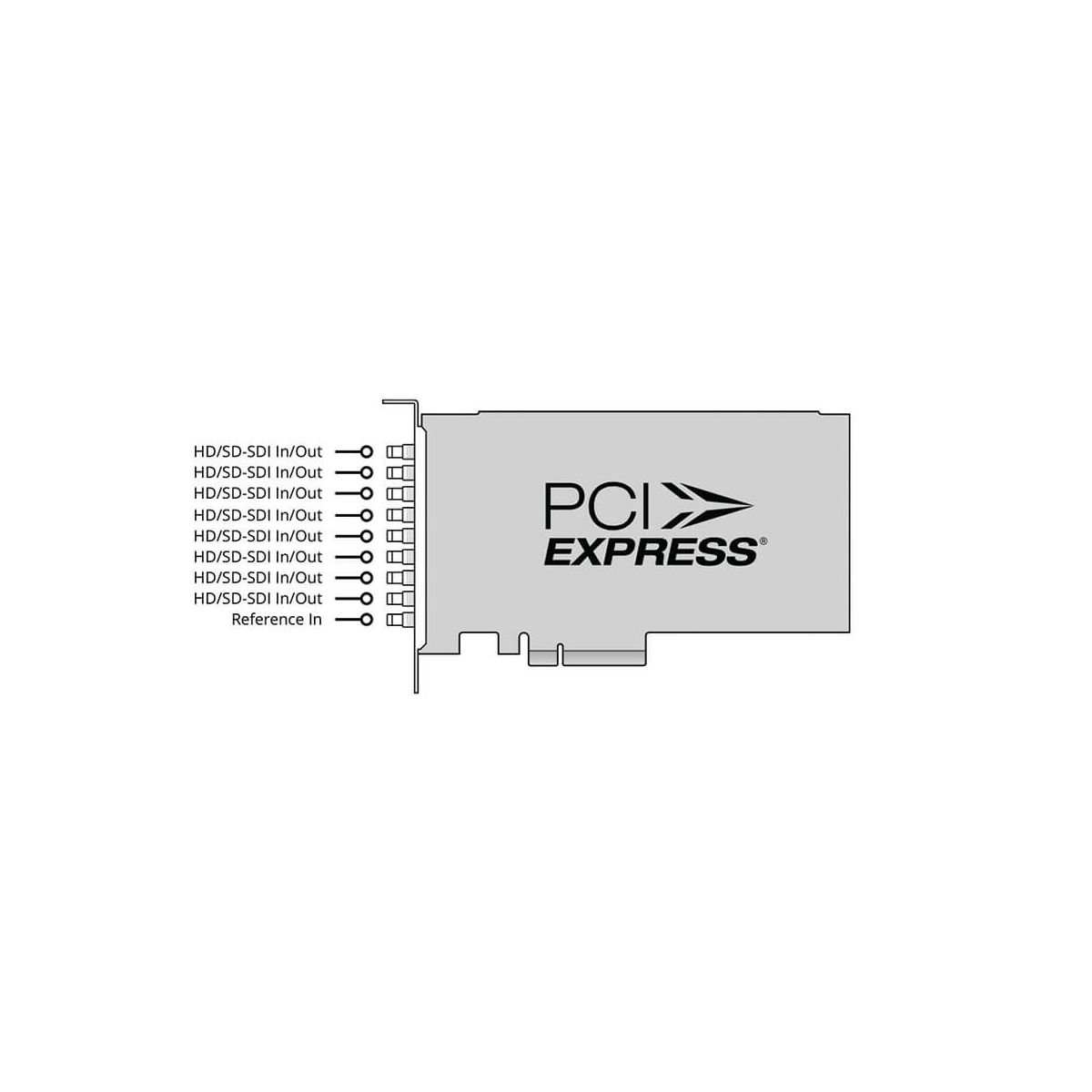

Inputs/Outputs | 8 x Micro-BNC (3G-SDI) Male |
Other I/O | 1 x Micro-BNC Blackburst, Reference, Tri-Level Sync Input |
Simultaneous Multi-Input Support | Yes: 8 Simultaneous Inputs |
Input Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 60 fps 576i / 625 lines at 50 fps |
Input Audio Format | Analog: 48 kHz / 24-Bit |
Output Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94 fps 1080PsF at 23.98/24/25/29.97/30 fps 1080i at 50/59.94/60 fps 720p at 50/59.94/60 fps 480i / 525 lines at 60 fps 576i / 625 lines at 50 fps |
Embedded Audio | SDI: 16-Channel |
Standards |
|
Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M ITU -R BT.601/BT.656 |
HDR Compatibility | Not Specified by Manufacturer |
Hardware |
|
OS Compatibility | Windows 8.1.10 or Later macOS 10.14.15 or Later Linux *As of September, 2020: Check with manufacturer for the most up-to-date compatibility |
Power Consumption | 22 W |
Environmental |
|
Operating Temperature | 37 to 72°F / 5 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General |
|
Certifications | C-Tick, CE, FCC *as per Manufacturer |

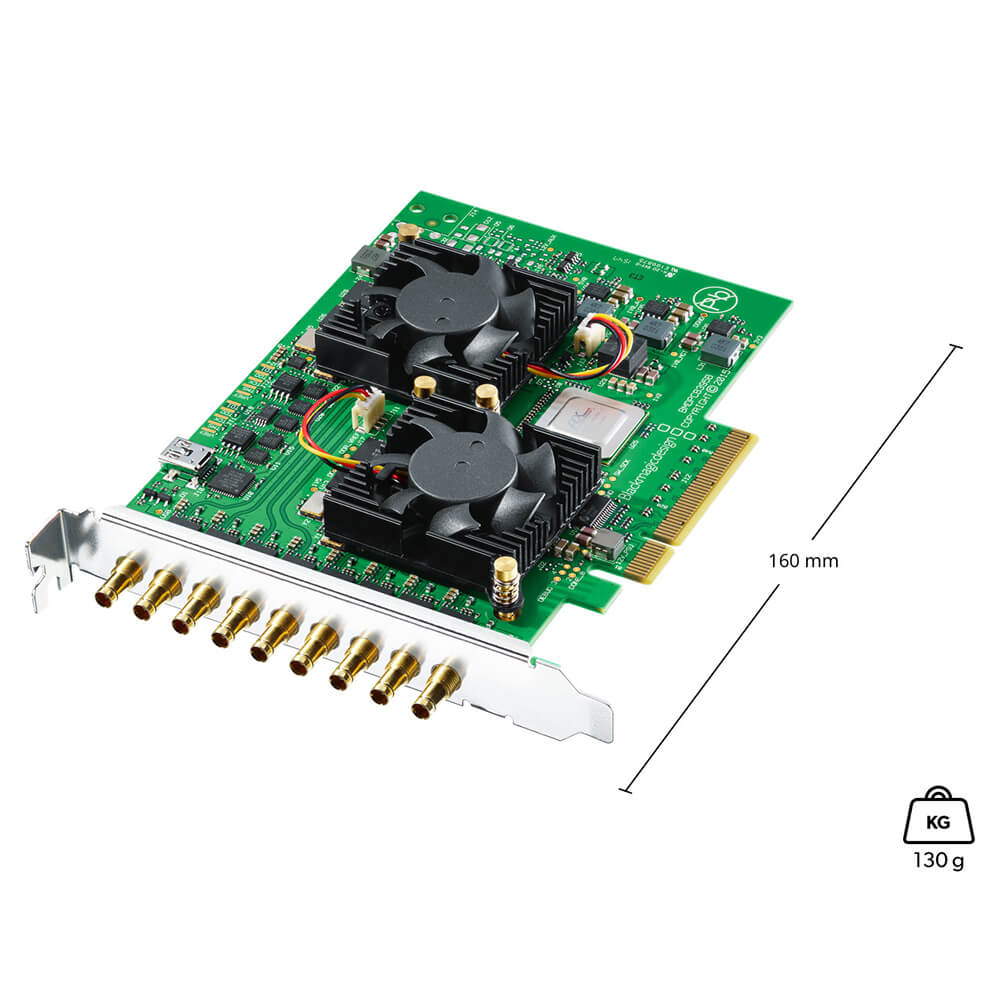

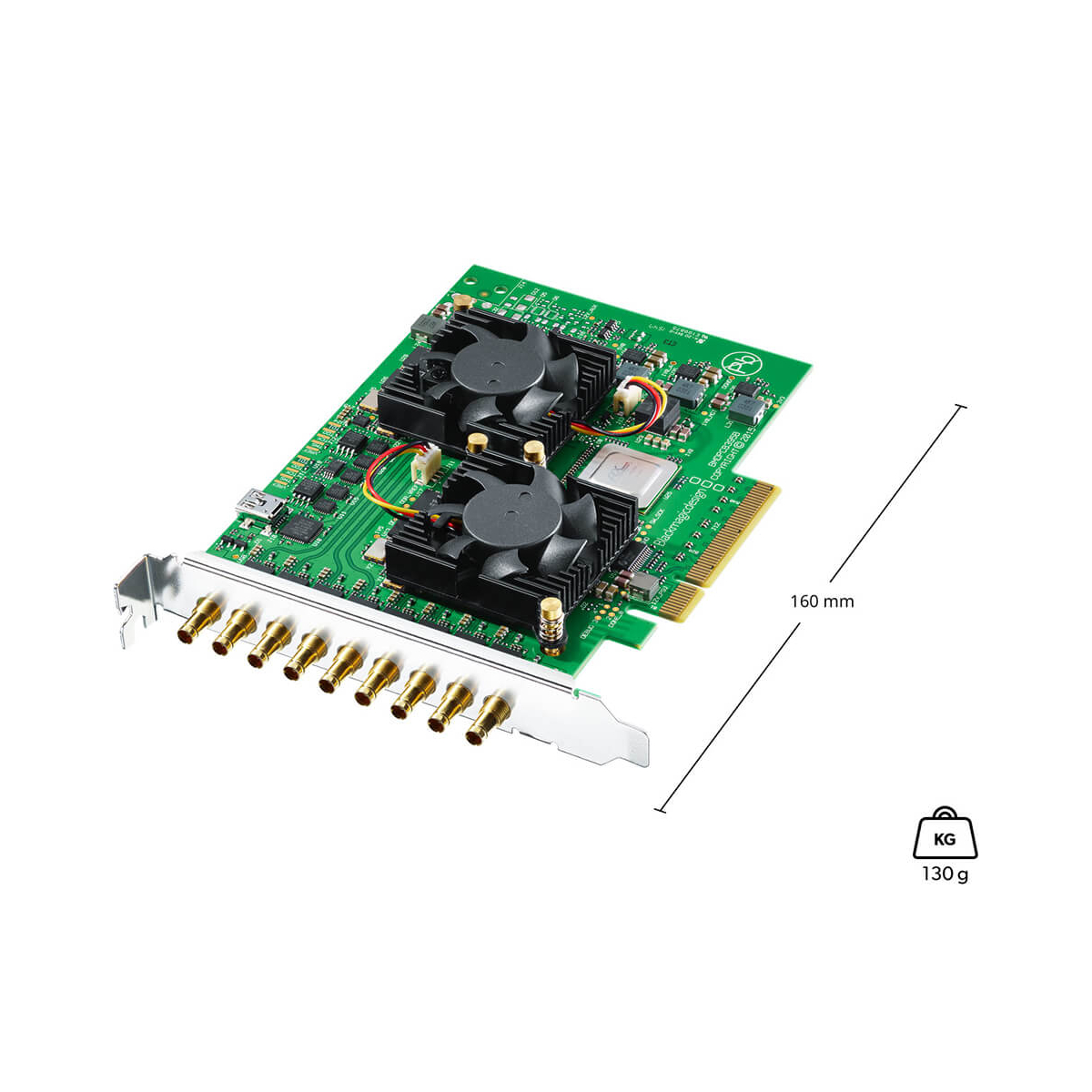

Dimensions (W x H x D) | 6.3" / 16 cm |
Weight | 4.59 oz / 130 g |
- DeckLink Quad 2
- 3 Year Limited Manufacturer's Warranty.
