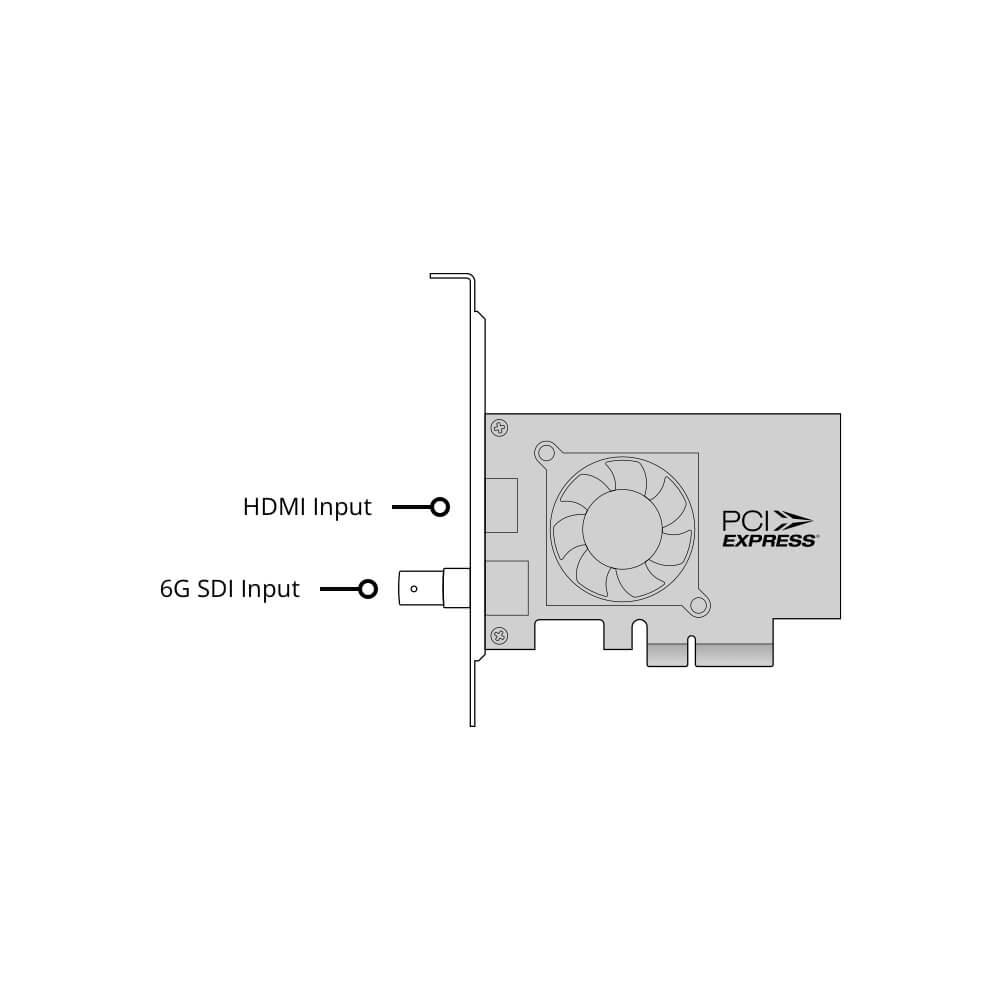

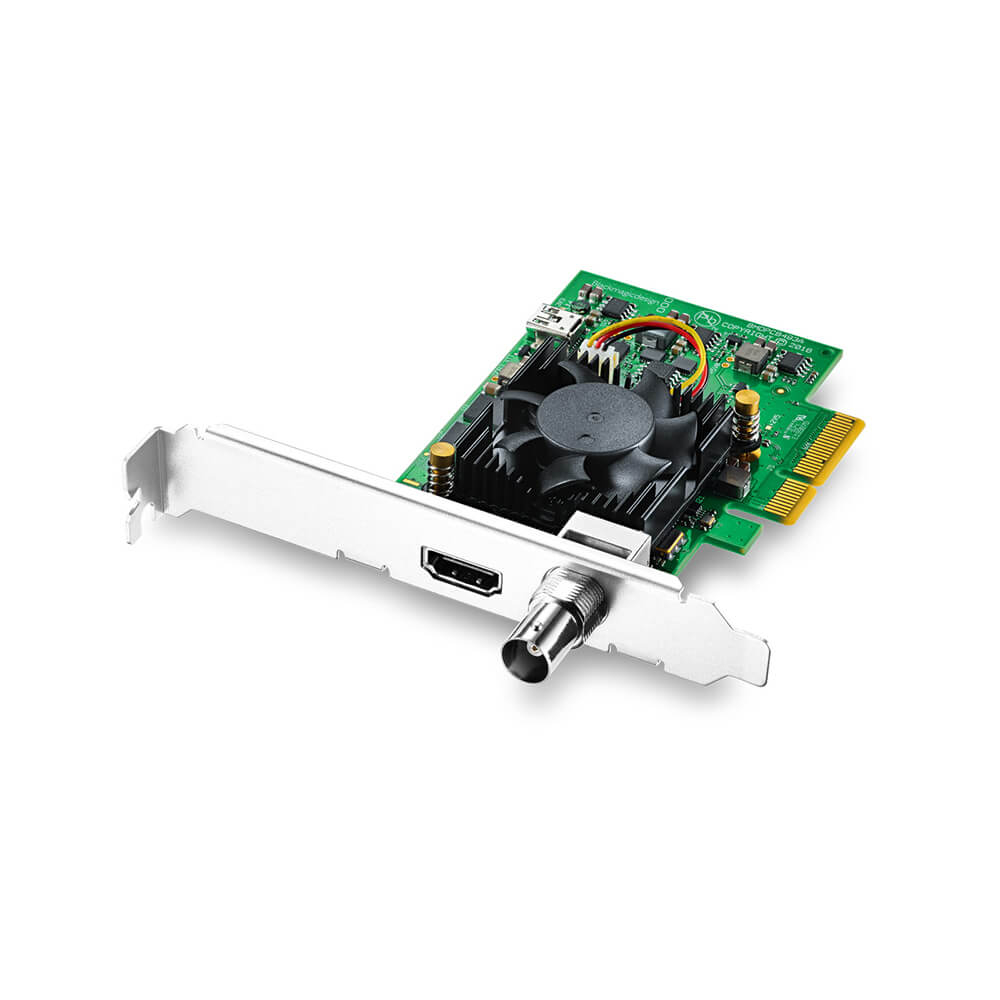

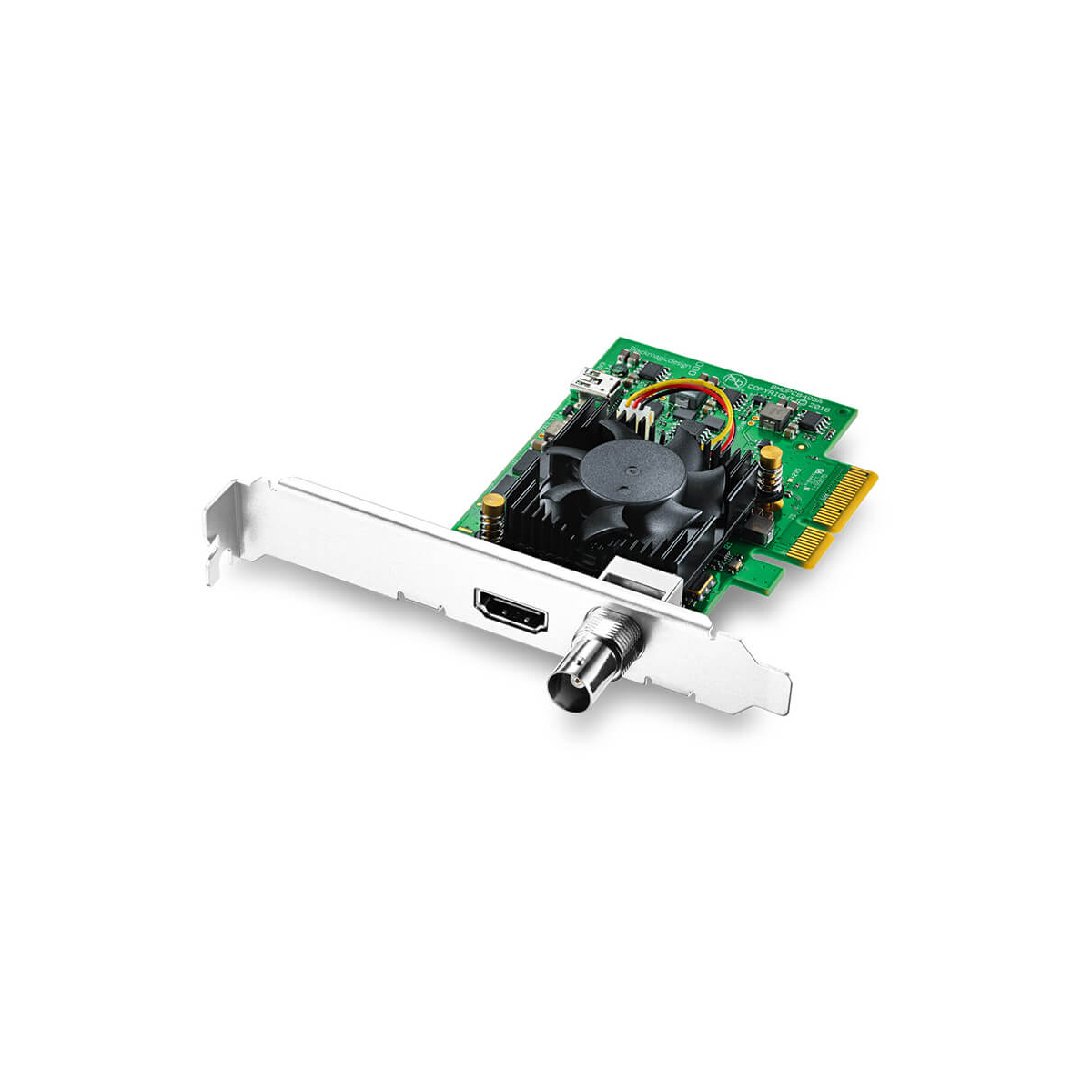

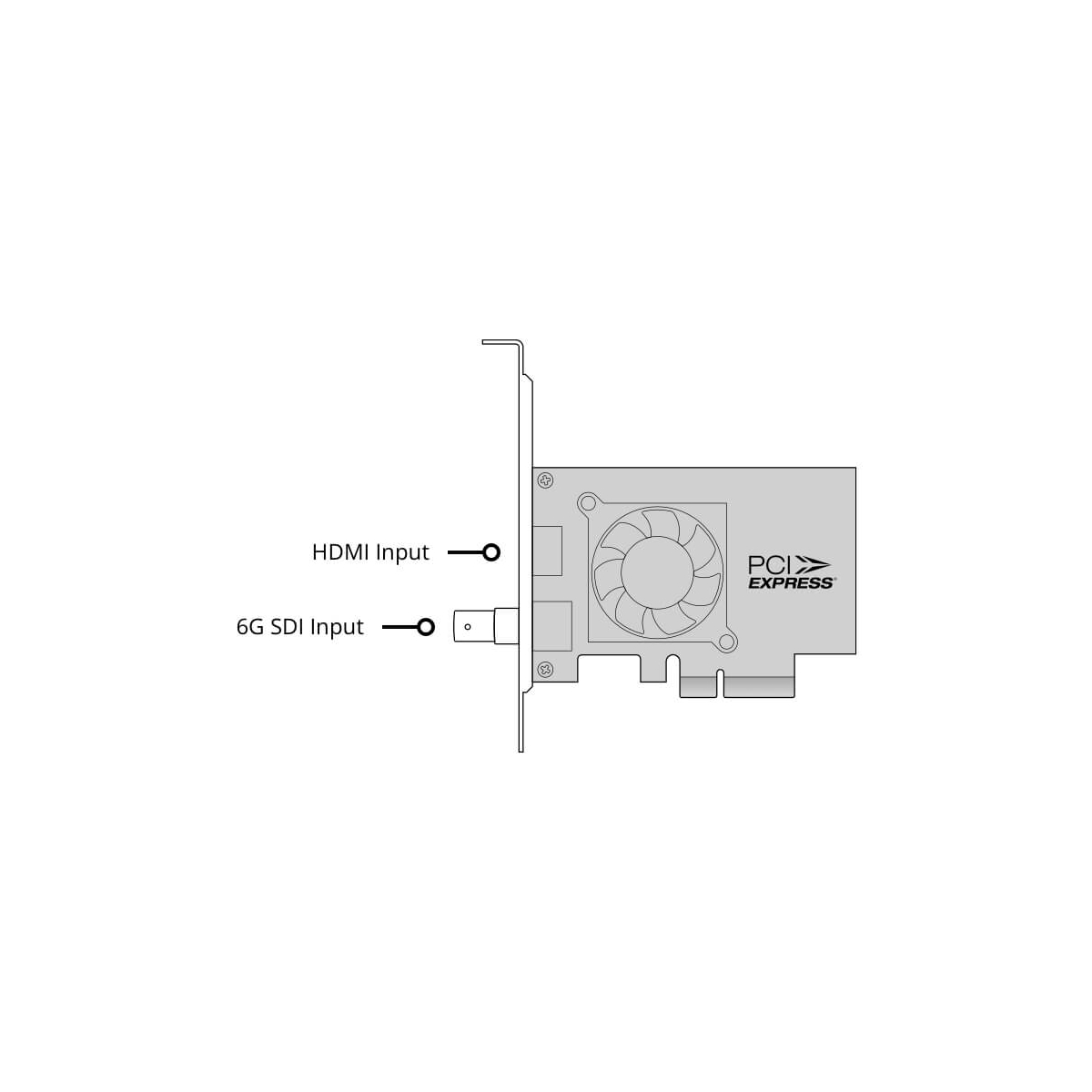

Record SD, HD, or 4K footage via HDMI or SDI with the Blackmagic Design DeckLink Mini Recorder 4K. Whether recording for broadcast or backing up older media to newer, more robust formats for current projects, the Decklink Mini Recorder 4K has you covered. The input panel holds a single SD/HD/3G/6G-SDI input and an HDMI 2.0 input, both capable of DCI and UHD 4K resolutions.
Consumer and professional video codecs are supported, including H.264, Apple ProRes, AVC-Intra, and more, allowing full-resolution input of nearly any project. Wide software support including Blackmagic Design's own DaVinci Resolve and Fusion in addition to other popular platforms such as Apple's Final Cut Pro X, Avid's Media Composer, and Adobe's Premiere and After Effects CC, allows for the same hardware to be used with changing workflows over time.
The card itself requires an open PCI-Express slot conforming to at least PCI-E 2.0 x4 specifications. PCI-E x8 and x16 slots in 2.0 and 3.0 variants can also be used. A full-height bracket comes pre-installed, and a low-profile bracket is included for installation in a small form-factor PC or an external chassis.
Processing Features
- Color Space Conversion: Hardware-based, real-time color space conversion
- HD Up-Conversion: Software-based down-conversion during video playback
Blackmagic Design Mini Recorder 4K Specification |
|
System Connection | PCIe 2.0 x4 |
Video Inputs | 1 x BNC (6G-SDI) Female 1 x HDMI (HDMI 2.0a) Female |
Audio Inputs | None |
Input Video Format | SDI (8/10-Bit 4:2:2 YUV) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 480i / 525 lines HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 480i / 525 lines |
Embedded Audio | SDI: 16-Channel HDMI: 8-Channel |
Standards |
|
Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M/ST-2081 ITU -R BT.601/BT.656 |
Hardware |
|
OS Compatibility | Windows 7 or Later macOS 10.14 or Later Linux *As of April, 2020: Check with manufacturer for the most up-to-date compatibility |
Power Consumption | 8 W |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General |
|

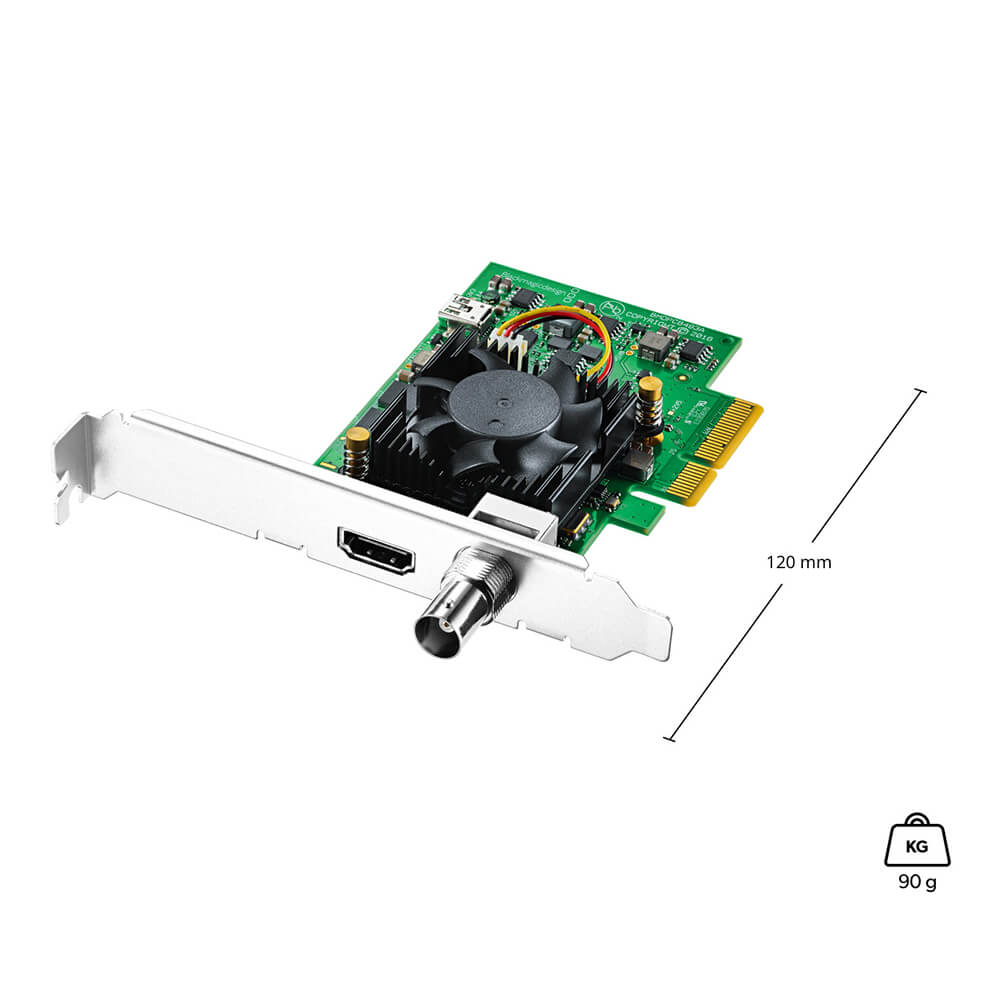

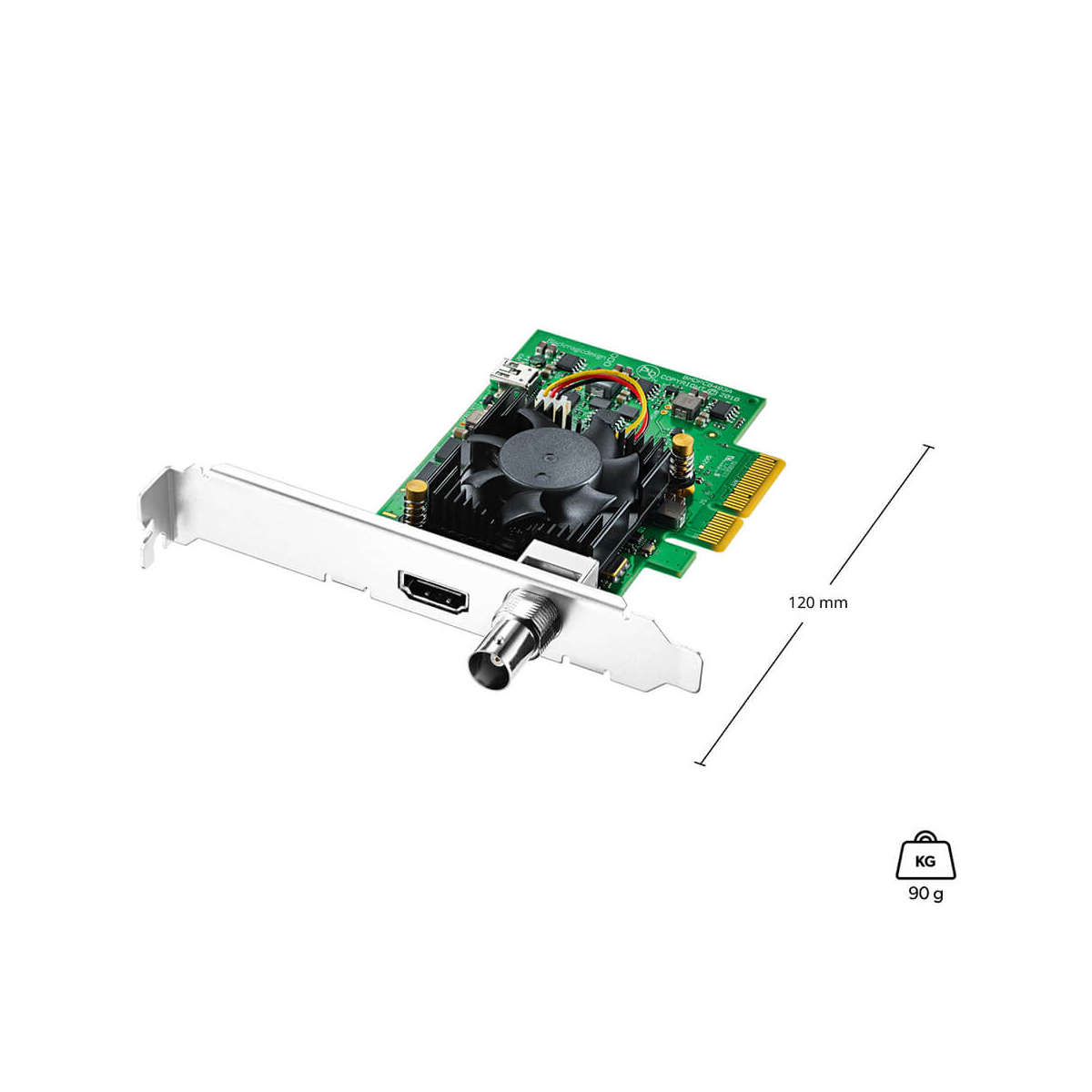

Dimensions | 4.7" / 11.94 cm |
Weight | 3.17 oz / 90 g |
-
DeckLink Mini Recorder 4K
- Low profile slot bracket
- 3 Year Limited Manufacturer's Warranty
