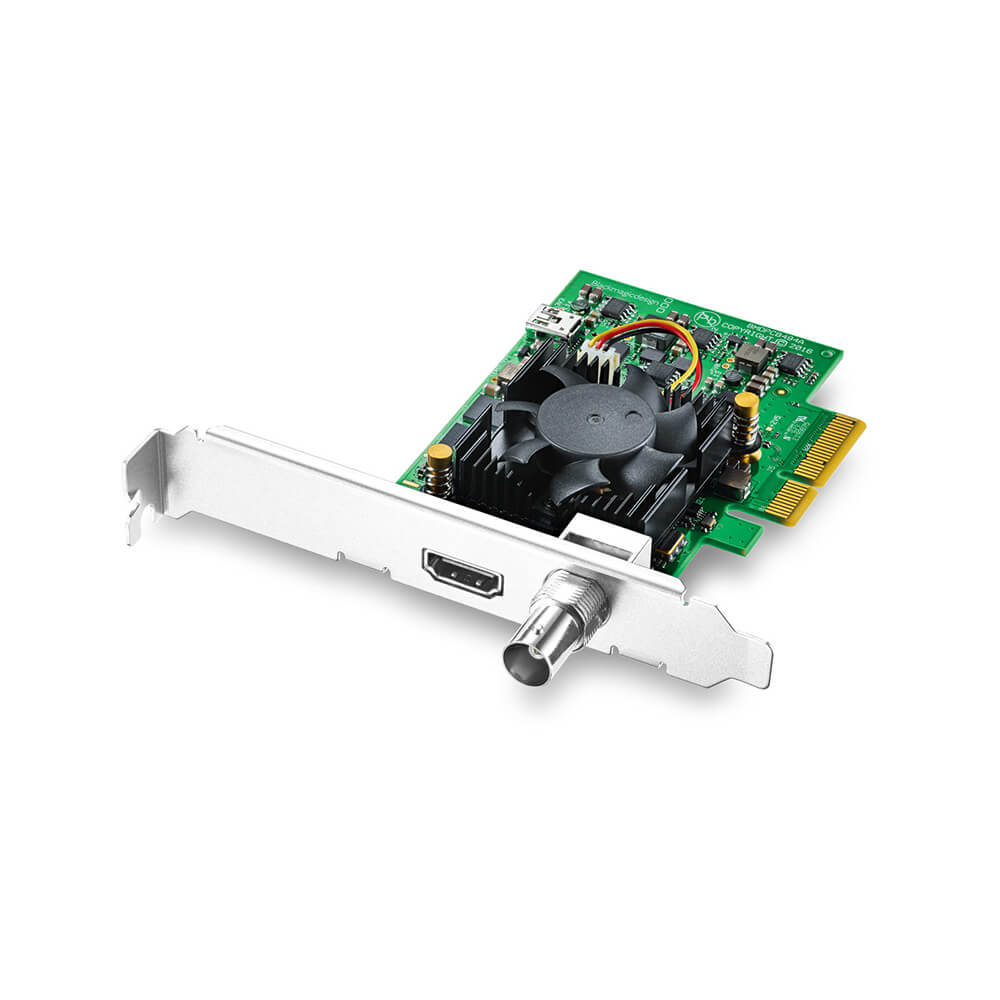

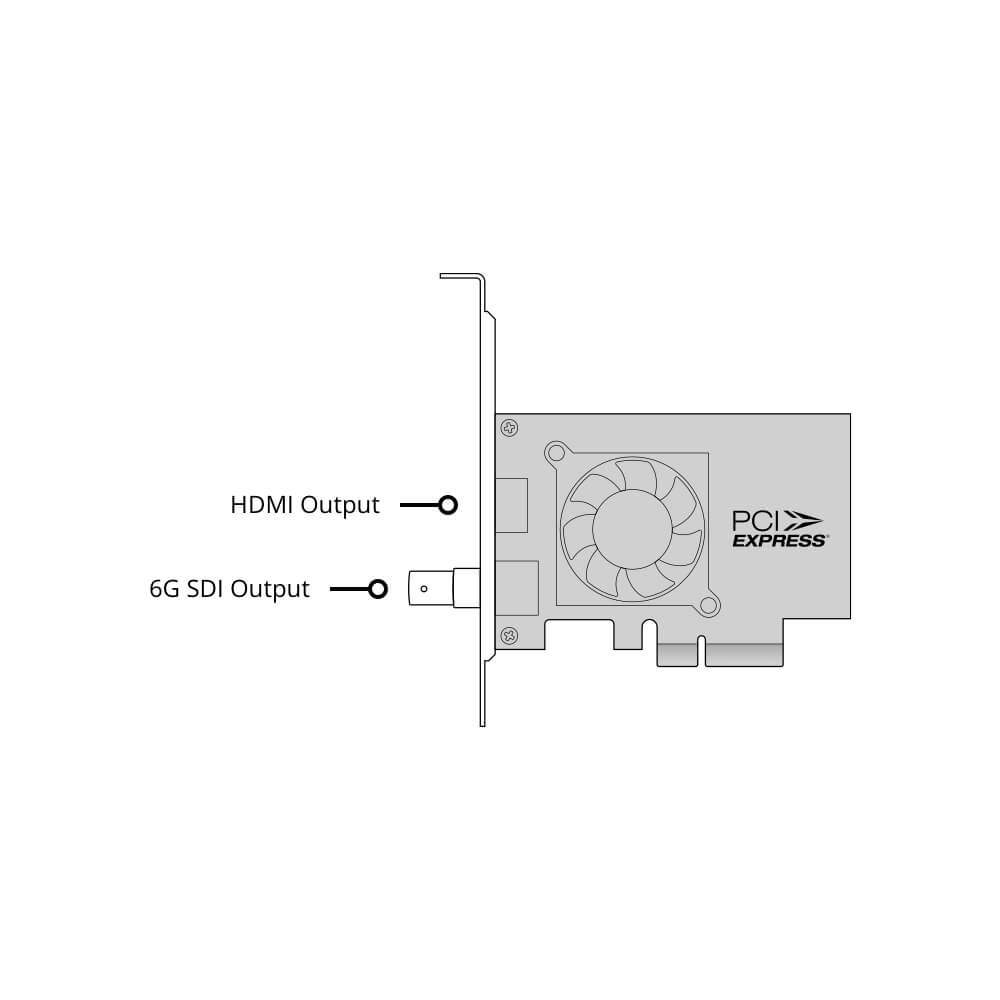

With the DeckLink Mini Monitor 4K from Blackmagic Design you can play out 4K content to high-resolution monitors and recorders in real-time from your compatible edit system. A 6G-SDI (backward compatible with SD, HD, and 3G variants) and HDMI 2.0 terminals are on the output panel of the card, so you can connect to professional broadcast equipment and displays or consumer monitors and televisions, respectively.
Consumer and professional video codecs are supported, including H.264, Apple ProRes, AVC-Intra, and more, allowing full-resolution output of nearly any project. Wide software support including Blackmagic Design's own DaVinci Resolve and Fusion in addition to other popular platforms such as Apple's Final Cut Pro X, Avid's Media Composer, and Adobe's Premiere and After Effects CC, allows for the same hardware to be used with changing workflows over time.
The card itself requires an open PCI-Express slot conforming to at least PCI-E 2.0 x4 specifications. PCI-E x8 and x16 slots in 2.0 and 3.0 variants can also be used. A full-height bracket comes pre-installed, and a low-profile bracket is included for installation in a small form-factor PC or an external chassis.
Processing Features
- Color Space Conversion: Hardware-based, real-time color space conversion
- HD Down-Conversion: Software-based down-conversion during video playback
- Real-Time Effects: Supports real-time effects from Final Cut Pro X, Premiere Pro CC Mercury Playback Engine, and Avid Media Composer Effects
Blackmagic Design Mini Monitor 4K Specification |
|
System Connection | PCIe 2.0 x4 |
Video Outputs | 1 x BNC (6G-SDI) Female 1 x HDMI (HDMI 2.0a) Female |
Audio Outputs | None |
Output Video Format | SDI (8/10-Bit 4:2:2 YUV) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps SDI (8/10/12-Bit 4:4:4 RGB) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 480i / 525 lines HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 480i / 525 lines |
Embedded Audio | SDI: 16-Channel HDMI: 8-Channel |
Standards |
|
Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M/ST-2081 ITU -R BT.601/BT.656 |
Hardware |
|
OS Compatibility | Windows 7 or Later macOS 10.14 or Later Linux *As of April, 2020: Check with manufacturer for the most up-to-date compatibility |
Power Consumption | 10 W |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General |
|

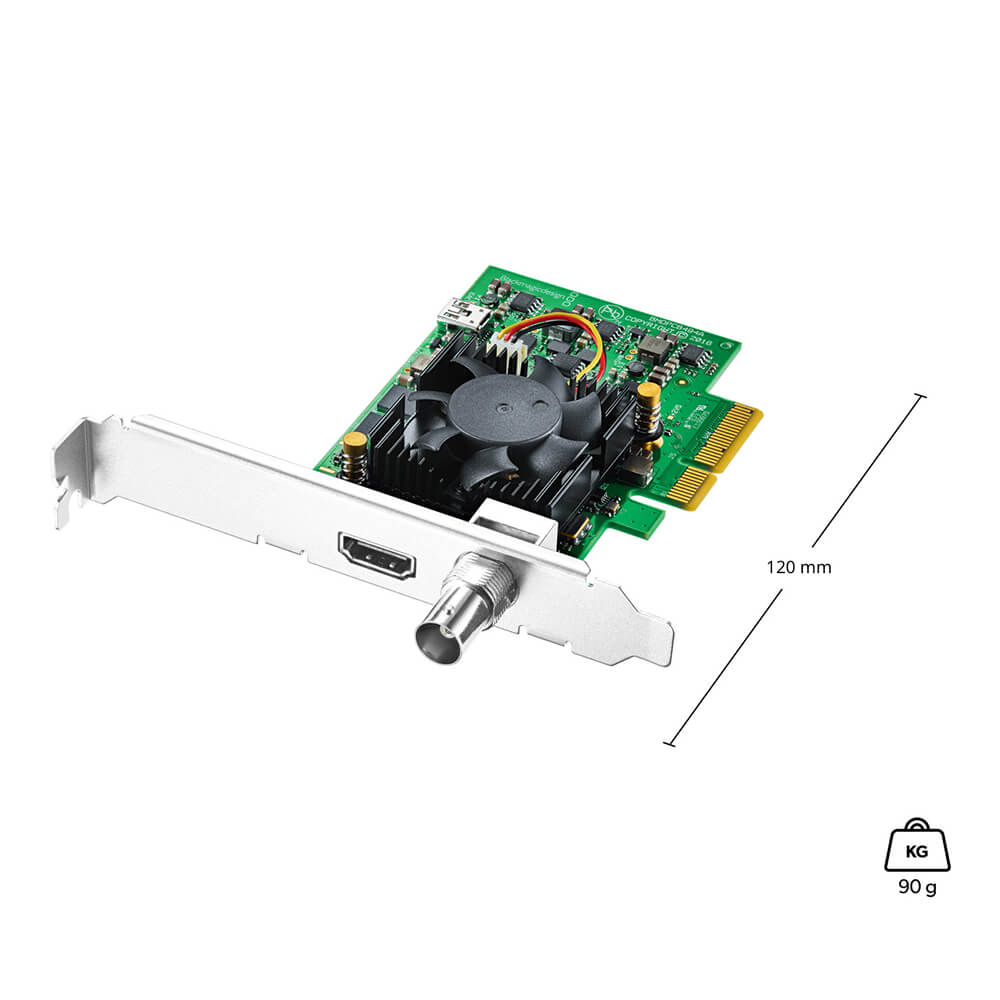

Dimensions | 4.7" / 11.94 cm |
Weight | 3.17 oz / 90 g |
-
DeckLink Mini Monitor 4K
-
Low profile slot bracket
-
3 Year Limited Manufacturer's Warranty
