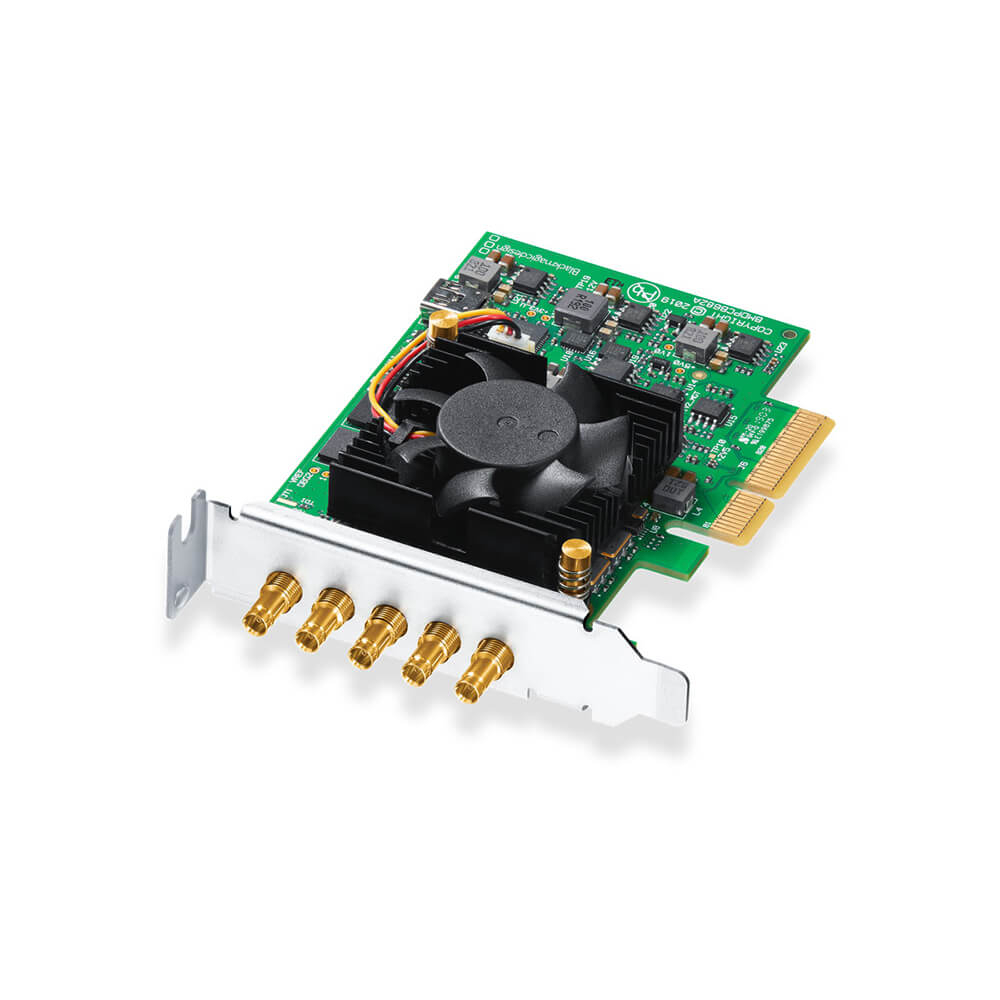

Ingest and play back high-resolution video and audio for digital signage, real-time capture, or media player applications with the DeckLink Duo 2 Mini Capture and Playback Card from Blackmagic Design. The Duo 2 Mini is a low-profile PCIe card that features four bidirectional mini BNC SDI inputs/outputs. These multi-rate connections accept 3G/HD/SD-SDI input and output signals, providing support for resolutions from SD to HD 1080p60. Additionally, the DeckLink Duo 2 Mini includes a reference input and supports 16 channels of 48 kHz 24-bit audio.
The DeckLink Duo 2 Mini offers flexible format and system support, letting you work with popular compressed video formats such as ProRes, AVCHD, XDCAM, and DNxHD, as well as up to 12-bit uncompressed video. When working with uncompressed video, all images are pixel-for-pixel identical to the source, without any generational loss. This lets you get sharper keying with green screens, cleaner compositions, superior color correction, and more. Support for common file formats provides ready-to-edit files for use in popular editing, effects, and design software applications. The DeckLink Duo 2 Mini is compatible with macOS, Windows, and Linux-based workstations. Drivers and utility software are included on an SD card for the supported platforms.
Key Features
- Low-profile PCIe capture/playback card compatible with macOS, Windows, and Linux-based workstations and servers
- Up to 1080p60 capture/playback
- 8-/10-bit 4:2:2 in all modes up to 1080p30
- 12-bit 4:4:4 up to 1080p30 in playback mode
- HD to SD downconversion
- SD to HD upconversion
- Hardware cross conversion between 720p and 1080p on playback
- Rec. 601 and Rec. 709 color space
- BNC reference input
- Blackburst and tri-sync
Blackmagic Design Duo 2 Specification |
|
Supported Operating Systems | macOS 10.13, 10.14 or Later Windows 7, 8.1, 10 (All 64-Bit) Linux |
Inputs/Outputs | 4 x Mini BNC 3G-SDI (Bidirectional, 12-Bit SD/HD) 1 x Reference In |
Sync Input | Tri-Sync or Black Burst |
Computer Interface | PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots) |
Audio Channels | 16 x Embedded, HD and SD (Input and Output) |
Video Support |
HD: SD: |
Audio Sample Rate | 24-Bit, 48 kHz |
Supported Codecs | AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4 |
Conversion Modes | Playback: 720p to 1080p, 1080p to 720p Up Conversion: SD to 720p or 1080p (Selectable: 4:3, 14:9 Zoom, and 16:9 Zoom) Down Conversion: SD (Selectable: Letterbox and Anamorphic 16:9) Color Space Conversion: Hardware-Based, Real-Time |
Color Space | Rec. 601, Rec. 709 |
SDI Color Precision | 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30) 8, 10-Bit YUV 4:2:2 (In All Modes) 12-Bit RGB 4:4:4 (Supported in Playback Mode Only) |
SDI Video Sampling | 8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30) 8, 10-Bit YUV 4:2:2 (In All Modes) 12-Bit RGB 4:4:4 (Supported in Playback Mode Only) |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601 |
SDI Metadata Support | RP 188/SMPTE 12M-2 and Closed Captioning |
Power Consumption | 10 W |
Certifications | FCC, CE, and C-Tick |
Operating Temperature | 41 to 104°F / 5 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Relative Humidity (non-condensing) | 0 to 90% |

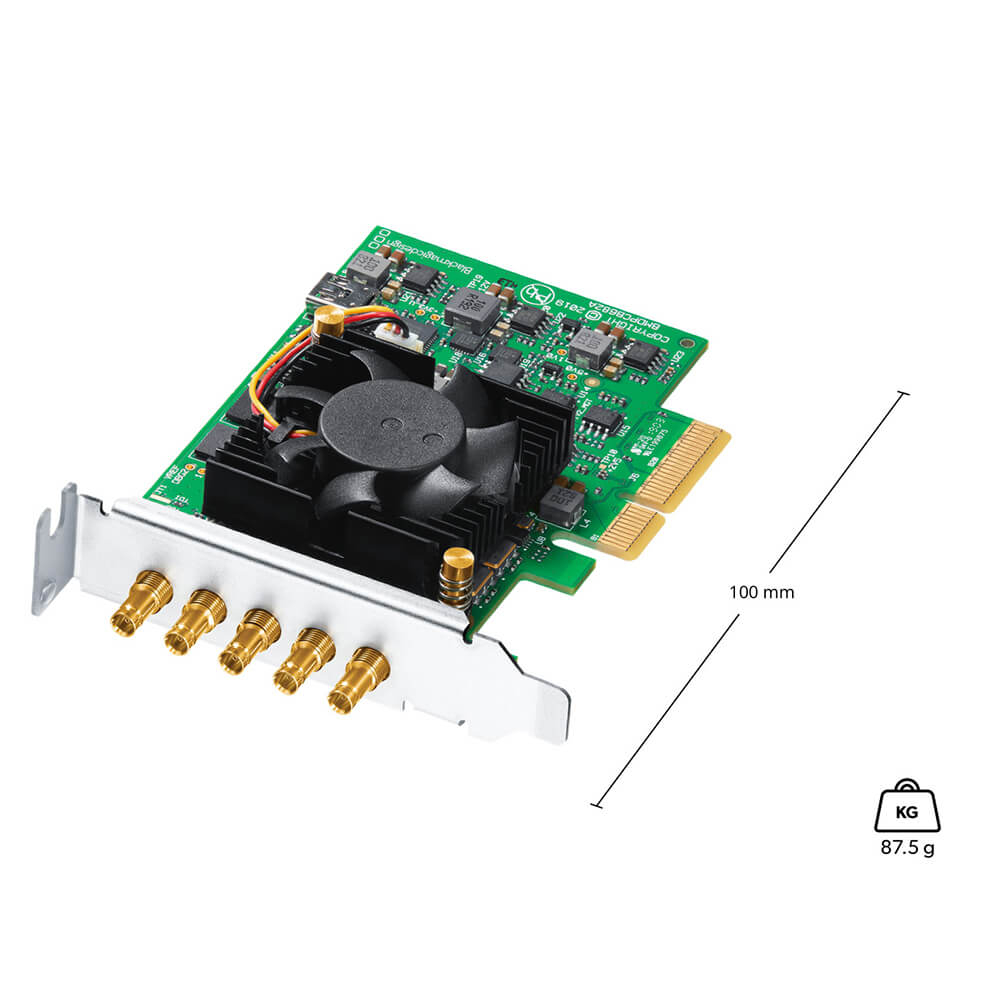

Length | 3.9" / 9.9 cm, Low-Profile Form Factor |
Weight | 3.1 oz / 87 g |
- DeckLink Duo 2 Mini
- 3 Year Limited Manufacturer's Warranty
