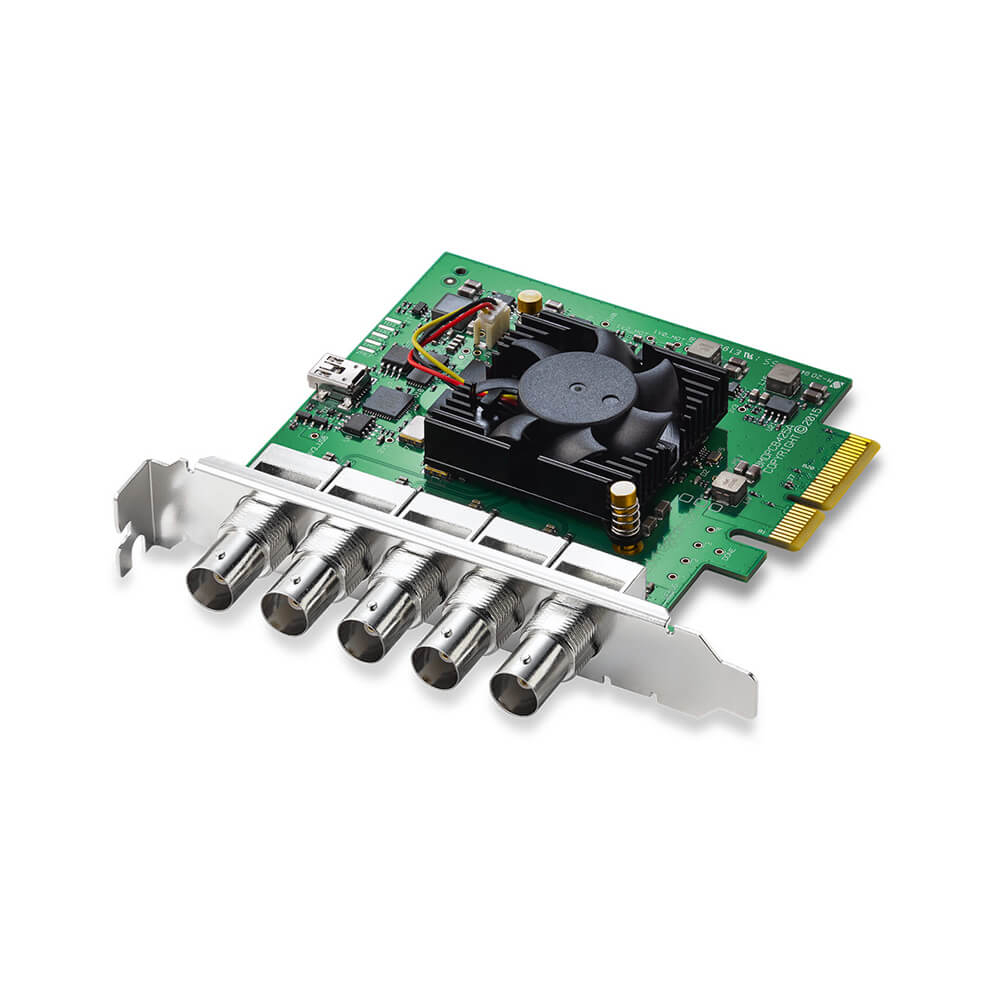

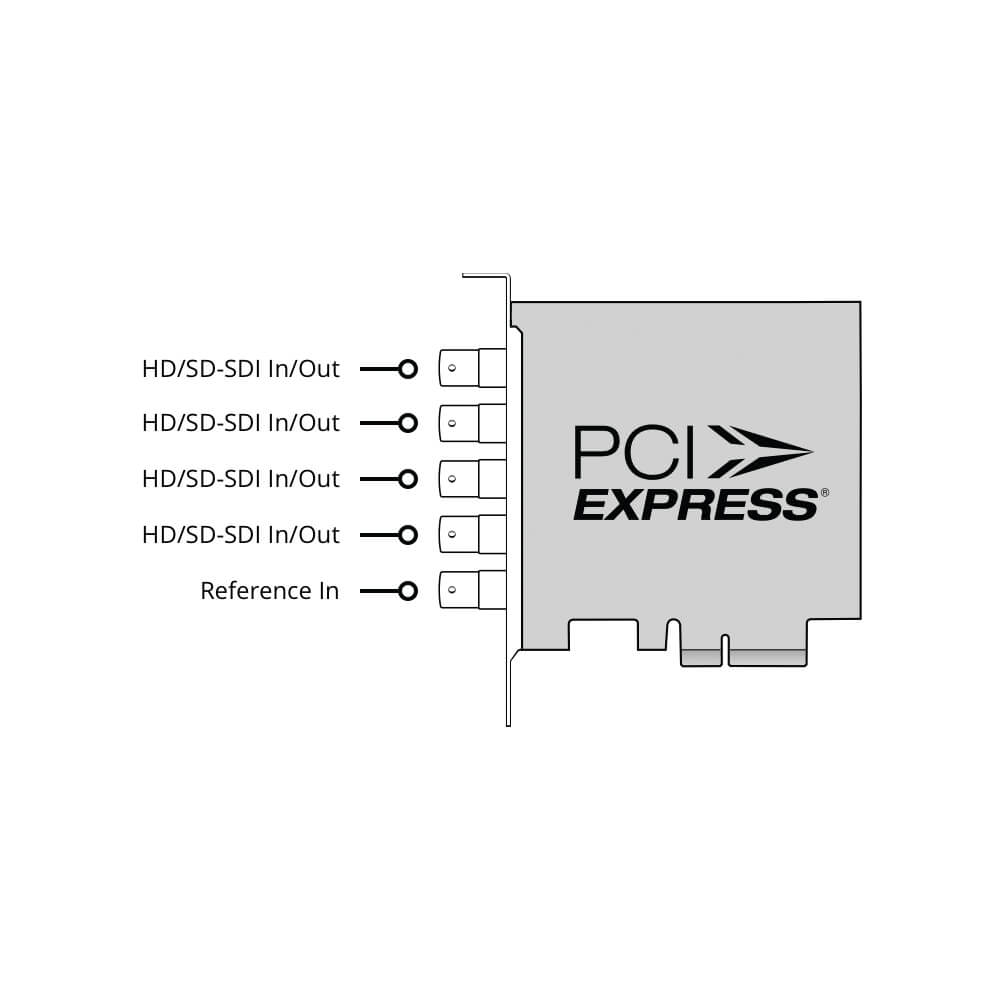

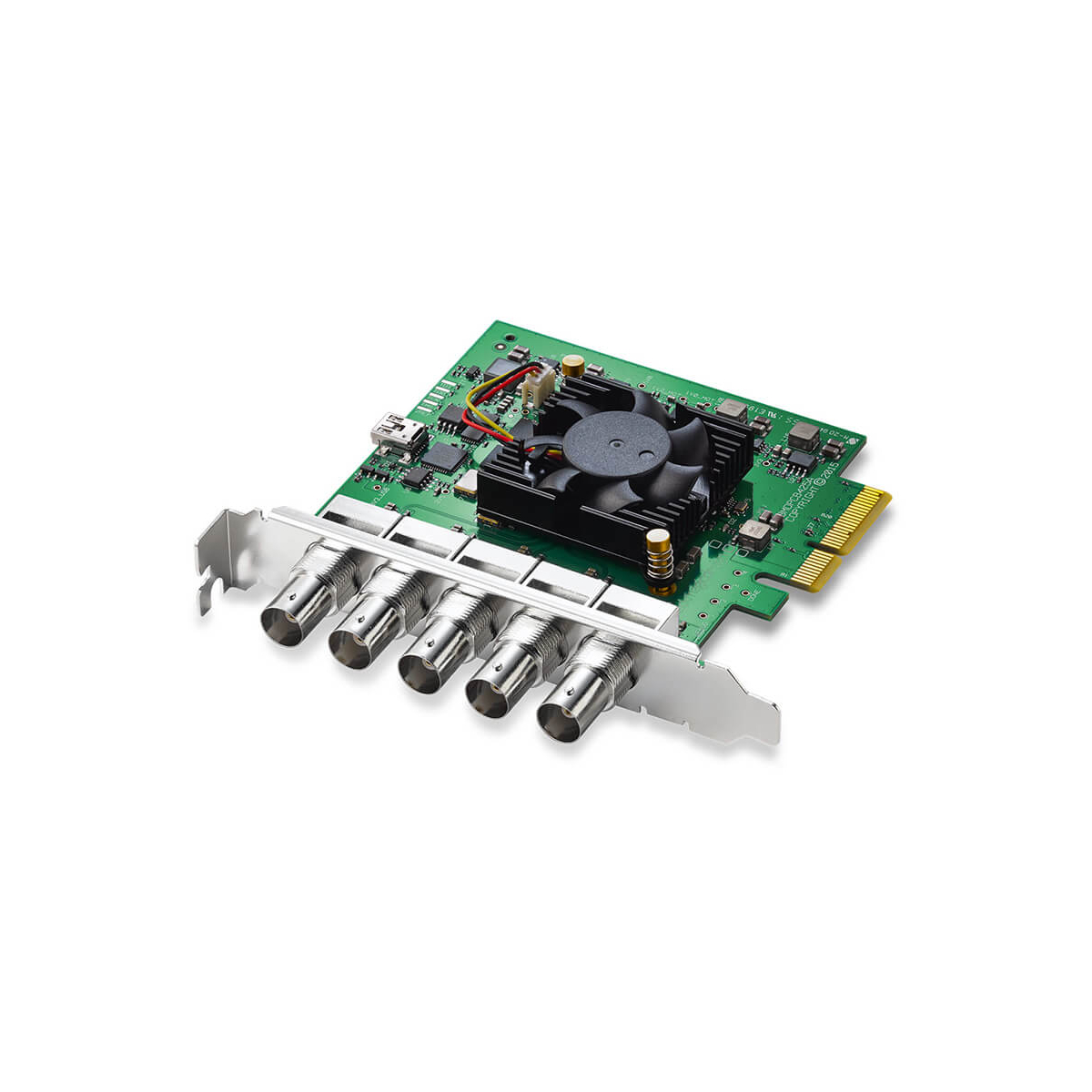

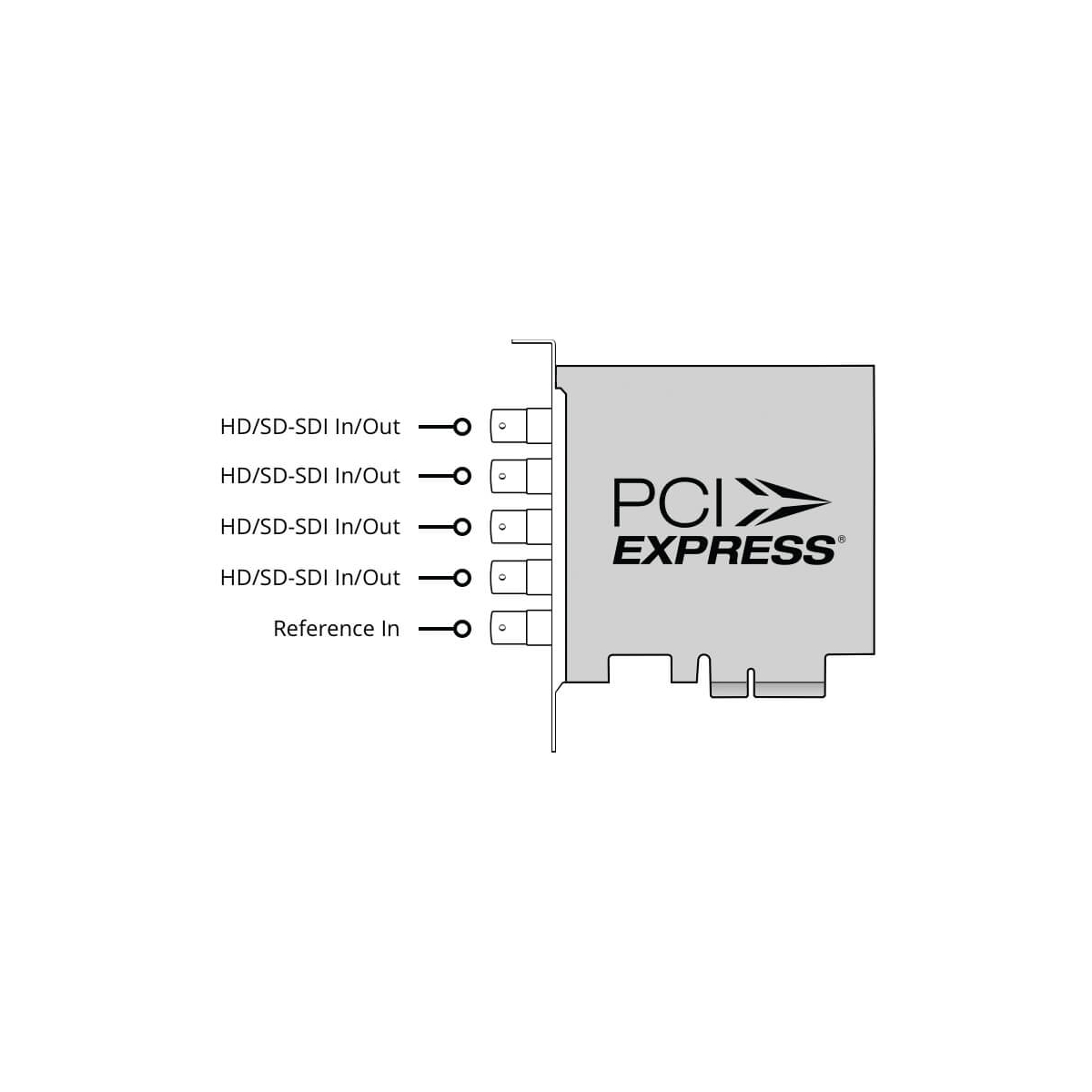

With four bi-directional SDI interfaces, the Blackmagic Design DeckLink Duo 2 is a versatile video I/O card for professional video workflows. Since each SDI interface can be configured to be either an input or an output, a computer with this card installed can be purposed as a media play-out system, a multi-screen digital signage server, a live keyer, a real-time multi-channel capture system, or a combination of the above to fit your specific workflow of the moment. A reference input is also available for syncing with other studio equipment.
|
 Blackmagic Design Duo 2 Specification  |
|
| System Connection | PCIe 2.0 x4 |
| Video Inputs | 4 x BNC (12G-SDI) Female |
| Audio Inputs | None |
| Other I/O | 1 x BNC Blackburst, Reference, Tri-Level Sync Input |
| Simultaneous Multi-Input Support | Not Specified by Manufacturer |
| Input Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2 RGB, YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 60 fps  |
| Input Audio Format | Analog: 48 kHz / 24-Bit |
| Embedded Audio | SDI: 16-Channel |
|
 Standards  |
|
| Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M ITU -R BT.601/BT.656  |
| HDR Compatibility | Not Specified by Manufacturer |
|
 Hardware  |
|
| OS Compatibility | Windows 8.1.10 or Later macOS 10.14.15 or Later Linux *As of August, 2020: Check with manufacturer for the most up-to-date compatibility  |
| Power Consumption | 10 W |
|
 Environmental  |
|
| Operating Temperature | 37 to 72°F / 5 to 40°C |
| Storage Temperature | -4 to 113°F / -20 to 45°C |
| Operating Humidity | 0 to 90% |
|
 General  |
|
| Certifications | C-Tick, CE, FCC *as per Manufacturer  |

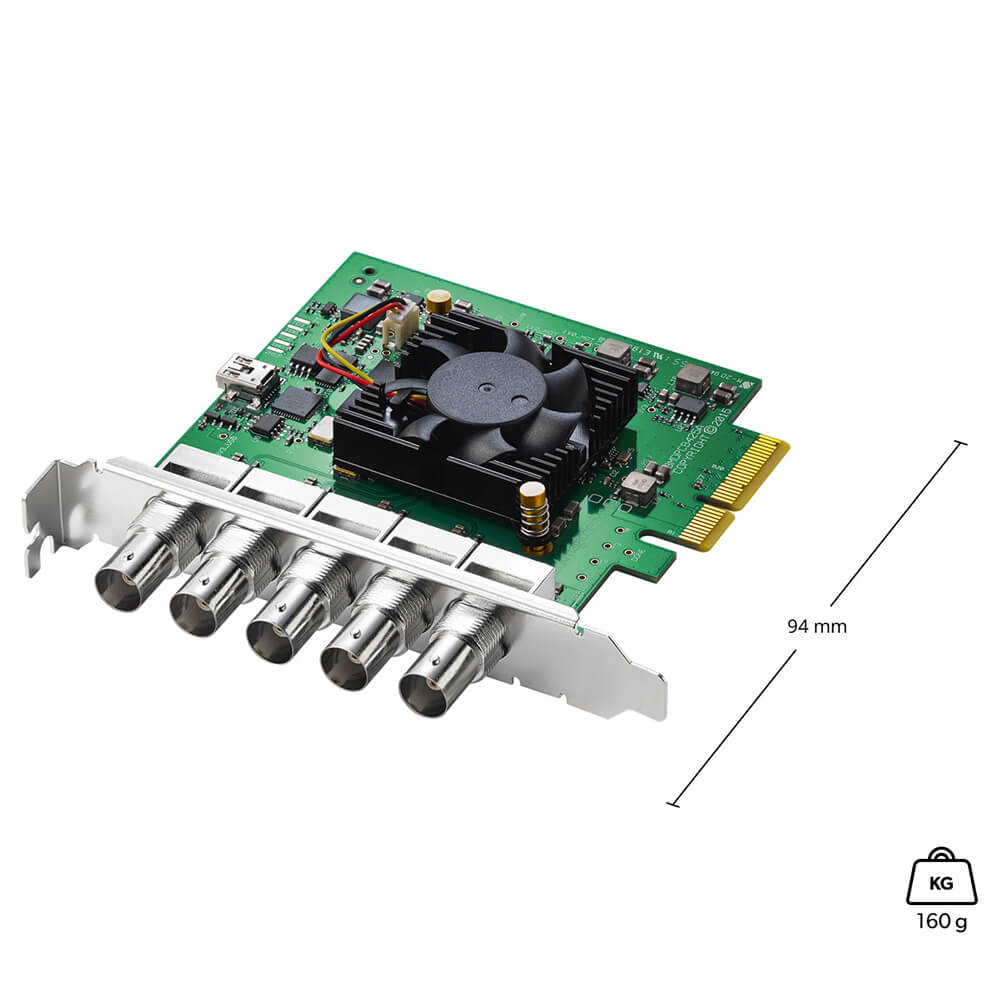

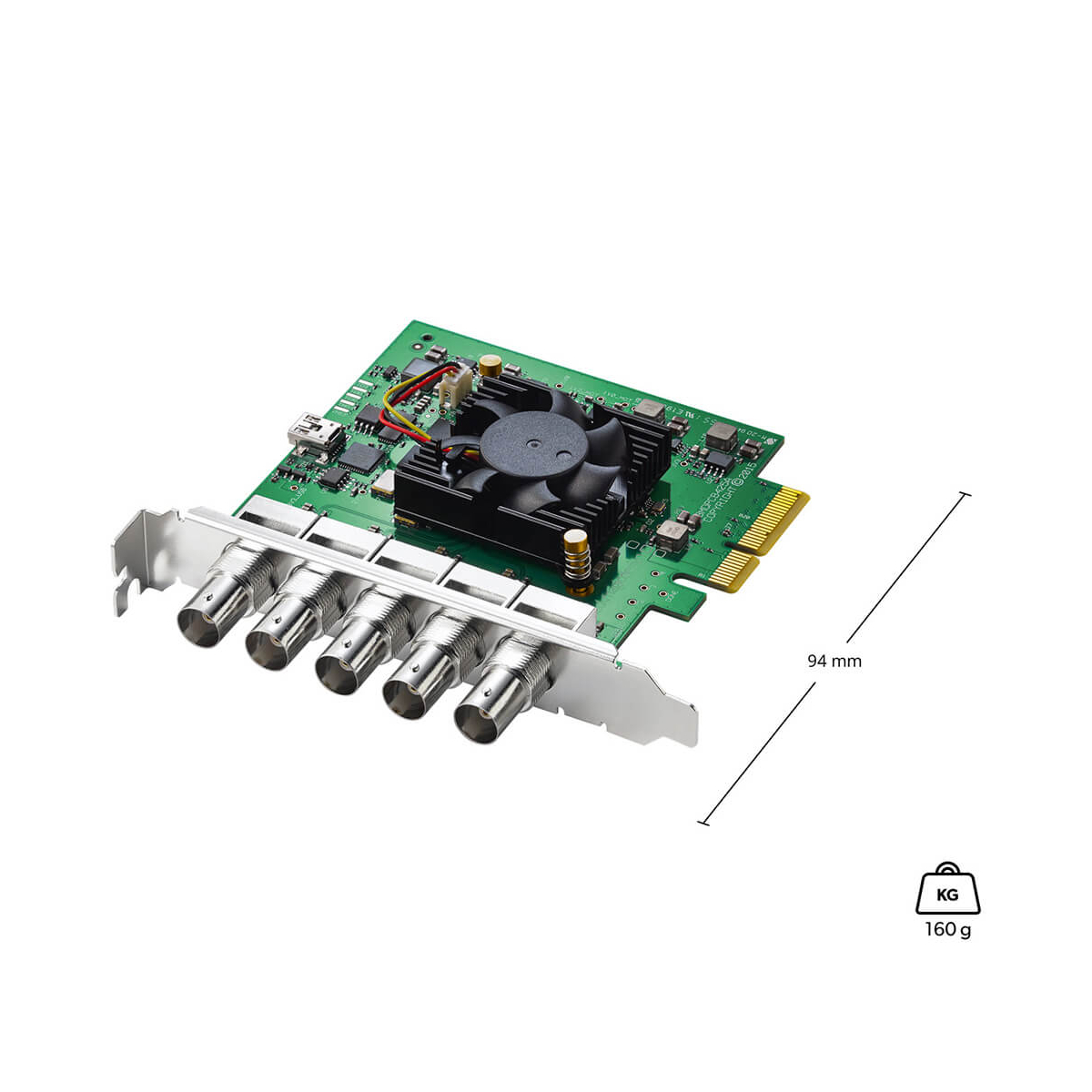

| Dimensions | 3.7" / 9.4 cm |
| Weight | 5.64 oz / 160 g |
- DeckLink Duo 2
 - 3 Year Limited Manufacturer's Warranty
