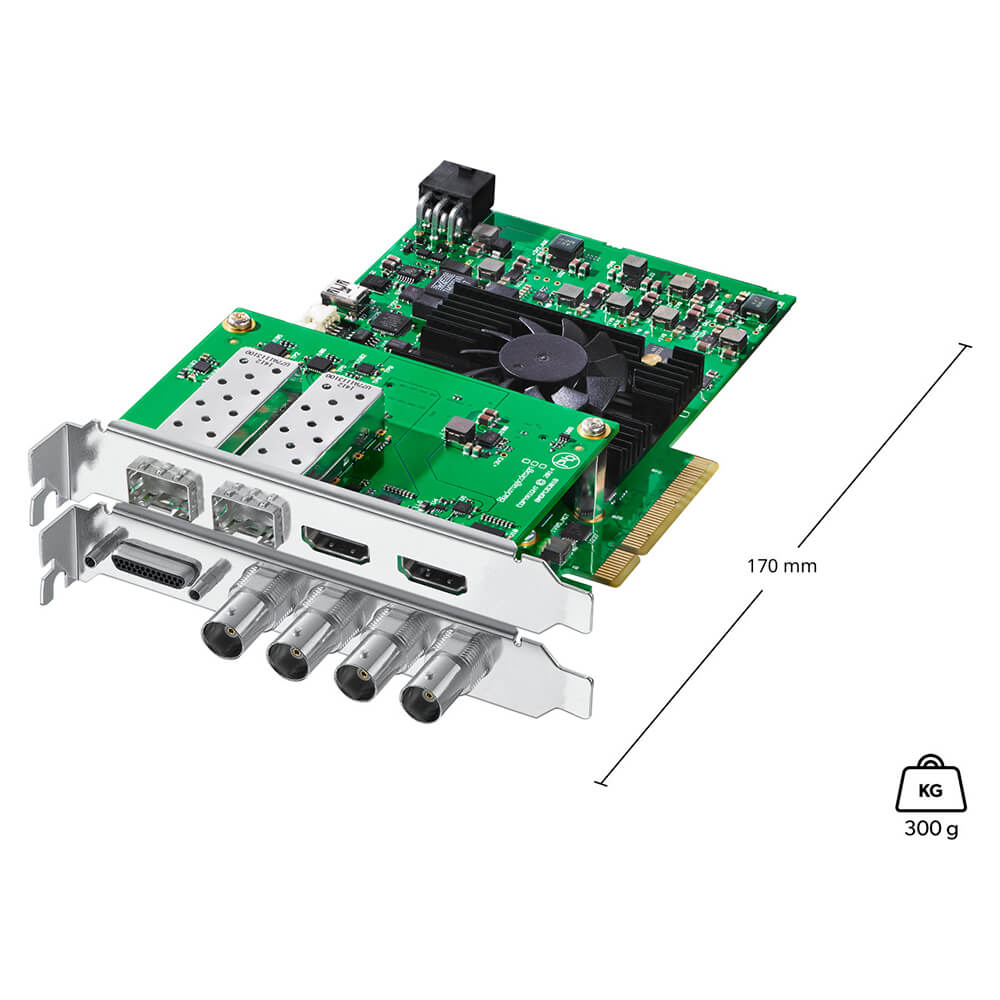

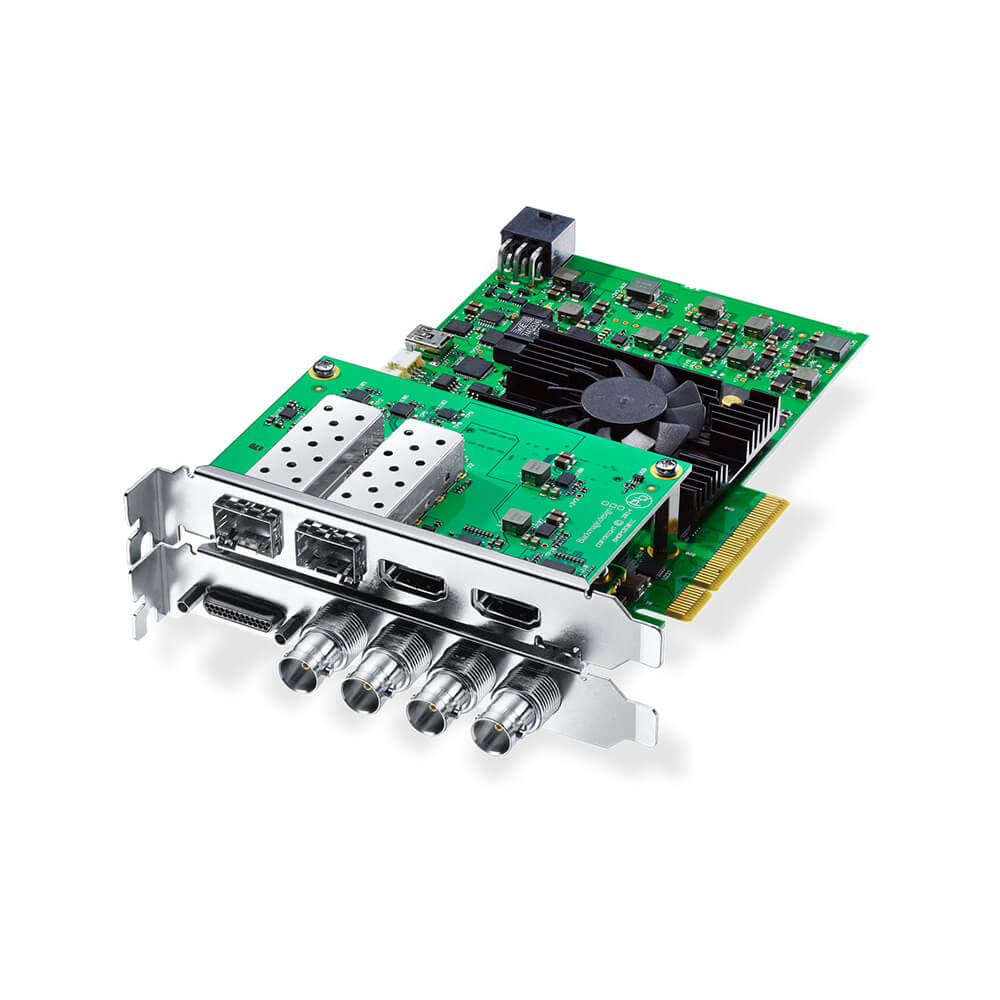

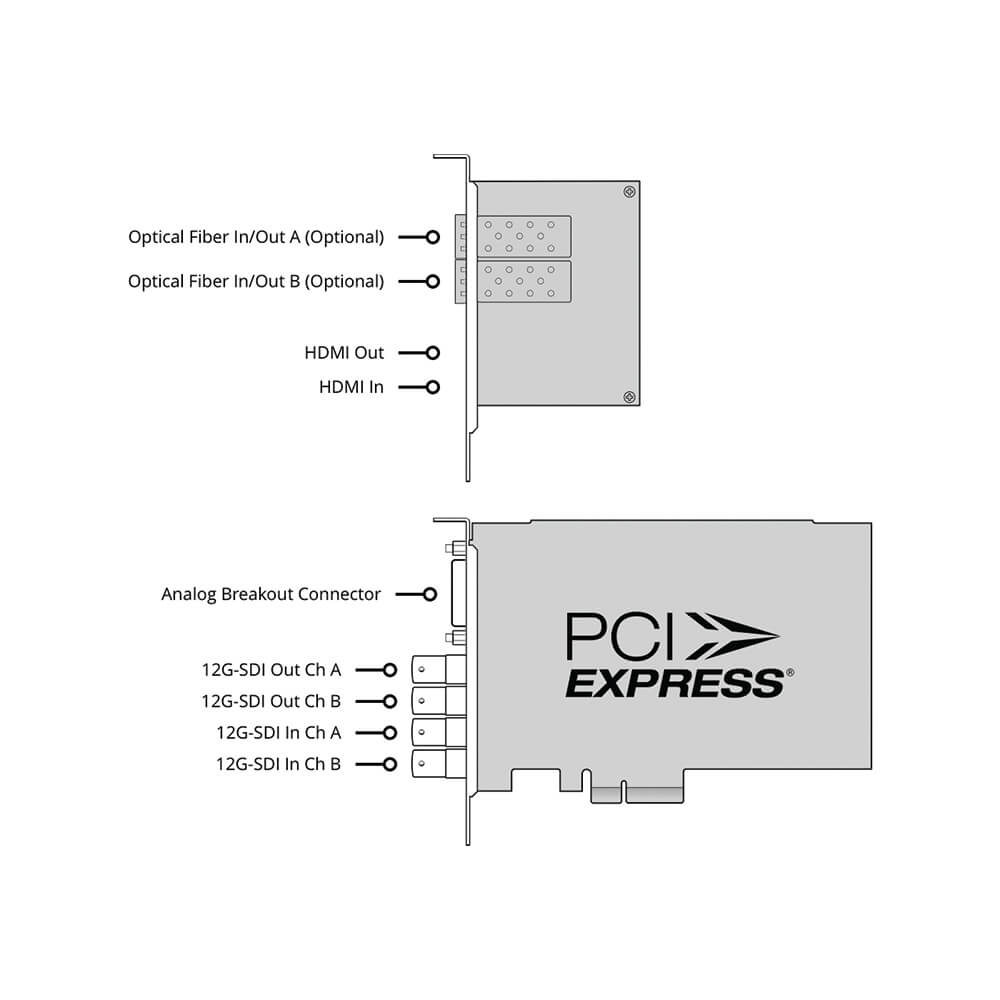

The Blackmagic Design DeckLink 4K Extreme 12G is an 8-lane PCIe Gen2 digital cinema capture and playback card with two multi-rate 12G-SDI inputs and outputs that accept resolutions from SD up to DCI 4K (4096 x 2160) at 60 fps. The card supports 10-bit YUV and 8-, 10-, and 12-bit RGB color, as well as up/down/cross conversions and 3D stereoscopic output at full bandwidth 4:4:4:4 RGB. The DeckLink 4K Extreme 12G features a mezzanine card design that has 4K HDMI input and output connectors on a second daughter card, along with connections for adding two optional optical fiber modules for Dual Link optical fiber SDI input and output. The card also supports AES/EBU balanced XLR and unbalanced RCA inputs/outputs, analog video I/O, reference input, and RS-422 control via an included breakout cable.
Blackmagic Design Extreme Specification Inputs / Outputs |
|
System Connection | PCIe 2.0 x8 |
Video Inputs | 2 x BNC (12G-SDI) 1 x HDMI (HDMI 2.0b) 1 x 3BNC (Component/Composite/S-Video) |
Audio Inputs | None |
Video Outputs | 2 x BNC (12G-SDI) 1 x HDMI (HDMI 2.0b) 1 x 3BNC (Component/Composite/S-Video) |
Simultaneous Multi-Input Support | Yes: 2 Simultaneous Inputs |
Format Support |
|
Input Video Format | Component / Composite / SDI (8/10/12-Bit 4:4:4/4:2:2) DCI 4K at 23.98/24 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K at 23.98/24 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps Component 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps Composite 576i / 625 lines 480i / 525 lines |
Input Audio Format | AES/EBU |
Output Video Format | SDI (8/10/12-Bit 4:4:4/4:2:2) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps DCI 2K 23.98/24/25 fps DCI 2KPsF 23.98/24/25 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0) DCI 4K at 23.98/24/25 fps UHD 4K 23.98/24/25/29.97/30/50/59.94/60 fps 1080p 23.98/24/25/29.97/30/50/59.94/60 fps 1080PsF 23.98/24/25/29.97/30 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps Component / Composite 480i / 525 lines at 59.94 fps 576i / 625 lines 50 fps |
Output Audio Format | AES/EBU |
Embedded Audio | SDI: 16-Channel HDMI: 8-Channel |
Standards |
|
Video Standard Compliance | SMPTE 259M/292M/296M/372M/425M/435/2108-1/ST-2081/ST-2082/ST-2082-10 ITU -R BT.601/BT.656 |
HDR Compatibility | Hybrid Log Gamma |
Hardware |
|
OS Compatibility | macOS 10.15 macOS 11.1 or Later Linux Windows 8.1 Windows 10 *As of April, 2021: Check with manufacturer for the most up-to-date compatibility |
Power Consumption | Device: 30 W |
Environmental |
|
Operating Temperature | 41 to 104°F / 5 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |
General |
|
Dimensions (W x H x D) | 6.69" / 169.93 mm |
Weight | 0.66 lb / 299 g |
-
DeckLink 4K Extreme 12G
-
HDMI mezzanine card
-
Breakout cable for analog and RS-422 control.
-
External power cable
- 3 Year Limited Manufacturer's Warranty
