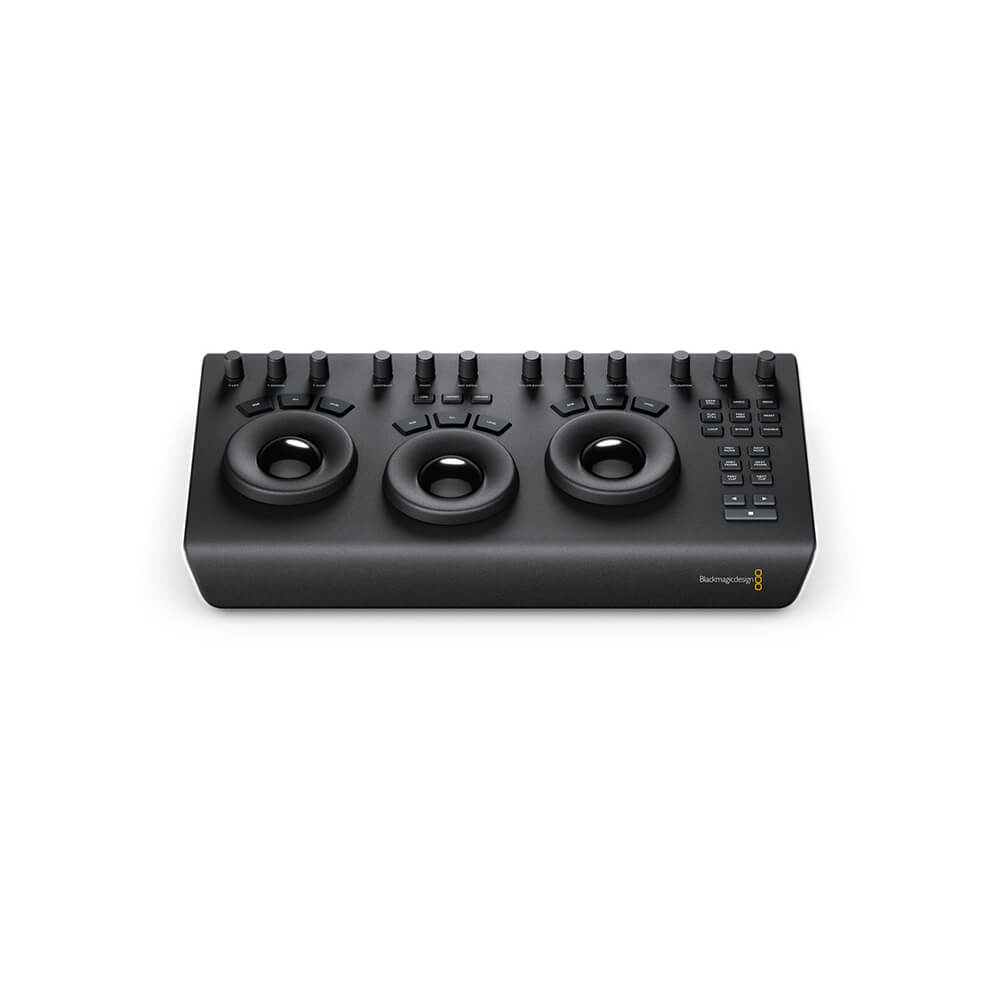

The DaVinci Resolve Micro Panel from Blackmagic Design is a portable control surface that provides more control and a faster workflow to DaVinci Resolve Studio software than working with a keyboard and mouse alone. Suitable for editors and colorists that need a portable control surface, it features three high-resolution, weighted trackballs and 12 control knobs for accessing essential primary color-correction tools in the included Resolve software. Eighteen dedicated keys on the right side also give you access to the most commonly used grading features and playback controls.
The Micro Panel uses a USB 3.0 Type-C interface that allows you to connect to a computer or laptop and power the panel, alleviating the need for a separate power supply. It also interfaces with macOS, Windows, or select Linux systems. For the panel to work with Resolve, your computer must be running DaVinci Resolve 14.3 or DaVinci Resolve Studio 14.3 or later. An included USB 3.0 Type-A to USB Type-C cable provides backward compatibility for systems that have USB 3.0 Type-A ports.
Key Features
-
Small enough to take with you, so you can use it with any Resolve system (14.3 or later) and do color correction on location or at the editor's suite
-
DaVinci Resolve Studio software activation key included
-
Shares basic layout with Mini and Advanced Panels
-
Interfaces with and controls software
-
Three track balls with outer control rings
-
Log and Offset color-correction selection buttons
-
Custom control knobs with 4096 steps per rotation and push-button reset
Controls
30 x Pre-Labeled Key
12 x Dial
3 x Trackball
Display
None
OS Compatibility
Windows 10 or Later
macOS 10.15 or Later
CentOS 7.3 or Later
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
USB I/O

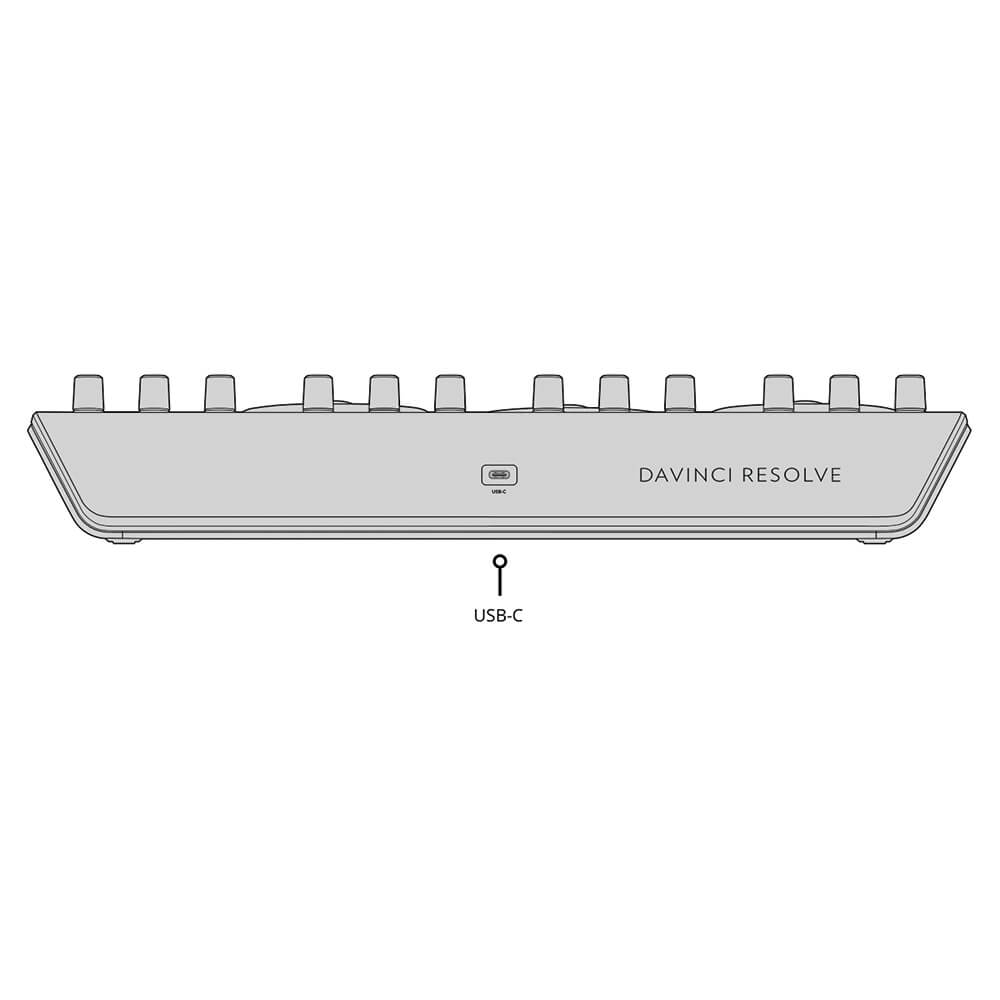

1 x USB-C Female Input
Power Source
USB
Power Consumption
2 W (Maximum)
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%
Physical

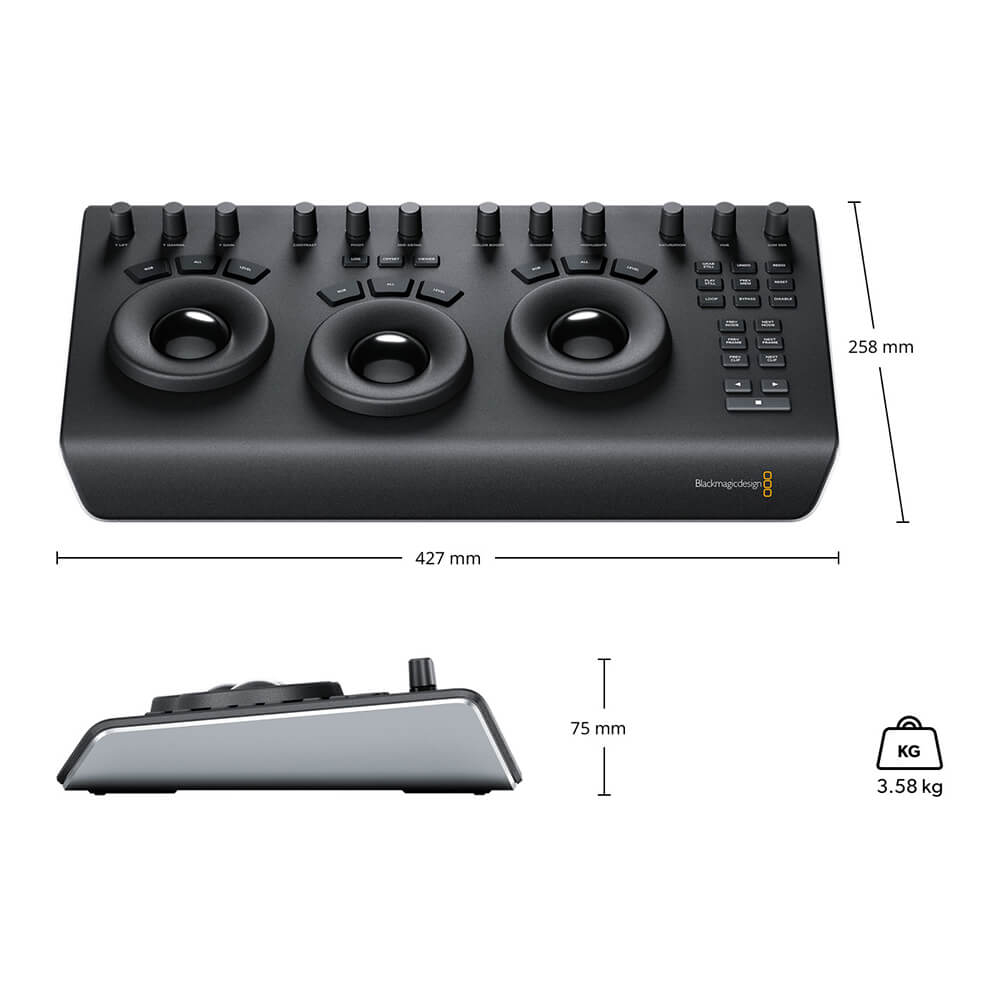

Dimensions
16.81 x 10.15 x 2.95" / 42.7 x 25.78 x 7.49 cm
Weight
7.9 lb / 3.6 kg
