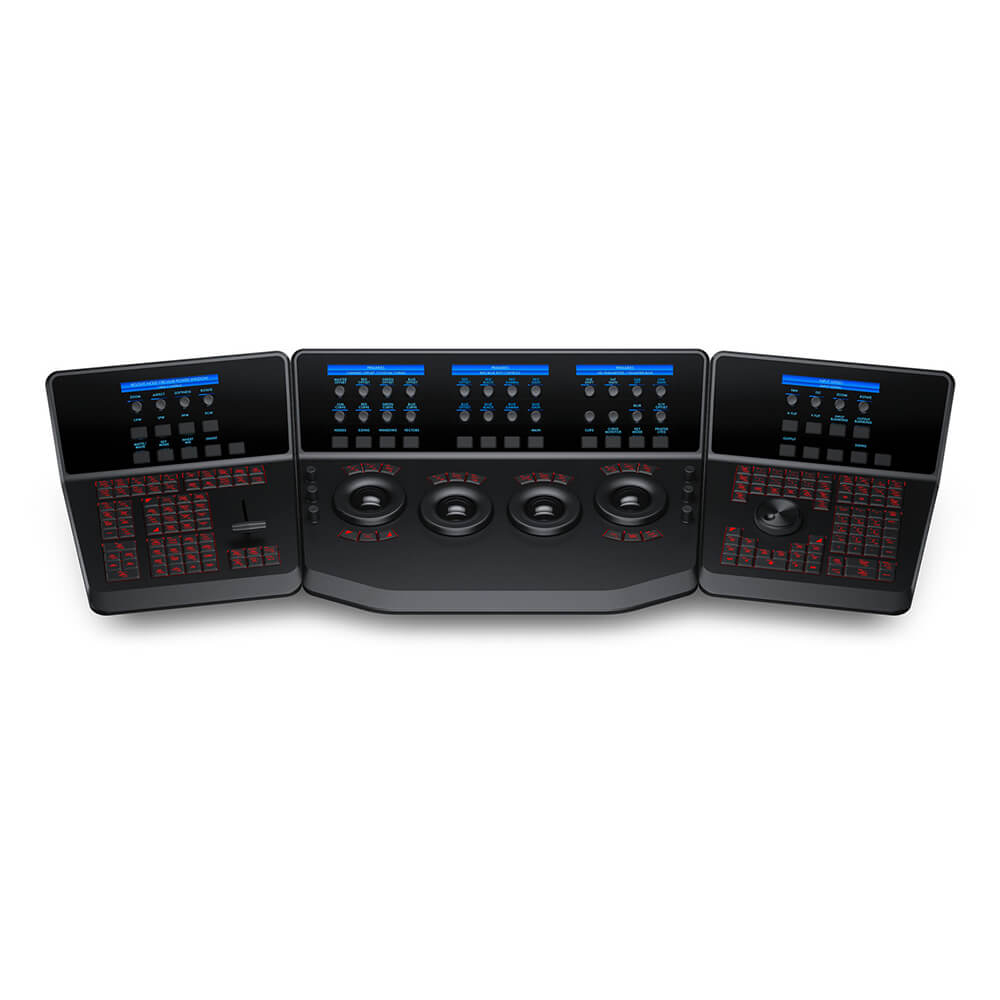

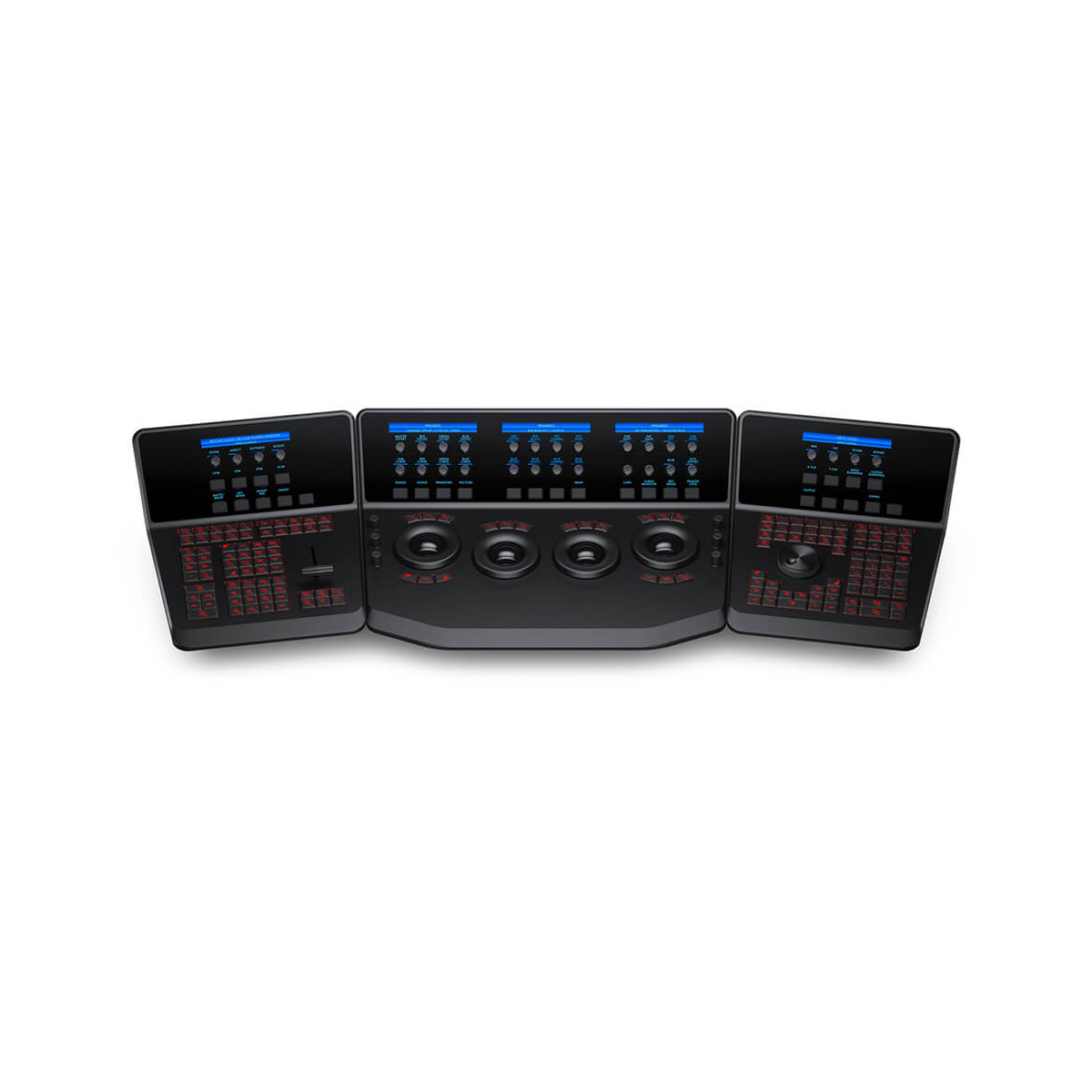

The DaVinci Resolve Advanced Panel from Blackmagic Design is a significant step up in functionality from the Micro or Mini panel. It consists of a main console and two auxiliary consoles, one on each side, as well as a slide-out keyboard in the center console. It enables one-touch access to virtually every control and parameter within the DaVinci Resolve software.
The center console incorporates four high-resolution, weighted trackballs and 30 soft, customizable control knobs for accessing color-correction tools in the Resolve software. The custom control knobs feature 4096 steps per rotation and push-button reset so you can achieve high-quality and precise color correction using the DaVinci Resolve system.
The Resolve control surface incorporates a slide-out keyboard that is useful when naming or renaming files, and it can be neatly tucked away when not in use. All functions are accessible via separate keys, such as the reference keys, and the fader T-bar that allows you to wipe between reference stills.
You can easily control the image sections via keys located for easy access at your natural hand positions. Lift, gamma, and gain adjustments along with RGB control are achieved via trackballs. Menus and indicators are visible via five high-resolution LCD screens that offer a view of the functions of all the knobs and buttons. Soft knobs that can precisely control parameters via single touch are provided, and no electrical contact eliminates wearing out of the knobs. Aesthetically illuminated keys are backlit using RGB color and intensity. Complete control of the project timeline or deck is offered via the jog/shuttle knob and transport controls.
Controls
Center Panel
4 x Trackball
30 x Pre-Labeled Key
30 x Dial
Side Panel
1 x Slider
94 x Pre-Labeled Key
Side Panel
5 x Dial
86 x Pre-Labeled Key
Display
5 x LCD
OS Compatibility
macOS 10.15 or Later
Windows 10 or Later
CentOS 7.3 or Later
*As of August, 2021: Check with manufacturer for the most up-to-date compatibility

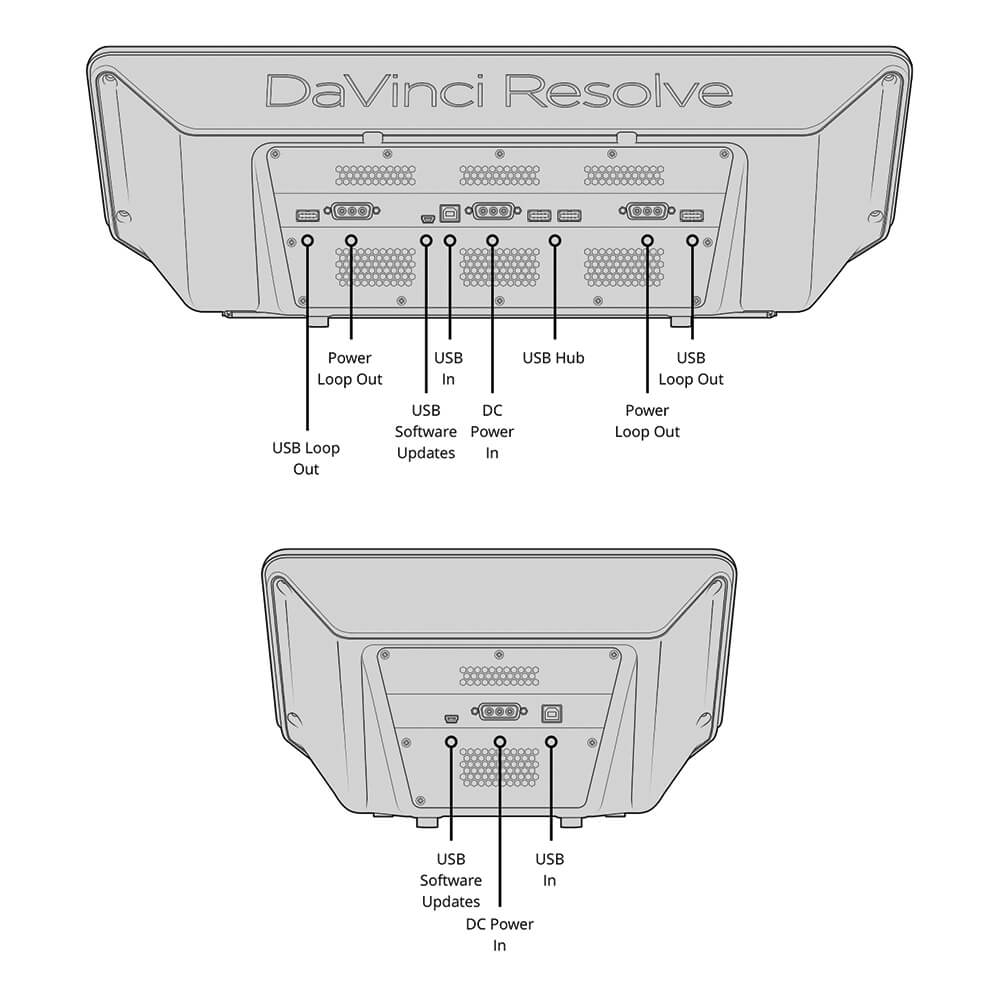

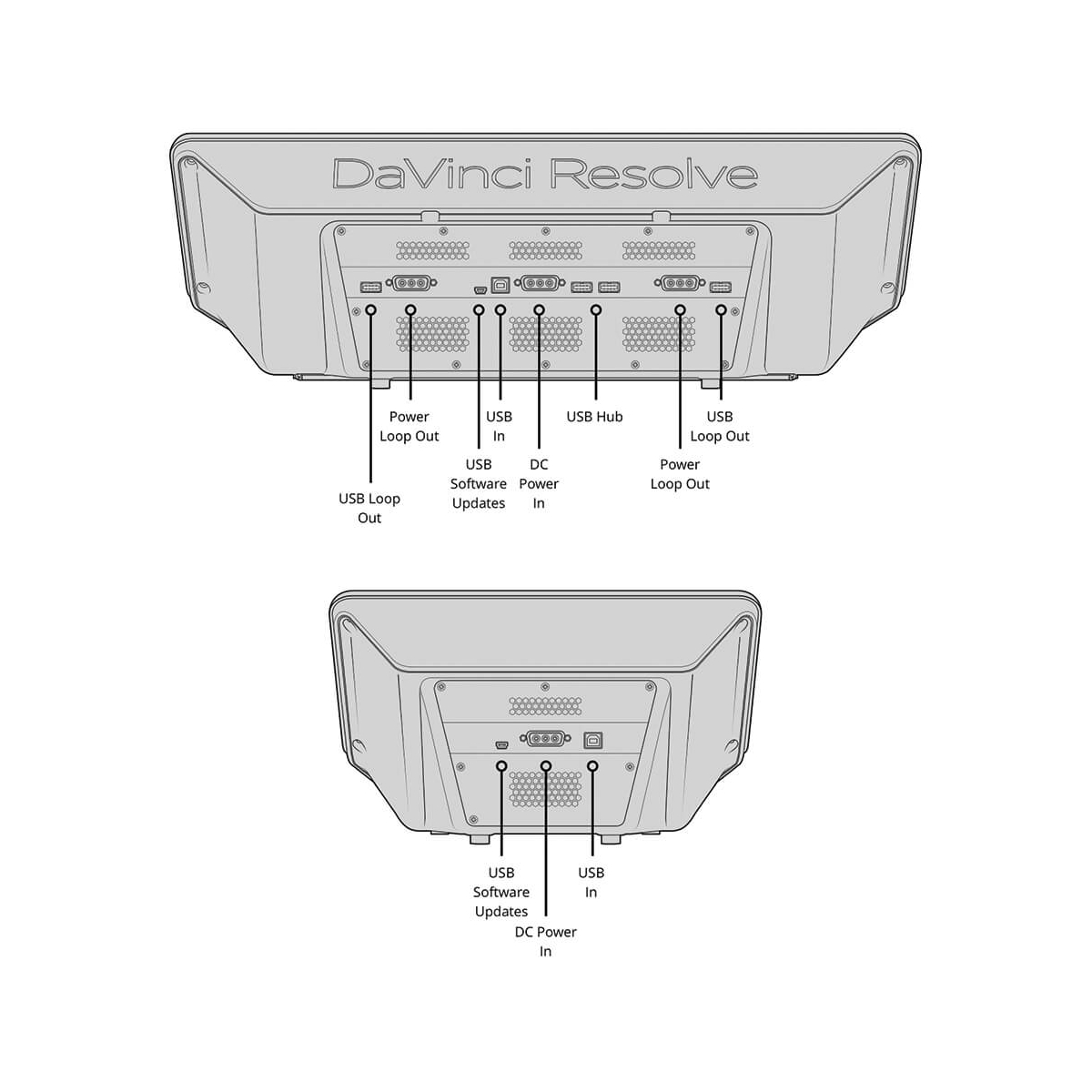

I/O
USB
Center Panel: 1 x USB Type-B Female Input (System Connection)
2 x USB Type-A Female Output (Side Panel Connection)
2 x USB Type-A Female Input
1 x Mini-USB Female Input (Software Updates)
Side Panel: 1 x USB Type-B Female Input
1 x Mini-USB Female Input (Software Updates)
Power I/O
Center Panel:1 x 3W3 D-Sub Input
2 x 3W3 D-Sub Output
Side Panel:1 x 3W3 D-Sub Input
Power
Power Source
AC Adapter with Power Brick (Included)
AC Input Power
100 to 240 VAC, 50 / 60 Hz at 1.5
Power Consumption
80 W (Maximum)
Environmental
Operating Temperature
32 to 104°F / 0 to 40°C
Storage Temperature
-4 to 140°F / -20 to 60°C
Operating Humidity
0 to 90%
Physical

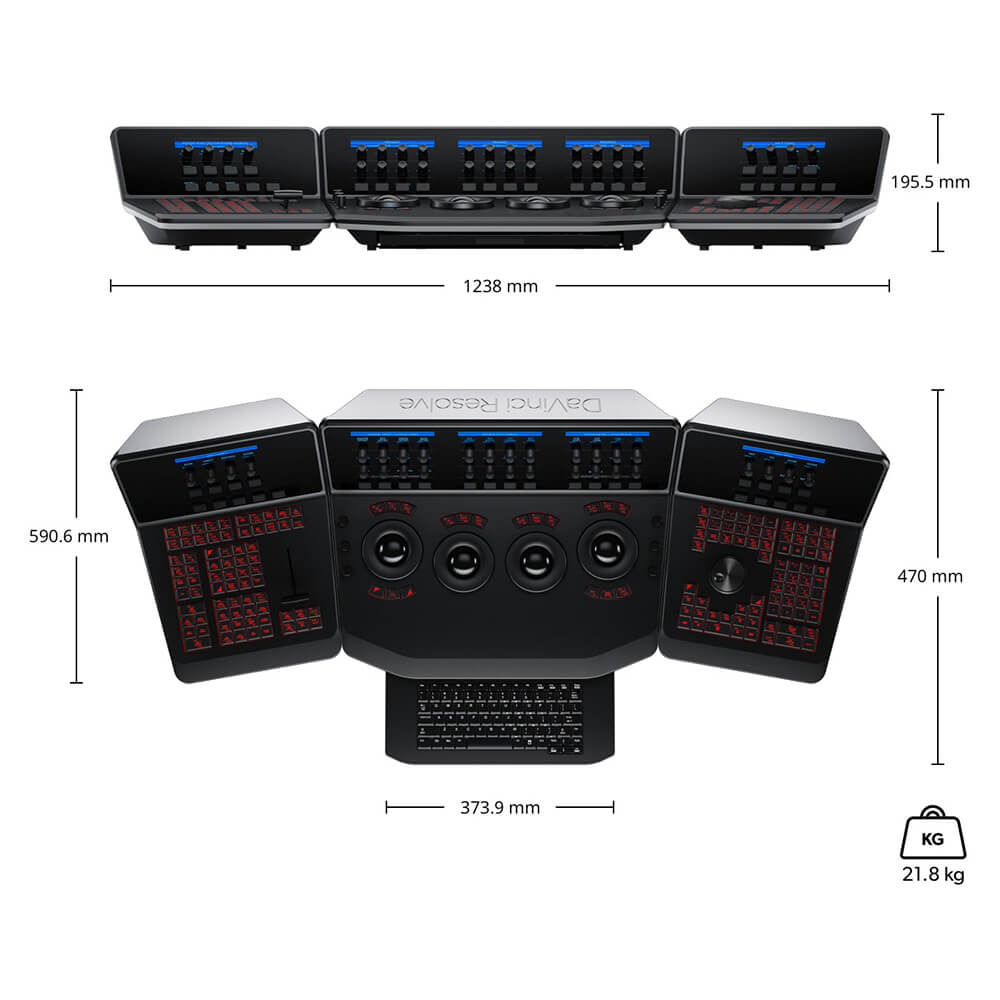

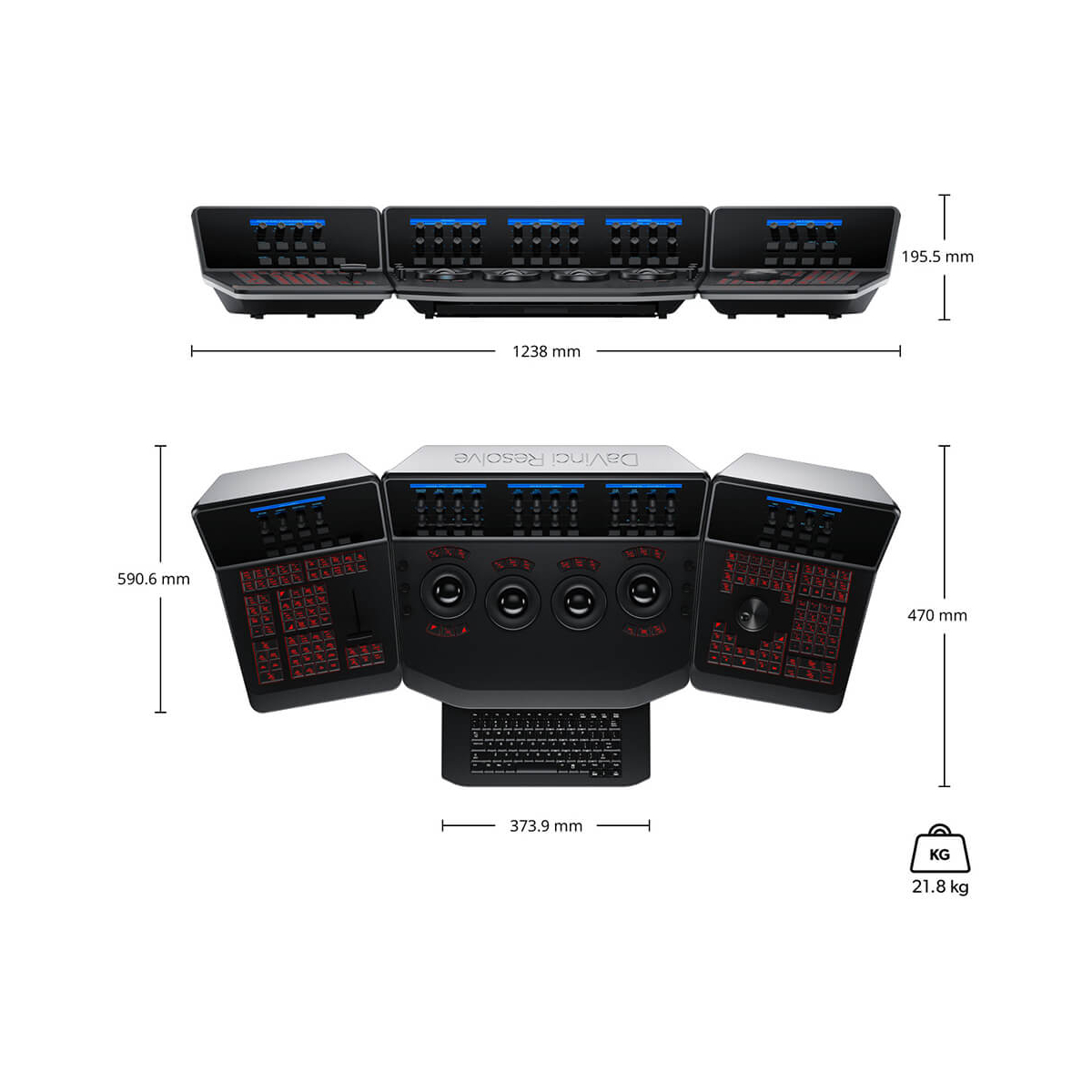

Dimensions
Fully Assembled: 48.75 x 18.5 x 7.69" / 123.83 x 47 x 19.53 cm
Center Panel: 22.6 x 18.14 x 7.7" / 57.4 x 46.08 x 19.6 cm
Side Panel: 16.6 x 13.1 x 7.7" / 42.2 x 33.3 x 19.6 cm
Weight
Fully Assembled: 48.06 lb / 21.8 kg
