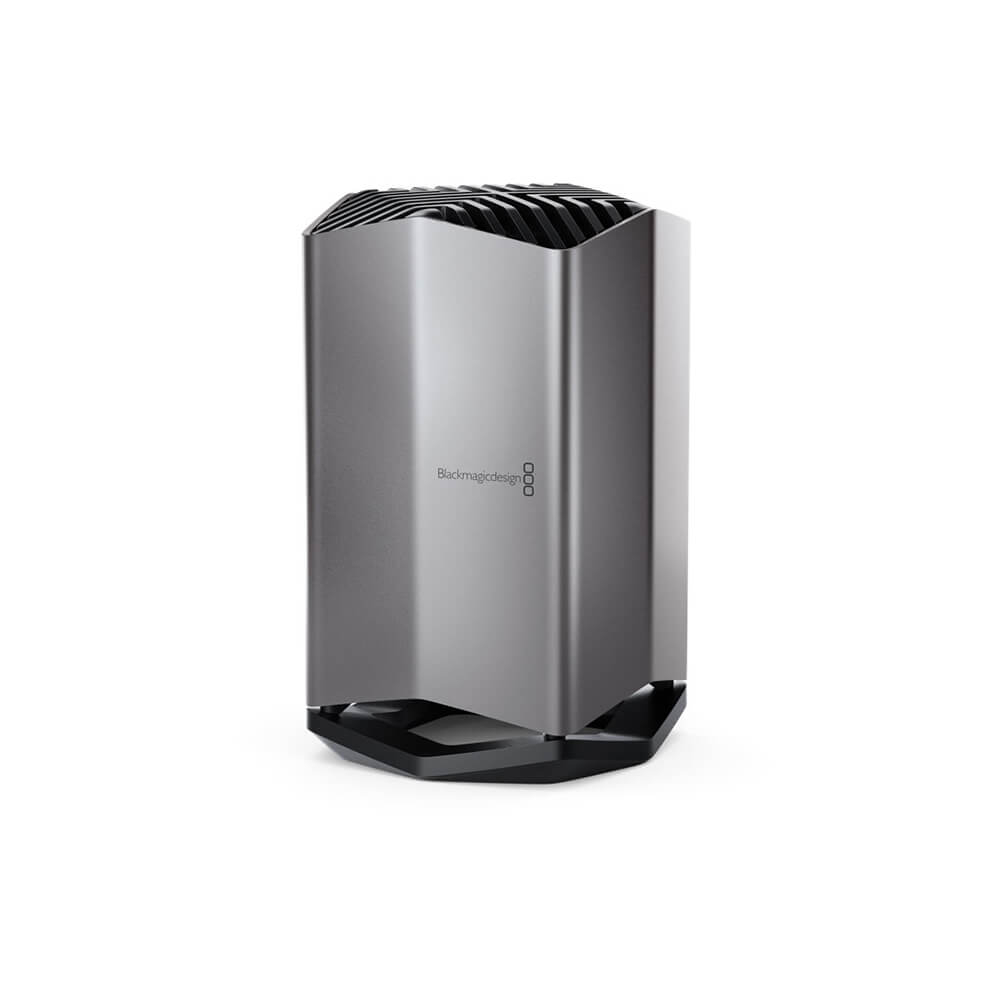

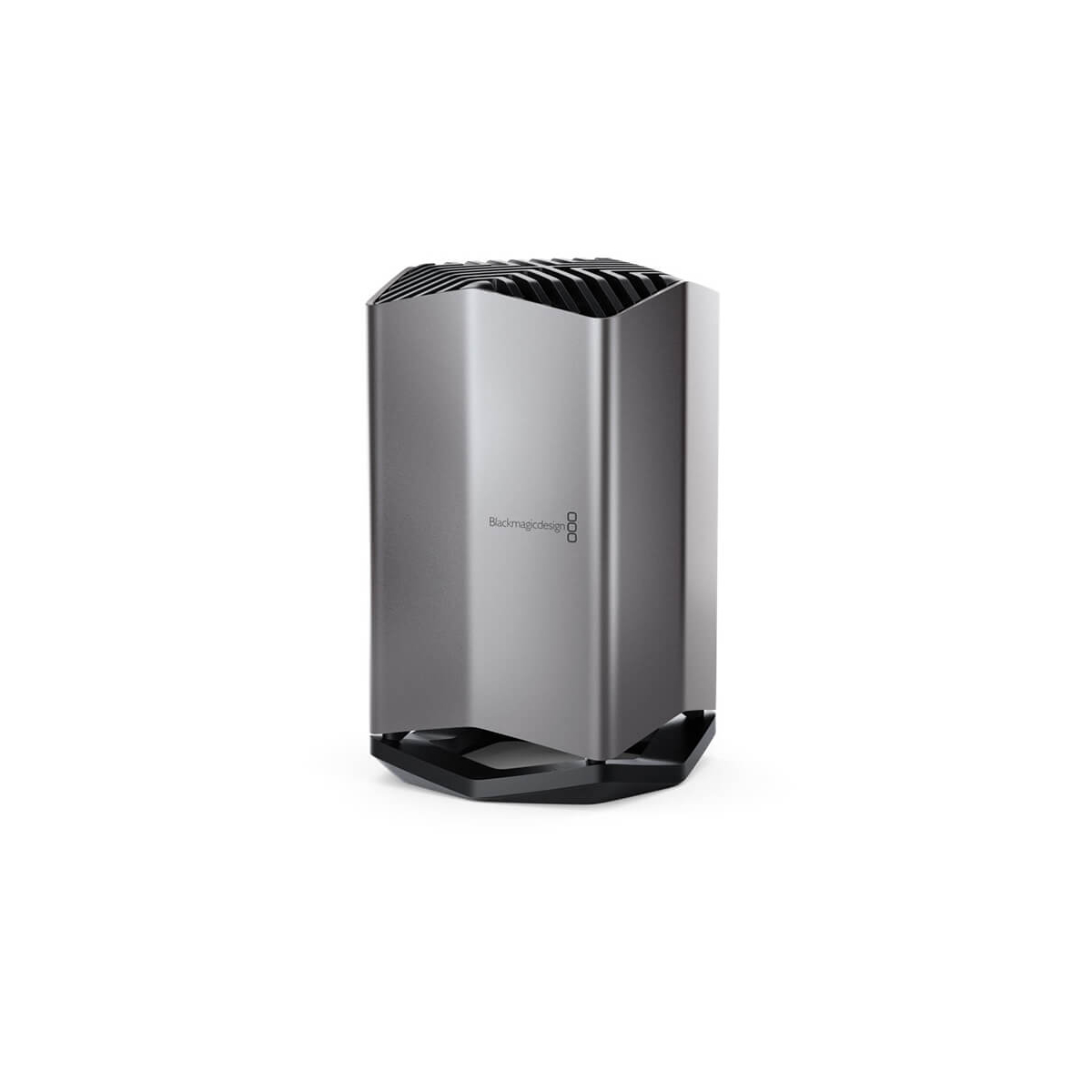

Designed for feature film productions, where large media files need to be shared between multiple users, the 320TB Cloud Store from Blackmagic Design is well suited for editing, color correction, audio, post, and VFX work. It has a capacity of 320TB, which is made up of multiple NVMe M.2 SSDs, which are preconfigured as RAID 5 and able to handle 12K Blackmagic raw digital cinema files. The Cloud Store is also equipped with four 10GbE ports, which can also function as a network switch, plus two Gigabit Ethernet ports. There are also two 5 Gb/s USB Type-C ports, one of which ingests content from an external drive, while the other backs up cloud data to a USB drive. Both USB Type-C ports also support Ethernet connectivity and an HDMI output that lets you keep track of your Cloud Store's status, including a storage map, speed graphics, sync, active users, and power status.
Blackmagic Design Cloud Store Specification Drives |
|
Storage Capacity | 320 TB |
Initial RAID Configuration | RAID 5 |
Interface | NVMe |
General |
|

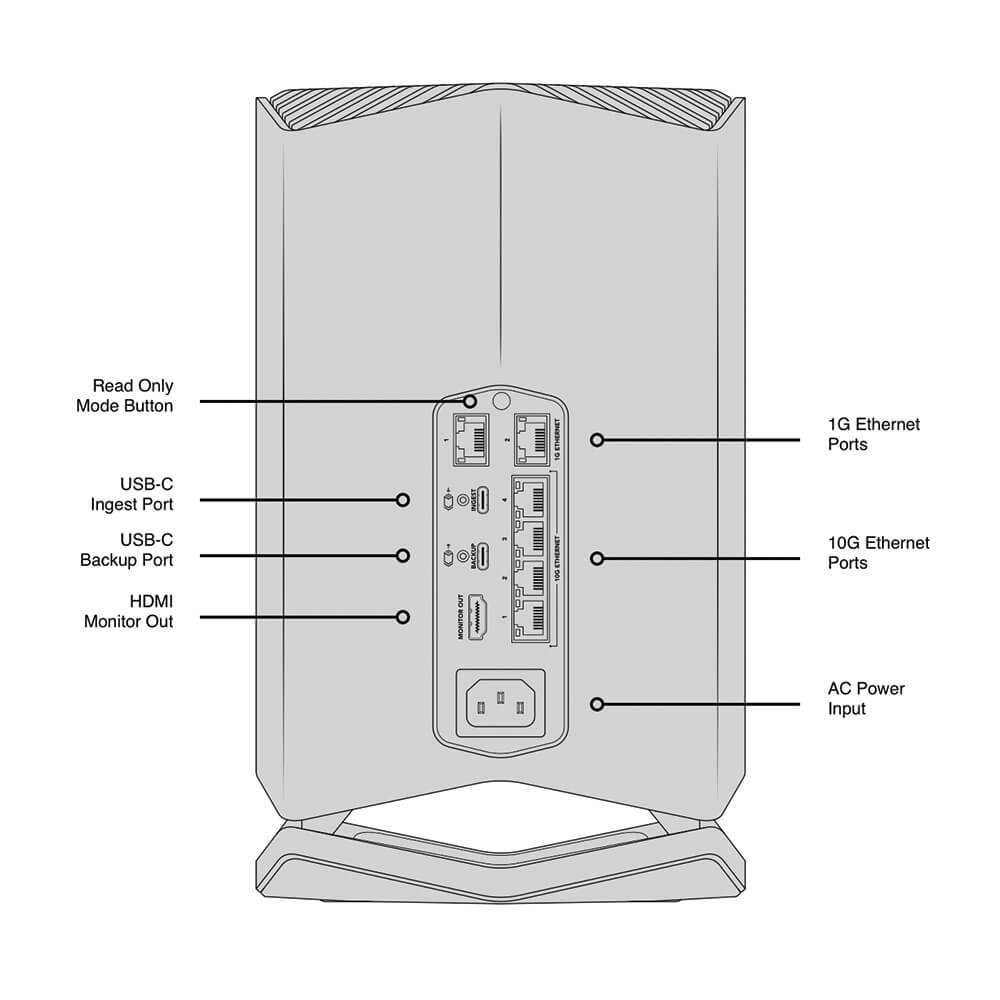

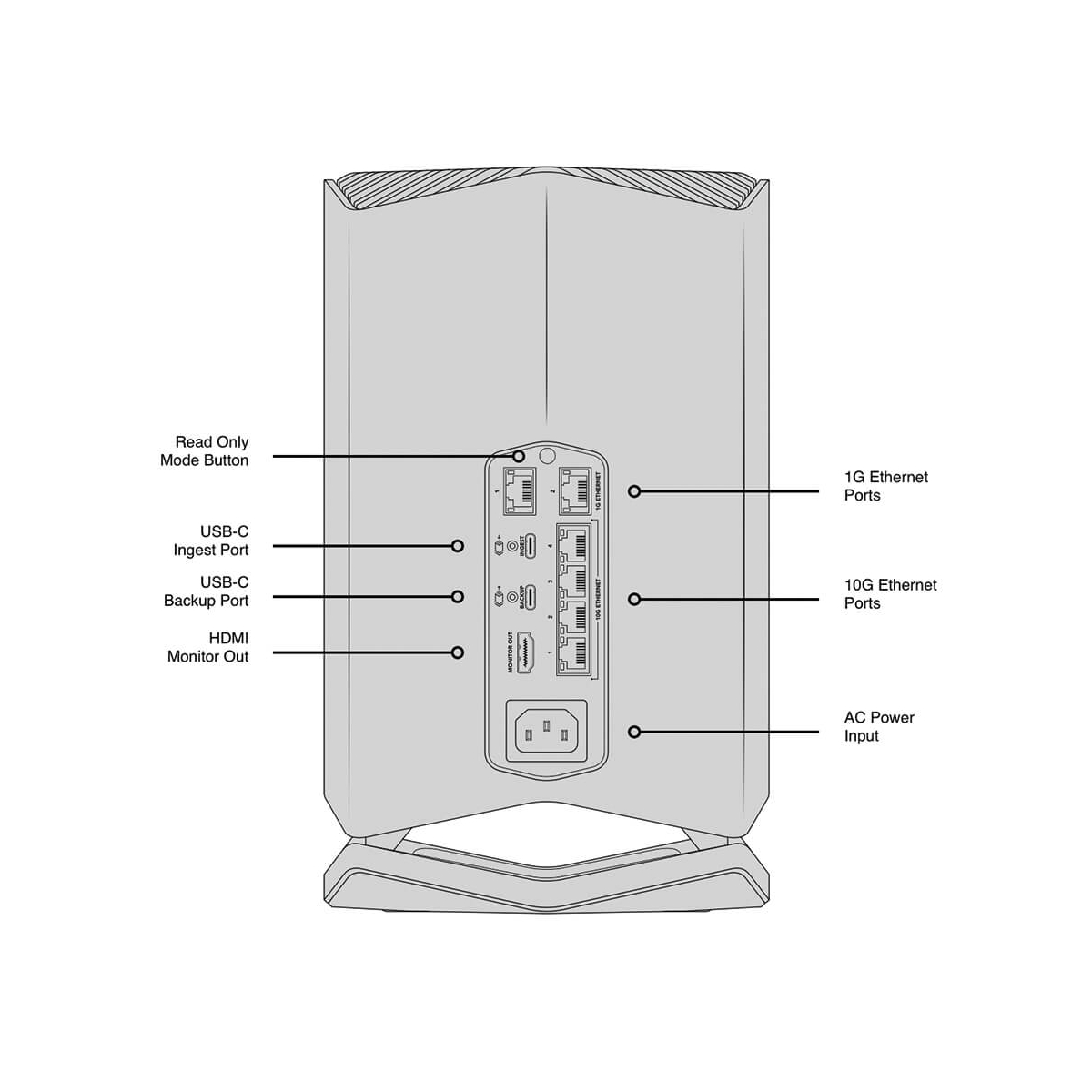

Inputs/Outputs | 4 x RJ45 10GbE Input 2 x RJ45 Gigabit Ethernet Input 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Input 1 x USB-C 3.0 / 3.1/3.2 Gen 1 Output 1 x HDMI Output |
Compatible Drive Interface | NVMe |
RAID | RAID 5 |
Link Aggregation and Failover Support | Yes |
Networking |
|
Supported Protocols | SMB |
Software |
|
Supported File Systems | External: HFS+, exFAT |
OS Compatibility | Windows 11 Windows 10 macOS 11.1 or Later *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
Mobile App Compatible | Yes *As of March, 2023: Check with manufacturer for the most up-to-date compatibility |
Electrical |
|
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
Power Consumption | 400 W (Maximum) |
PSU Wattage | 2 (Supports Redundancy) |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
Physical |
|
Status Monitoring | LED Indicator |
Audible Alarm | No |

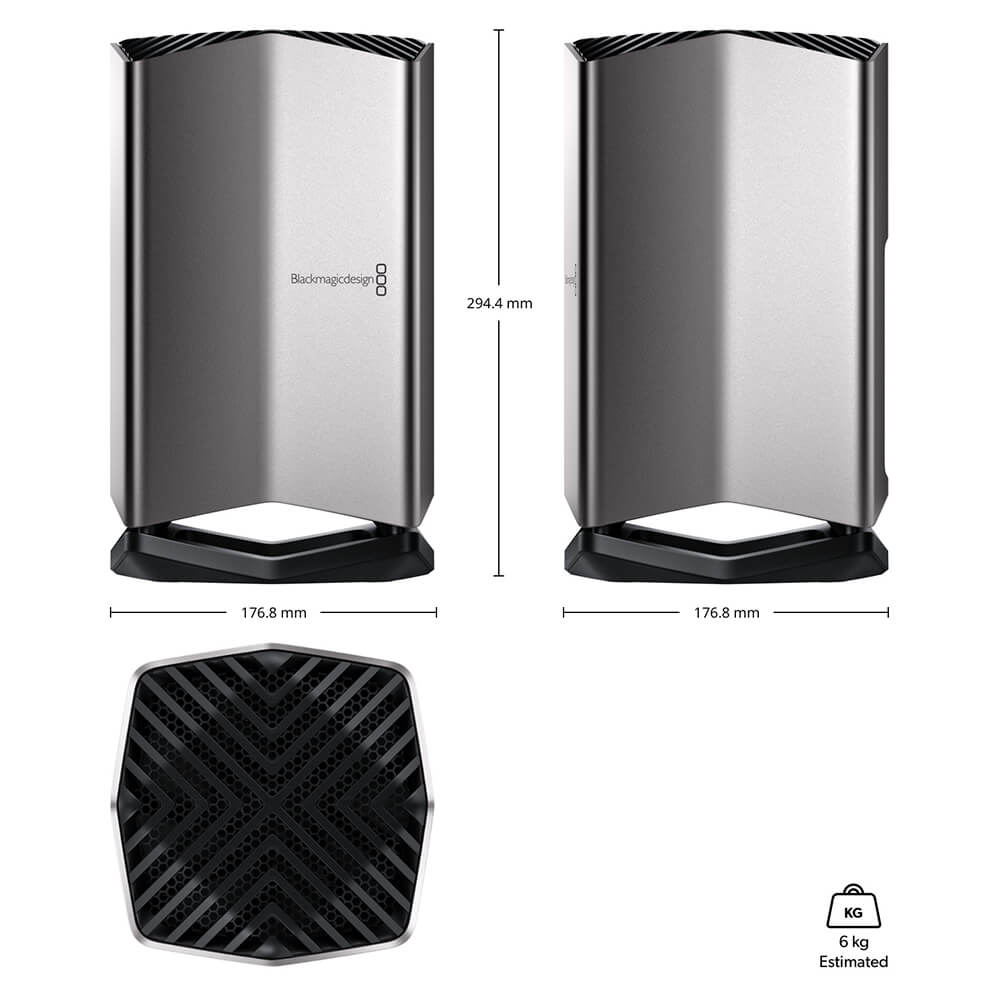

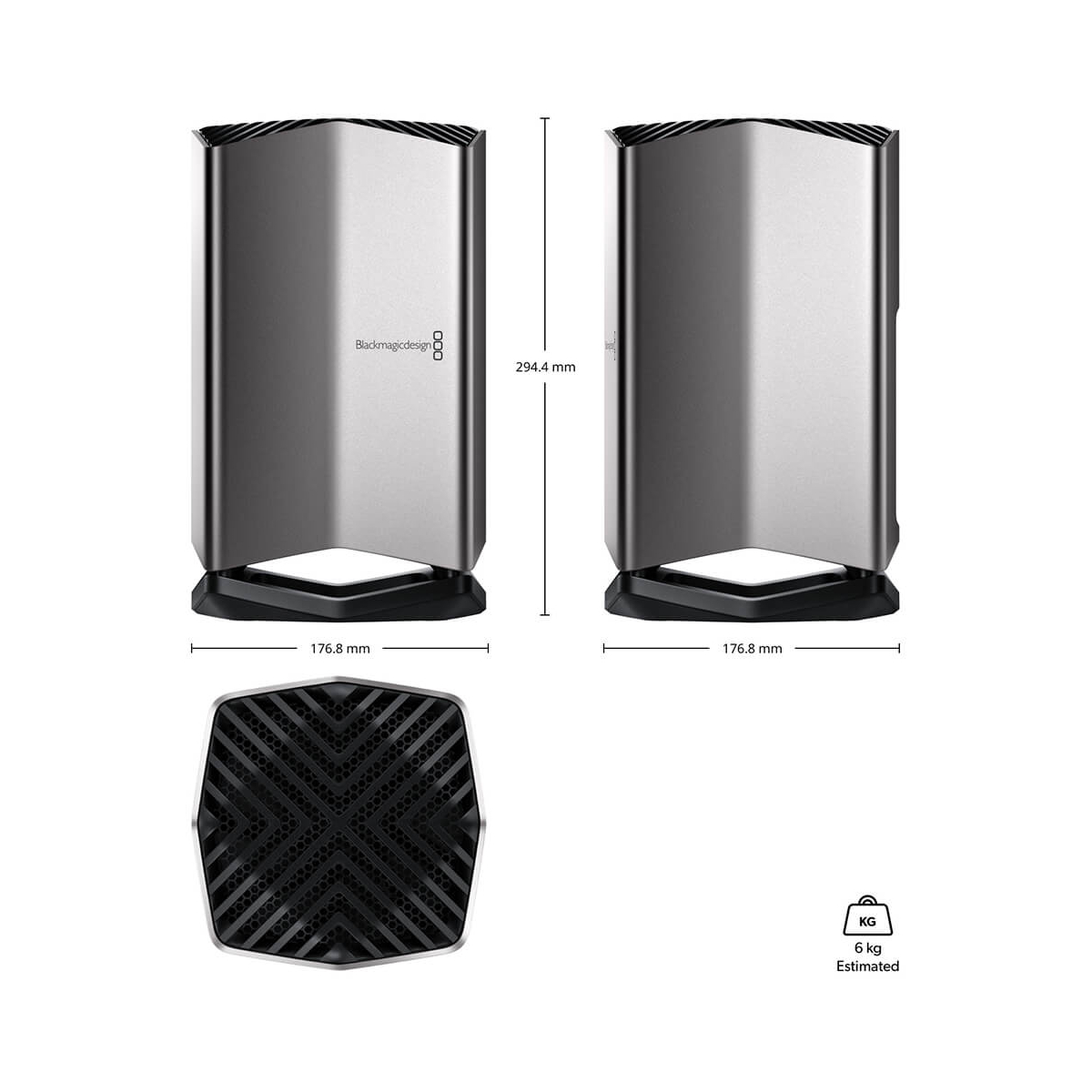

Dimensions | 11.6 x 7 x 7" / 29.5 x 17.8 x 17.8 cm |
Weight | 13.2 lb / 6.0 kg |
