Scanner Features
Film Stocks
Print, Negative, Interpositive, Internegative.
Mono and Color.
Film Gauges
35mm (2, 3, 4 perforations),
Super 35mm (2, 3, 4 perforations).
16mm, Super 16mm
Native Resolution
4096 x 3072
Effective Resolutions
3840 x 2880 - Super 35
3390 x 2864 - Standard 35
3390 x 2465 - Anamorphic 35
1903 x 1143 - Super 16
1581 x 1154 - Standard 16
HDMI Formats
3840 x 2160 Ultra HD
1920 x 1080 HD
(auto selected to match monitor resolution)
Dynamic Range
Normal Scans: 12 stops
HDR Scans: up to 3.5 additional stops
Audio
Extraction from scanned image.
Transport Type
Rubber Capstan.
Dirt and Scratch Reduction
Diffuse light source. Cleaning rollers.
Mounting Options
Desk Mount. Wall Mount.
Supported Film Stocks
Print, negative, interpositive, internegative, mono, and color
Film Gauges
35mm (2, 3, 4 perforations), Super 35 (2, 3, 4 perforations), 16mm, and Super 16
Native Resolution
4096 x 3072
Effective Resolutions
3840 x 2880 (Super 35), 3390 x 2864 (35mm), 3390 x 2465 (anamorphic 35), 1903 x 1143 (Super 16), 1581 x 1154 (16mm)
HDMI Formats (Auto Selected to Match Monitor Resolution)
3840 x 2160 UHD 4K, 1920 x 1080 HD
Dynamic Range
Normal scans: 12 stops; HDR scans: up to 3.5 additional stops
Audio
Extraction from scanned image
Transport Type
Rubber capstan
Dirt and Scratch Reduction
Diffuse light source, cleaning rollers
Continuous Motion - Run Speed
1 - 30 fps
Continuous Motion - Shuttle
1 - 100 fps (35mm), 1 - 200 fps (16mm)
Acceleration
5 - 30 fps/s
Film Shrinkage Tolerance
Up to 2% guaranteed; more may be possible with user care
Capacity
2000' (35mm)

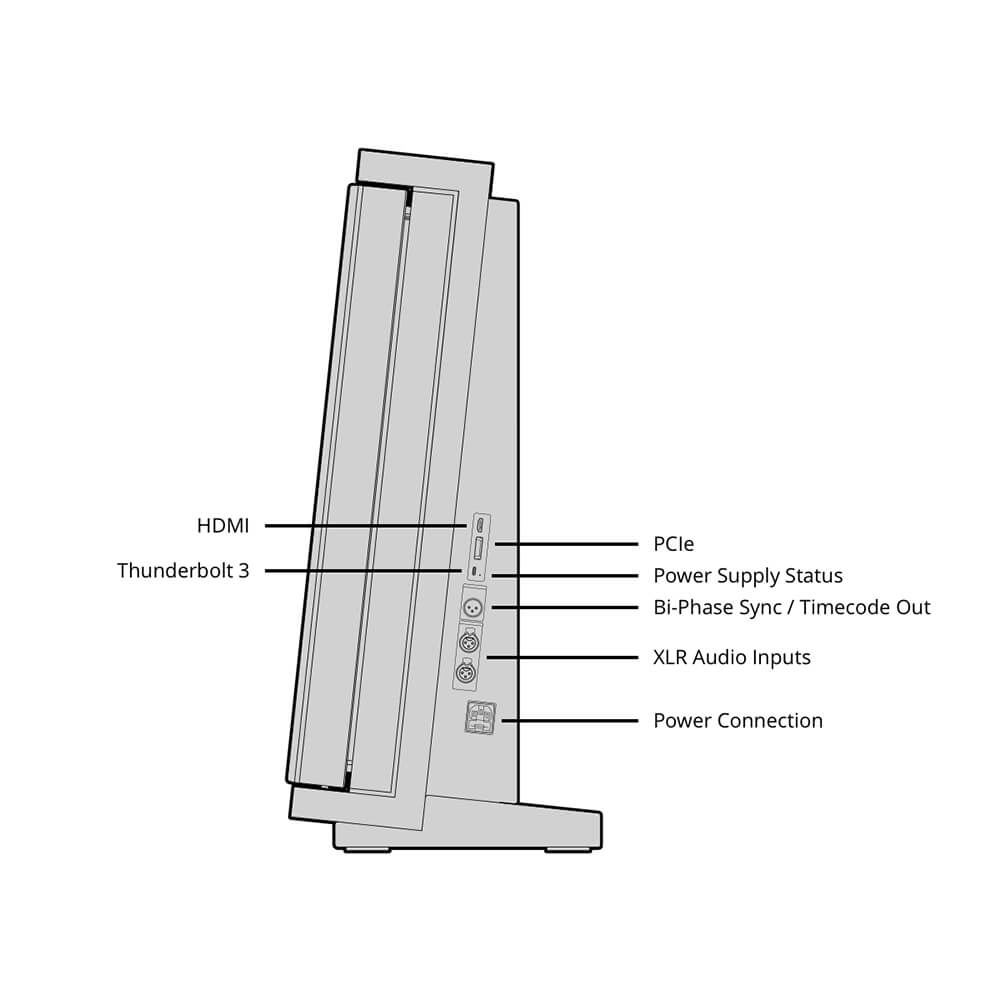

Connections
1 x HDMI 1.4 10-bit 4:2:2 video output for preview purposes
Computer Interface
Thunderbolt 3 for capture of image and audio, software updates, and USB-C charging with 15W at 5V; PCI Express 4 lane generation 2
XLR3 Bi-Phase
4.5 VDC coupled
Timecode Output
1.5 VDC coupled with support for 24, 25, and 30 fps
Analog Audio Inputs
Two channels of professional balanced analog audio with a sample rate converter via XLR connectors with 10dBV levels
AES/EBU Audio Input
One channel with a sample rate converter on the XLR connector
Options Interface
XLR6
Supported Operating Systems
Mac 11.1, Mac 12.0 or later, Windows 10, Windows 11, and Linux; the scanner requires desktop video installed on the host computer to operate; scanning can be controlled though DaVinci Resolve or through 3rd-party software using the Cintel SDK
-
Cintel Scanner G3 HDR+
-
Desk Stand
-
8 x 1mm Reel Spacers
-
Cintel Scanner 35mm Gate
-
DaVinci Resolve Studio activation key
-
Welcome wallet with QR code for software download
- 12 Month Limited Manufacturer's Warranty
