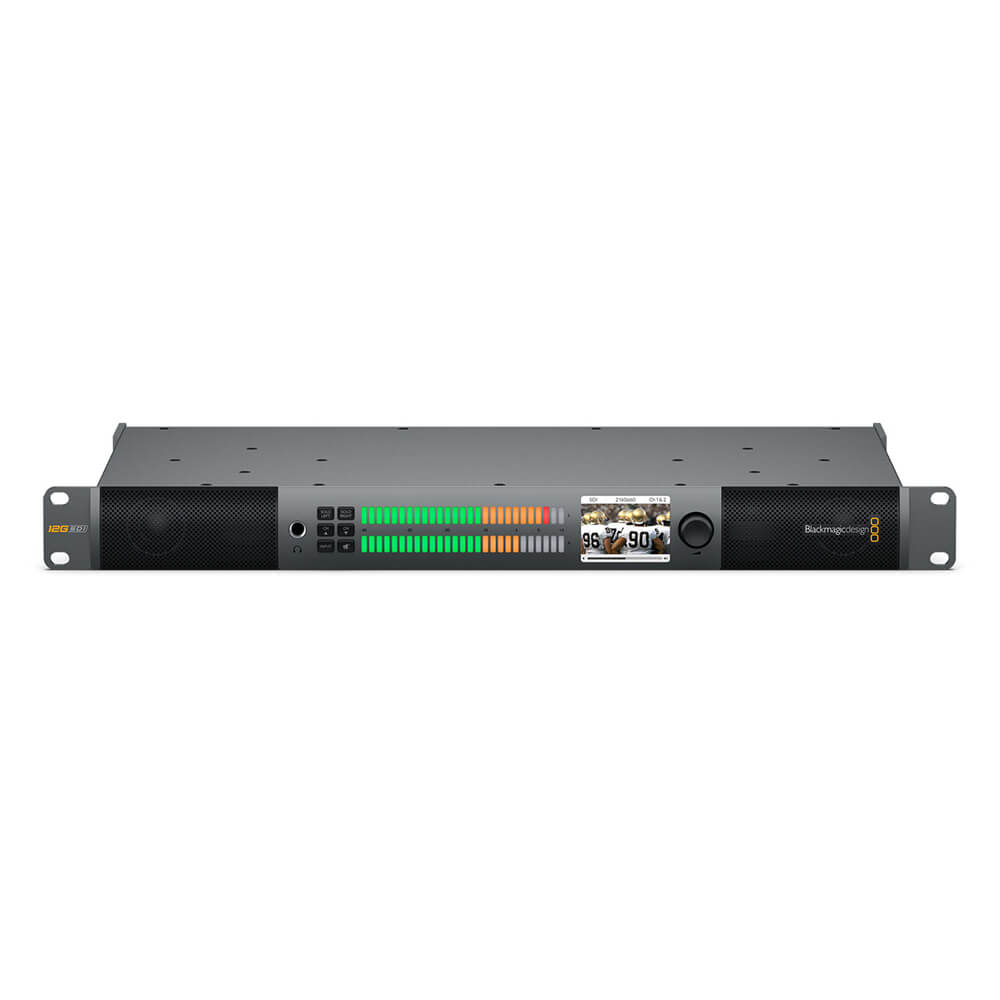

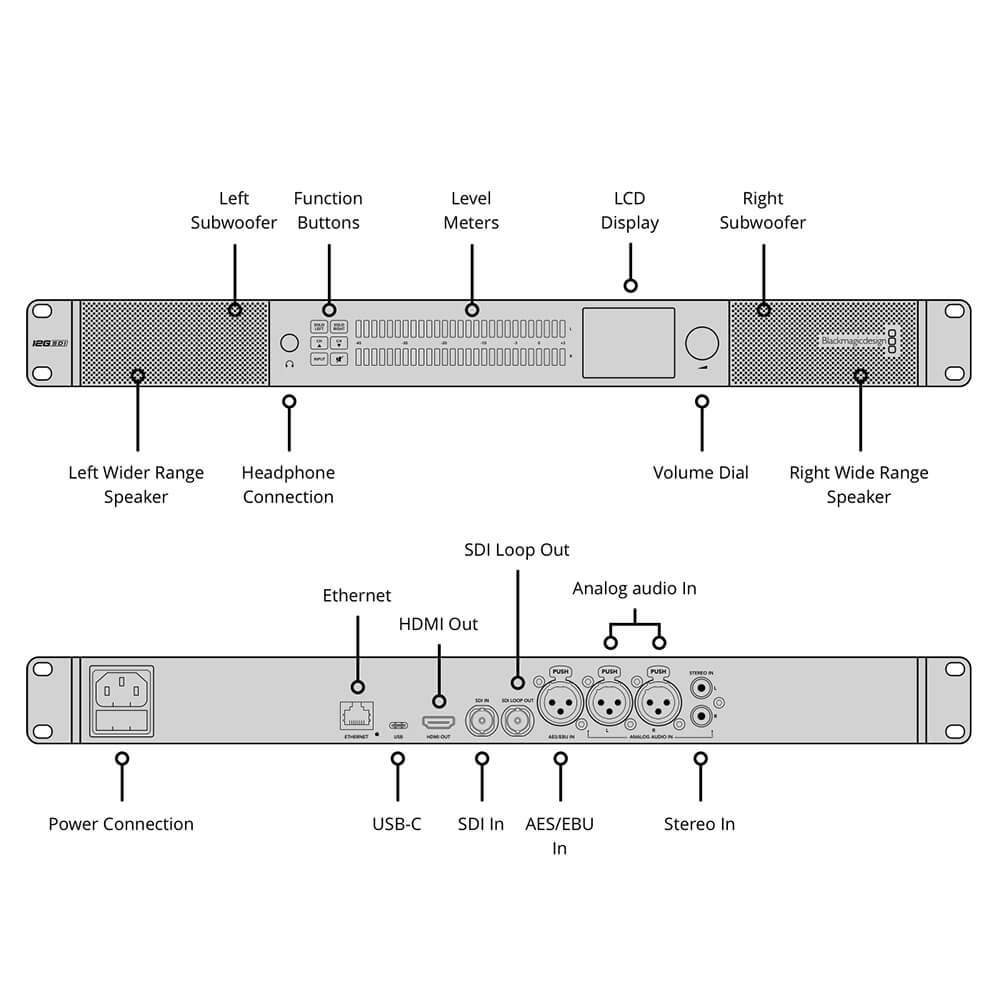

Monitor your audio with the 1 RU Blackmagic Audio Monitor 12G from Blackmagic Design. Featuring a dual-subwoofer design with extra wide range speakers, the audio monitor is equipped with Class-D amplifiers. It features a 12G?SDI input, a balanced XLR analog audio input, a balanced AES/EBU digital input audio, HiFi audio inputs, and an HDMI 2.0 output. The front panel features multicolored audio level meters and a built-in LCD for monitoring video sources.
Blackmagic Design HDL-AUDMON1RU12G Specification |
|
Amplifiers | Class-D |
Inputs | 1 x SDI, Video 2 x XLR, Analog Audio 2 x RCA, Stereo Audio 1 x XLR, AES/EBU 2 Channels Balanced |
Output | 1 x SDI, Video Loop Out 1 x HDMI 2.0, Video 1 x 1/4" / 6.5 mm Headphone Jack |
Control | 1 x USB Type-C, Port 1 x RJ45, Ethernet Port |
SDI Rate | 270 Mb, 1.5G, 3G, 6G, and 12G |
Built-In Speakers | 2-Way Stereo, 2 x Subwoofers, 2 x Full-Range Drivers |
Metering | 2 x 27-Segment RGB LED VU, PPM, or Loudness Meters |
SD Video Standards | 525i59.94 NTSC and 625i50 PAL |
HD Video Standards | 1080p at 50, 59.94, and 60 1080p at 23.98, 24, 25, 29.97, and 30 1080PsF at 23.98, 24, 25, 29.97, and 30 1080i at 50, 59.94, and 60 720p at 50, 59.94, and 60 |
2K Format Support | 2K DCI at 23.98p, 24p, and 25p 2K at 23.98PsF, 24PsF, and 25PsF |
Ultra HD Format Support | 2160p at 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 |
4K Format Support | 4K DCIp at 23.98, 24, 25, 29.97, 30, 50, 59.94, and 60 |
SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, and SMPTE 2082-10 |
SDI Auto Switching | Automatically Selects Between SD, HD, 3G-SDI Level A and B, 6G-SDI, and 12G-SDI |
Audio Sampling | 96 kHz and 24-bit |
Video Sampling | 4:2:2 and 4:4:4 |
Operating Systems | Mac 10.13 High Sierra, Mac 10.14 Mojave or later, Windows 8.1, and Windows 10 |
Display Size | 2.2" Diagonal |
Display Resolution | 320 x 240 |
Power Supply | 100 to 240 VAC, Internal |
Power Usage | 55 W |
Material | Machined Metal |
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 113°F / -20 to 45°C |
Operating Humidity | 0 to 90% |

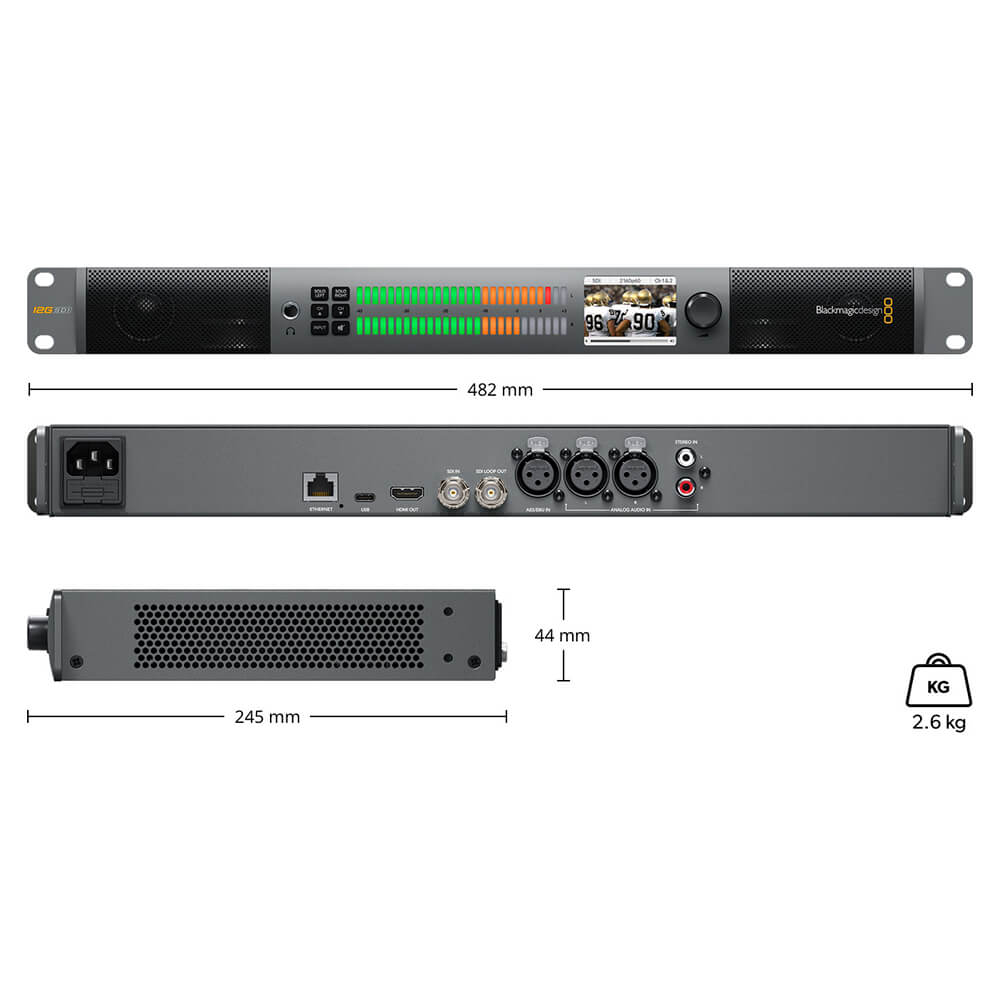

Dimensions | 19 x 9.65 x 1.73" / 48.3 x 24.5 x 4.4 cm |
Weight | 5.73 lb / 2.6 kg |
