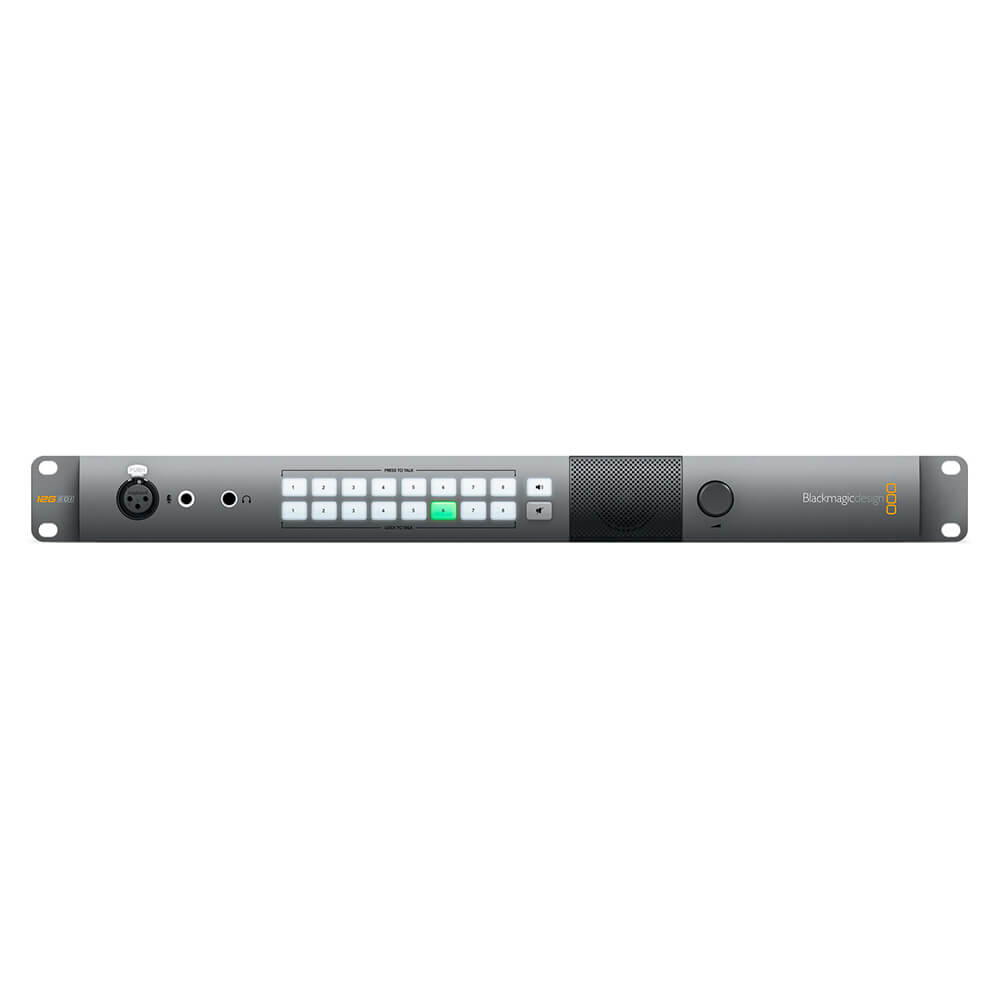

【Blackmagic Design】ATEM Talkback Converter 4K

  • Communicate with up to 8 Cameras
  • 8 SDI I/O
  • Camera Talkback via XLR, Mini
  • Fits in 1 Standard Rack Unit
  • Supports SDI Tally Output
  • Camera Talkback
  • Upgradeable to Accept 8 Fiber I/O

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
SWRCONVRCKT4K8
Write Your Own Review
You're reviewing:【Blackmagic Design】ATEM Talkback Converter 4K
Your Rating

With 12G-SDI, Blackmagic Design's ATEM Talkback Converter 4K accepts high-resolution video from up to eight studio cameras or ATEM Camera Converters and allows the control room to interact with the camera operators. The 12G-SDI connections can support video with resolutions up to 4096 x 2160 at 60 fps and rout those individual signals to a switcher via SDI outputs, to a program monitor via its own SDI output, and back to the camera operator while carrying talkback audio over a single cable. Talkback audio can be captured via a microphone plugged into the XLR jack on the front, or a headset mic plugged into the appropriate jack, also on the front panel.

This unit can be upgraded to accept fiber optic connections, which carry, bi-directional 4K video, audio, and talkback for up to 28 miles without signal degradation. And because of its 1 RU size, it can easily fit into industry-standard rack-mount equipment and furniture.



Optional Optical Fiber Connectors
The ATEM Talkback Converter 4K can be upgraded to use standard single-mode optical fiber cable with standard LC connectors to allow you to transmit SD and HD video signals up to 28 miles away. Standard copper wire SDI cables have a limit of several hundred feet before the signal breaks up, converting the SDI signal to optical, and sending it along optical cable greatly increases the distance of your cable runs.


Talkback and Tally
The unit features a built-in speaker and mic inputs, as well as a headphone jack for when you need privacy, or the area is too loud. When connected to the ATEM Camera Converter without needing to worry about walkie-talkies. Using the talkback feature, the unit uses audio channels 15 and 16 of the SDI stream for talkback communication.
Camera operators can be selected individually if desired, and communication can be controlled by a push button, or locked open. Mute and unmute buttons on the front of the unit allow you to control who hears what.The unit passes SDI Tally signal information back to the cameras along with any SDI Program signal from available switchers.


Precision Signal Processing
The unit features chips that use 10-bit processing, and are switchable between SD and HD, for a clean signal.
The unit features eight independent simultaneous SDI-to-optical and optical-to-SDI converters (with the optional fiber terminals), when used in conjunction with the ATEM Camera Converter the unit can also be used as four independent SDI or Fiber to HDMI converters.

Blackmagic Design ATEM Talkback Converter 4K Specification

Display

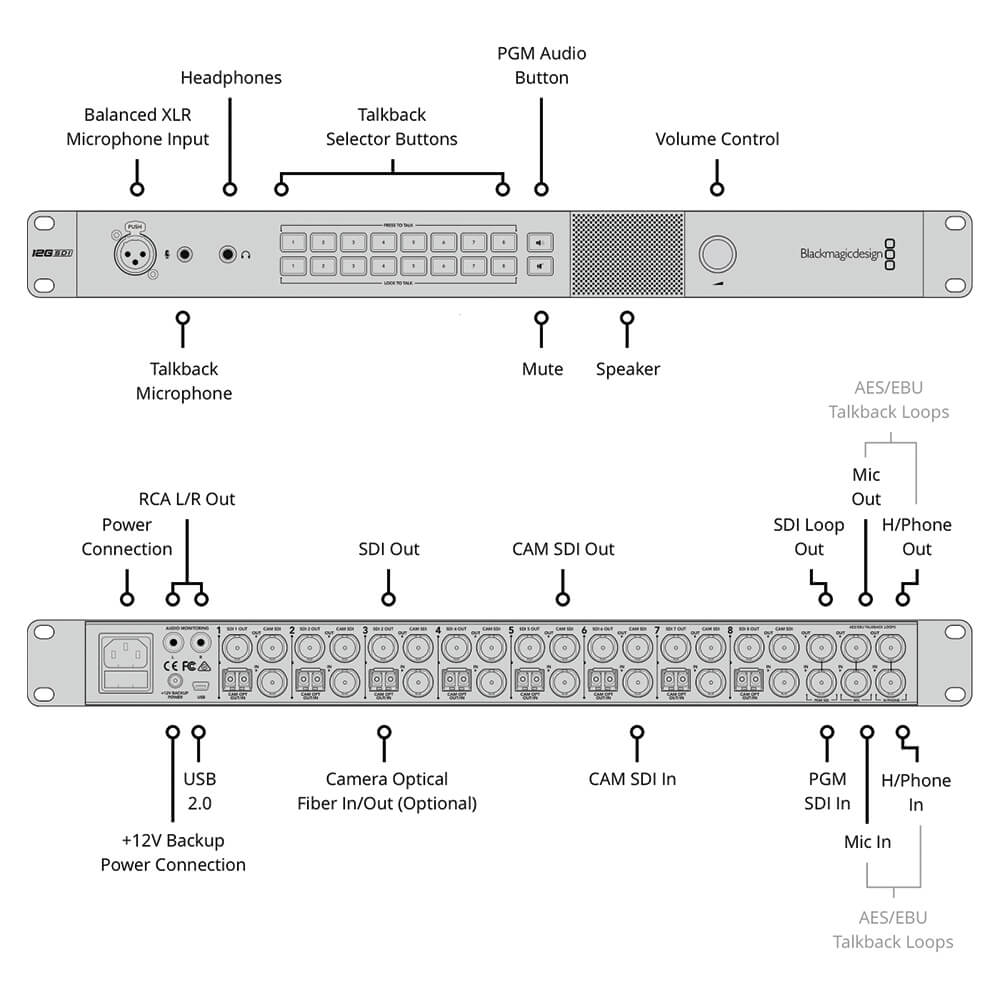

I/O

1 x SDI Program Input
1 x SDI Program Output
1 x XLR for Talkback Microphone
1 x 1/4" TRS Headset Connector
1 x 3/16" TRS Microphone Connector
1 x Stereo RCA Monitoring Output
8 x 10-Bit SD/HD/UHD 4K Camera Input
8 x 10-Bit SD/HD/UHD 4K Camera Output
8 x 10-Bit SD/HD/UHD 4K Output

With Optional Connectors
8 x LC Fiber SD/HD/UHD I/O with Audio

Computer Interface 1 x USB Mini-B Connector (for Firmware Updates)

Supported Formats

SD Format Support 525/29.97 NTSC
625/25 PAL
HD Format Support 1920 x 1080p: 23.98/24/25/29.97/30/50/59.94/60
1920 x 1080PsF: 23.98/24/25/29.97/30
1920 x 1080i: 50/59.94/60
1280 x 720p: 50/59.94/60
2K Format Support 2048 x 1080p: 23.98/24/25
2048 x 1080PsF: 23.98/24/25
4K Format Support 4096 x 2160p: 23.98/24/25/29.97/30/50/60
3840 x 2160p: 23.98/24/25/29.97/30/50/60
SDI Compliance SMPTE 259M, 292M, 296M, 372M, 424M Level B, 425M
Video Processing Sampling: 4:4:4, 4:2:2
Color Precision: 10-Bit
Color Space: REC 601, REC 709
Rate Support: SDI Automatically Switches Between SD, HD, and UHD 4K
Audio Sampling 24-Bit, 48 kHz A/D Conversion

Other Specs

Compatible Operating Systems Mac OS X 10.9 and Newer
Windows 7 and 8
Environmental Operating Temperature: 41 to 104°F / 5 to 40°C
Storage Temperature: -4 to 113°F / -20 to 45°C
Relative Humidity: 0 to 90% Non-Condensing
Certifications EMC, UL, FCC, CE, C-Tick, KCC
Power Supply 110 to 240 VAC Input with Redundant 12 to 31 VDC Input
Power Usage 60 W

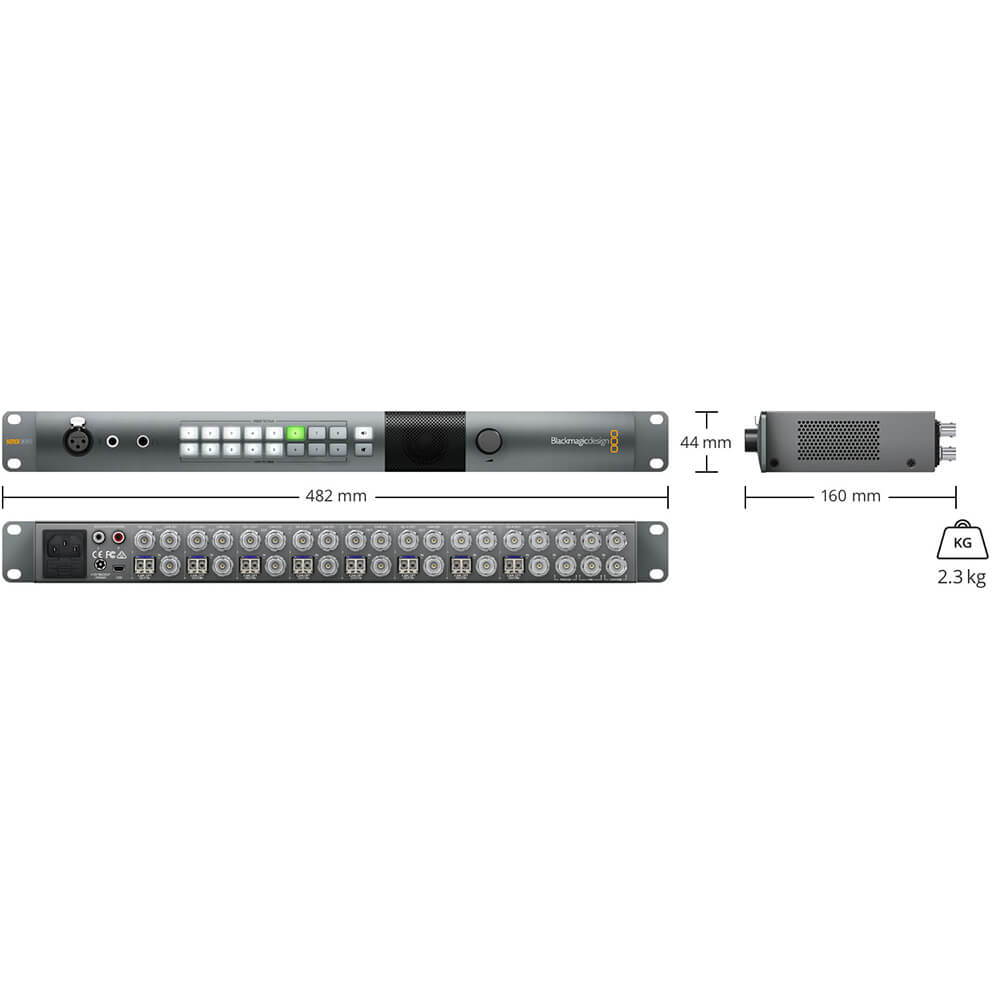

Dimensions 19 x 6.3 x 1.75" / 483 x 160 x 44 mm
Form Factor: 1 RU
Weight 5 lb / 2.3 kg
Page Title

【Blackmagic Design】ATEM Talkback Converter 4K

HK$21,850.00
