The Blackmagic Design Studio Converter 2 inputs video signals transmitted over optical fiber and converts the signals to SDI for use with video switchers. When used in conjunction with the Blackmagic Design ATEM Camera Converter, you can send video signals up to 28 miles between camera and switcher using available optical fiber cables. By comparison, sending an HD-SDI signal over traditional copper cable is usually limited to about 300 feet, depending on the quality of the cable.
A typical set up using the Studio Converter 2 is to connect it between the switcher and up to four ATEM Camera Converter units. This setup allows the Converter 2 to receive the signals from the fiber cable, convert the signals to SDI using 10-bit processing, and send the signals to the switcher. The Converter 2 supports SD/HD signals, and when using the available ATEM Camera Converter you can use any camera with an SDI/HDMI output.

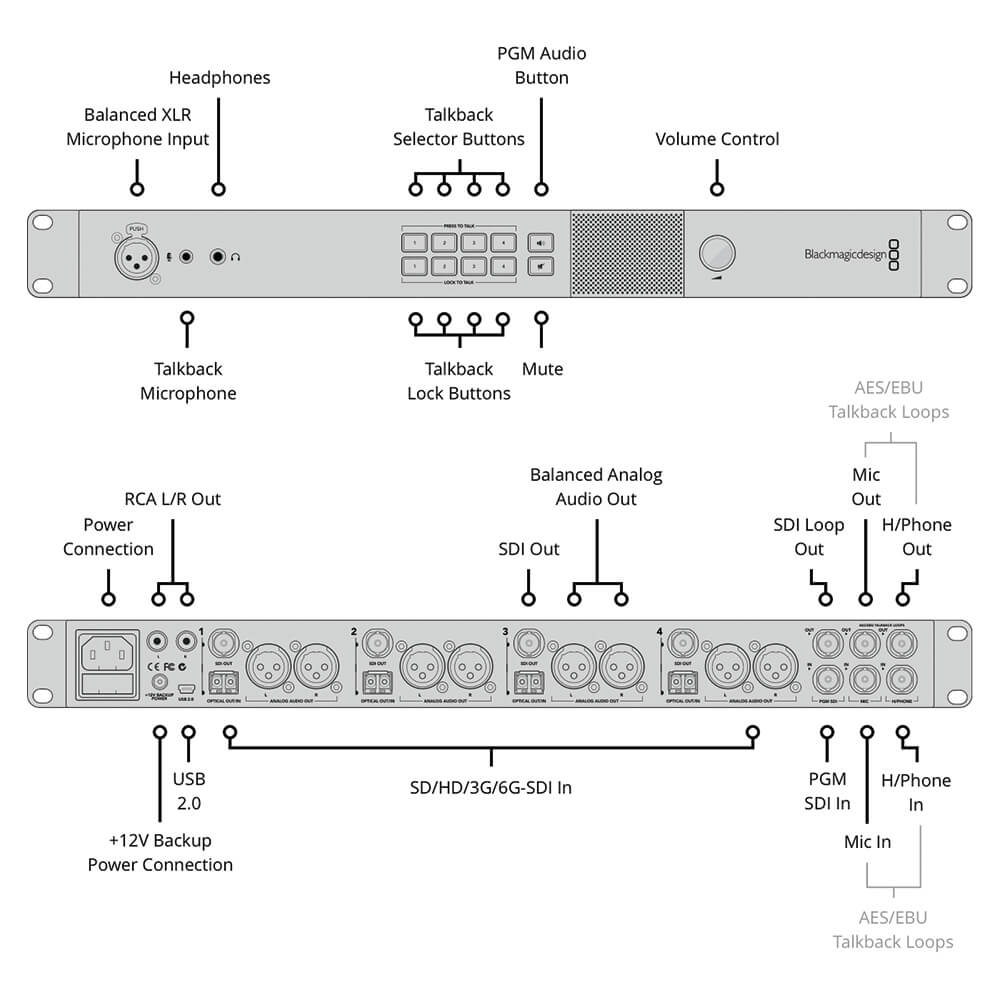

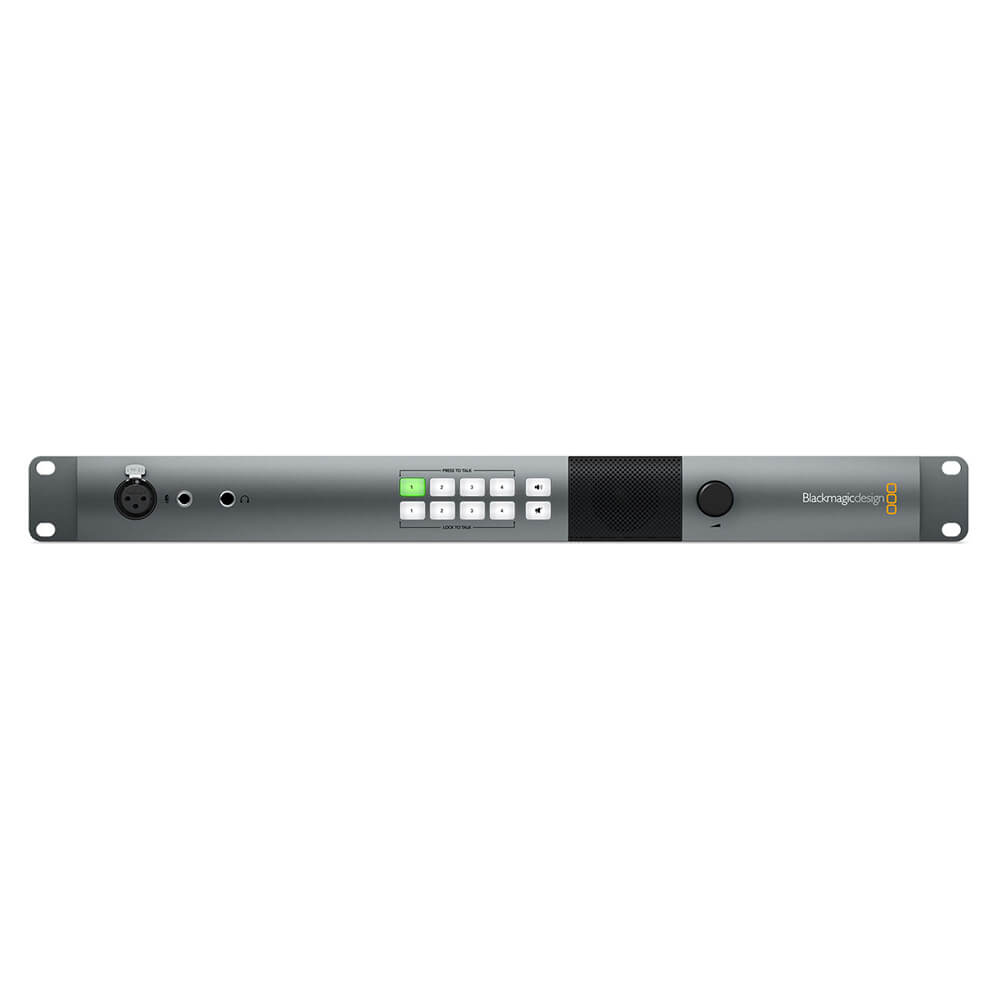

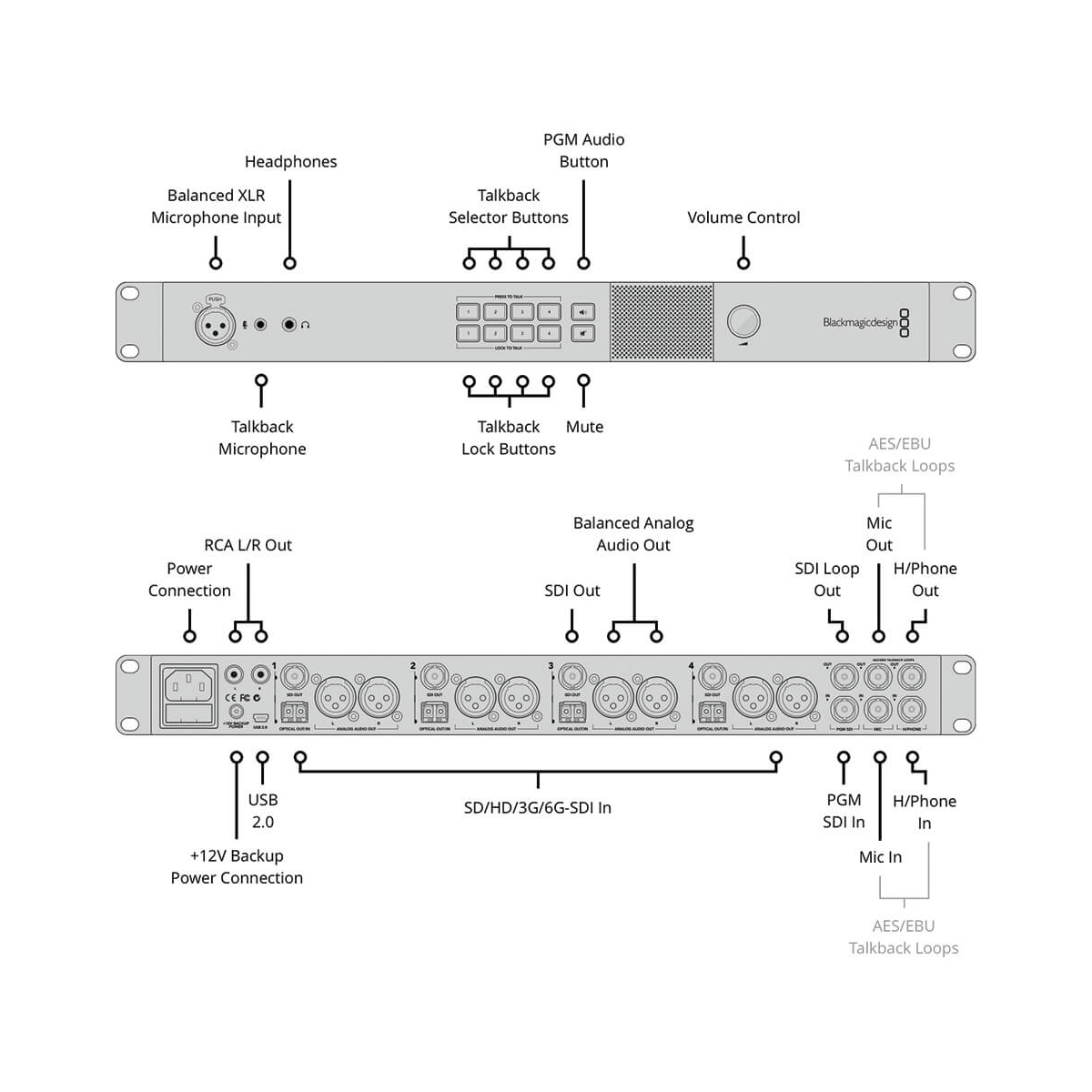

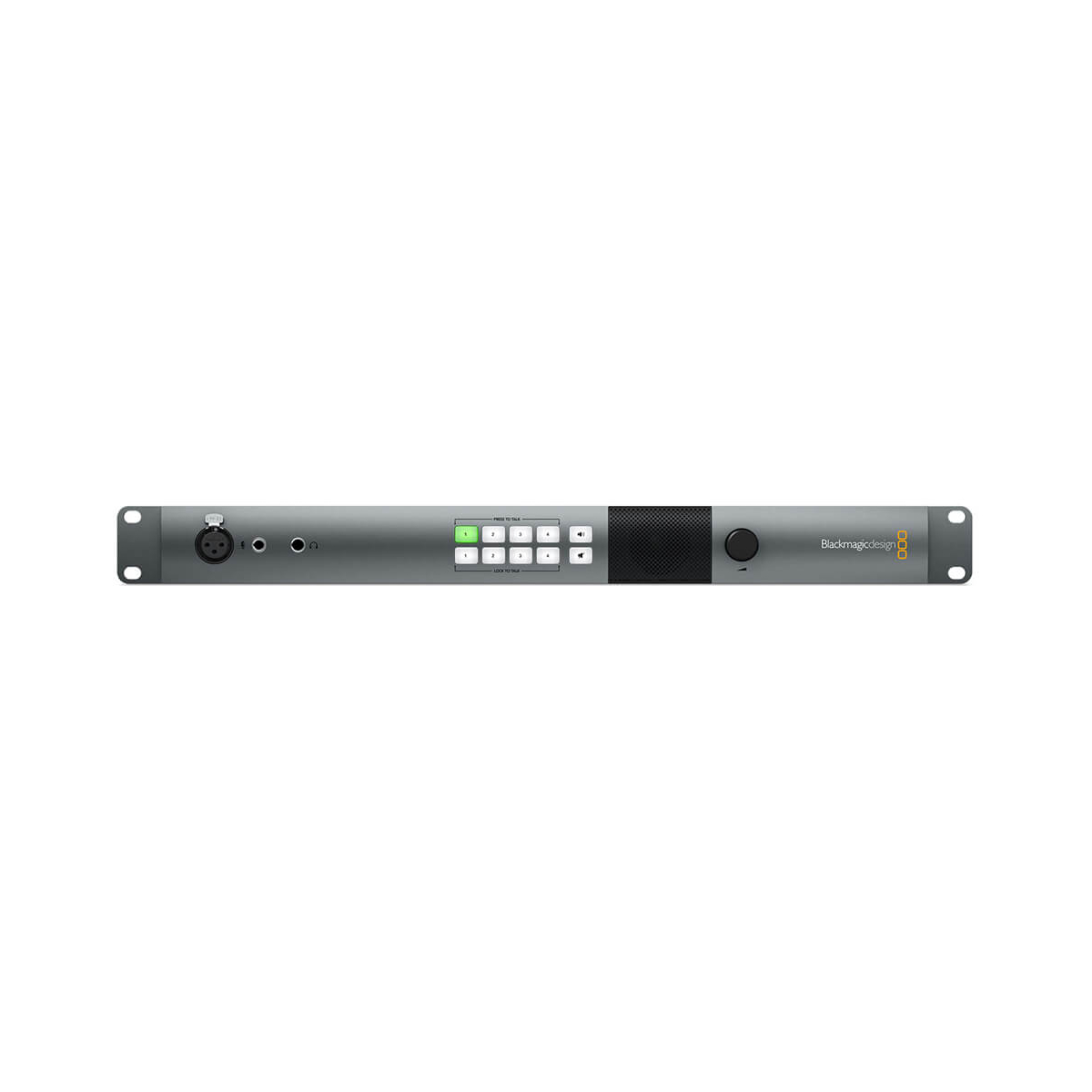

The Converter 2 can also be used as 4 independent simultaneous bidirectional SD/HD-SDI to optical converters. The Converter 2 features a built-in mic input, speaker and headphone jack that provides talkback audio for communicating with camera operators. The Converter 2 passes tally signals embedded in the SDI program stream. You can cascade multiple ATEM Studio Converter 2 units together when using more than 4 cameras. The Studio Converter 2 features a 1 RU design with built in rackmount ears for easy integration into existing studio configurations or production cases.
Blackmagic Design ATEM Specification Standards |
|
Format Support |
4K 2K HD SD |
Video |
|
SDI Video Input | 4 x 10-bit SD/HD switchable camera inputs 1 x 10-bit SD/HD switchable program input from switcher, including Tally information embedded in the SDI signal |
SDI Compliance | SMPTE 259M, SMPTE 292M |
Video Sampling | 4:2:2 |
Color Precision | 10-bit |
Color Space | REC 601 REC 709 |
Optical Fiber Video Input | 4 x single mode SD/HD switchable camera inputs with LC connector |
Optical Fiber |
Input Output |
Audio |
|
Audio Sampling | 48 kHz 24-bit A/D conversion |
Analog Audio Output | 4 x 3-Pin XLR Balanced Audio Pairs (1 x pair per fiber input) 2 x RCA jacks provide a L/R stereo pair |
Talkback | 1 x 1/4" TRS headphone jack 1 x .206" TRS mic input for use with aviation style headset 1 x 3-pin XLR connector for talkback microphone 1 x Integrated speaker |
Talkback Control | 8 x Front panel buttons for camera operator selection, lock, mute and un-mute |
AES/EBU Talkback Loops |
Input Output |
General |
|
OS Compatibility |
Mac Windows |
Computer Interface | 1 x mini-B type USB 2.0 connector for initial setup, firmware updates and Converter Utility software control |
Temperature |
Operating Storage |
Power Requirements |
110 - 220 VAC, 50/60 Hz Note: IEC power cord is required/not included, redundant power supply not included |

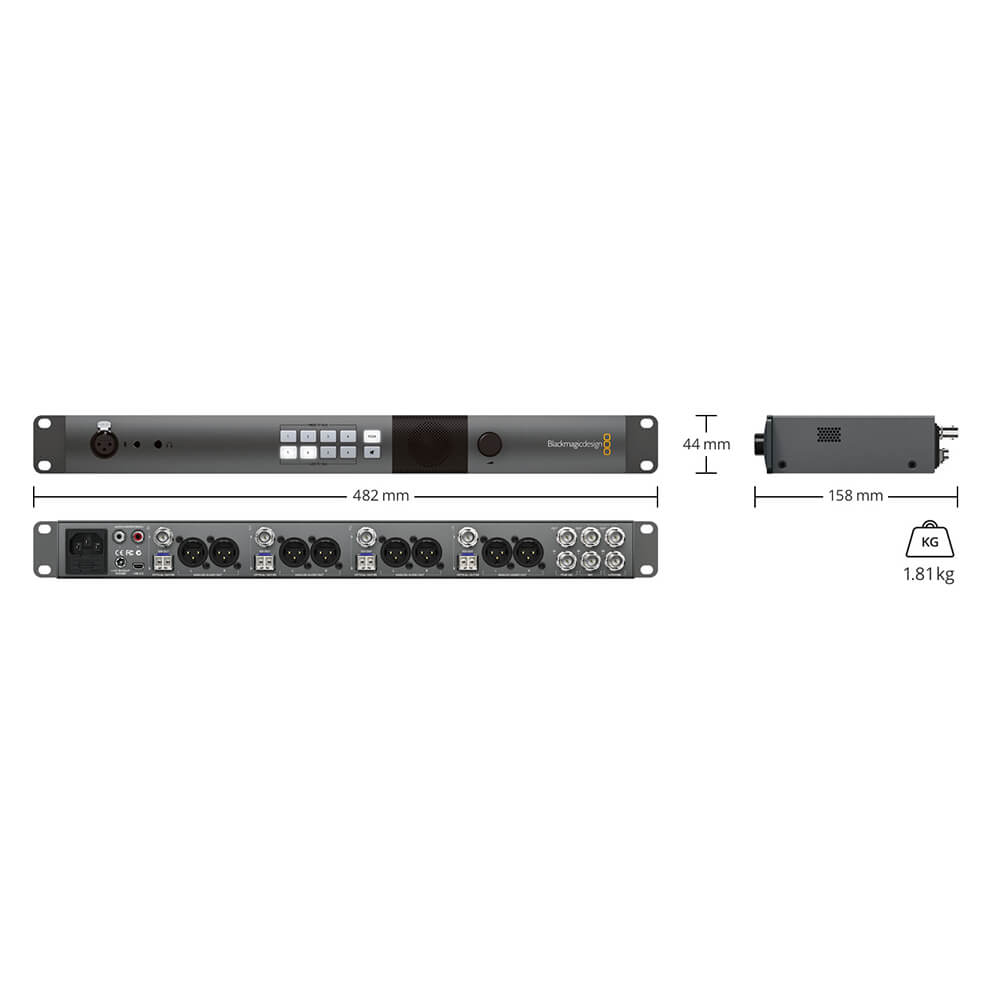

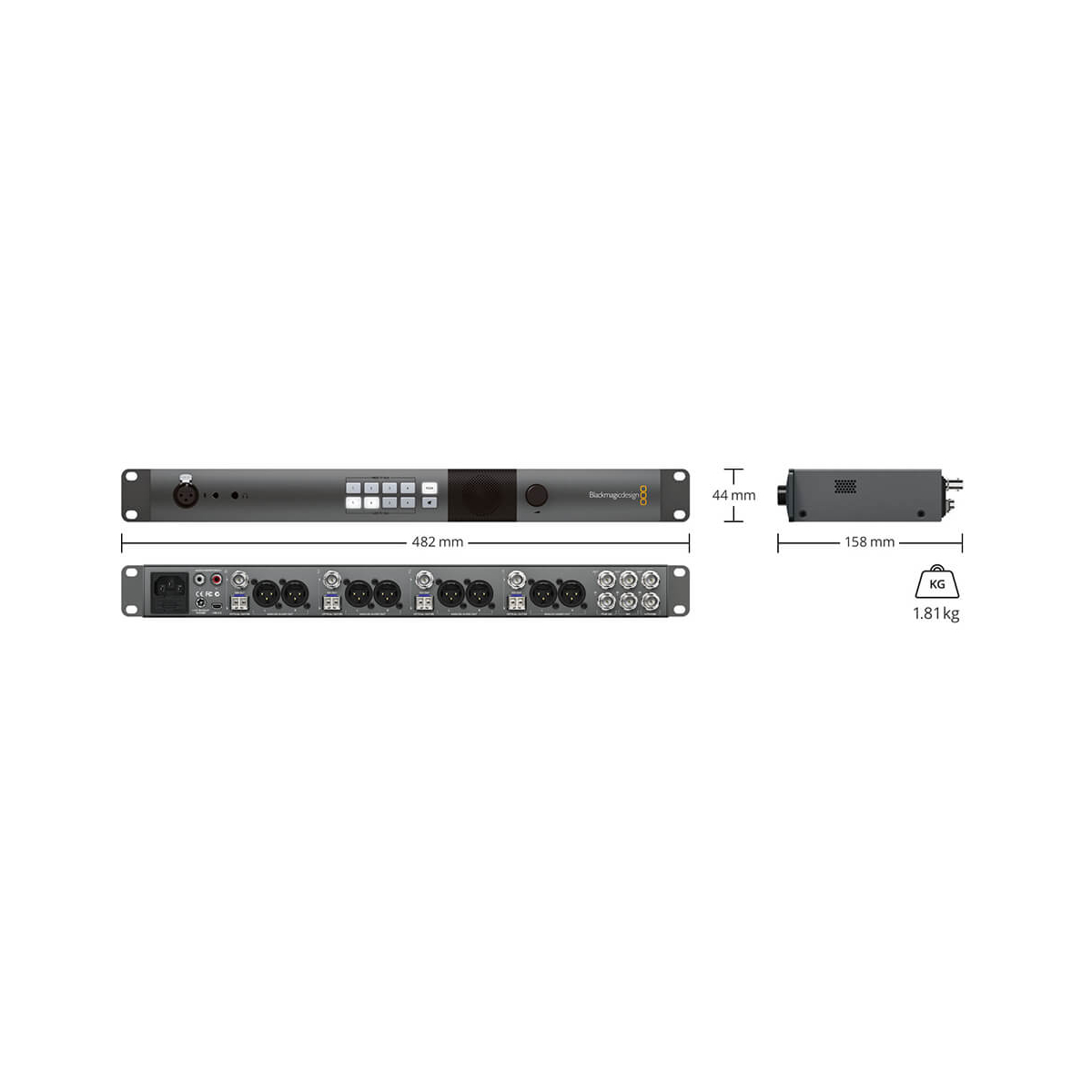

Dimensions |
1.7 x 18.9" (44 x 482 mm) |
Weight |
4 lb (1.81 kg) |
