Designed for multicamera live streaming to the internet or broadcast applications, the compact ATEM SDI from Blackmagic Design provides gaming consoles, corporate computer streams, or HD cameras a four-input live-production switcher with an integrated control panel. The four SDI inputs are available on the rear of the chassis and they input up to 1080p60 video. Two 3G-SDI outputs are useful for a projector or external monitor, a USB Type-C output for streaming up to 1080p60 video to a computer, and an RJ45, 10/100 Ethernet port for system management, remote control, and upgrades.

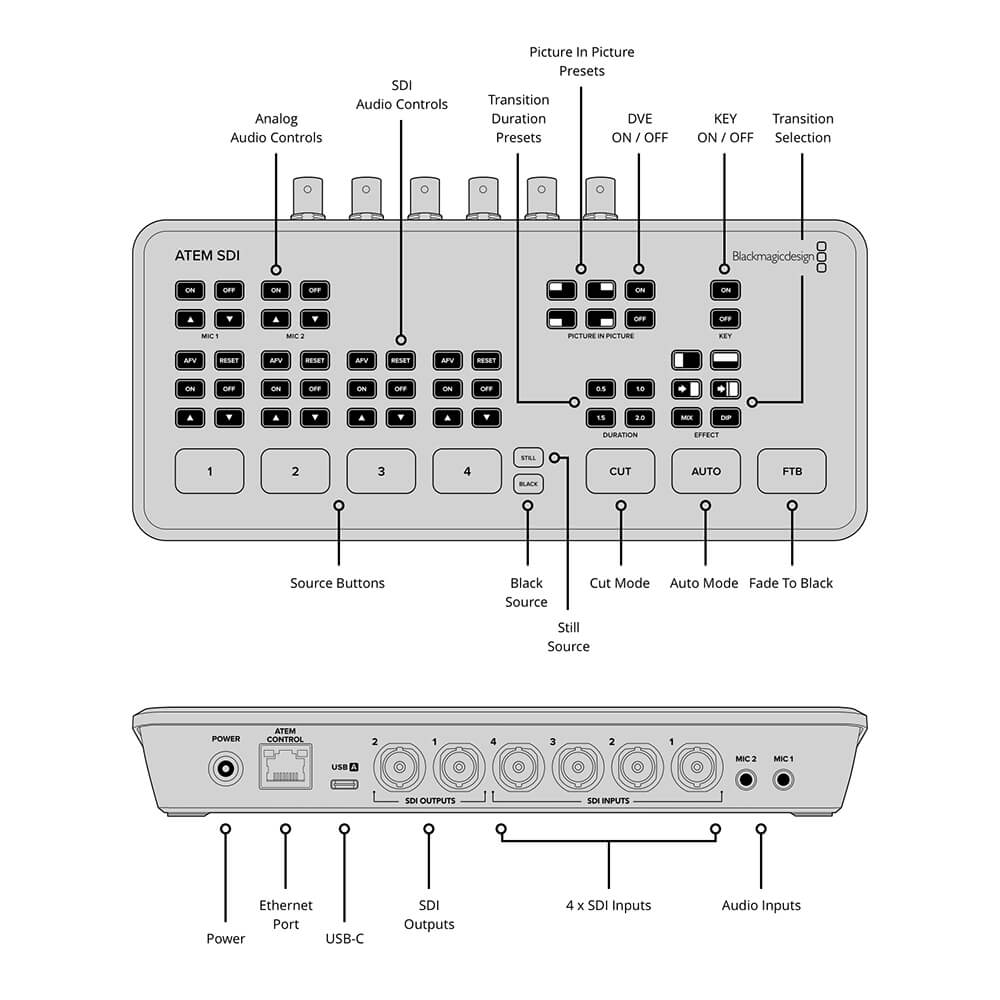

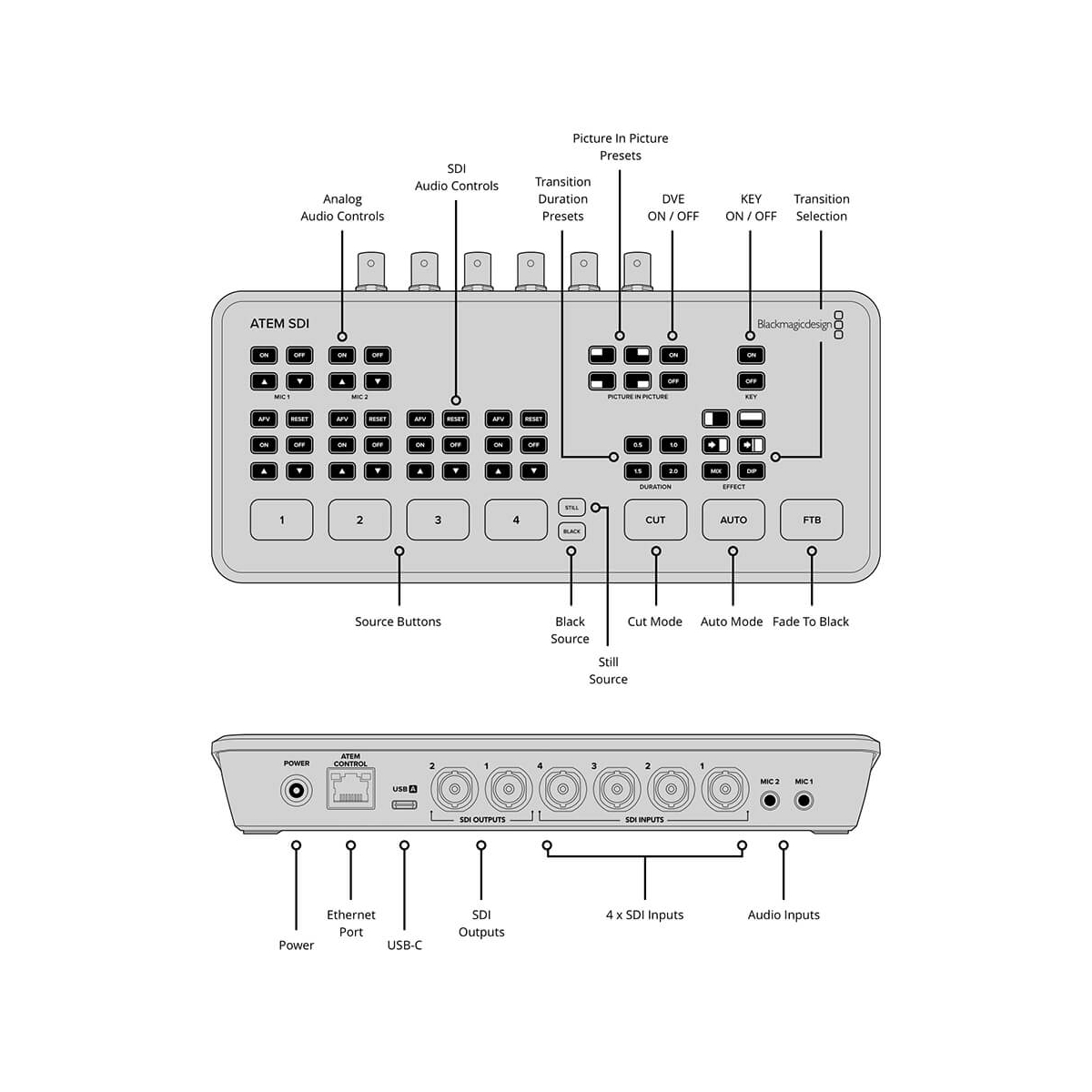

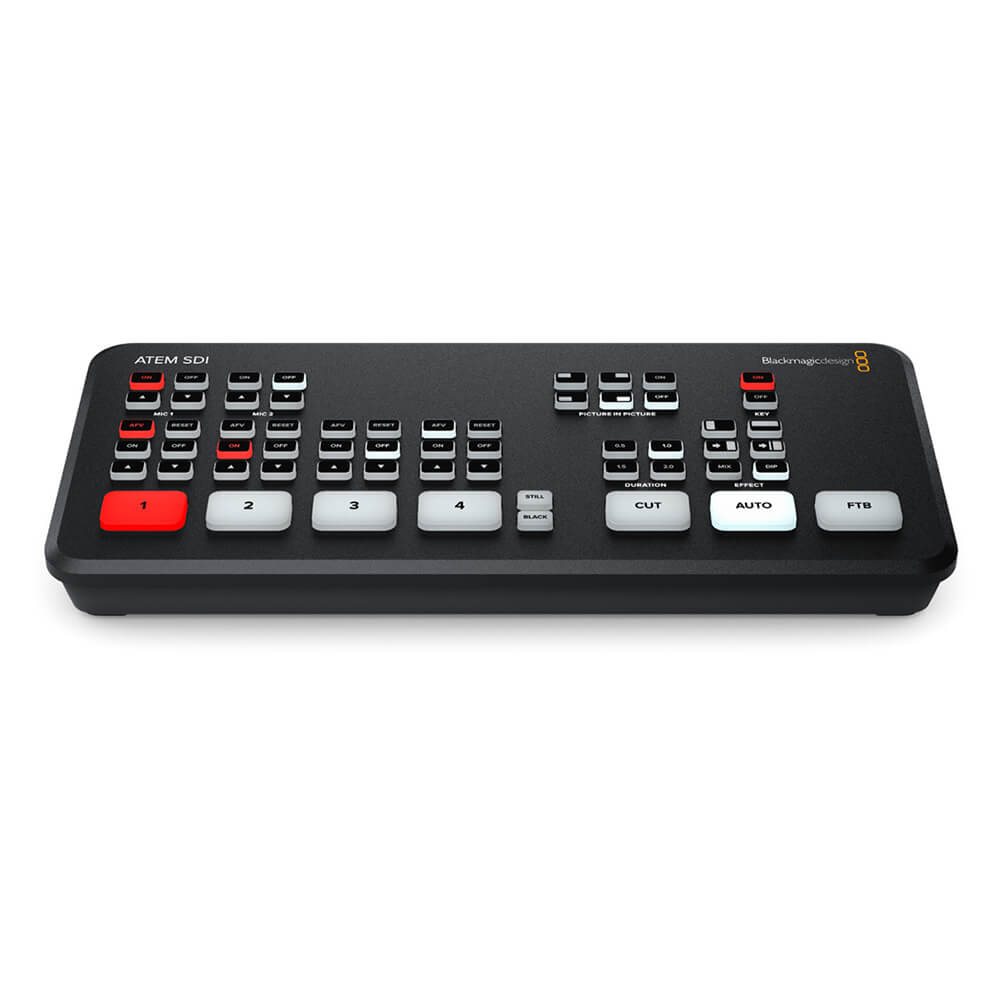

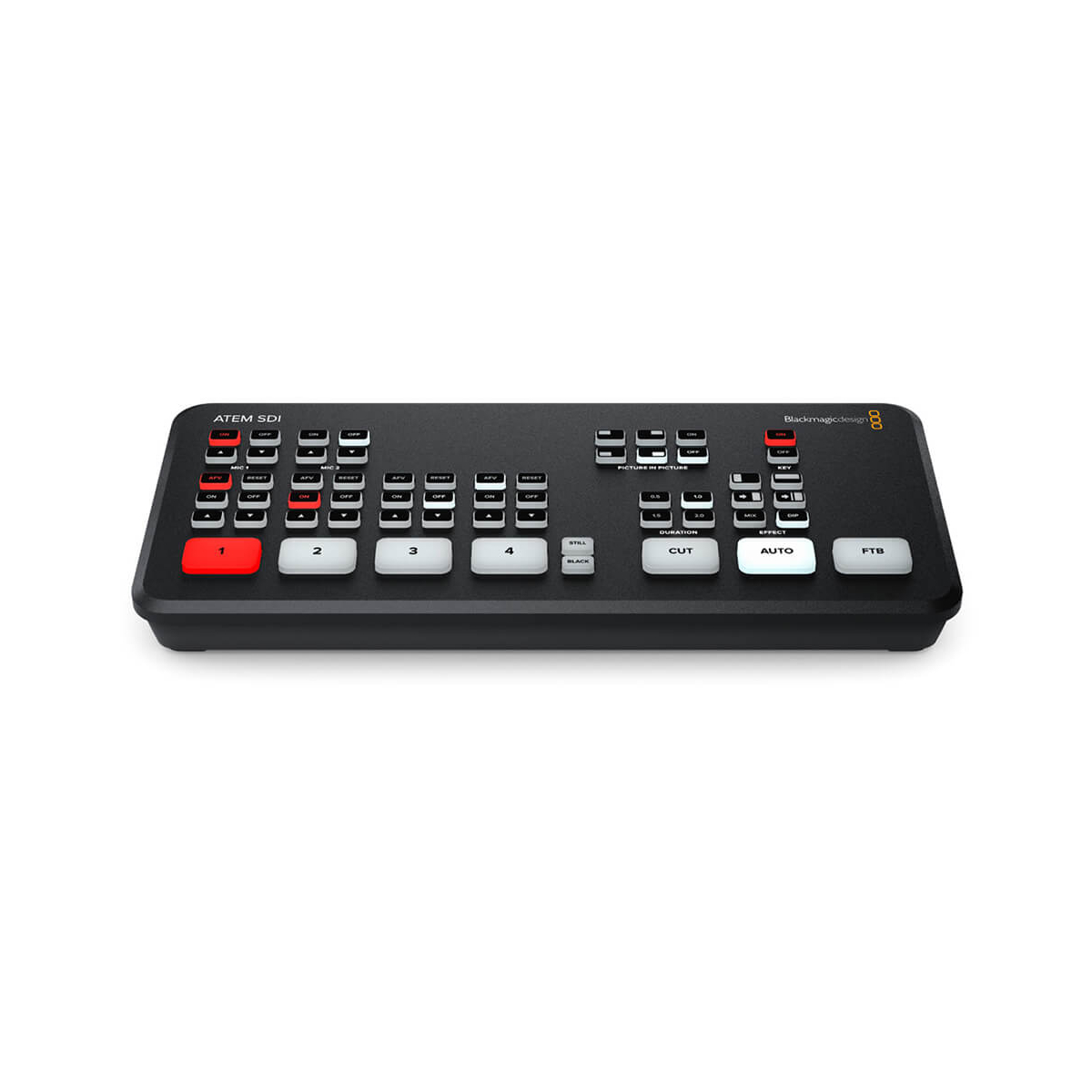

The control surface features easy-to-view, backlit control buttons to enable selecting camera inputs, controlling transitions, keyers, settings, and the DVE. The ATEM Mini features upstream and downstream keyers, an advanced chroma keyer, two linear/luma keyers, a DVE transition keyer, a pattern generator, and two color generators. There is also media player support for fill and key images, which supports up to 20 stills in PNG, TGA, BMP, JPEG, and TIFF formats. The SDI output supports a minimum of 1366 x 768 resolution for monitoring your stream. It also supports the ATEM Software Control Panel via Ethernet, and it supports control and configuration using the ATEM SDI.
Blackmagic Design ATEM SDI Specification |
|
Available M/E Layers | 5 M/E |
Effect Types | DVE, Transition, Chroma Key |
Generators | 1 x Pattern 2 x Color |
Audio Mixing | 2-Channel Mixing |
Processing |
|
Switching Type | IR Remote, Pushbutton, Software |
Input |
|
Number of Video Input Sources | 4 |
Video Inputs | 4 x BNC (3G-SDI) |
Input Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i at 56/59.94/60 fps 720p at 50/59.94/60 fps |
Audio Inputs | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | SDI: 2-Channel (per Input) |
Output |
|
Video Output Channels | 3 |
Video Outputs | 2 x BNC (3G-SDI) (Program) |
Output Video Format | SDI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps USB-C (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
Embedded Audio Output | SDI |
Multiview Output | None |
Connectivity |
|
Other I/O | 1 x RJ45 Control Input/Output |
HDCP Support | None |
Hardware |
|
OS Compatibility | macOS 11 macOS 12 or Later Windows 10 Windows 11 *As of July, 2022: Check with manufacturer for the most up-to-date compatibility |
Wi-Fi | None |
Bluetooth | None |
Power I/O | 1 x Barrel (12 VDC) Input |
Power Consumption | Device: 18 W |
Environmental |
|
Operating Temperature | 37 to 72°F / 5 to 40°C |
Storage Temperature | 14 to 140°F / -10 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General |
|

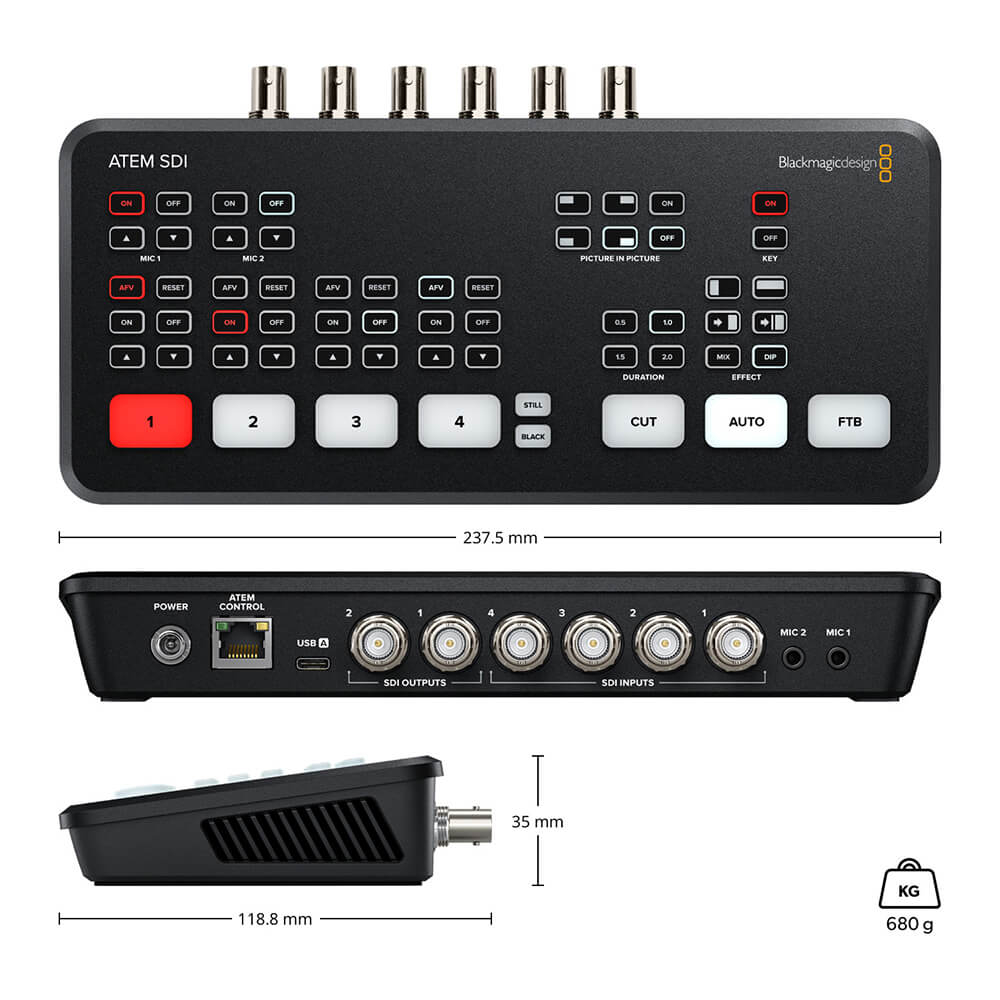

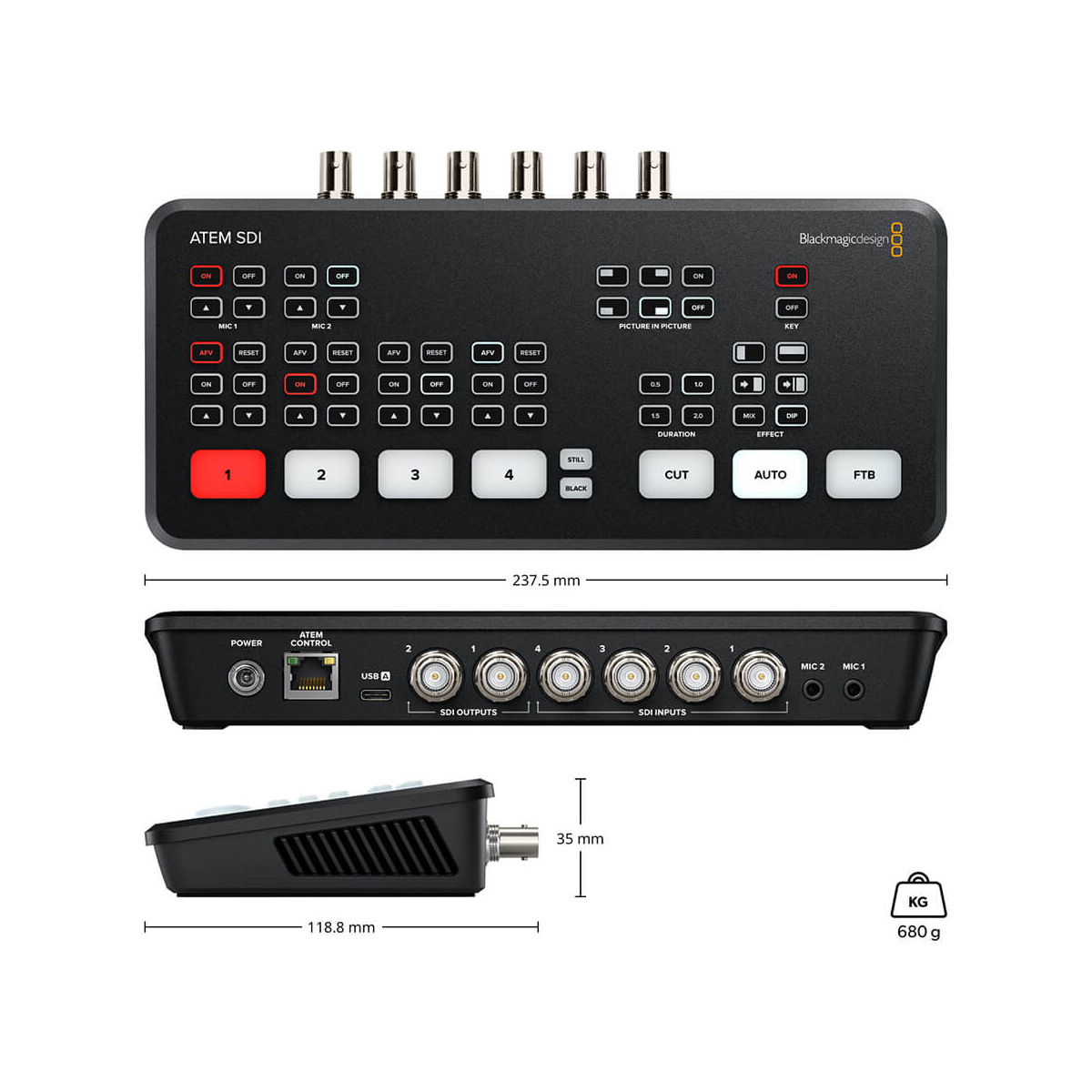

Dimensions | 9.35 x 4.67 x 1.38" / 23.75 x 11.86 x 3.51 cm |
Weight | 23.9 oz / 678 g |
