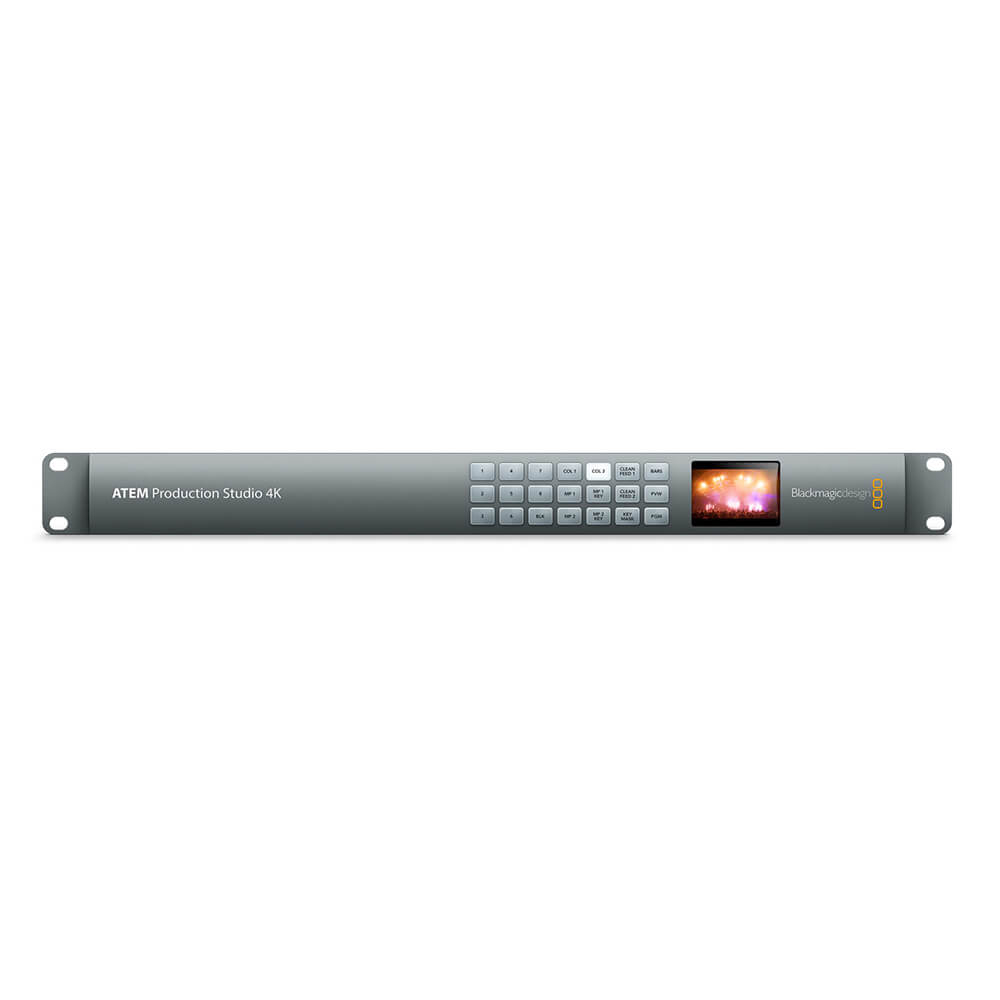

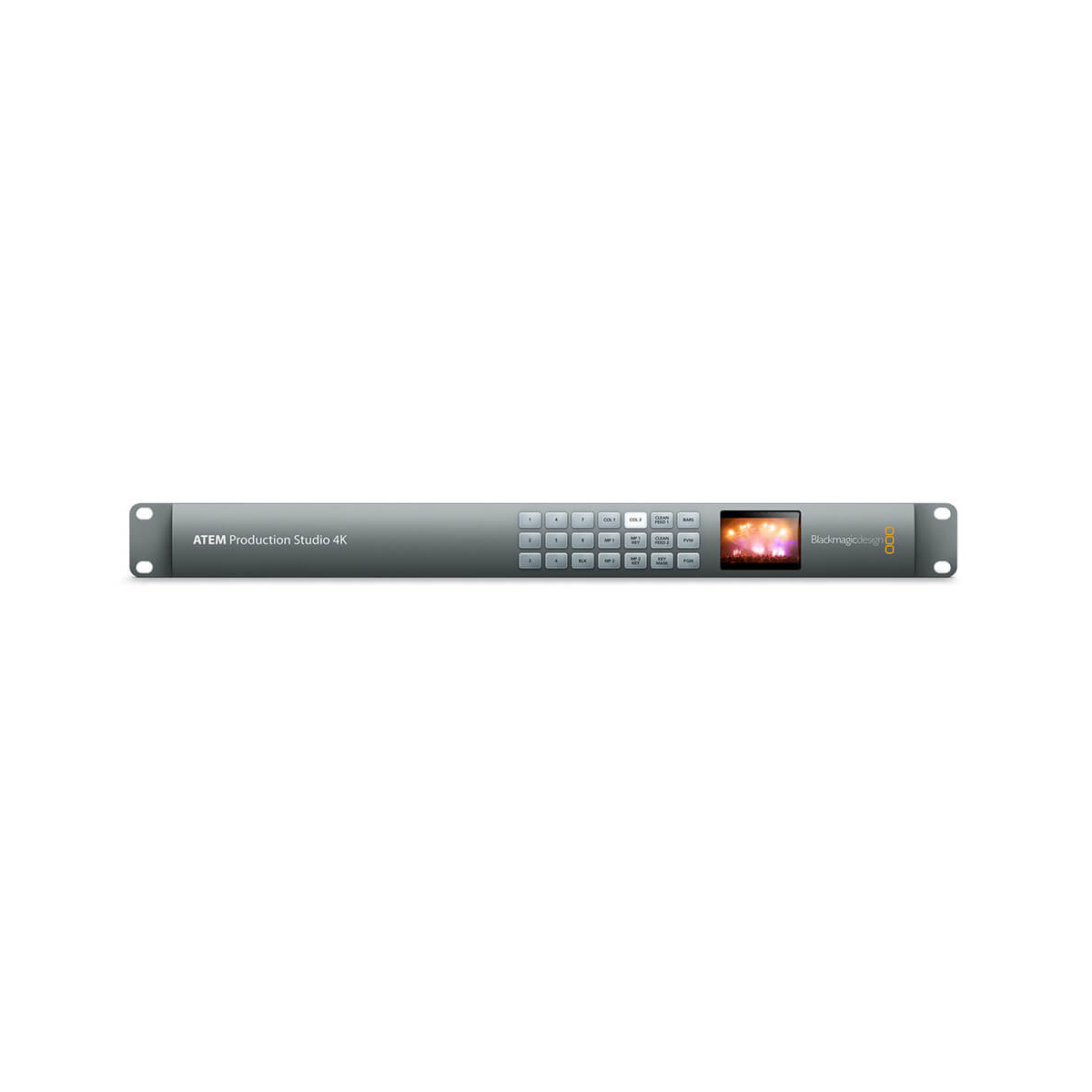

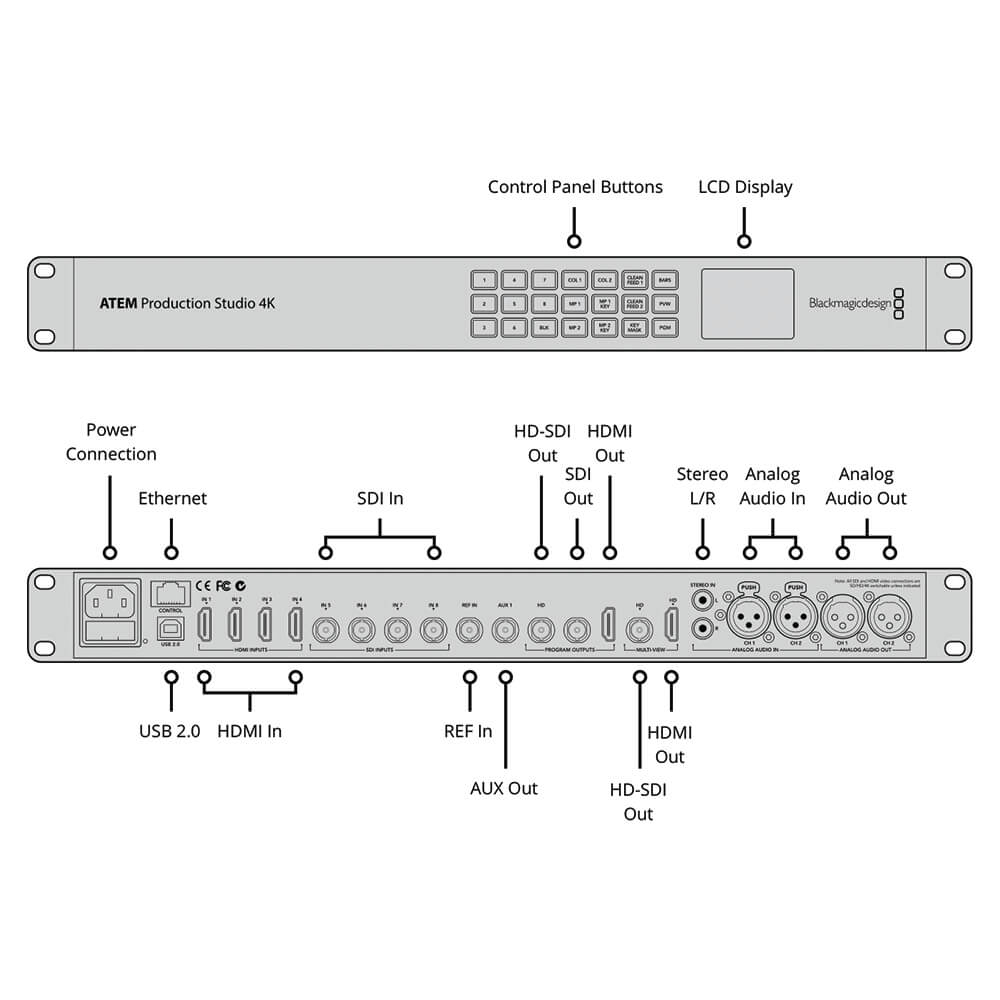

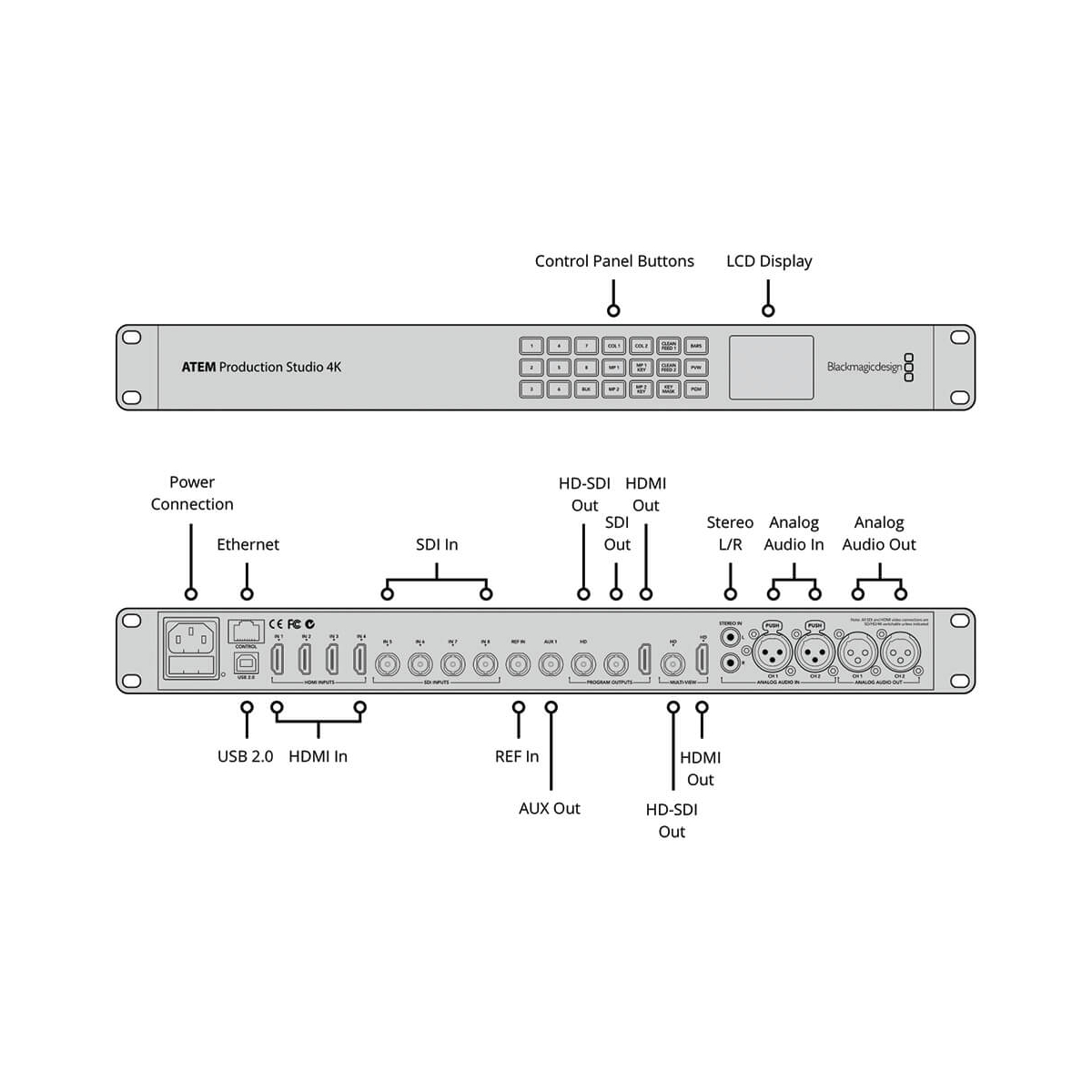

The Blackmagic ATEM Production Studio 4K Live Switcher is a live event multicamera production switcher with eight individual Ultra HD inputs built into a 1 RU chassis. Supporting NTSC/PAL/HD and Ultra HD video formats via four Single-Link 6G-SDI and four 4K HDMI inputs, the switcher connects to a wide range of cameras and sources, delivering a single program stream in SD, HD, or UHD 4K video. All this is done live and in real time with no rendering required.
The switcher features a reference video input for synchronizing the switcher to other equipment using tri-level or Blackburst Sync. Each input also features its own frame synchronizer, which allows you to use cameras that do not feature Genlock as well as input video from computer sources. The switcher can handle inputs from all inputs at the same time.
The switcher provides six video outputs that are always active. Featuring one SDI and one HDMI Program output, both of which deliver SD/HD/UHD 4K, with one Aux SD/HD/UHD 4K output that can deliver a clean program feed without any downstream effects, as primary outputs. The switcher also features an HD-only program output signal for monitoring on an SDI-equipped HD monitor. Multiview monitoring is also HD only over dedicated SDI or HDMI output, and multiview allows you to view the program, preview, six active inputs, and two graphic channels (media players) on one screen at the same time. The switcher features one upstream and two downstream keyers for real-time effects and composites in Ultra HD, with 10-bit processing. The two downstream keyers allow you to use two graphics/logos/titles/lower thirds from up to twenty stored graphics in a wide variety of formats.
A built-in two-channel audio mixer handles the embedded HDMI and SDI audio from the six active video inputs as well as audio from the balanced and unbalanced analog audio inputs to provide you flexibility and creative audio options. Audio output is embedded in the SDI and HDMI stream, as well as available via balanced audio outputs. Either a Mac or Windows computer running the included ATEM Software controls the switcher's operation and settings. For those who like the feel of a physical control panel, available ATEM Broadcast Panels, connected via the Ethernet port, also control all the features of the switcher. Illuminated front panel buttons allow you to locally select the Aux output, while a 2" LCD screen built into the front of the unit allows you to see the Aux output for instant confirmation of the correct output.
Blackmagic Design ATEM Specification |
|
Available M/E Layers | 4 M/E |
Effect Types | 1 x Transition, Chroma Key, Luma Key |
Graphics Memory | 20 Images |
Downstream Keys | 1 x Chroma 2 x Luma |
Generators | 2 x Color 3 x Pattern |
Audio Mixing | 2-Channel Mixing |
Processing |
|
Switching Type | Pushbutton, Software |
Processing Resolution | UHD 4K at 29.97 |
Color Processing | 10-Bit 4:2:2 |
Input |
|
Number of Video Input Sources | 8 |
Video Inputs | 4 x BNC (6G-SDI) Female 4 x HDMI Female |
Input Video Format | HDMI / SDI (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97 fps 1080p 23.98/24/25/29.97/50/59.94 fps 720p 50/59.94 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
Audio Inputs | 2 x XLR 3-Pin Mono Analog Female 2 x RCA Mono Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | HDMI: 2-Channel (per Input) SDI: 2-Channel (per Input) |
Output |
|
Video Output Channels | 6 |
Video Outputs | 4 x BNC (6G-SDI) Female (Program) 2 x HDMI Female (Program) |
Output Video Format | HDMI / SDI (10-Bit 4:2:2) UHD 4K at 23.98/24/25/29.97 fps 1080p 23.98/24/25/29.97/50/59.94 fps 720p 50/59.94 fps 576i / 625 lines 50 fps 480i / 525 lines 59.94 fps |
Audio Outputs | 2 x XLR 3-Pin Mono Analog Female |
Output Audio Format | Analog |
Embedded Audio Output | HDMI: 2-Channel (per Output) SDI: 2-Channel (per Output) |
Multiview Output | 1-Way Multiview viaHDMI, SDI |
Monitor Output | 1 x HDMI |
Connectivity |
|
Other I/O | 1 x BNC Reference Input 1 x BNC Reference Output 1 x RJ45 LAN Input/Output 1 x USB-B Firmware Input |
Video Standard Compliance | SMPTE 259M/292M/424M |
HDCP Support | None |
Hardware |
|
OS Compatibility | Windows 8.1 or Later macOS 10.14 or Later *As of April, 2021: Check with manufacturer for the most up-to-date compatibility |
Wi-Fi | None |
Bluetooth | None |
Power I/O | 1 x NEMA 5-15R Input |
Power Consumption | Power Supply: 100 to 240 VAC (60 W) |
Environmental |
|
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 95% |
General |
|
Rack Form Factor | 1 RU |

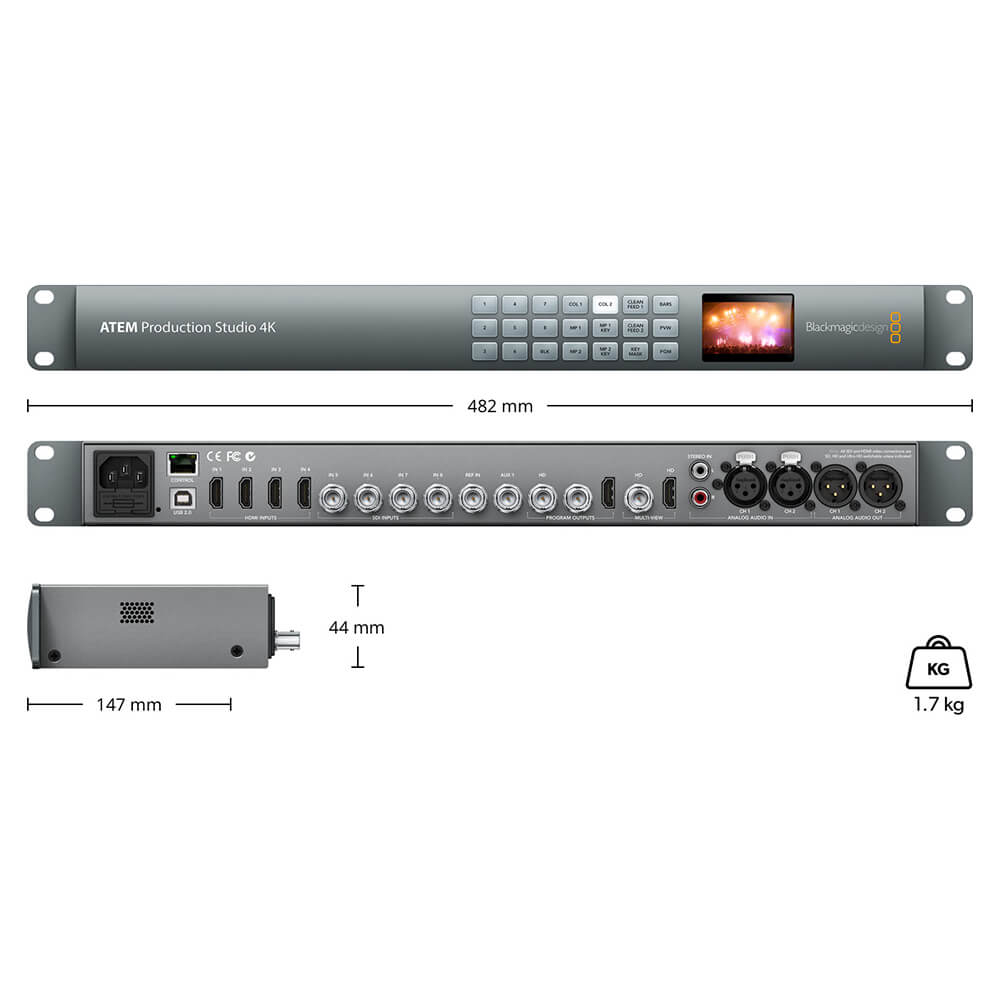

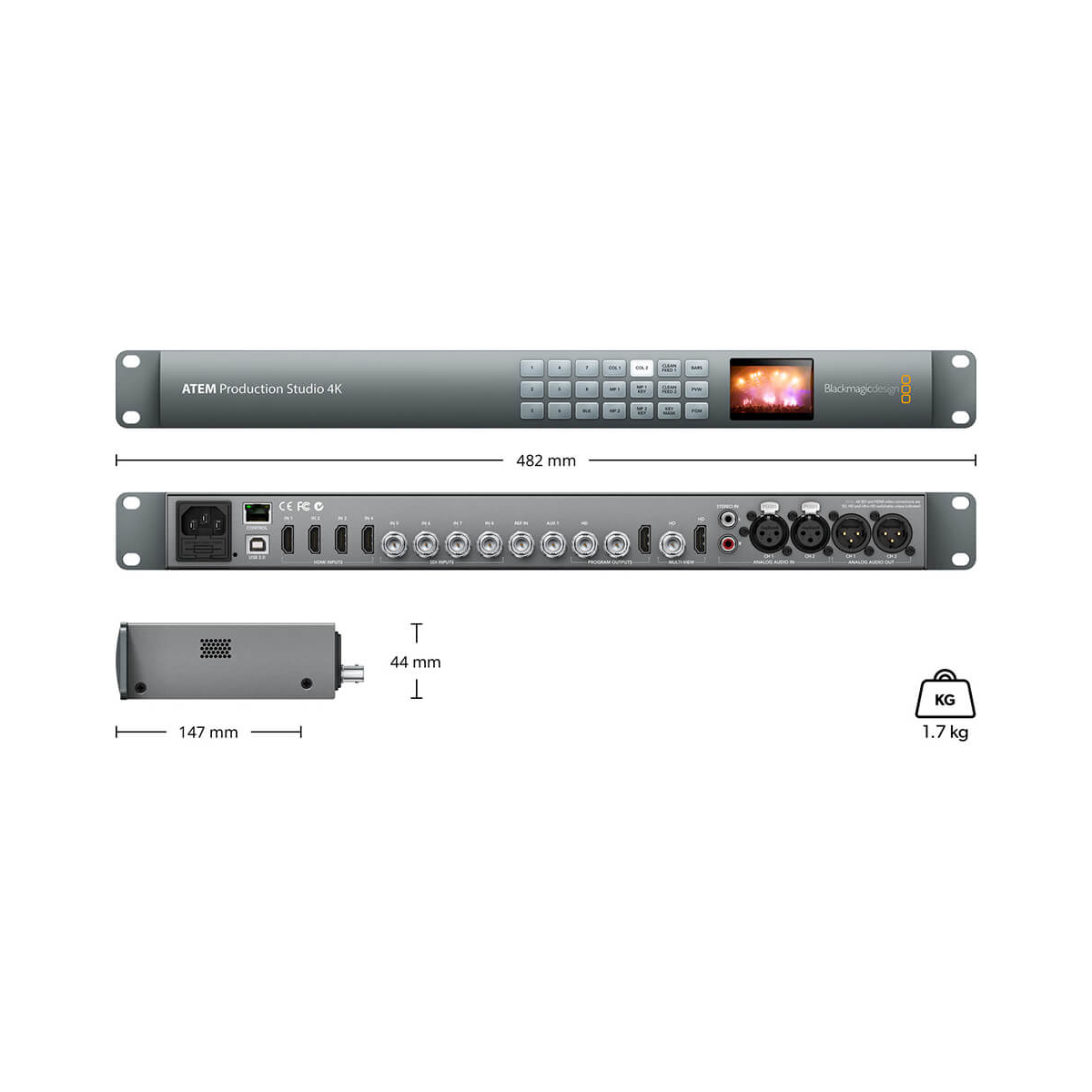

Dimensions | 19 x 5.79 x 1.73" / 48.3 x 14.71 x 4.39 cm |
Weight | 3.75 lb / 1.7 kg |
