The Blackmagic Design ATEM SDI Extreme ISO Switcher is an 8-input live production switcher for live streaming. It features an integrated control panel and advanced broadcast features. In addition to live streaming using RTMP protocols, you can also output your program as if it was a webcam over USB. The switcher's ISO label means you can individually record each of the eight input videos as an MP4, as well as the program output via one of the USB-C ports. The switcher automatically generates a DaVinci Resolve project file, so you can clean it up and make changes later. This versatile switcher's eight independent 3G-SDI inputs accept all popular HD signals up to 1080p60. Each input has discrete frame rate and format converters, and it supports re-syncing for seamless switching between a variety of pro and consumer cameras, game consoles, and computer feeds.
Switch, add effects, color grade, and key in real time using the control surface's buttons or the software control panel. CCU functions are available for controlling Blackmagic Studio and URSA Mini/Broadcast/Micro Studio cameras from the switcher. The ATEM Mini Extreme ISO supports up to nine layers, with four upstream and two downstream keyers, up to four chroma keyers, up to four linear keyers, two DVE with borders and drop shadow, five pattern generators, and two color generators. Designed for live streaming or webcam, the Mini Extreme ISO has four 3G-SDI outputs to feed monitors and supports up to 16-screen multiview.
Blackmagic Design ATEM Mini Extreme Specification |
|
Available M/E Layers | 9 M/E |
Effect Types | 2 x DVE 4 x Luma Key 4 x Chroma Key |
Graphics Memory | 20 Images |
Downstream Keys | 2 x Chroma, Luma, DVE |
Generators | 5 x Pattern 2 x Color |
Audio Mixing | 2-Channel Mixing |
Processing |
|
Switching Type | Pushbutton, Software |
Processing Resolution | 1080p |
Input |
|
Number of Video Input Sources | 8 |
Video Inputs | 8 x HDMI |
Input Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Audio Inputs | 2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
Input Audio Format | Analog |
Embedded Audio Input | HDMI: 2-Channel (per Input) |
Output |
|
Video Output Channels | 2 |
Video Outputs | 2 x HDMI |
Output Video Format | HDMI (10-Bit 4:2:2 YUV) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps |
Audio Outputs | 1 x 1/8" / 3.5 mm TRRS Headphone/Microphone Stereo Analog Female |
Embedded Audio Output | HDMI: 2-Channel |
Multiview Output | 16-Way Multiview viaHDMI |
Connectivity |
|
Other I/O | 1 x RJ45 2 x USB-C |
HDCP Support | None |
IP Video | H.264: 1920 x 1080 Encoding |
Transport Protocols | RTMP |
Simultaneous Streams | 1 Streams |
Recording Modes | 1920 x 1080p up to 60 fps (MP4) |
Hardware |
|
OS Compatibility | macOS 10.15 macOS 11.1 or Later Windows 10 *As of February, 2021: Check with manufacturer for the most up-to-date compatibility |
Wi-Fi | None |
Bluetooth | None |
Power I/O | 1 x Barrel (12 VDC) Input |
Power Consumption | Device: 36 W |
Environmental |
|
Operating Temperature | 41 to 104°F / 5 to 40°C |
Storage Temperature | 14 to 140°F / -10 to 60°C |
Operating Humidity | 0 to 70% |
General |
|

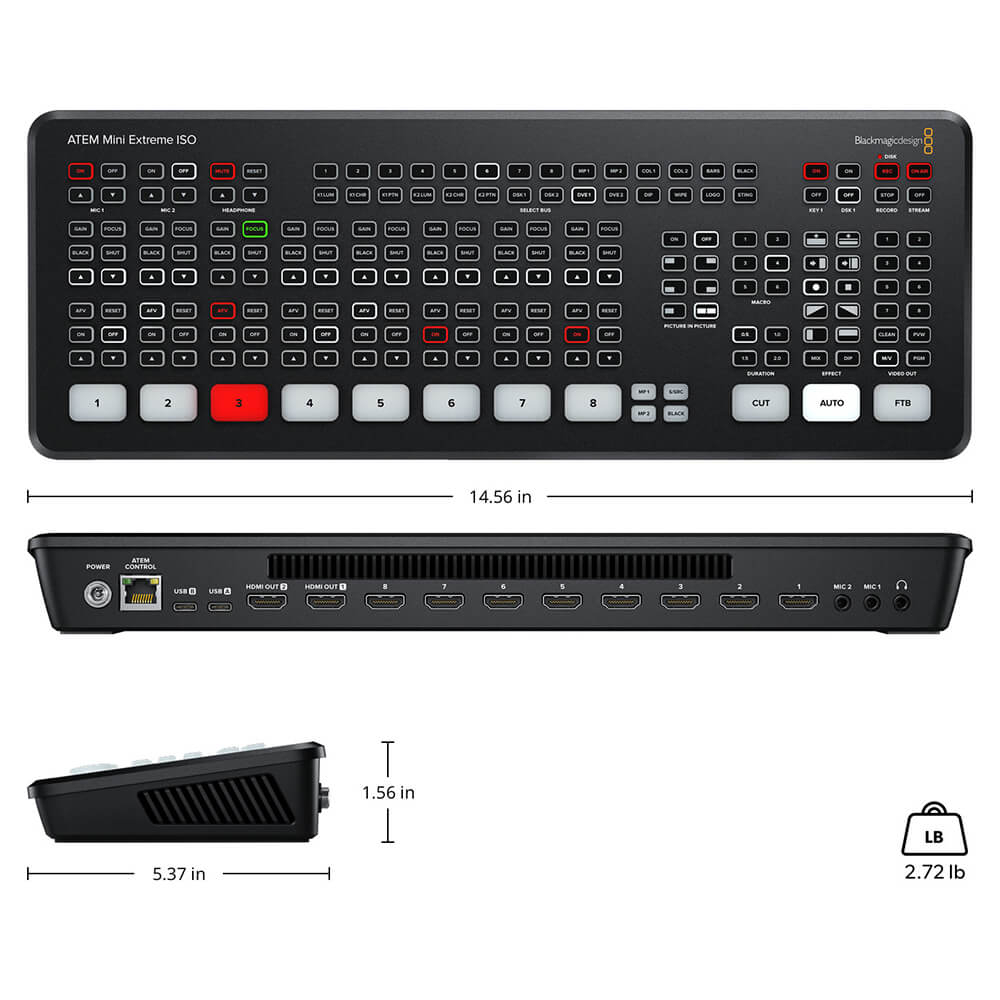

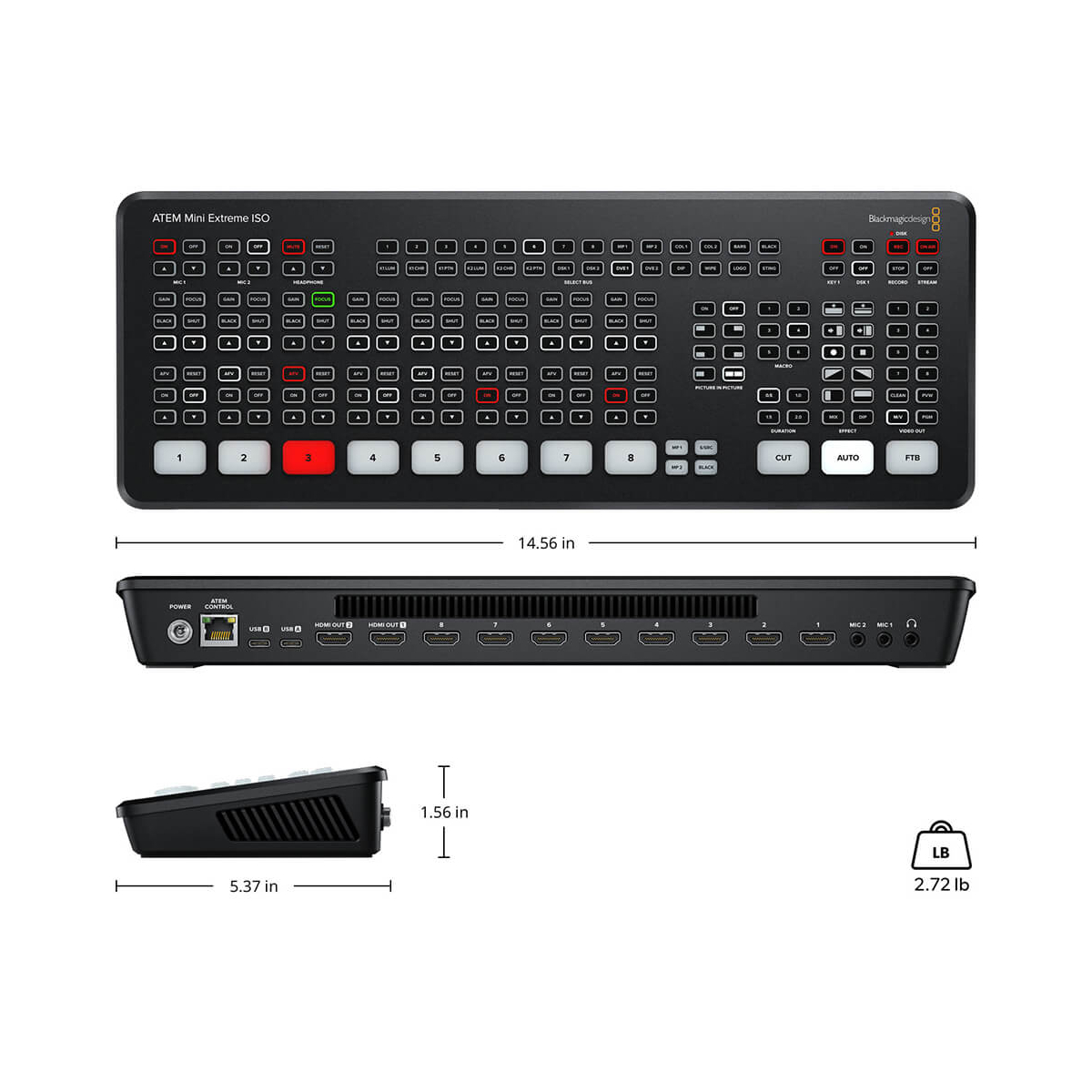

Dimensions | 14.56 x 5.37 x 1.56" / 36.98 x 13.64 x 3.96 cm |
Weight | 2.72 lb / 1.23 kg |
