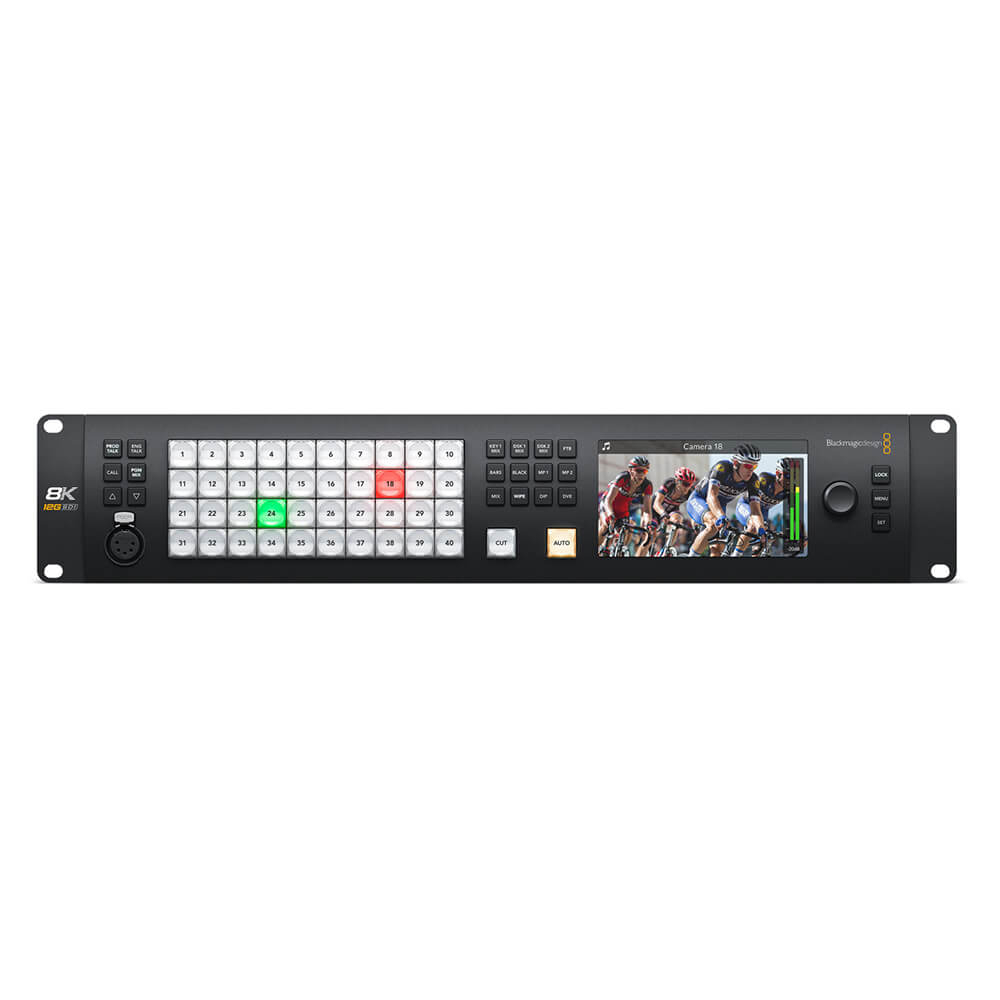

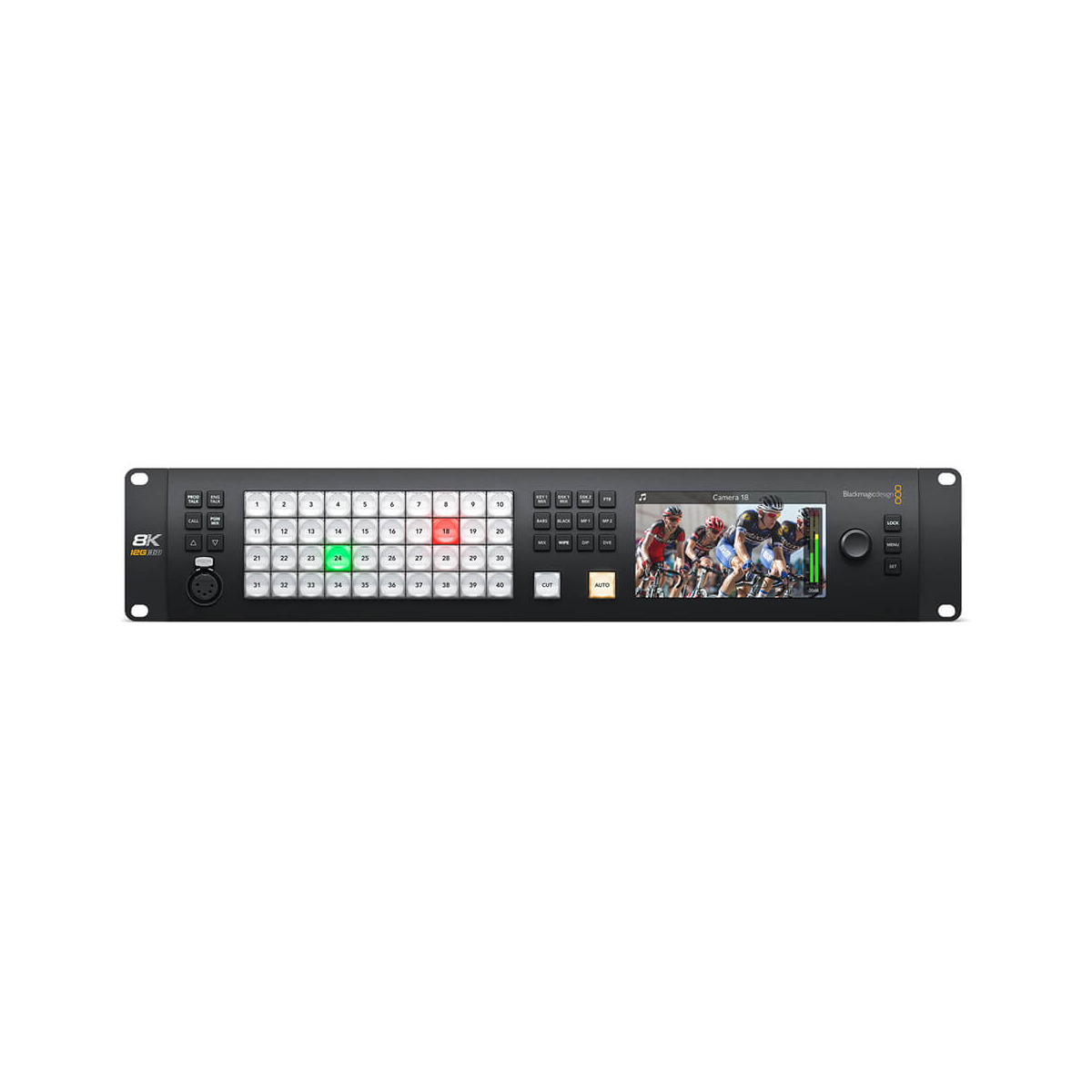

The Blackmagic Design ATEM Constellation 8K is a powerful switcher in a 2 RU chassis that can easily handle 4K video and supports 8K. It features a built-in control panel on the front and 40 12G-SDI inputs, with two main and 24 AUX 12G-SDI outputs. Each input has its own standards converter, which allows you to seamlessly switch between inputs no matter what format it is. The Constellation 8K incorporates four DVE, 16 Keyers, and four media players, allowing for flexibility in creating your program. Four multiview outputs enable viewing 4, 7, 10, 13, or 16 simultaneous views.

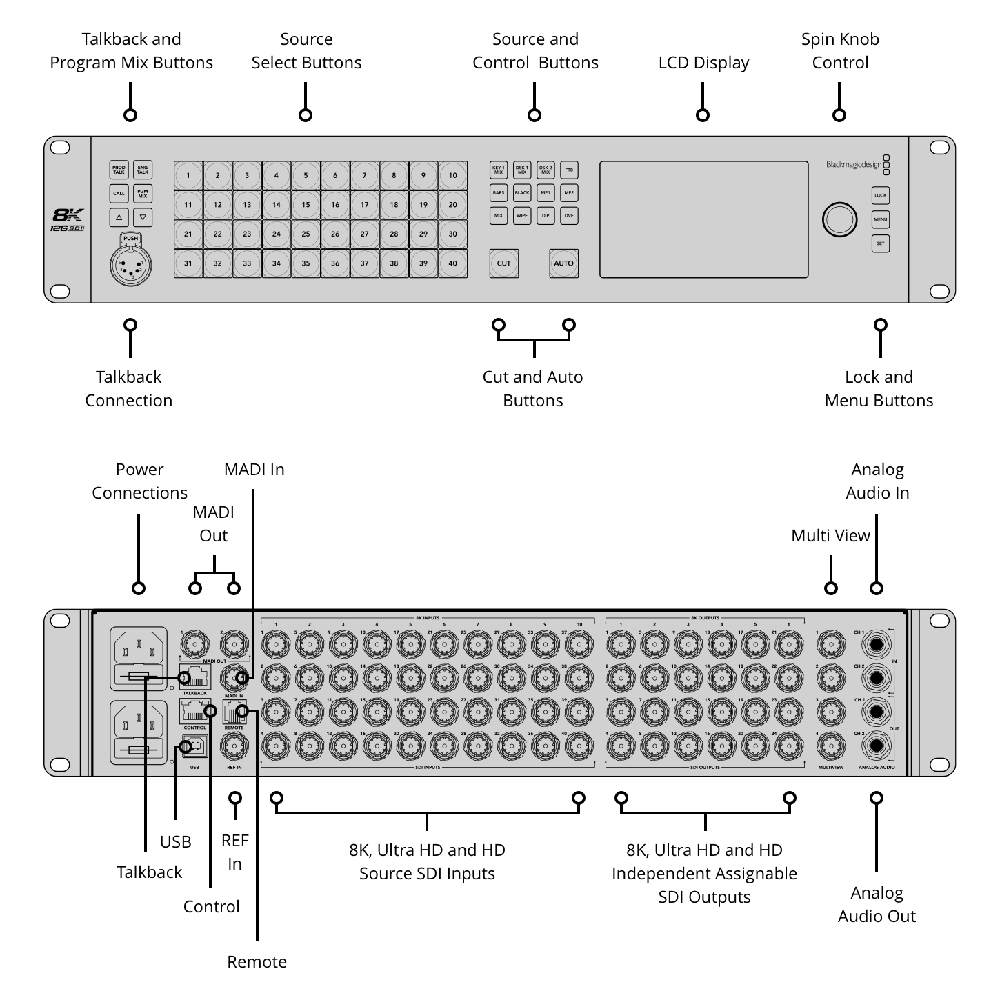

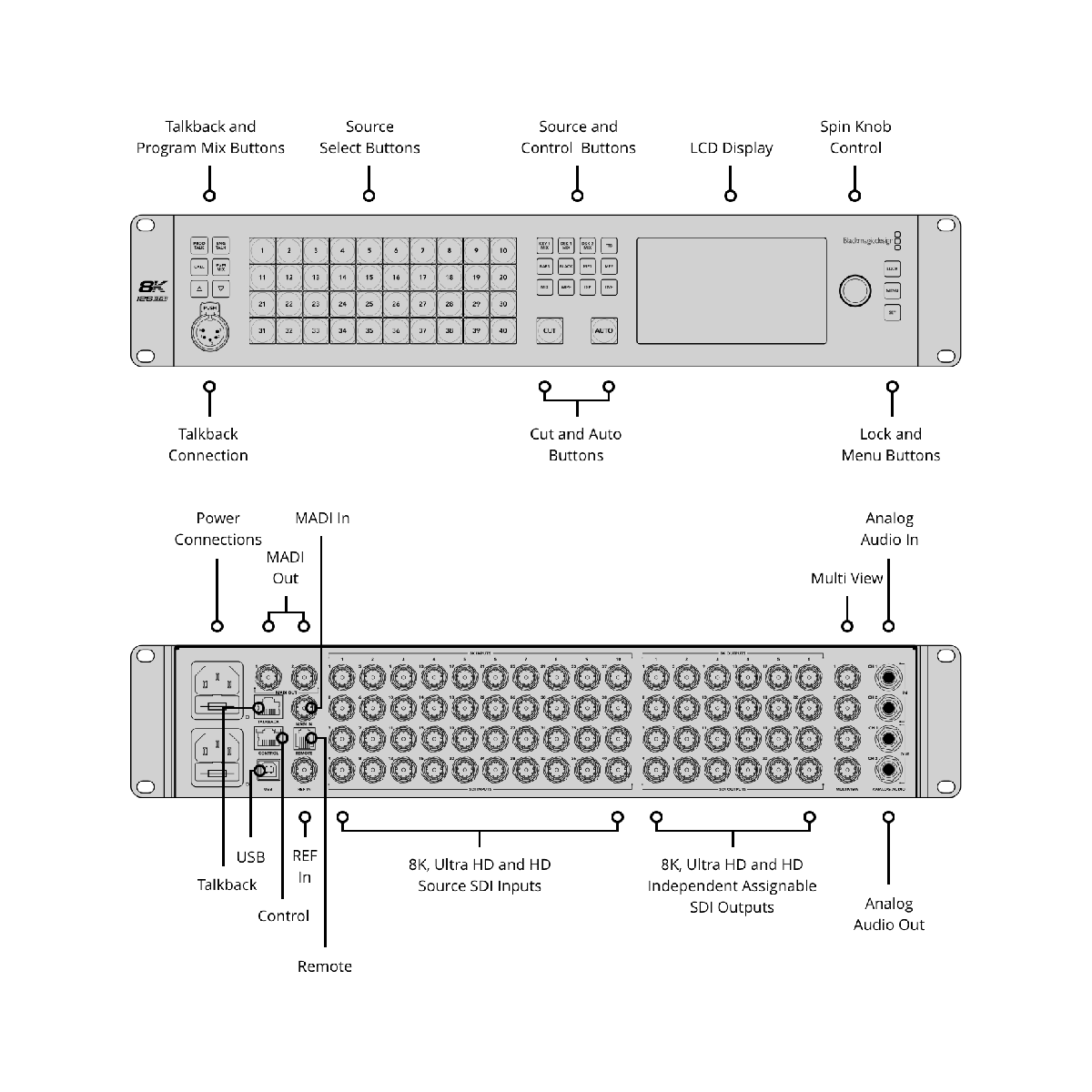

The relatively large LCD view screen on the front of the unit displays the input video with a label of the input number. You can control the Constellation 8K locally via the front panel buttons, or you can use the built-in Ethernet connector to control the system from a computer using the included control panel software. The built-in Fairlight audio mixer supports 80 channels of de-embedded audio from SDI, plus 64 channels via MADI in. Talkback functionality is available via the 5-pin XLR on the front of the unit, or the RJ12 connector on the back.
General
- The ATEM Constellation 8K features the following built-in capabilities:16 upstream keyers in Ultra HD, 4 in 8K supporting chroma, linear, and luma keying
- 4 downstream keyers in Ultra HD, 2 in 8K.
- 16 advanced chroma keyers in Ultra HD, 4 in 8K
- Talkback communication is supported
- Mix-minus is supported
- There are 4 transition keyers (Stinger/DVE)
- Supports up to 28 layers in UHD and 7 layers in 8K
- 21 pattern generators are available in Ultra HD, while only 9 are available in 8K
- Support for 2 color generators
- 4 DVE with 3D borders and drop shadow are supported in Ultra HD; one is supported in 8K
- Control is via front push-button switching with illuminated buttons, software, or an optional hardware panel.
- 64 routable windows in Ultra HD, and 16 in 8K
- Tally support (red for program, green for preview)
Blackmagic Design ATEM Constellation Specification |
|
Available M/E Layers | 4 M/E |
Effect Types | 4 x DVE 4 x Chroma Key (8K) |
Downstream Keys | 2 x Chroma (8K) 4 x Chroma (UHD) |
Generators | 9 x Pattern 2 x Color |
Processing |
|
Switching Type | Pushbutton |
Processing Resolution | DCI 4K |
Color Processing | 10-Bit 4:2:2 YUV |
Input |
|
Video Inputs | 40 x BNC (12G-SDI) |
Input Video Format | SDI (10-Bit 4:2:2) 8K at 23.98/24/25/29.97/50/59.94 fps UHD 4K 23.98/24/25/29.97/50/59.94 fps 1080p 25/29.97/50/59.94 fps 1080i 50/59.94 fps 720p 50/59.94 fps |
Audio Inputs | 2 x 1/4" TRS Mono Analog Female |
Output |
|
Video Outputs | 24 x BNC (12G-SDI) |
Output Video Format | SDI (10-Bit 4:2:2) 8K at 23.98/24/25/29.97/50/59.94 fps UHD 4K 23.98/24/25/29.97/50/59.94 fps 1080p 23.98/24/25/29.97/50/59.94 fps 1080i 50/59.94 fps 720p 50/59.94 fps |
Audio Outputs | 2 x 1/4" Balanced TS Mono Analog Female |
Multiview Output | Yes |
Connectivity |
|
Other I/O | 1 x BNC Genlock Input 1 x RJ45 Control 1 x RJ45 1 x USB-B |
Video Standard Compliance | SMPTE 292M/296M/424M-B/425M-A/425M-B/ST-2081-1/ST-2081-10/ST-2082-1/ST-2082-10 |
HDCP Support | Yes |
Display |
|
Screen Resolution | 1366 x 768 |
Hardware |
|
OS Compatibility | macOS 10.13 macOS 10.14 or Later Windows 8.1 Windows 10 *As of February, 2020: Check with manufacturer for the most up-to-date compatibility |
Wi-Fi | Yes |
Bluetooth | Yes |
Power I/O | 2 x IEC C14 Input |
Power Consumption | Device: 100 to 240 VAC (300 W) |
Environmental |
|
Operating Temperature | 32 to 104°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% (Recommended) |
General |
|

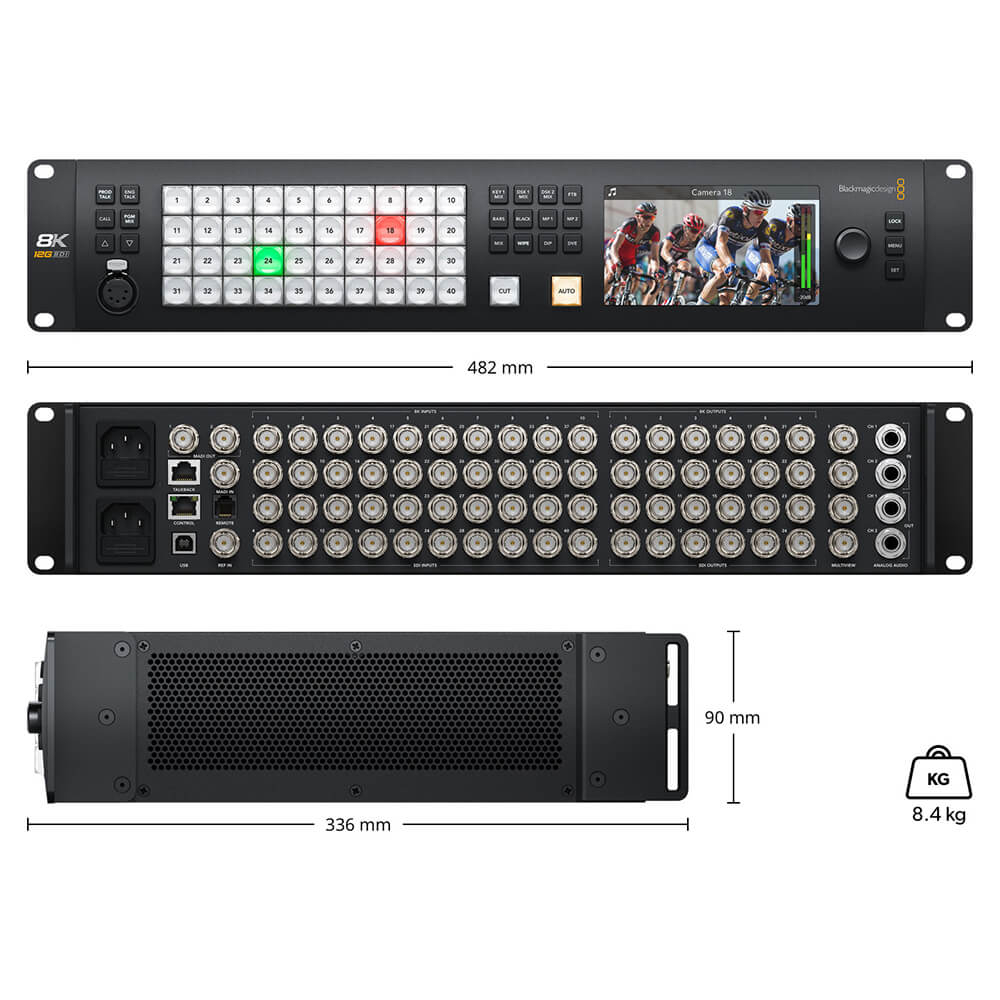

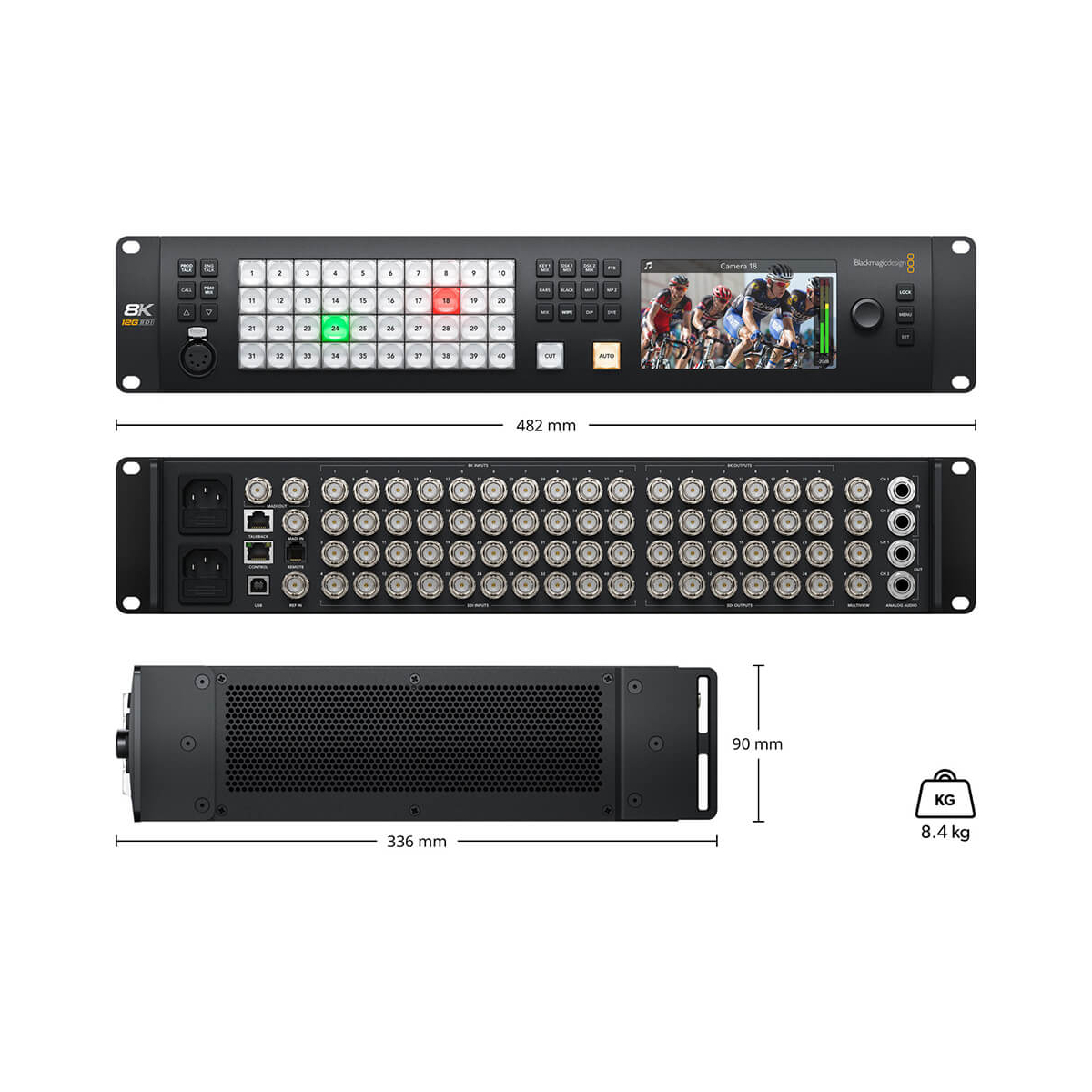

Rack Form Factor | 2 RU |
Dimensions | 19 x 13.23 x 3.54" / 48.26 x 33.6 x 8.99 cm |
Weight | 18.5 lb / 8.39 kg |
