【Blackmagic Design】ATEM Camera Converter

  • Enables Extension of SDI/HDMI Cameras
  • Transmission Distance - 28 miles (45km)
  • Internal Battery
  • Talkback Function
  • 12V Power Connection
  • 2 Tally LEDs
  • Integrated Belt Clip / Camera Mount
  • Microphone Inputs
  • Aircraft-grade Aluminum Construction
  • Built-in Button Pad

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
SWRCONV
Write Your Own Review
You're reviewing:【Blackmagic Design】ATEM Camera Converter
Your Rating

The Blackmagic Design ATEM Camera Converter enables extension of SDI (serial digital interface) / HDMI cameras to distances up to 28 miles (45km) via an optical fiber link. You can connect your camera to the SDI/HDMI inputs to convert videos to optical signals. This optical fiber input can be connected to the switcher program feed to convert to SDI/HDMI outputs for monitoring. In addition, the SDI/HDMI outputs can be switched between return program and camera input for monitoring.

With an internal battery, the converter can be used at remote locations when the cameras are placed at far-off locations. Featured Talkback function allows the switcher operator to co-ordinate with camera operator via PC headsets or iPhone-compatible headphones. By embedding microphone audio into channels 15 and 16 of the camera optical fiber video output, the Talkback function listens to channels 15 and 16 of the optical fiber input on the headphones.

Using the 12V power connection, the converter can be connected to any power source or a car battery. By connecting the switcher’s program output to the ATEM Camera Converter via optical outputs, the camera converter illuminates the 2 tally LEDs using open standard tally packet in the SDI output. You can select the camera number using the USB software or by camera number button on the keypad. In addition, you can also view red color tally on the monitor by connecting external monitoring to the HDMI/SDI outputs.

Featuring an integrated belt clip, the camera converter can be attached to the belt for portability. With the help of a camera mount, the converter can be mounted onto a tripod. In addition, the camera converter features microphone inputs for audio capability.

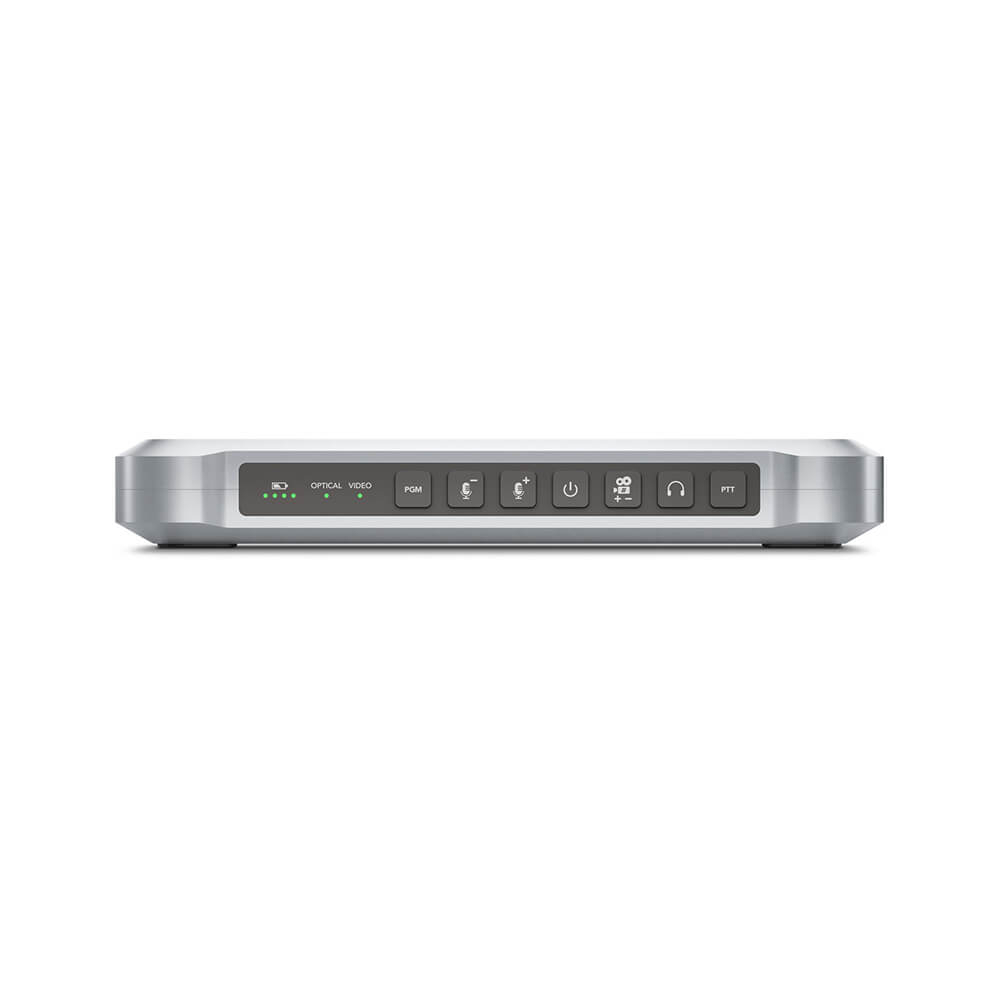

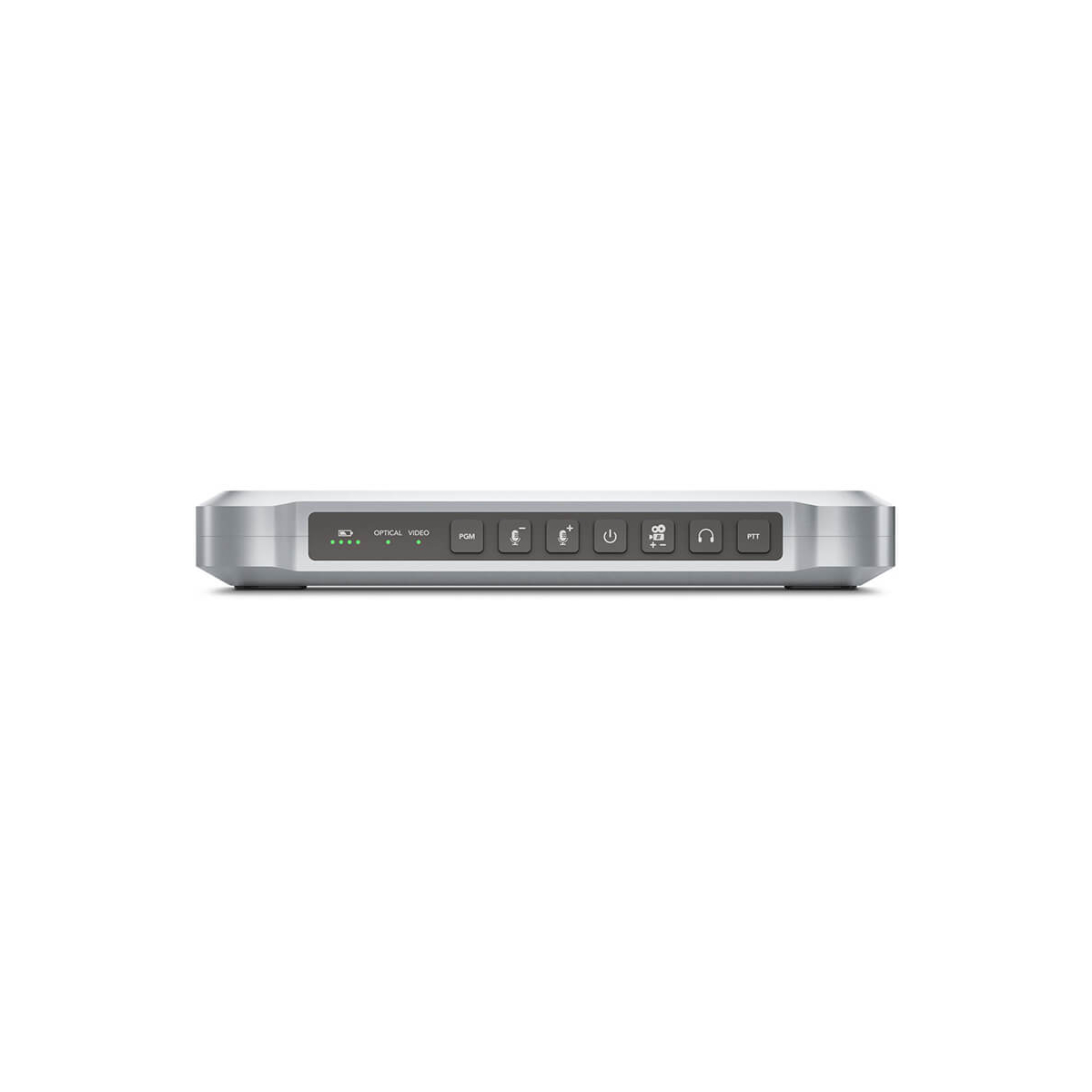

Made of aircraft-grade aluminum, the camera converter can withstand bumps and shocks without breaking. Built-in button pad allows you to control power, microphone level, talkback and video, and battery indicators. You can update converters firmware via a USB port. The camera converter can be used for applications such as concerts, sporting events, lecture theaters, houses of worship, surveillance, or any remote camera location.

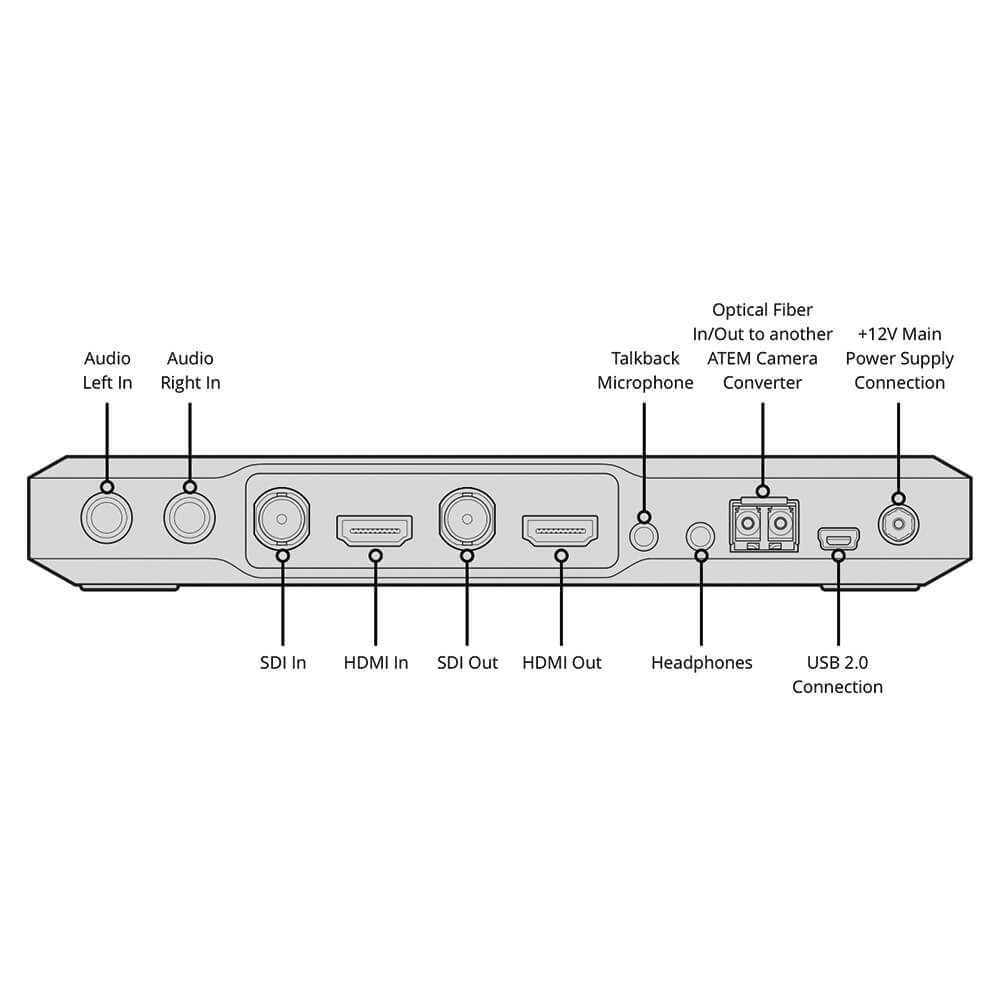

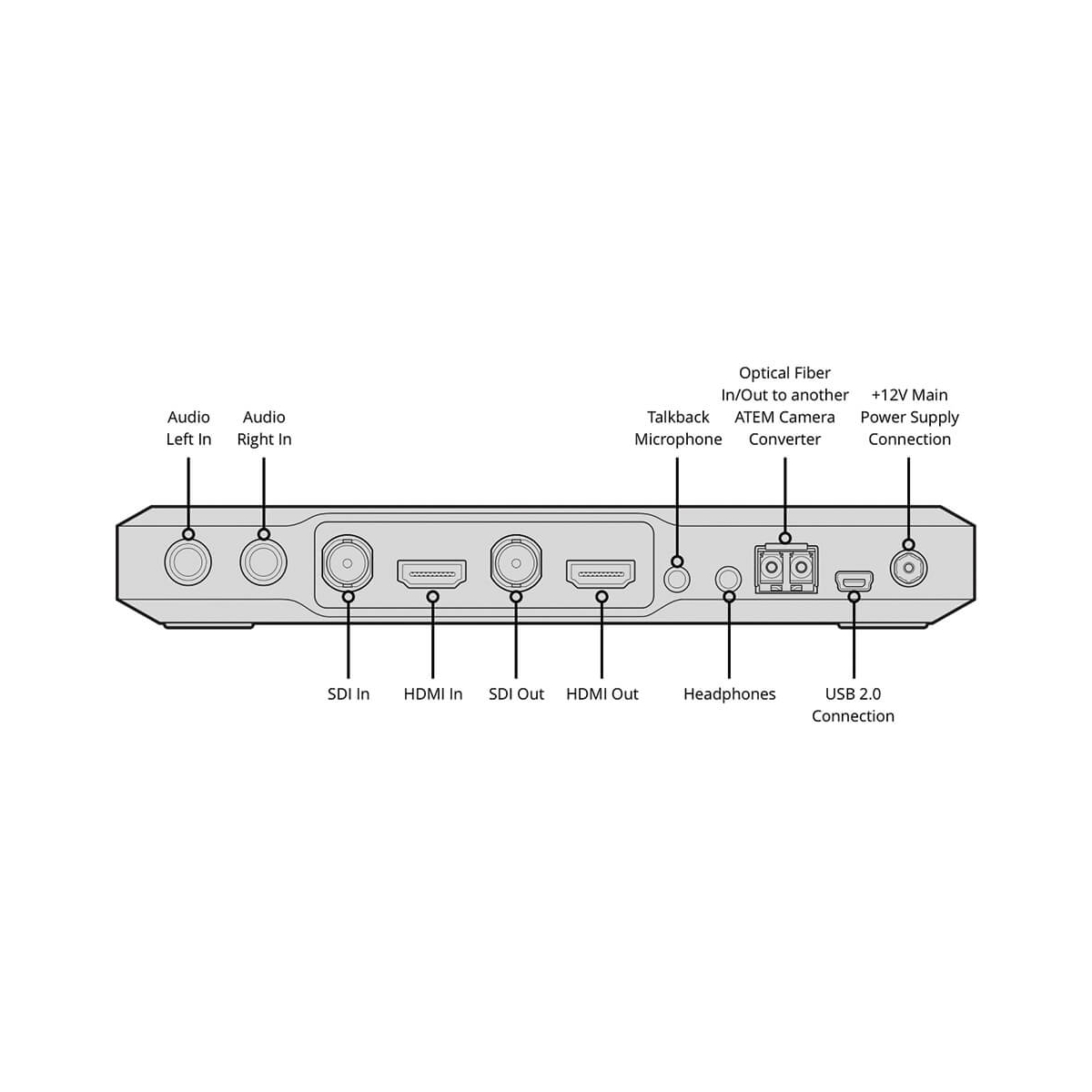

Blackmagic Design ATEM-CONV Specification

Video Input

SDI Video Input:1 x 10 bit SD/HD switchable
SDI Video Output: 1 x 10 bit SD/HD switchable
DMI Video Input: 1 x HDMI 1.3 type A connector
HDMI Video Output: 1 x HDMI 1.3 type A connector
Optical Fiber Video Input: 1 x LC type, 10 bit SD/HD switchable
Optical Fiber Video Output: 1 x LC type, 10 bit SD/HD switchable

Only single-mode LC type fiber optic cables are recommended for all fiber optic connections above

Analog Audio 2 x balanced 1/4" TRS connectors (stereo), line or microphone level in. When connected, replaces audio from SDI In or HDMI In. 1 x 3.5mm stereo connector for talkback microphone. 1 x 3.5mm stereo connector for stereo headphones (compatible with iPhone compatible headsets)
Computer Interface 1 x USB 2.0 high speed interface for configuration and firmware updates
SDI Compliance SMPTE 259M, SMPTE 292M
Video Sampling 4:2:2
Audio Sampling Television standard sample rate of 48Khz, 24 bit A/D conversion
Color Precision 10 bit
Color Space 4:2:2 YUV
Multiple Rate Support SDI and HDMI switches between 270Mb/s SD-SDI and 1.5Gb/s HD-SDI
Firmware Upgrade Firmware built into software driver. Loaded at system startup or via updater software
Power Supply 12V power supply included with international socket adaptors for all countries
Operating Systems Supported Microsoft Windows XP, Windows Vista. Windows 7 and Apple Mac OS X
