【Blackmagic Design】ATEM 4 M/E Constellation HD

  • Supports 3G/HD-SDI at 10-Bit
  • 40 x 3G-SDI Inputs, 24 x 3G-SDI Outputs
  • Up to 16-Multiview Monitoring Windows
  • Webcam Output via USB Type-C
  • Frame Rate/Format Converter per Input
  • 156-Channel Audio Mixer
  • 16 x Upstream, 4 x Downstream Keyer
  • Chroma/Luma Keyers
  • Color/Pattern Generators
  • Hardware or Software Mac/Windows Control

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
SWATEMSCN2/1ME4/HD
Write Your Own Review
You're reviewing:【Blackmagic Design】ATEM 4 M/E Constellation HD
Your Rating

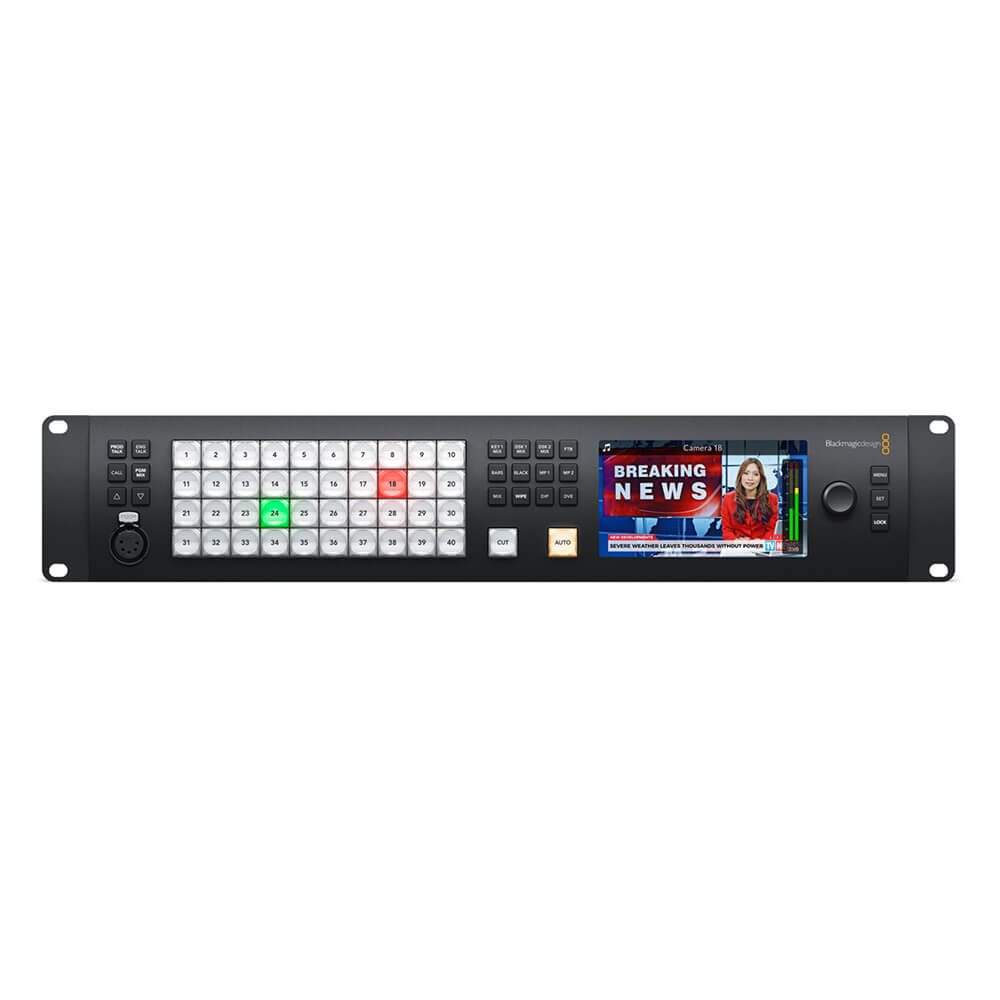

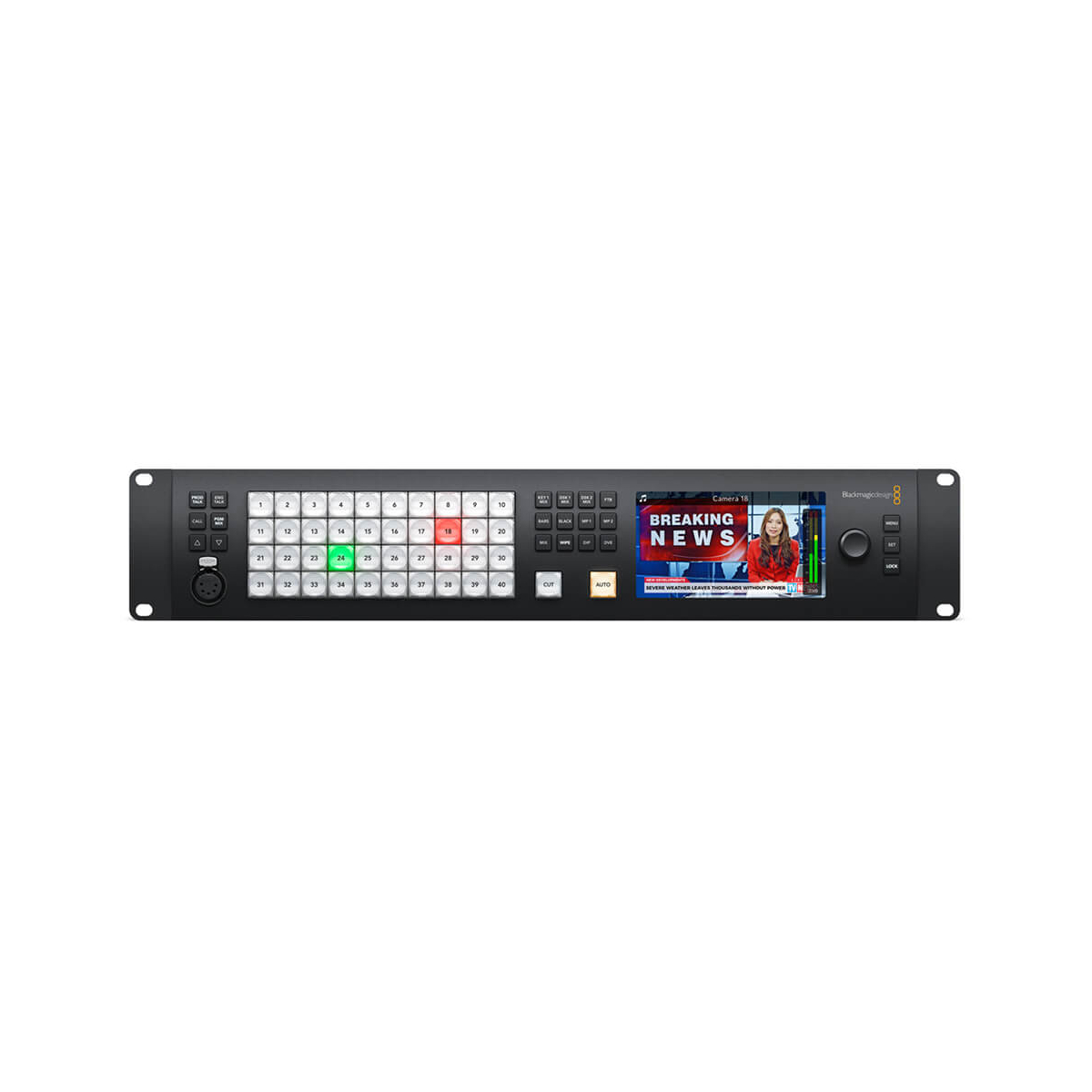

Powerful live event HD switching, supporting up to 40 individual 3G-/HD-SDI inputs built into a 2 RU chassis, is at hand with the Blackmagic Design ATEM 4 M/E Constellation HD Live Production Switcher. Supporting 3G-SDI and HD-SDI signals, the switcher connects to a wide range of cameras and sources, delivering program output via 24 3G-SDI BNC outputs or a webcam output via USB Type-C. In addition, the switcher has four multiview outputs with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 156 channels of audio.

The switcher features a reference video input, and each input features a frame synchronizer, frame rate converter, and format converter. This allows you to mix and match cameras, formats, cameras that do not feature genlock, and video input from computer sources. Upstream and downstream keyers and effects are supported. All this is done live and in real time with no rendering required. You can control the switcher using the integrated front panel, optional Blackmagic ATEM panels, or via the downloadable control software.

Blackmagic Design ATEM Constellation HD 4 M/E Specification

Available M/E Layers 4 M/E
Effect Types 16 x Chroma Key
21 x Luma Key
4 x Stinger
12 x DVE
Downstream Keys 4 x Chroma, Luma, DVE
Generators 2 x Color
21 x Pattern
Audio Mixing 156-Channel Mixing

Processing

Switching Type Pushbutton, Software
Latency 10 Lines
Color Processing 10-Bit 4:2:2

Input

Number of Video Input Sources 40
Video Inputs 40 x BNC (3G-SDI)
Input Video Format SDI (10-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/59.94/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Inputs 2 x 1/4" TRS Stereo Analog Female
1 x BNC Stereo MADI
Input Audio Format Analog
Embedded Audio Input SDI: 2-Channel (per Input)

Output

Video Output Channels 24
Video Outputs 24 x BNC (3G-SDI)
1 x USB-C (USB Video) (Program)
Output Video Format SDI (10-Bit 4:2:2)
1080p at 23.98/24/25/29.97/30/50/60 fps
1080i 50/59.94/60 fps
720p 50/59.94/60 fps
Audio Outputs 2 x 1/4" TRS
2 x BNC Stereo MADI
Output Audio Format Analog
Embedded Audio Output SDI
USB-C
Multiview Output 16-Way Multiview viaSDI

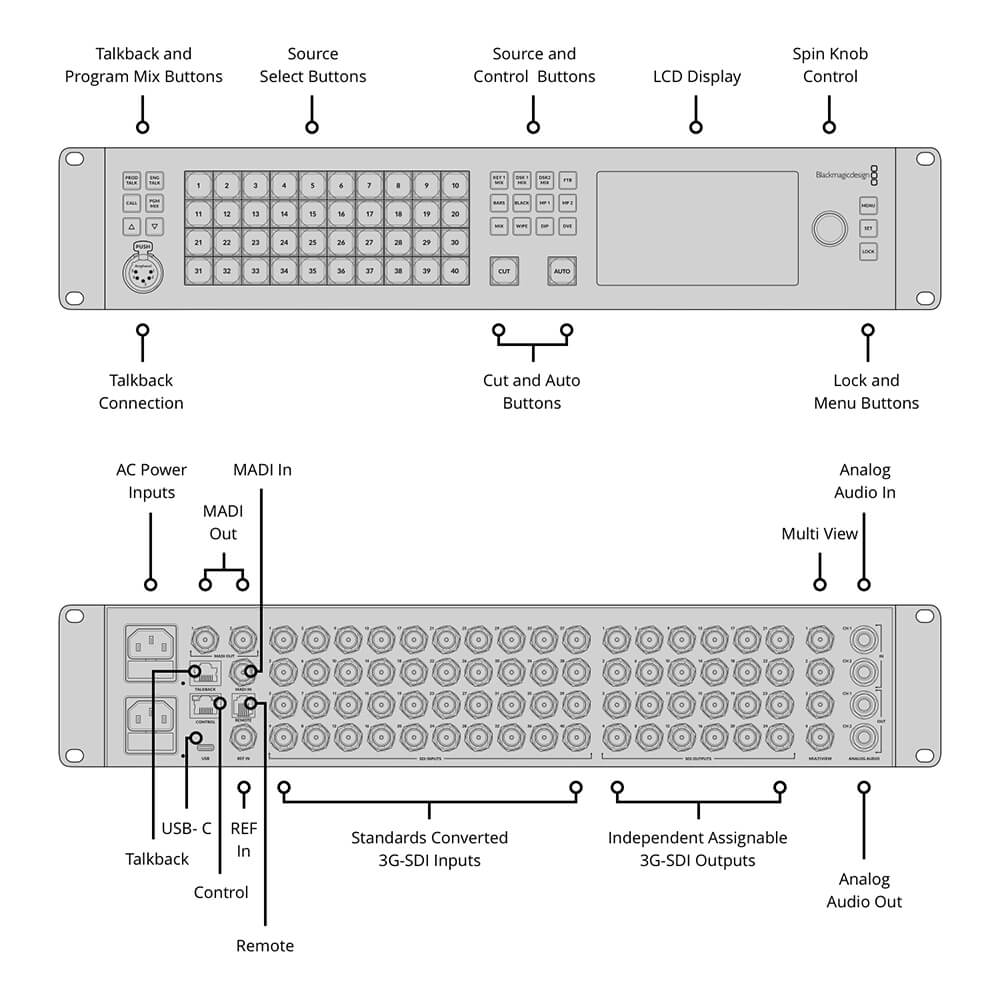

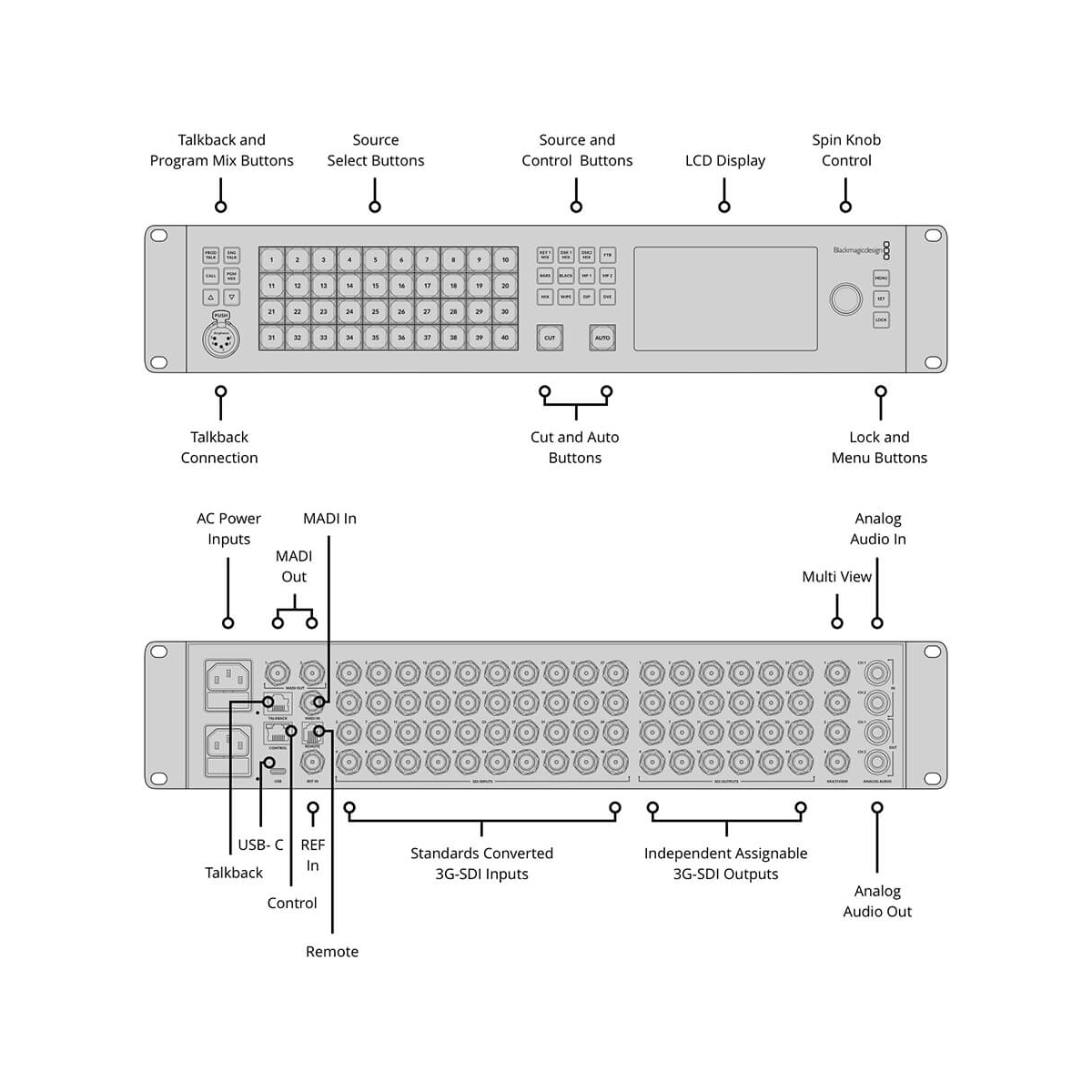

Connectivity

Other I/O 1 x BNC Blackburst, Reference, Tri-Level Sync Input
1 x RJ45 Control
1 x RJ12 Control
1 x RJ45 Talkback Input/Output
1 x XLR 5-Pin Talkback Input/Output
Video Standard Compliance SMPTE 292M/296M/424M/425M-A/425M-B
HDCP Support None
IP Video 1280 x 720 to 1920 x 1080 Encoding

Display

Display Size 5"

Hardware

OS Compatibility macOS 11.1
macOS 12.0 or Later
Windows 10
Windows 11
*As of April, 2022: Check with manufacturer for the most up-to-date compatibility
Wi-Fi None
Bluetooth None
Power I/O 2 x IEC C14 Input
Power Consumption Device: 147 W

Environmental

Operating Temperature 32 to 72°F / 0 to 40°C
Storage Temperature -4 to 140°F / -20 to 60°C
Operating Humidity 0 to 90% (Non-Condensing)

General

Rack Form Factor 2 RU

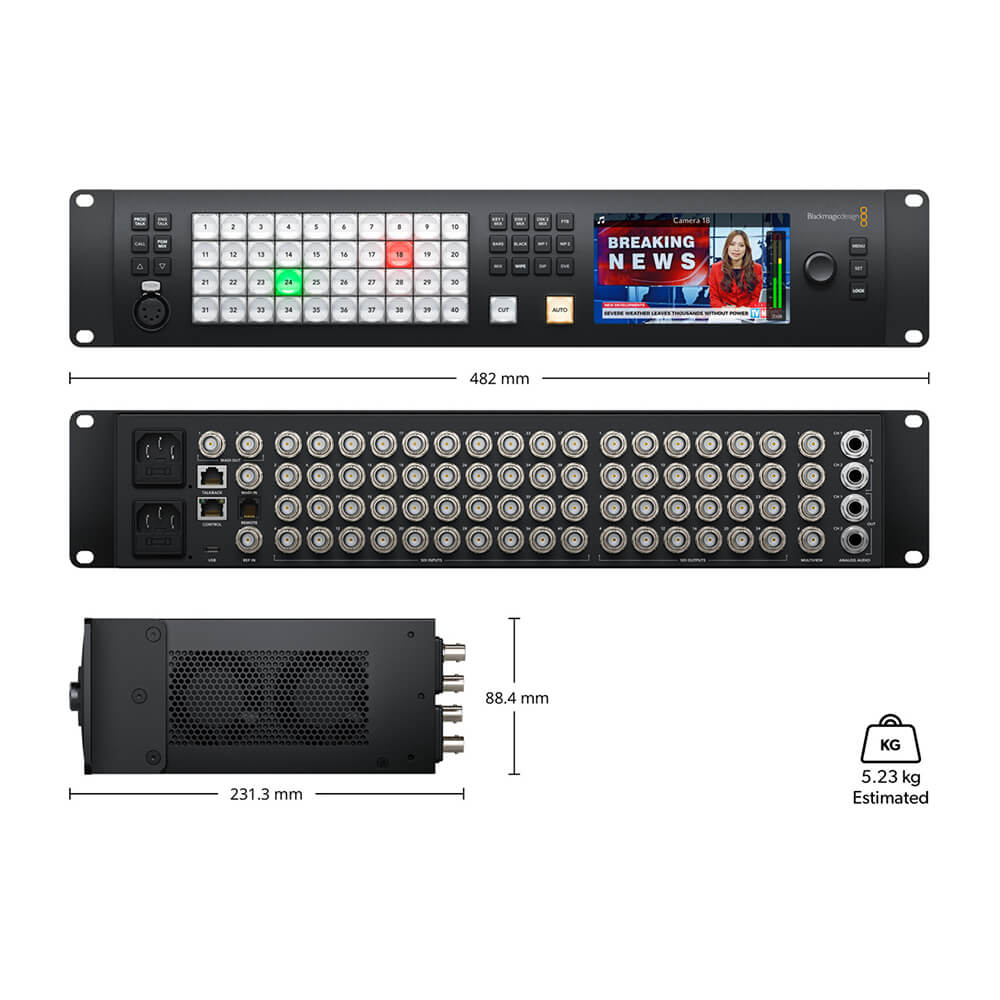

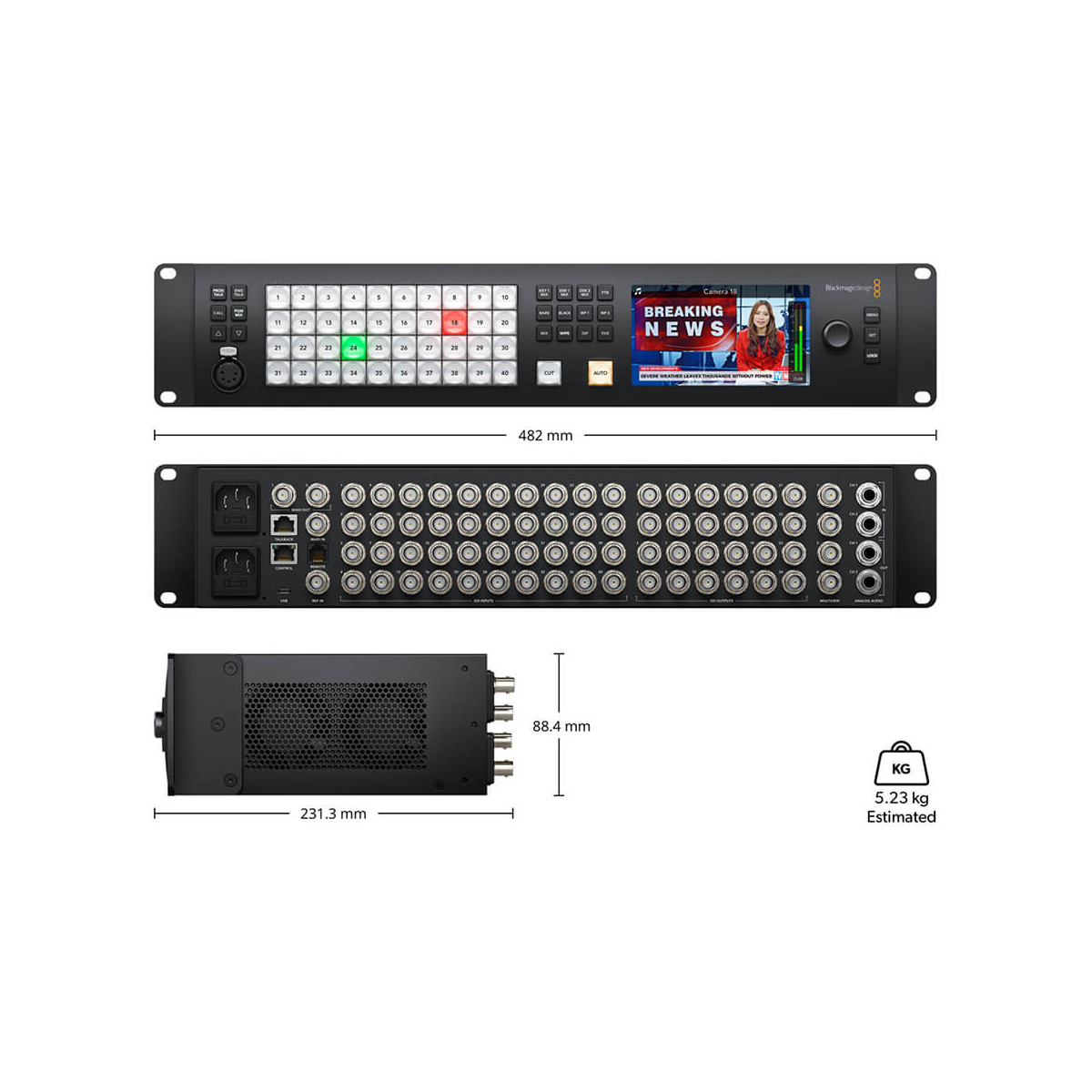

Dimensions  19 x 9.1 x 3.48" / 48.3 x 23.1 x 8.84 cm
Weight 11.53 lb / 5.23 kg
