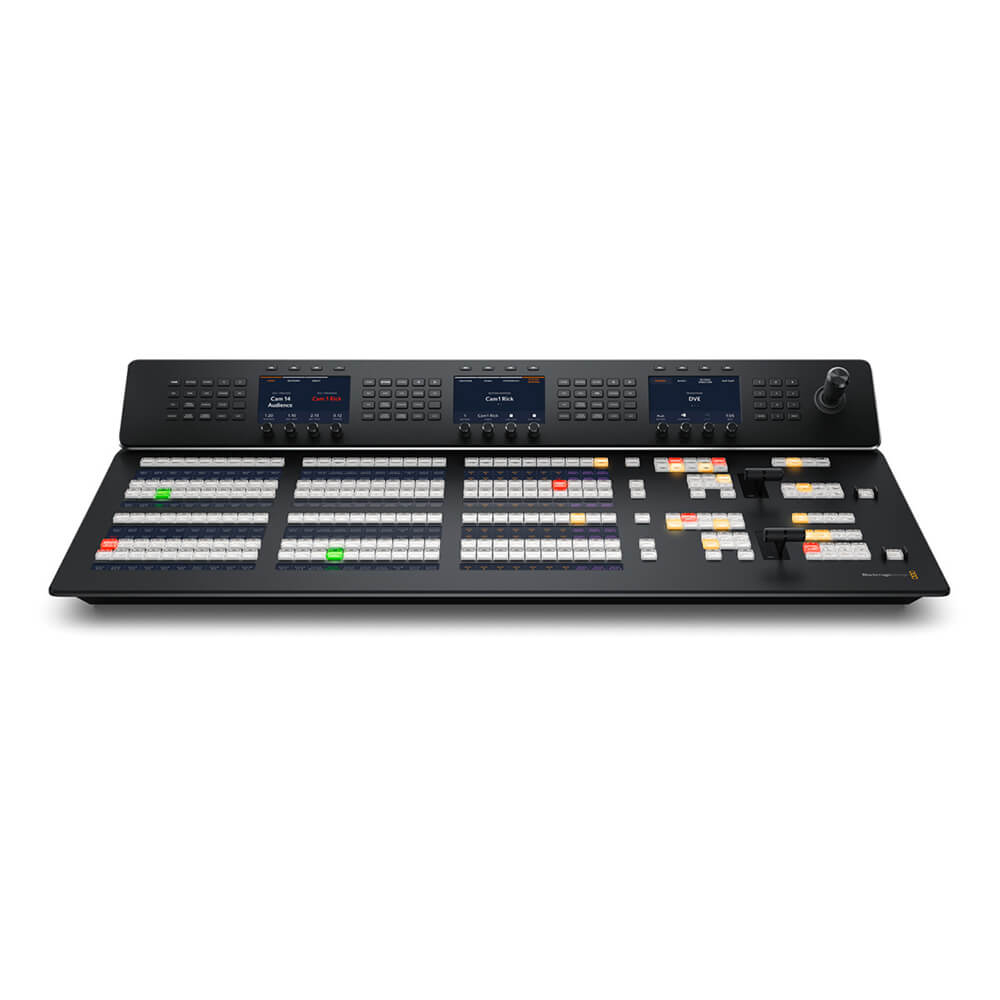

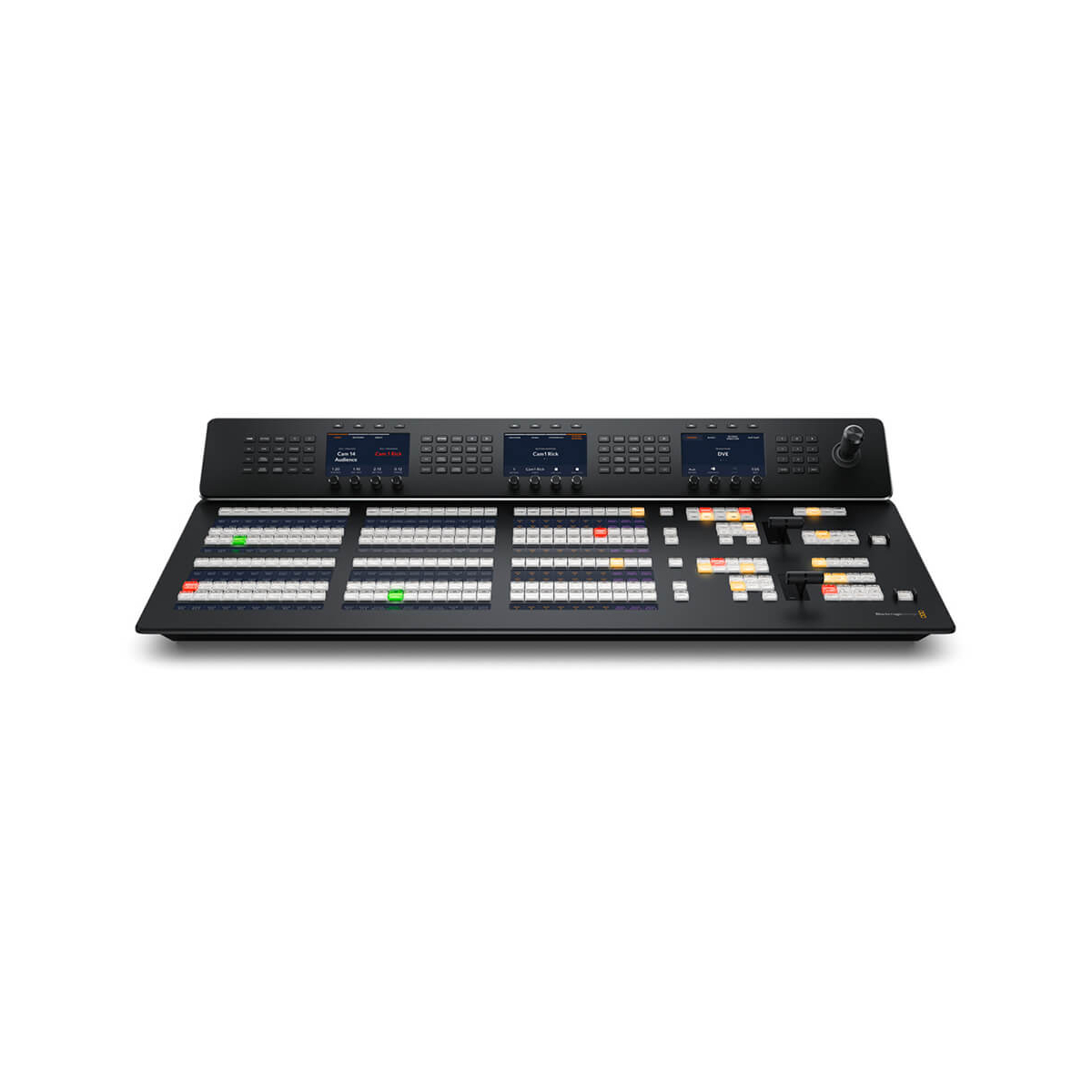

The ATEM 2 M/E Advanced Panel 30 is a sophisticated control interface for the separately available ATEM Constellation Switcher from Blackmagic Design. Use the numerous buttons, knobs, two fader bars, and a 3-axis joystick to customize your panel's program/preview operation.
| Blackmagic Design ATEM 2 M/E Advanced Panel 3 SPEC General | |
| Compatibility | Blackmagic Design ATEM Constellation HD Switchers |
| Display | |
| Panel Type | LCD |
| Size | Not Specified by Manufacturer |
| Touchscreen | No |
| Inputs / Outputs | |

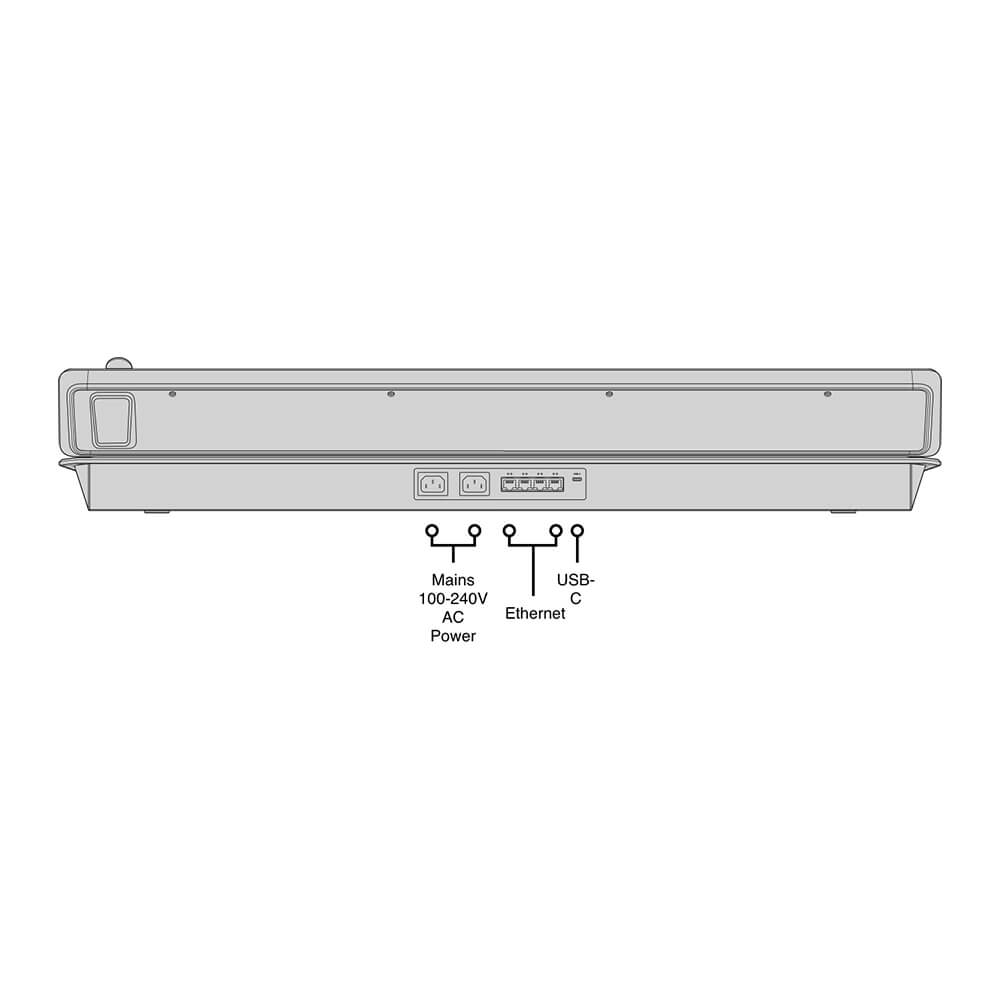

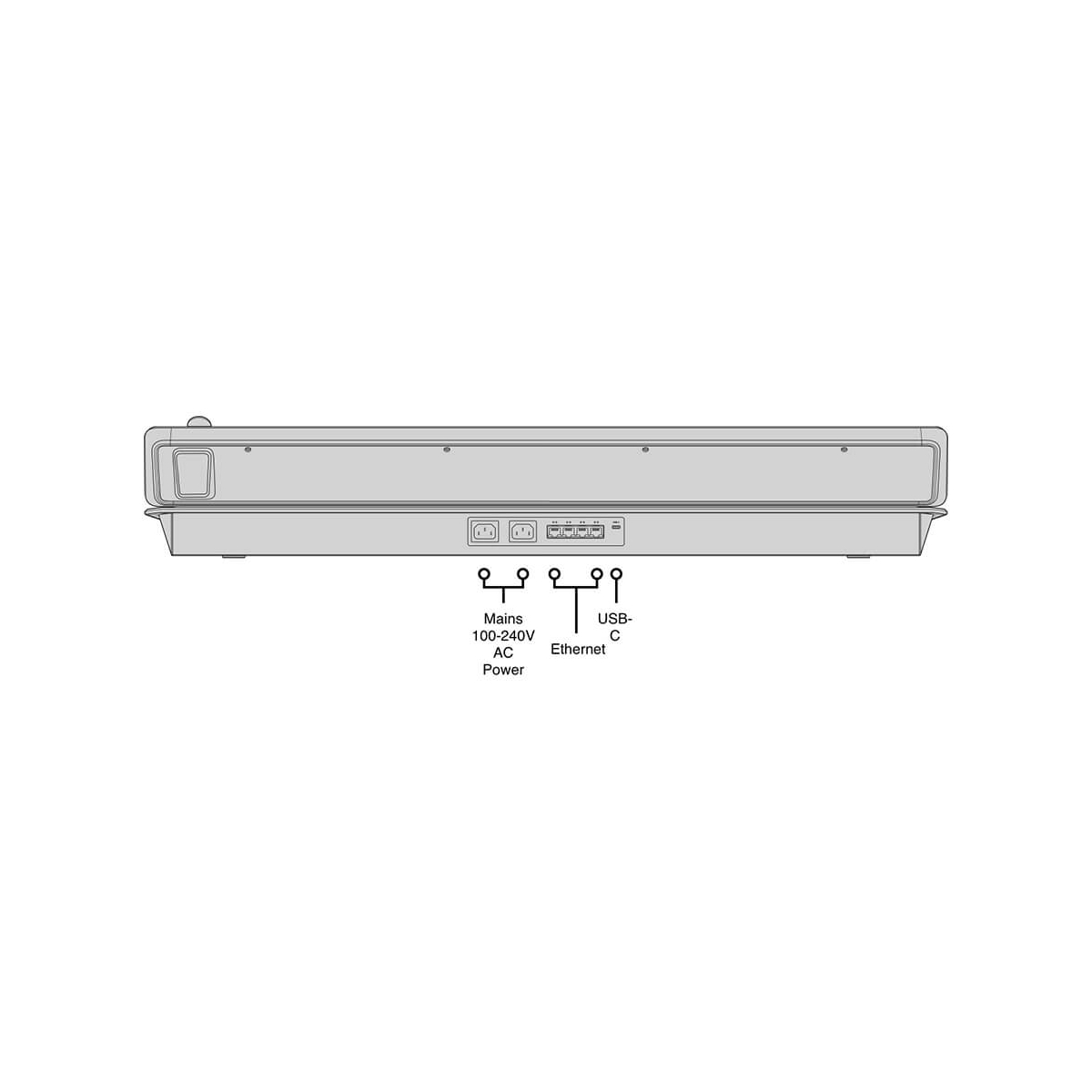

| USB I/O | 1 x USB-C Female Input/Output |
| Power | |
| Power Source | AC Input |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption | 120 W |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 95% |
| Storage Temperature | -4 to 140°F / -20 to 60°C |
| Physical | |

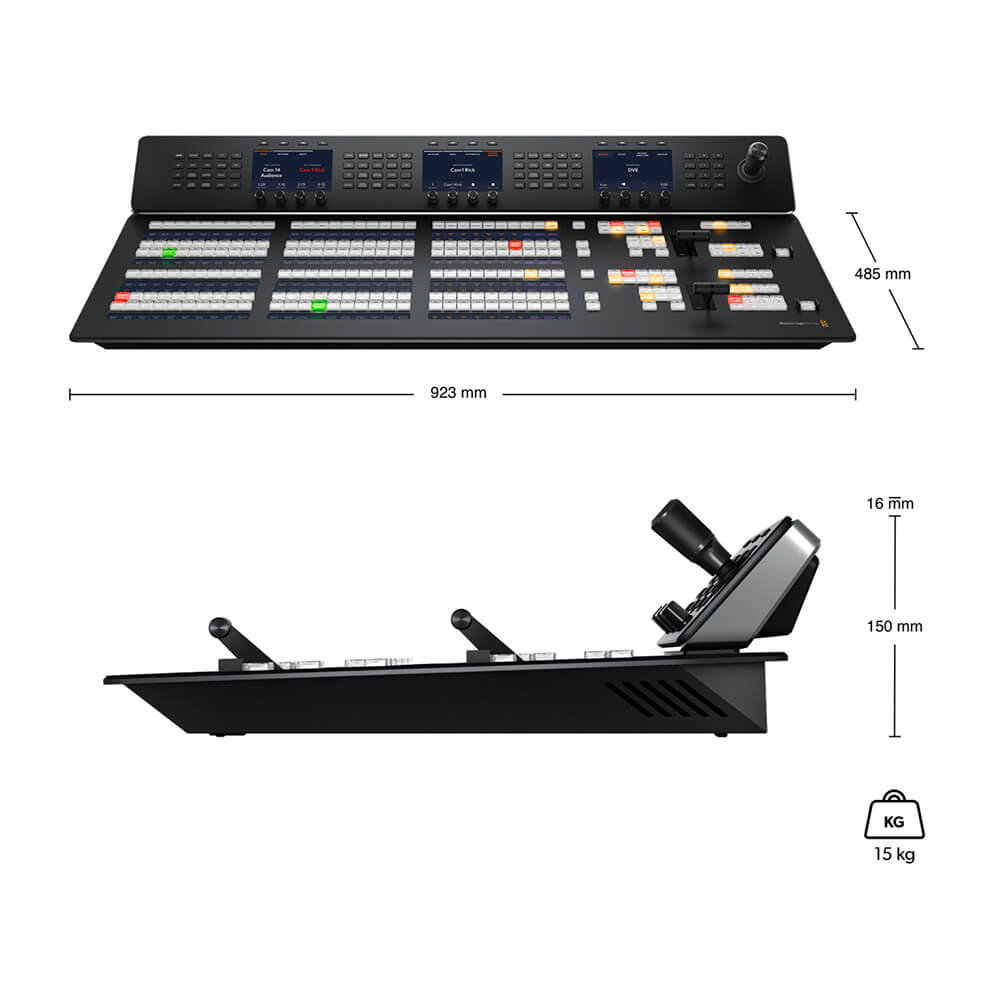

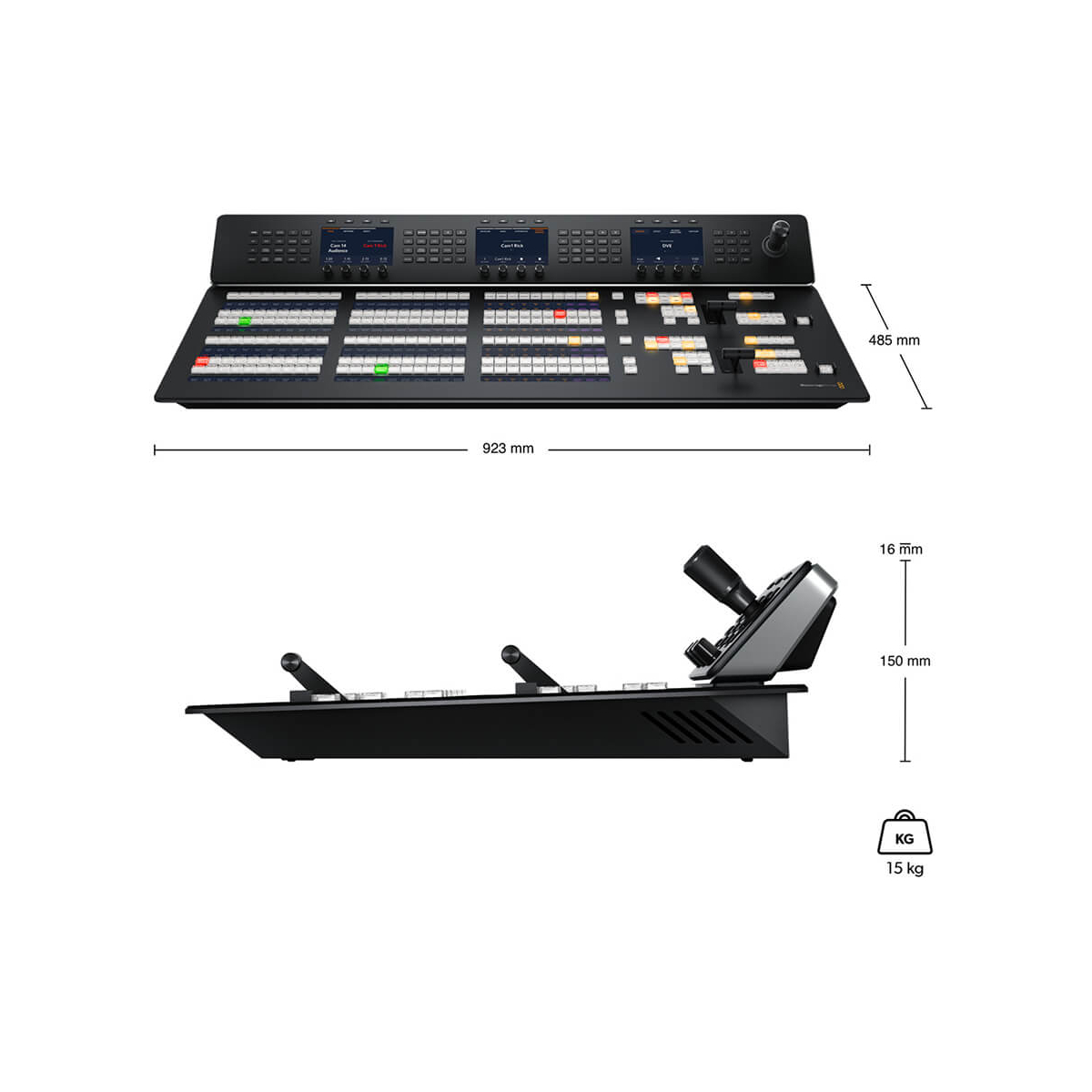

| Dimensions | 36.3 x 19 x 5.9" / 92.2 x 48.3 x 15 cm |
| Weight | 33 lb / 15 kg |
