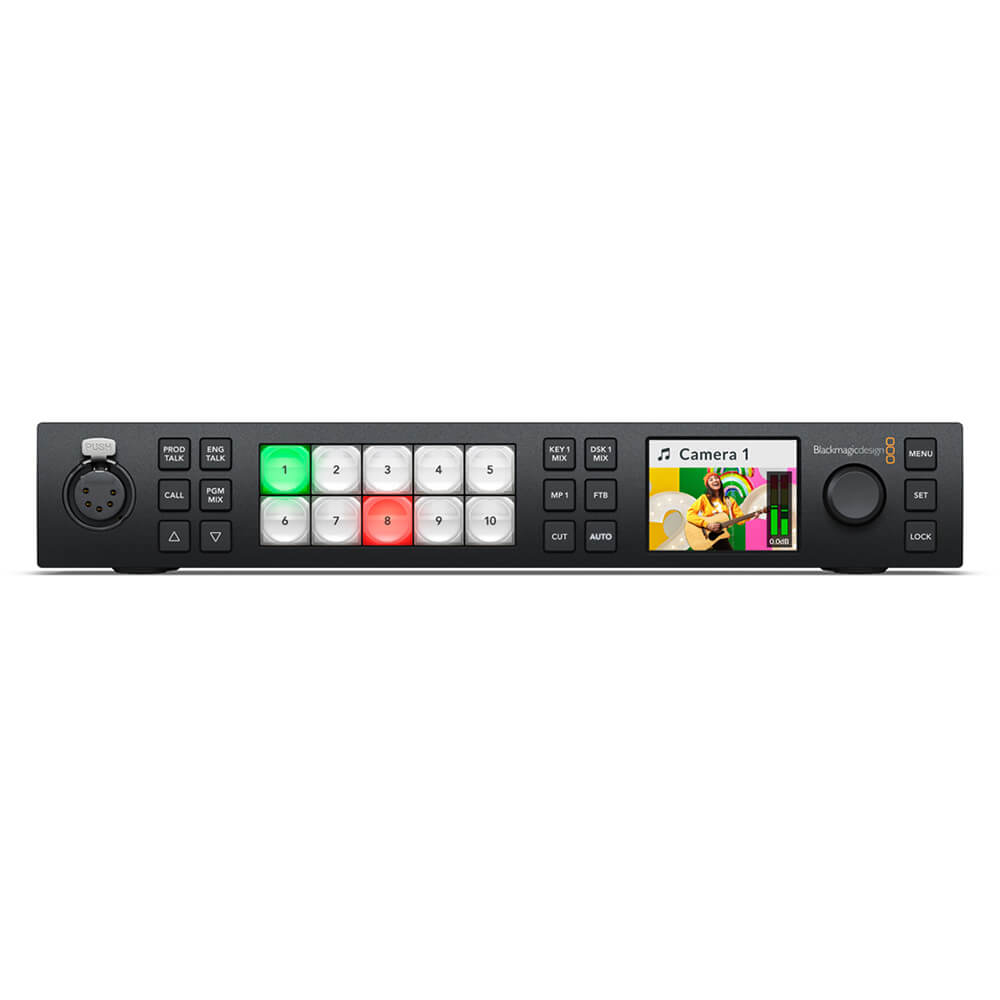

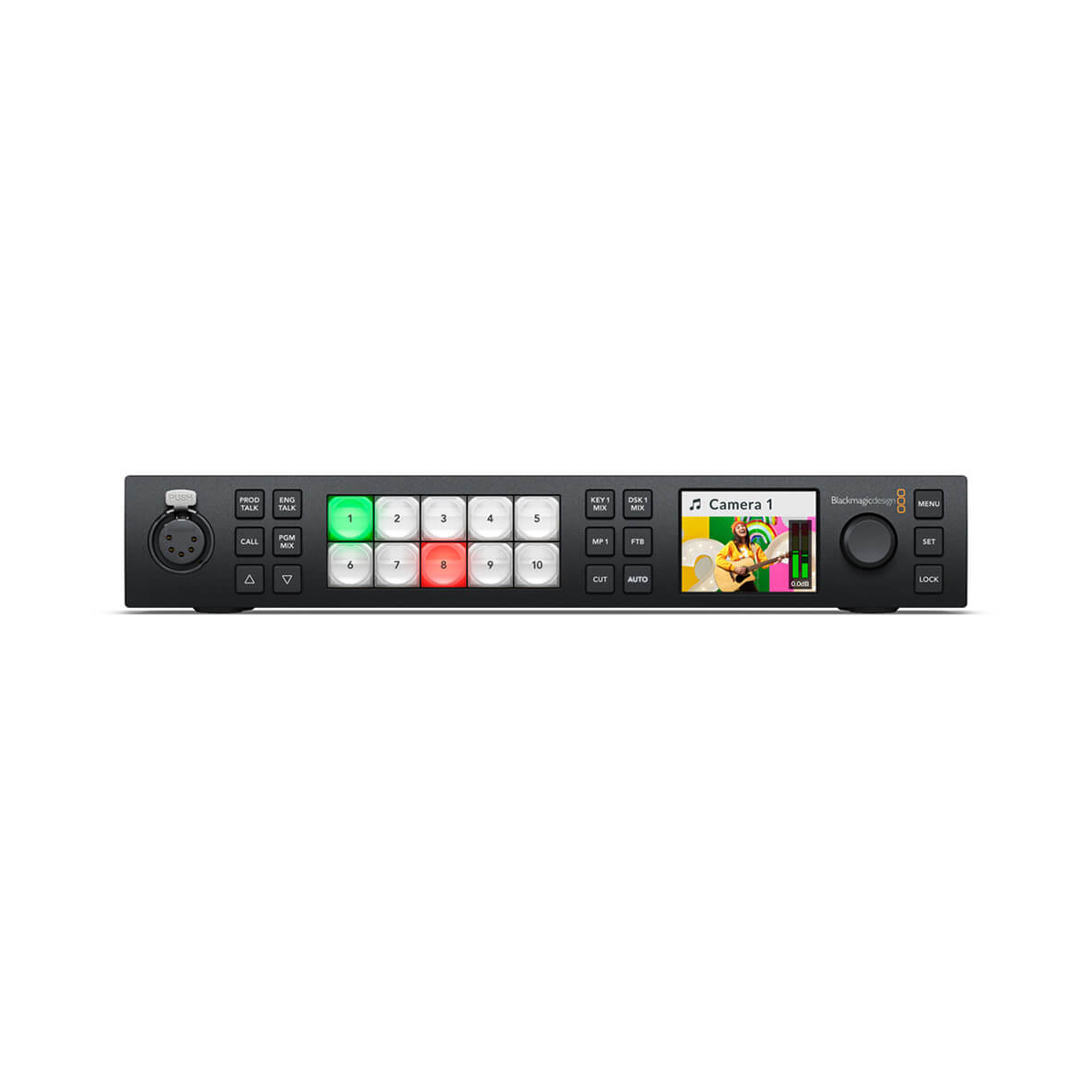

Powerful live event HD switching, supporting up to 10 individual 3G/HD-SDI inputs built into a 1 RU chassis, is at hand with the Blackmagic Design ATEM 1 M/E Constellation HD Live Production Switcher. Supporting 3G-SDI and HD-SDI signals, the switcher connects to a wide range of cameras and sources, delivering program output via six 3G-SDI BNC outputs or a webcam output via USB Type-C. In addition, the switcher has a multiview output with up to 16 routable windows that can display inputs, keyed video, graphics, and stills from the media pool, as well as the program output. Each input connects to a built-in Fairlight audio mixer supporting up to 28 channels of audio.

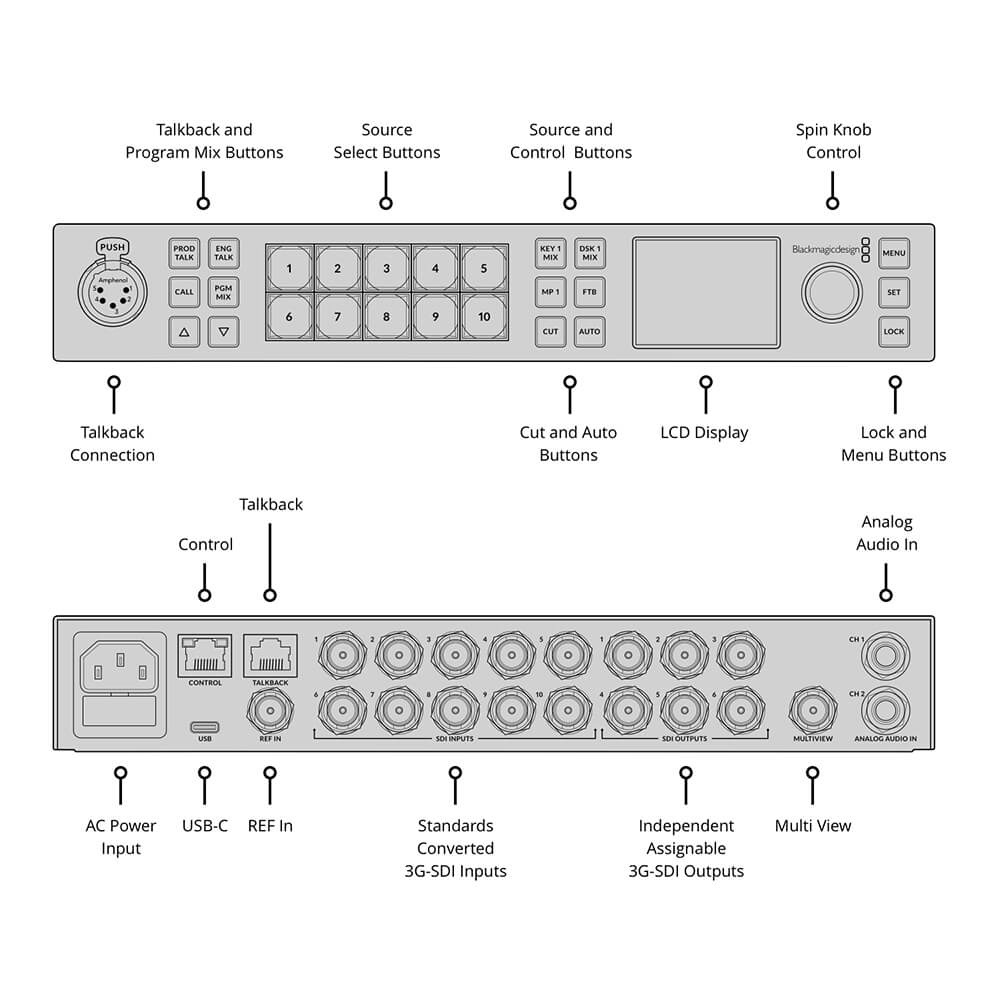

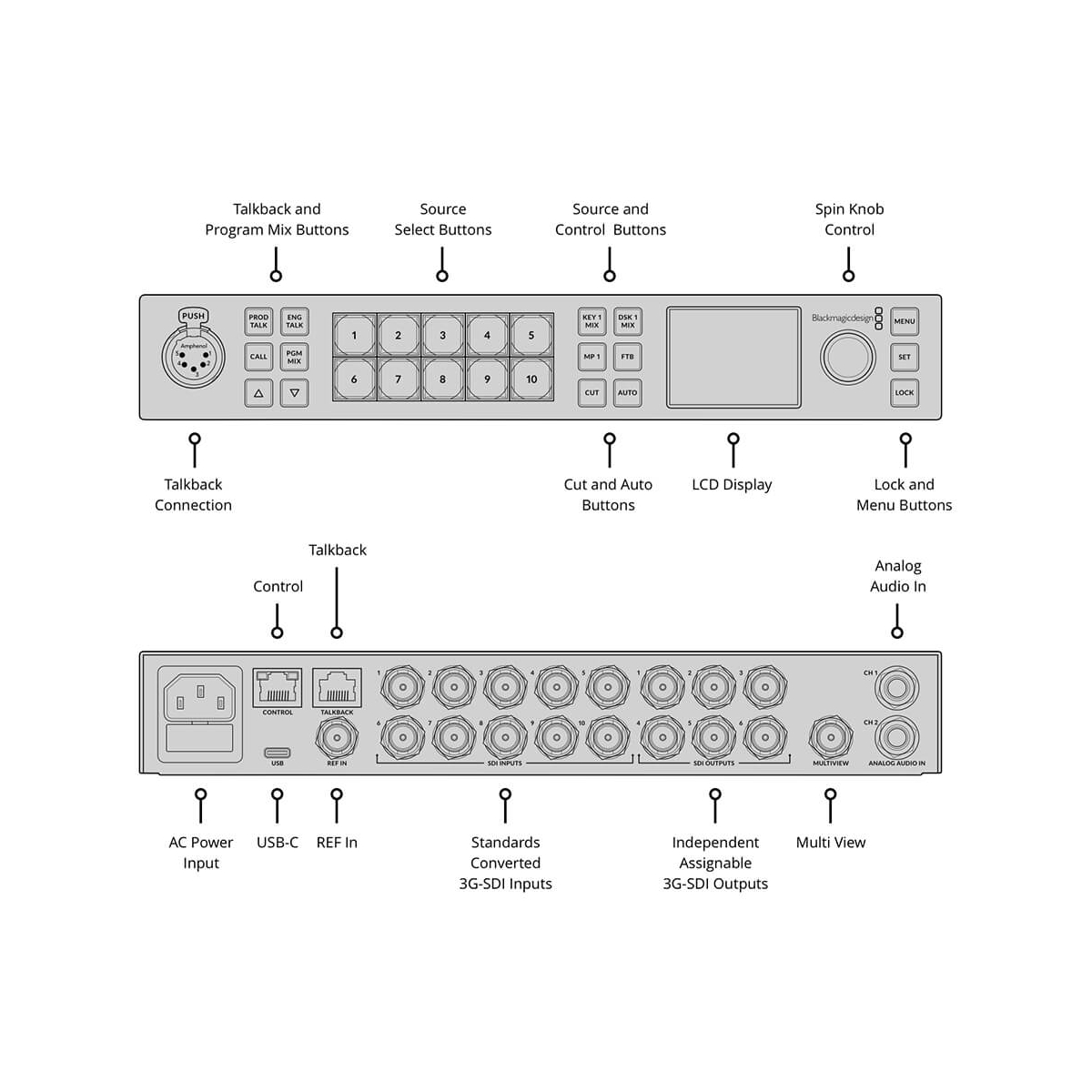

The switcher features a reference video input, and each input features a frame synchronizer, frame rate converter, and format converter. This allows you to mix and match cameras, formats, cameras that do not feature genlock, and video input from computer sources. Upstream and downstream keyers and effects are supported. All this is done live and in real time with no rendering required. You can control the switcher using the integrated front panel, optional Blackmagic ATEM panels, or via the downloadable control software.
Blackmagic Design ATEM Constellation HD 1 M/E Specification |
|
Available M/E Layers | 1 M/E |
Effect Types | 4 x Chroma Key 5 x Luma Key 1 x DVE, Stinger |
Downstream Keys | 1 x Chroma, Luma, DVE |
Generators | 2 x Color 5 x Pattern |
Audio Mixing | 28-Channel Mixing |
Processing |
|
Switching Type | Pushbutton, Software |
Processing Resolution | 1080p |
Color Processing | 10-Bit 4:2:2 |
Input |
|
Number of Video Input Sources | 10 |
Video Inputs | 10 x BNC (3G-SDI) |
Input Video Format | SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/59.94/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Audio Inputs | 2 x 1/4" TRS Stereo Analog Female |
Embedded Audio Input | Analog |
Output |
|
Video Output Channels | 6 |
Video Outputs | 6 x BNC (3G-SDI) 1 x USB-C (USB Video) (Program) |
Output Video Format | SDI (10-Bit 4:2:2) 1080p at 23.98/24/25/29.97/30/50/60 fps 1080i 50/59.94/60 fps 720p 50/59.94/60 fps |
Embedded Audio Output | SDI USB-C |
Multiview Output | 16-Way Multiview viaSDI |
Connectivity |
|
Other I/O | 1 x BNC Blackburst, Reference, Tri-Level Sync Input 1 x RJ45 Control 1 x RJ45 Talkback Input/Output 1 x XLR 5-Pin Talkback Input/Output |
Video Standard Compliance | SMPTE 292M/296M/424M/425M-A/425M-B |
HDCP Support | None |
IP Video | 1280 x 720 to 1920 x 1080 Encoding |
Display |
|
Display Size | 2.2" |
Hardware |
|
OS Compatibility | macOS 11.1 macOS 12.0 or Later Windows 10 Windows 11 *As of April, 2022: Check with manufacturer for the most up-to-date compatibility |
Wi-Fi | None |
Bluetooth | None |
Power I/O | 1 x IEC C14 Input |
Power Consumption | Device: 36 W |
Environmental |
|
Operating Temperature | 32 to 72°F / 0 to 40°C |
Storage Temperature | -4 to 140°F / -20 to 60°C |
Operating Humidity | 0 to 90% (Non-Condensing) |
General |
|
Rack Form Factor | 1 RU |

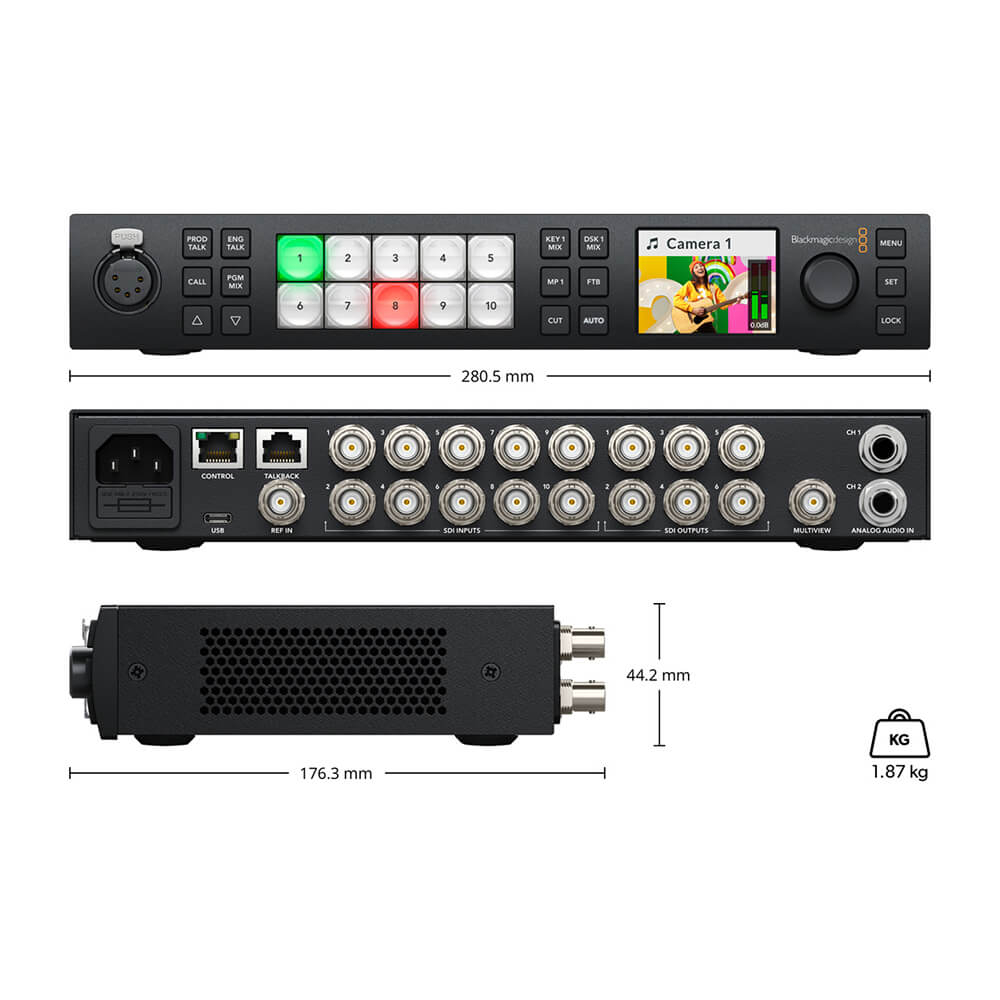

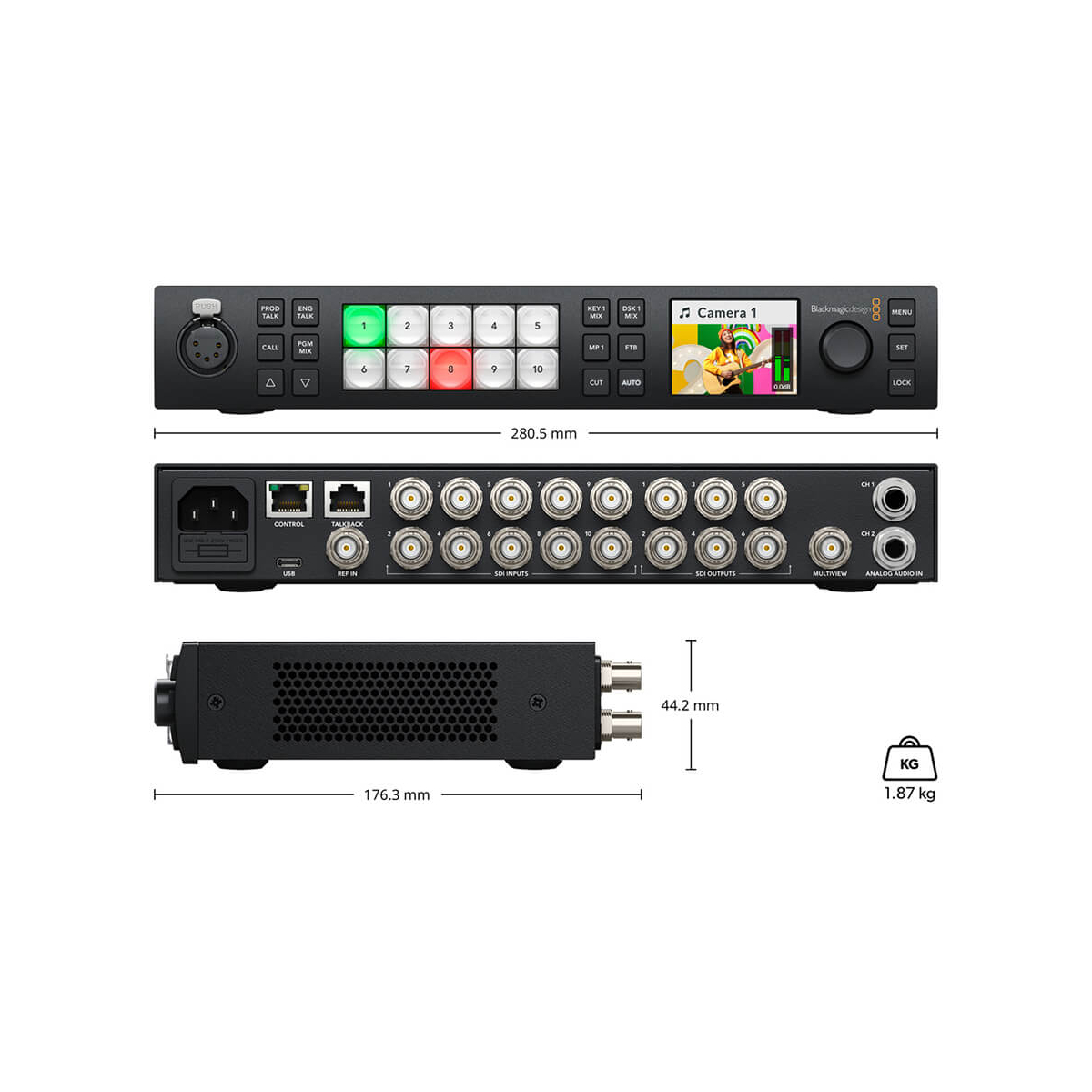

Dimensions | 11 x 6.94 x 1.74" / 27.9 x 17.63 x 4.42 cm |
Weight | 4.13 lb / 1.87 kg |
