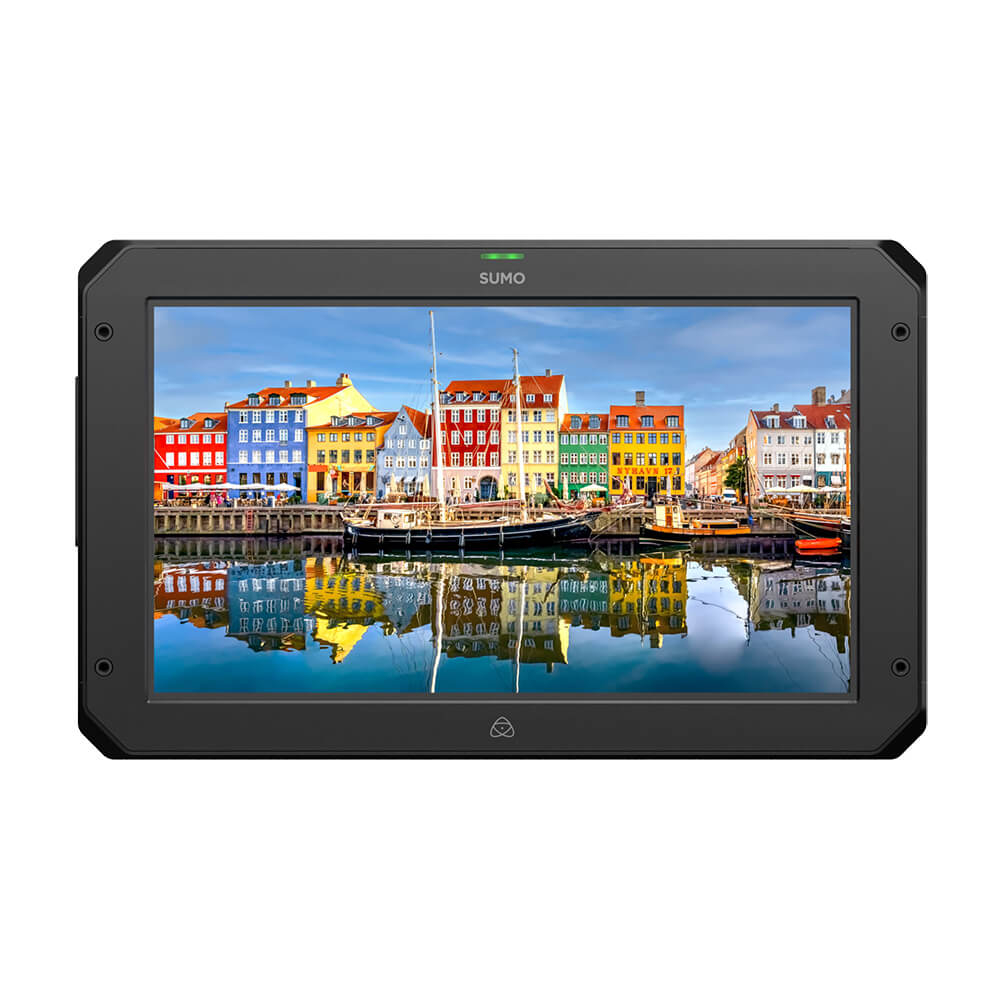

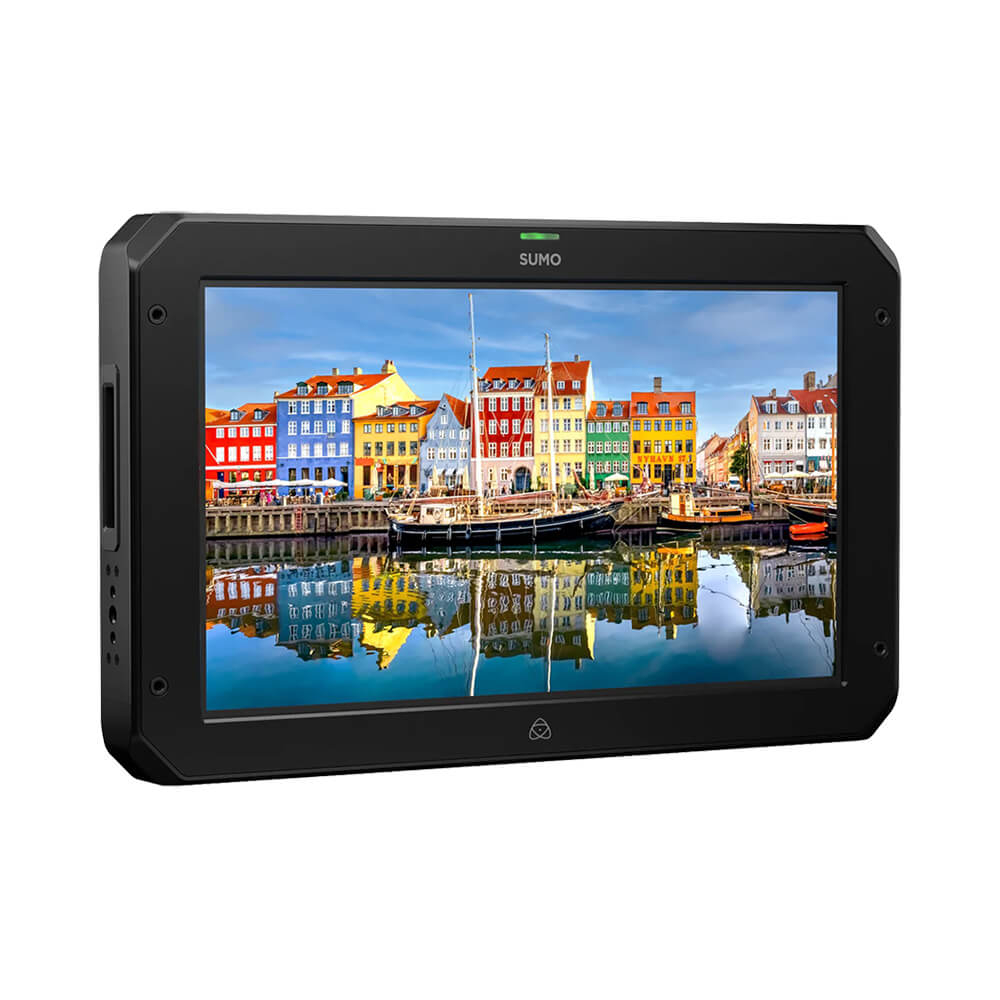

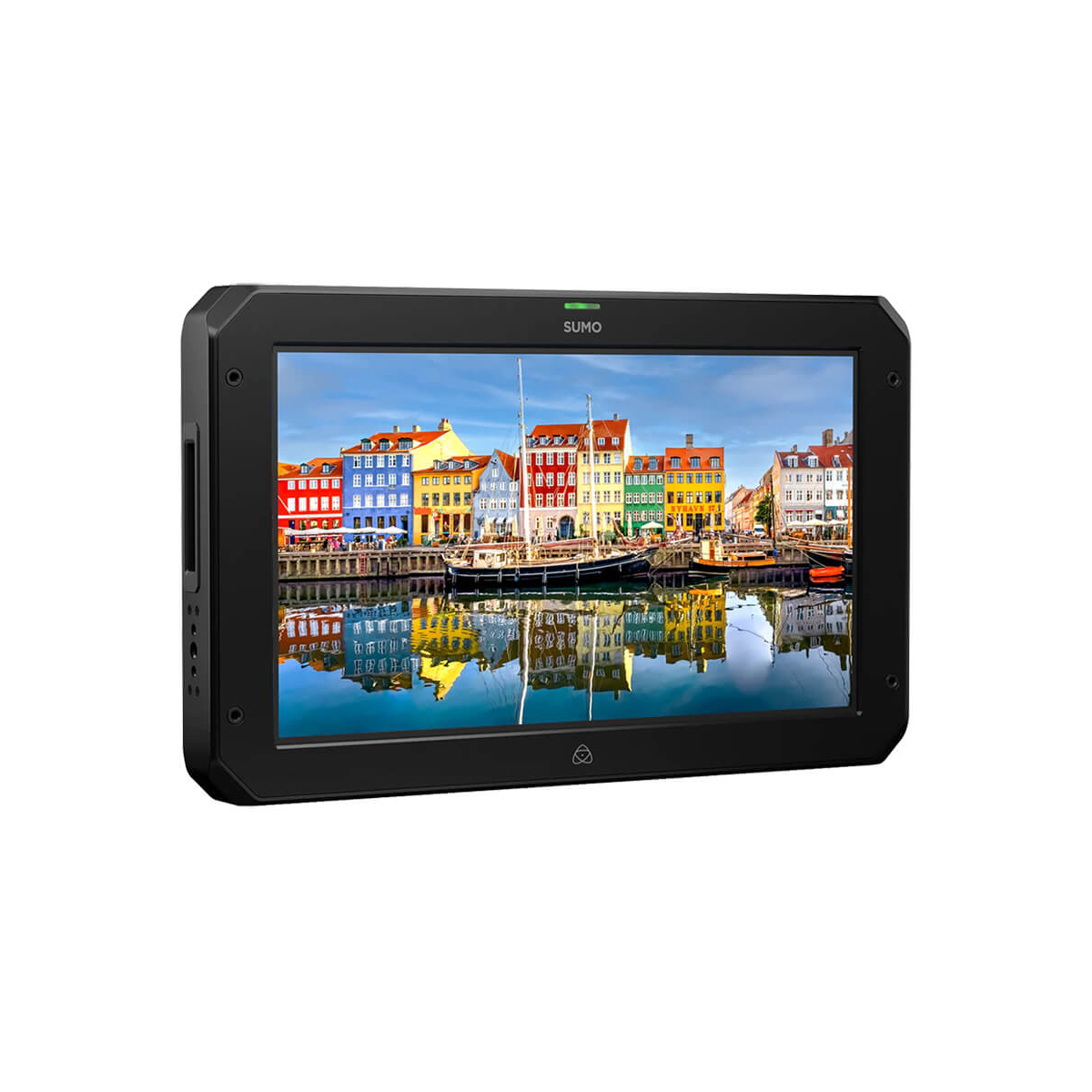

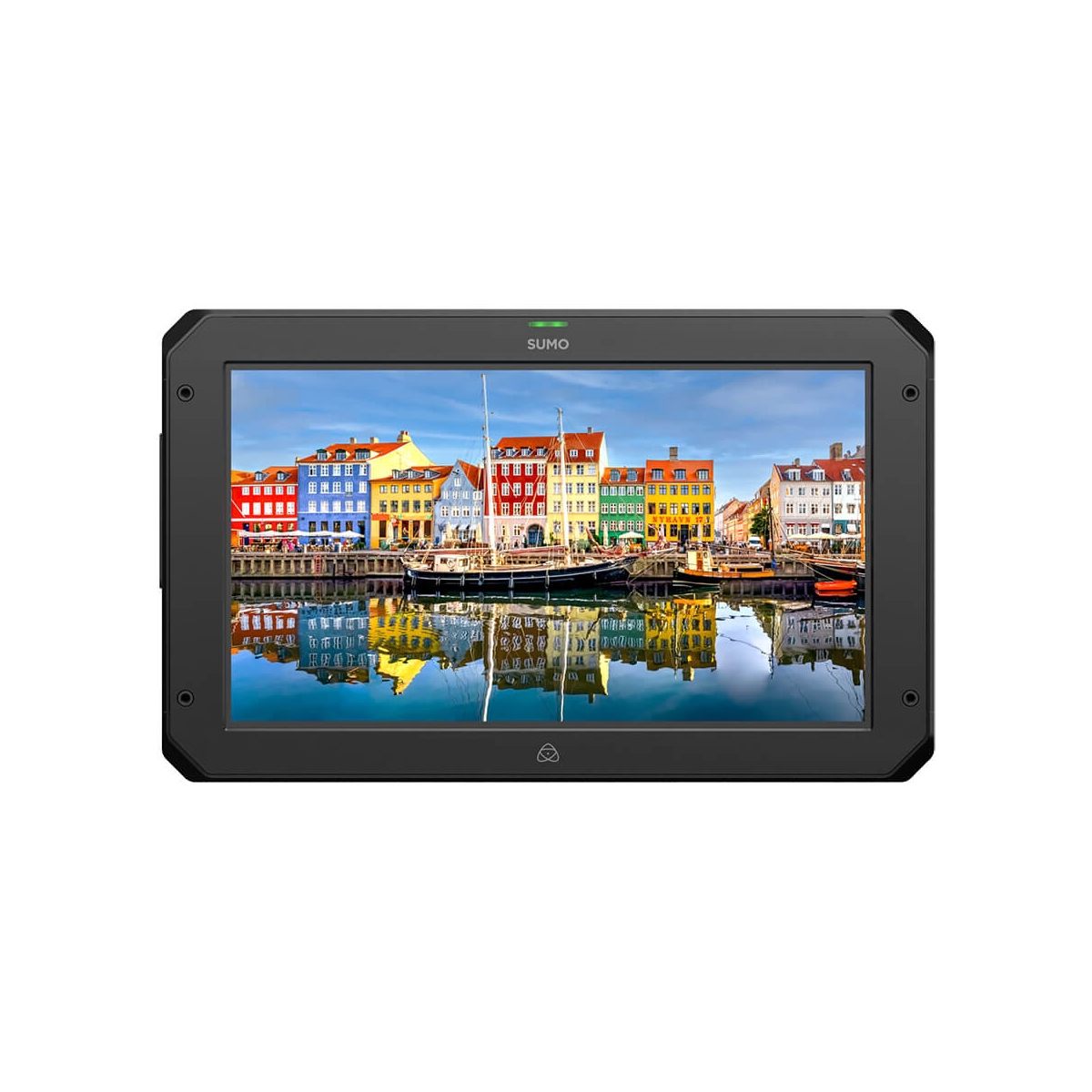

With an upgraded 19" 1920 x 1080 IPS touchscreen display and 1200 cd/m² brightness, the Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher maintains the same 4K recording, monitoring, and switching capabilities of its predecessor with a sharper and brighter display. Four 12G-SDI inputs and one HDMI 2.0 input can receive video signals up to 4K60 and support live quad-channel switching. Five-channel recording captures the input feeds as well as the live switching to create one output video for efficient viewing. Genlock and LTC timecode are also supported by the HDMI 2.0 and quad-SDI connections.
Intuitive Interface
The Sumo 19" SE can record in ProRes RAW and 8-bit+FRC 422 ProRes/DNxHR encoding formats. RAW, Log, PQ, and HLG outputs from various cameras or gaming consoles can be processed by the device and mapped to display 10+ stops of dynamic range HDR in real time. This makes the Sumo 19" SE ideal for monitoring in the field by the director or client. Two XLR inputs with +48V phantom power support balanced audio recording with external devices. Included desktop feet, mounting supplies, and various power supply options allow you to easily integrate the Sumo 19" SE into your studio setup.
SE Upgrades and Features
- Upgraded 19" IPS display with 1200 cd/m² brightness (±10%)
- Live, quad-channel HD switching and recording
- Supports recording in ProRes RAW and 10-bit 422 ProRes/DNxHR
- HDMI 2.0 and quad-SDI support genlock and LTC timecode
- Works in HLG and PQ formats of HDR
Live Quad-Channel HD Switching and Recording
- Record four streams simultaneously as separate ISOs while cueing and switching in real time
- Record fifth channel of switched feel and display, resulting in mixed output live on set (via HDMI or SDI)
- Switching is asynchronous and can be output with Atomos Connect 4K
Two XLR Inputs with Phantom Power
- Full-size XLR connections with +48 phantom power
- Connect two external microphones for balanced analog audio recording and monitoring
- Dedicated meters, gain controls, and adjustments for frame delay on each channel
- Mic or line-level audio can be synced with embedded HDMI and SDI audio
Powering the SE
- Dual 4-pin XLR inputs for continuous dual-battery power
- Includes BattWing mounting bracket for integration of V-mount or Gold mount battery 95Wh or larger
- Includes AC power supply, 12-16.8 VDC input
Atomos SUMO19 SE Specification Display |
|
Panel Type | IPS-Type LCD |
Display Size | 19.00" / 48.3 cm |
Resolution | 1920 x 1080 |
Aspect Ratio | 16:9 |
Touchscreen | Yes |
Maximum Brightness | 1200 nits / cd/m2 |
Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
HDR Compatibility | Hybrid Log Gamma |
Pixels Per Inch (ppi) | 120 ppi |
Real-Time LUT Monitoring | SDR, HDR |
Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra |
Inputs / Outputs |
|

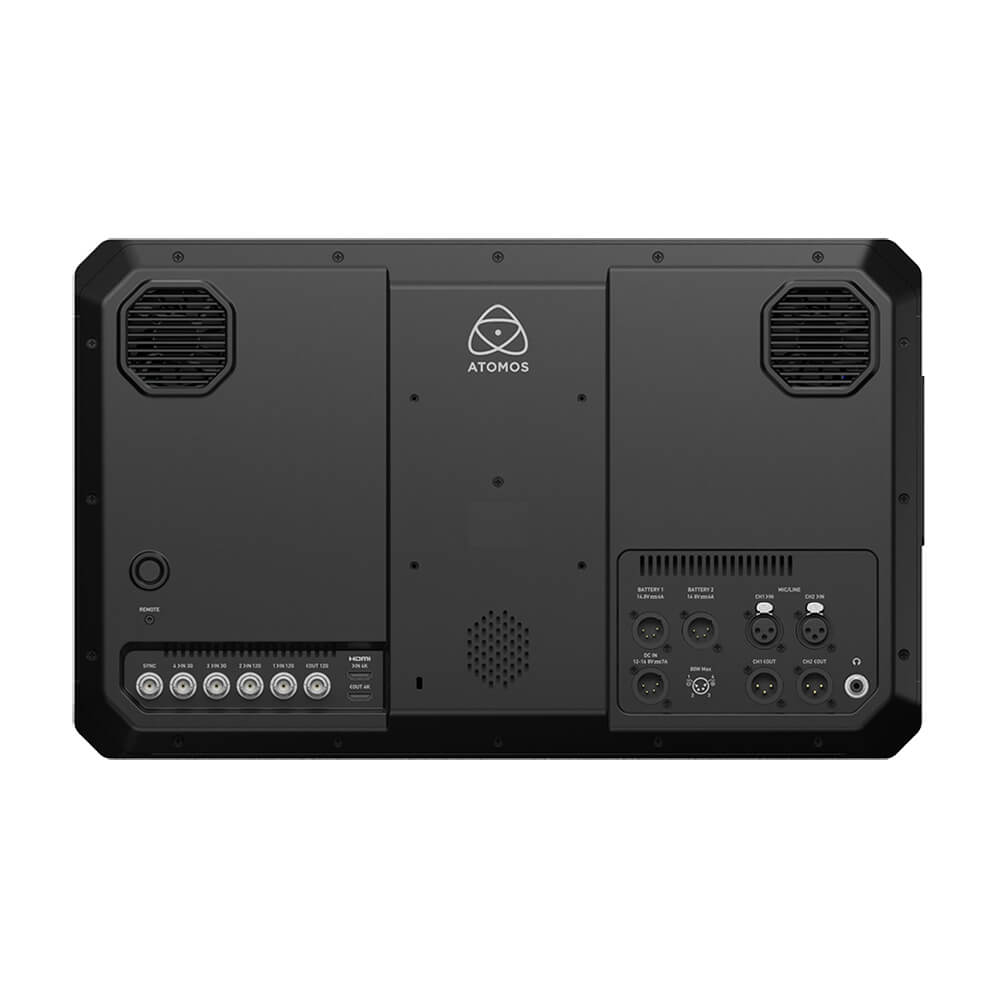

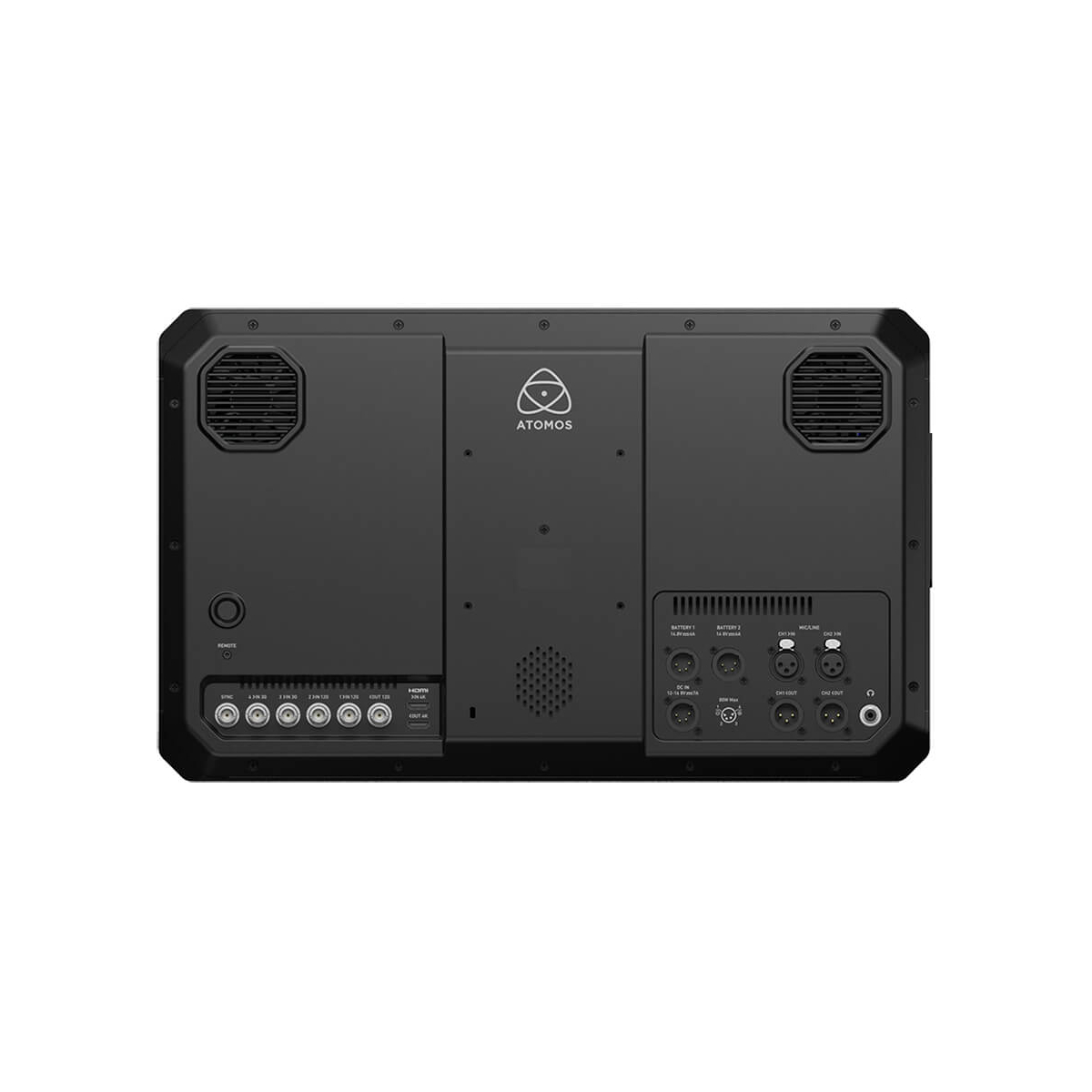

Video I/O | 1 x HDMI 2.0 Input 1 x HDMI 2.0 Output 4 x BNC (12G-SDI) Input 1 x BNC (12G-SDI) Output |
Embedded Audio | HDMI: 8-Channel SDI: 12-Channel |
Audio I/O | 2 x XLR Input 2 x XLR Output 1 x 1/8" / 3.5 mm Headphone Output |
Built-In Speaker | 2 x 5 W |
Power I/O | 2 x XLR 4-Pin (14.4 VDC) Input 1 x XLR 4-Pin (16.8 VDC) Input |
Other I/O | 1 x BNC (Genlock) Input 1 x 2.5 mm (LANC) Input |
Media/Memory Card Slot | None |
File System Support | exFAT |
Bluetooth | None |
Mobile App Compatible | No *As of June, 2023: Check with manufacturer for the most up-to-date compatibility |
Format Support |
|
Video Format | HDMI/SDI (10-Bit 4:2:2) UHD 4K: 60 DCI 4K: 60 |
Gamma Curve | DCI-P3, DCI-P3+, Panasonic V-Gamut, Rec709 |
Video Signal Conversion |
HDMI to SDI SDI to HDMI |
Timecode Support | Yes |
Recording |
|
Pulldown Conversion | 2:2, 3:2 |
Camera Trigger | SDI, HDMI |
Pre-Roll Record | Full HD: 8 Seconds 4K: 2 Seconds |
Encoding Formats | x ProRes Raw ProRes 422 HQ 10-Bit DNxHR 422 HQ 10-Bit |
Closed Caption Support | None |
Reference Input | None |
Phantom Power | +48 V |
Power |
|
DC Input Power | 12 to 16.8 VDC |
Built-In Battery | None |
Battery Type | 2 x V-Mount, Gold Mount |
Power Consumption | 75 W |
Mounting |
|
Mounting | 10 x 1/4"-20 Female 5 x 3/8"-16 Female |
Mounting-Hole Pattern | 100 x 100 mm |
Environmental |
|
Operating Temperature | 72°F / 40°C |
General |
|
Material of Construction | Aluminum, Polycarbonate |
Dimensions | 19.8 x 13 x 7.1" / 504 x 330 x 180 mm, Including Feet 19.8 x 12.2 x 2.5" / 504 x 310 x 63 mm, Excluding Feet |
Weight | 12.02 lb / 5.45 kg |
- Atomos Sumo 19" SE HDR Monitor, Recorder, and Switcher
- Master Caddy II
- BattWing Mounting Bracket
- 4 x Screw
- 2 x Desktop Foot
- 4 x 1/4"-20 Mounting Screw
- AC Power Supply
- Limited 1-Year Manufacturer Warranty
