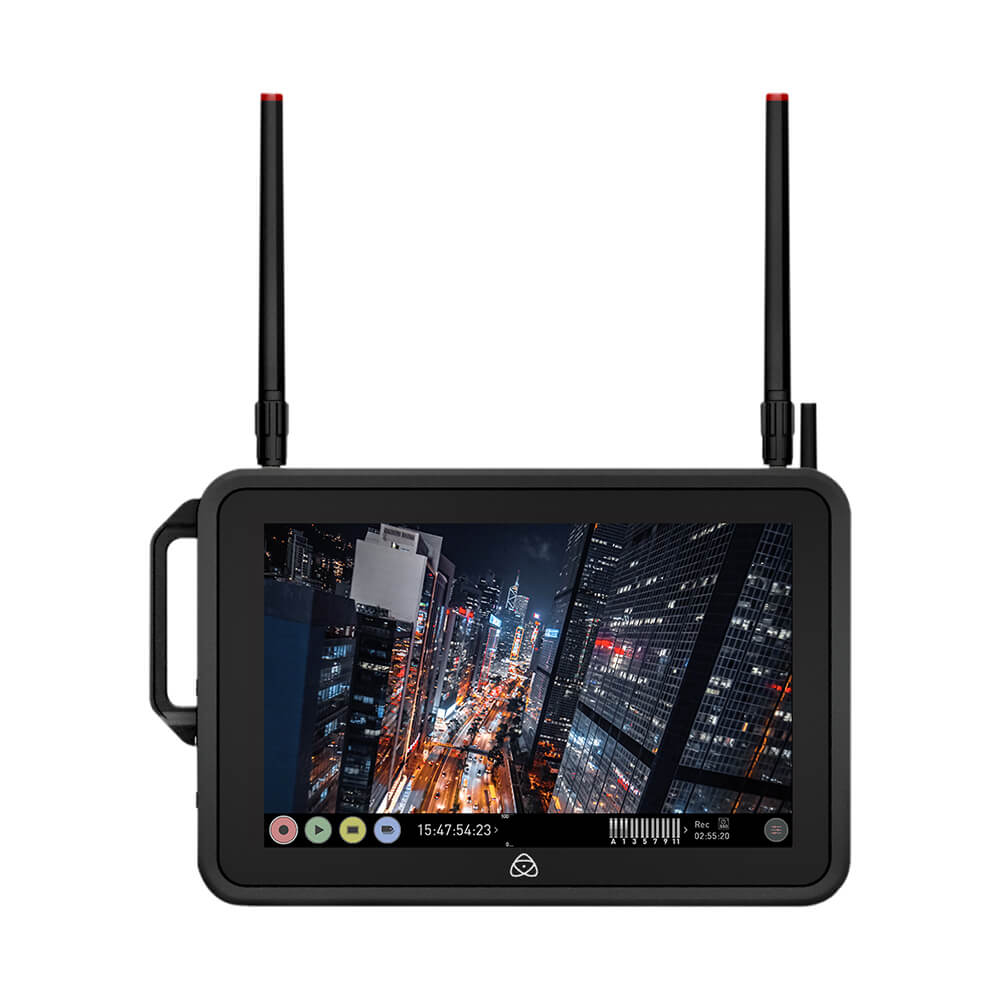

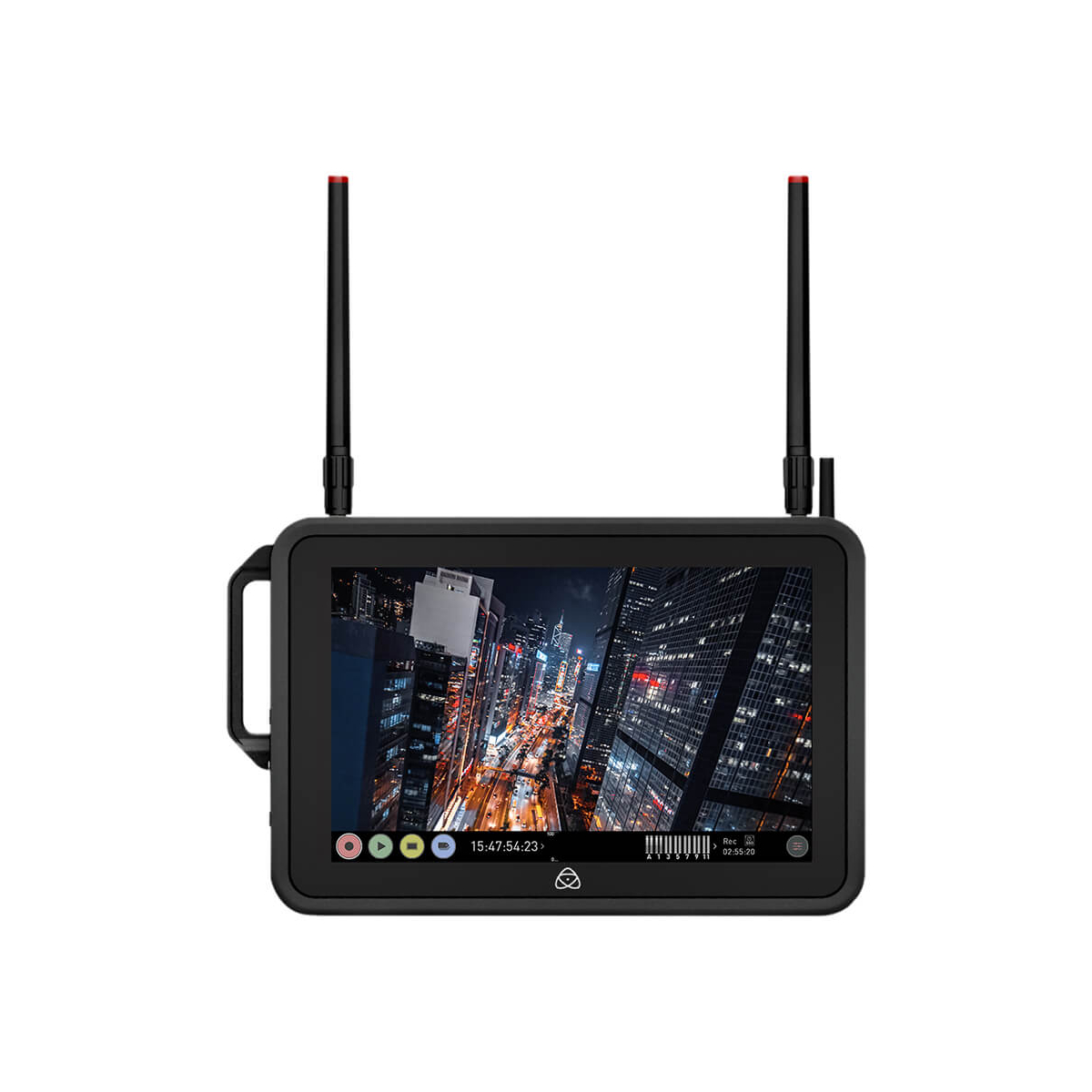

【Atomos】SHOGUN CONNECT 7" HDR Video Monitor, Recorder & Streamer

  • 7" 1920 x 1200 Touchscreen Display
  • 2000 cd/m² Brightness
  • 2 x 12G-SDI, 2 x HDMI, 1 x USB Type-C
  • Records up to 4K Video
  • Adobe Frame.io Camera to Cloud Support
  • Wi-Fi 6, Bluetooth LE, Gigabit Ethernet
  • Dual Recording Capabilities, Streaming
  • Power via DC Input or L-Series Battery

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
ATOMSHGCO1
Write Your Own Review
You're reviewing:【Atomos】SHOGUN CONNECT 7" HDR Video Monitor, Recorder & Streamer
Your Rating

Recording Monitor with Camera to Cloud Support

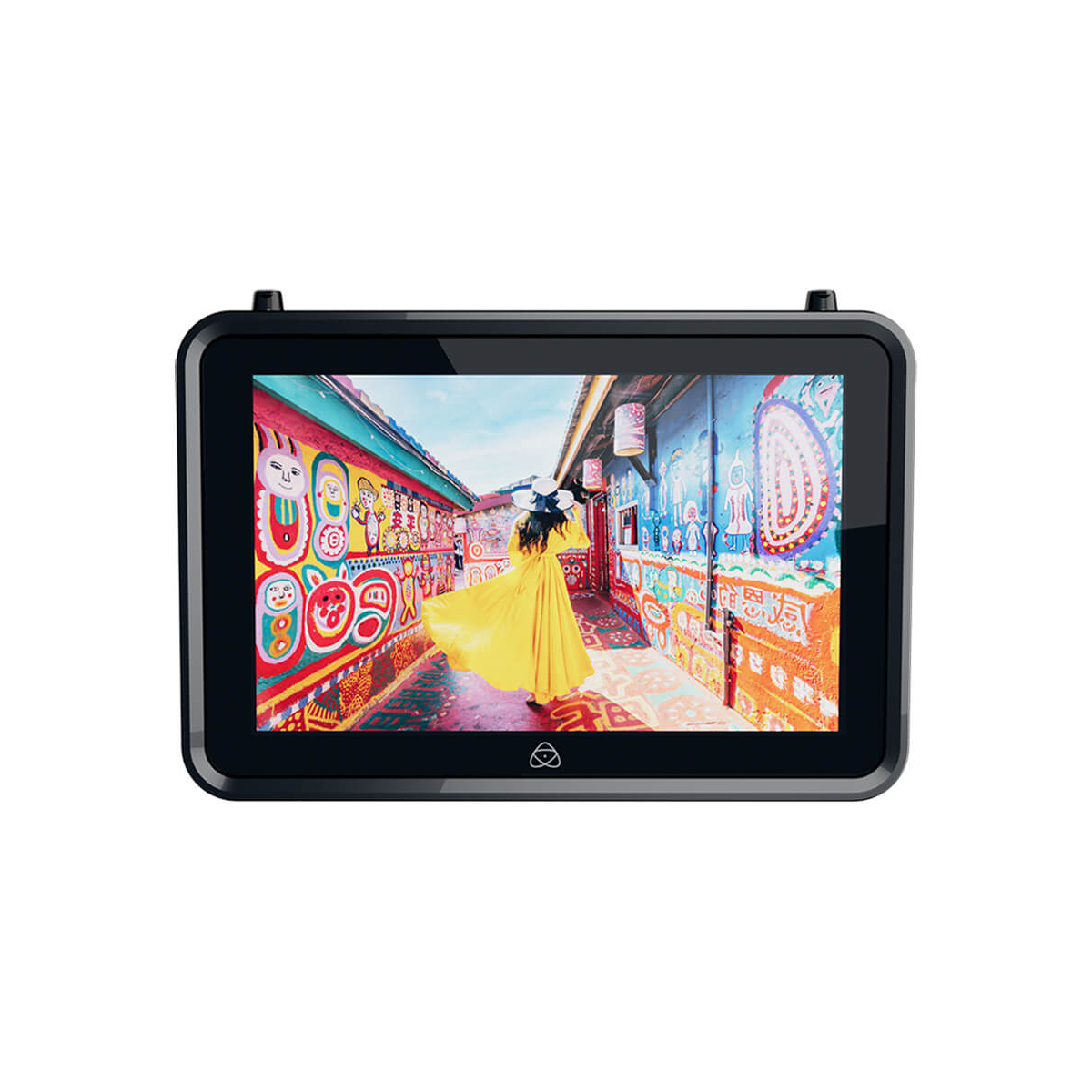

The Shogun CONNECT from Atomos expands upon the HDR recording and monitoring capabilities of the Shogun by integrating cloud connectivity via its multiple wireless interfaces. The 7" 1920 x 1200 touchscreen display boasts a brightness of 2000 cd/m². A loop-through 12G-SDI input and output interface support SDI RAW recording. Both the HDMI and 12G-SDI connections can record, monitor, and transmit 4K video with ease. Record and store your footage using the SATA 3 SSD slot compatible with Master Caddy II/III and AtomX SSD mini. Power for the Shogun CONNECT can be achieved via the locking DC jack or with a separately available L-series battery.

CONNECT Upgrades

  • Built around the latest silicon, the AtomIC3, which provides higher frame rate support and increased resolutions
  • Creates matching "hero" Apple ProRes, ProRes RAW, or Avid DHxHR/HD files to a "proxy" HEVC (H.265) file simultaneously
  • Proxy files can be uploaded during capture using ATOMOS transfer technology for immediate availability in the cloud post-recording
  • Features a new, brighter HDR screen and a range of built-in interfaces
  • Loop through 12G-SDI input/output for SDI RAW and HDMI support an expansive range of professional cinema, DSLR, and mirrorless cameras
  • Supports livestreaming to Facebook Live, Twitch, and YouTube

Atomos AirGlu Technology

Add wireless timecode, sync, and control to your Shogun CONNECT. AirGlu enables direct, long-range communication between devices up to 0.2 miles and wireless timecode lock to multiple Atomos devices, compatible cameras, audio recorders, and software applications. Relay recording, battery status, and disk capacity to the configured server unit, which can be any AirGlu-compatible device.



Frame.io Camera-to-Cloud Device

Adobe Frame.io support makes the Shogun CONNECT a camera-to-cloud device, allowing you to take footage from your camera and transfer it over a long-range connection between other devices. Wi-Fi 6, Bluetooth LE, Gigabit Ethernet, and USB-C connection ensure flexible, all-around connectivity. Remote collaboration brings production and post-production closer together with features like dual recording and progressive transfer technology.



Shogun Control

  • Control over your Shogun CONNECT can be achieved with both remote and onboard solutions. Its Bluetooth LE capabilities allow you to connect to the AtomRemote iOS and macOS app and toggle various monitor assist functions from up to 50' away from your device. Define your camera connections, select Gamma/EOTF, and adjust your color gamut setting. You can even control playback and apply custom 3D LUTs as well as select your output settings.
  • Other forms of control include an auto HDMI trigger for Canon, Sony, and Atomos Open Standard, a camera selectable SDI trigger, serial 2.5mm jack for LANC and calibration with separately available USB to serial cable, serial 2.5mm jack for remote to USB for ZCAM. Even AirGlu can facilitate wireless RF for remote start/stop trigger integration.



Monitor Assist Functions

  • HDR, 3D LUT, and various camera Log formats are supported by the Shogun CONNECT
  • Load your own custom LUTs in .cube format to any of the 8 LUT slots via the removable SSD
  • Select various monitoring tools like waveform, focus peaking, false color, and frame guides to achieve the proper composition and exposure

Atomos Shogun CONNECT 7 Specification

Display

Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1200
Aspect Ratio 16:9
Touchscreen Yes
Image Controls Anamorphic De-Squeeze, False Color, Focus Peaking, OSD Flip, RGB Parade, Vectorscope, Waveform, Zebra

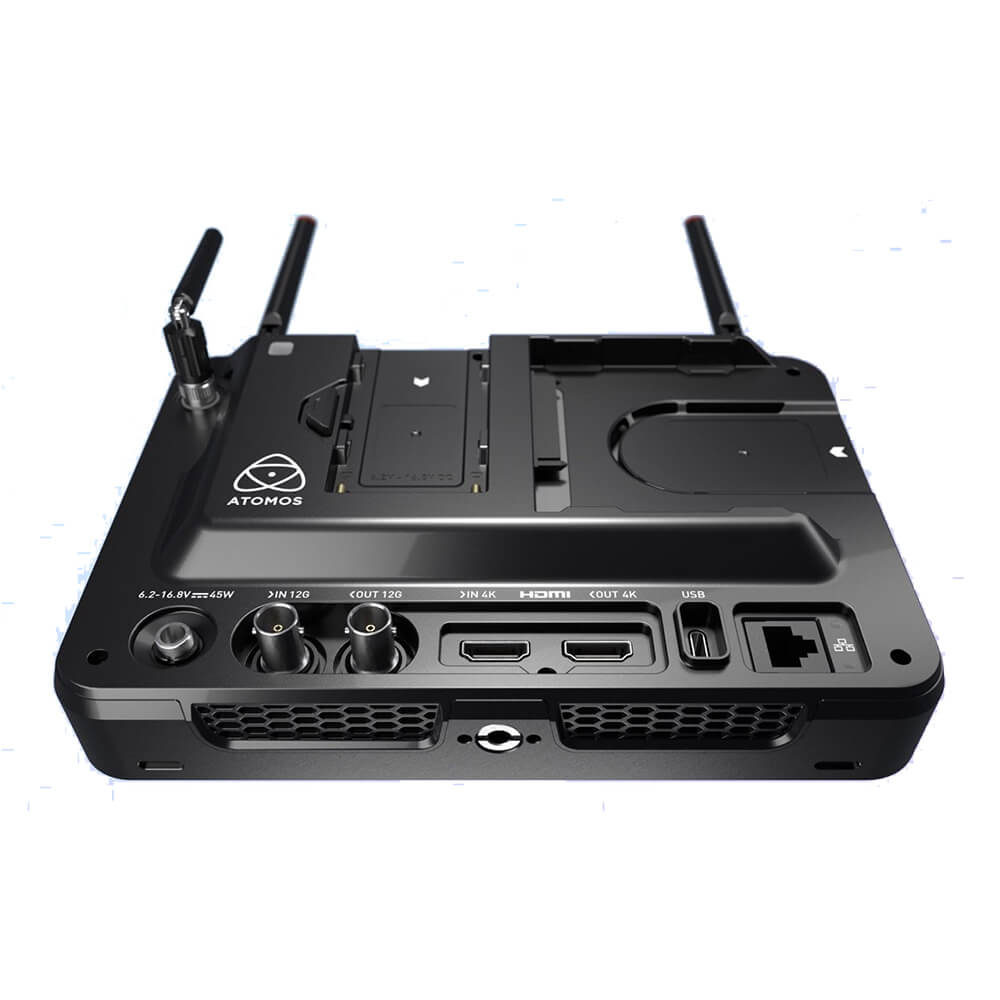

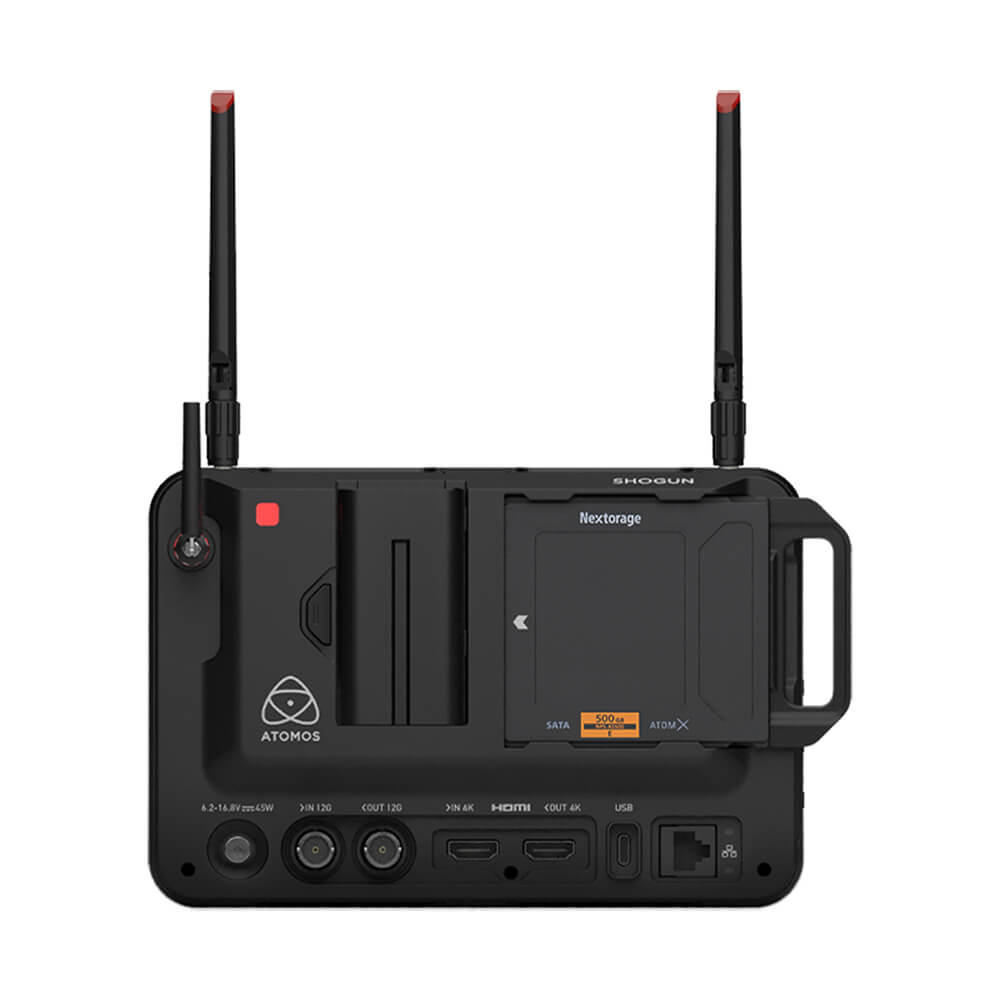

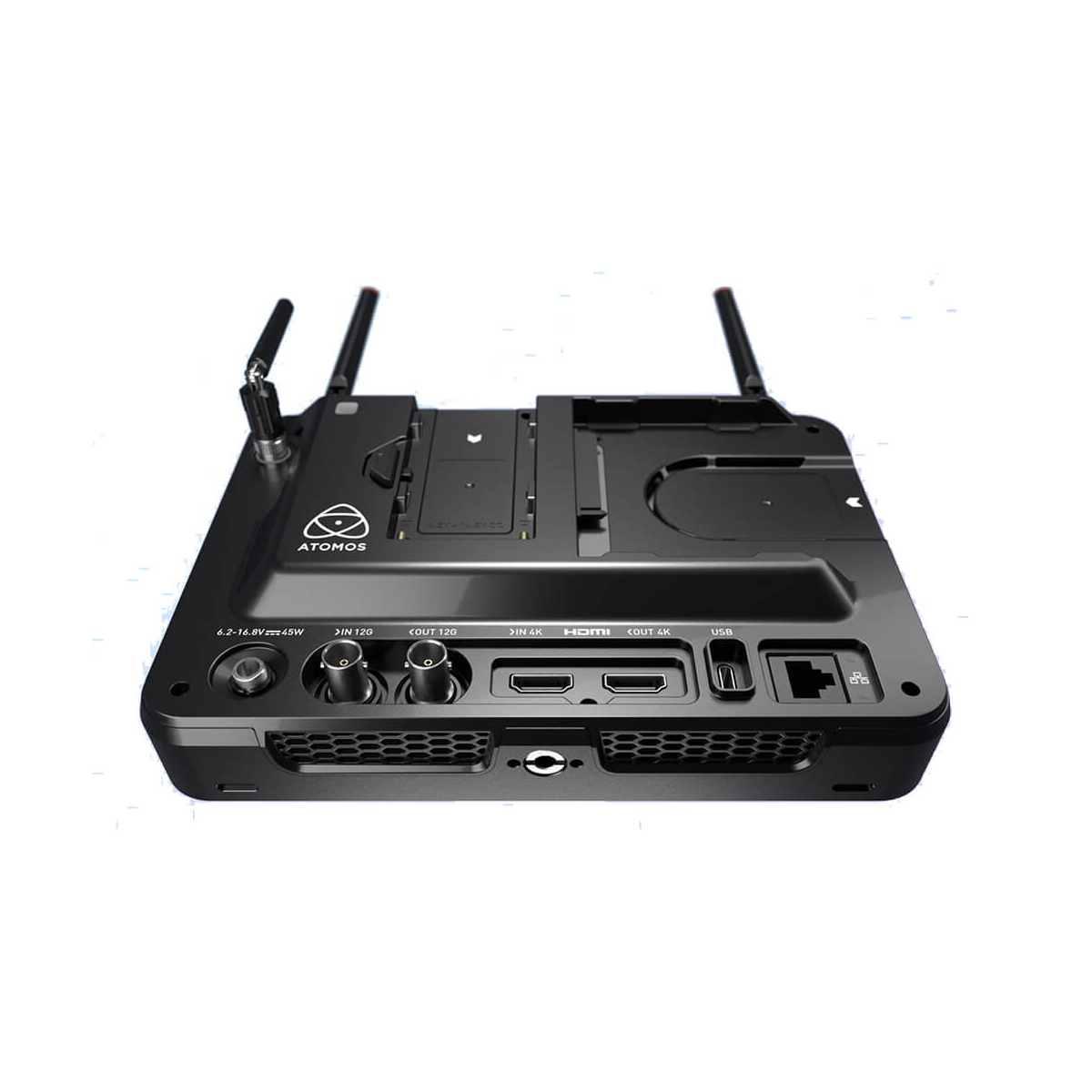

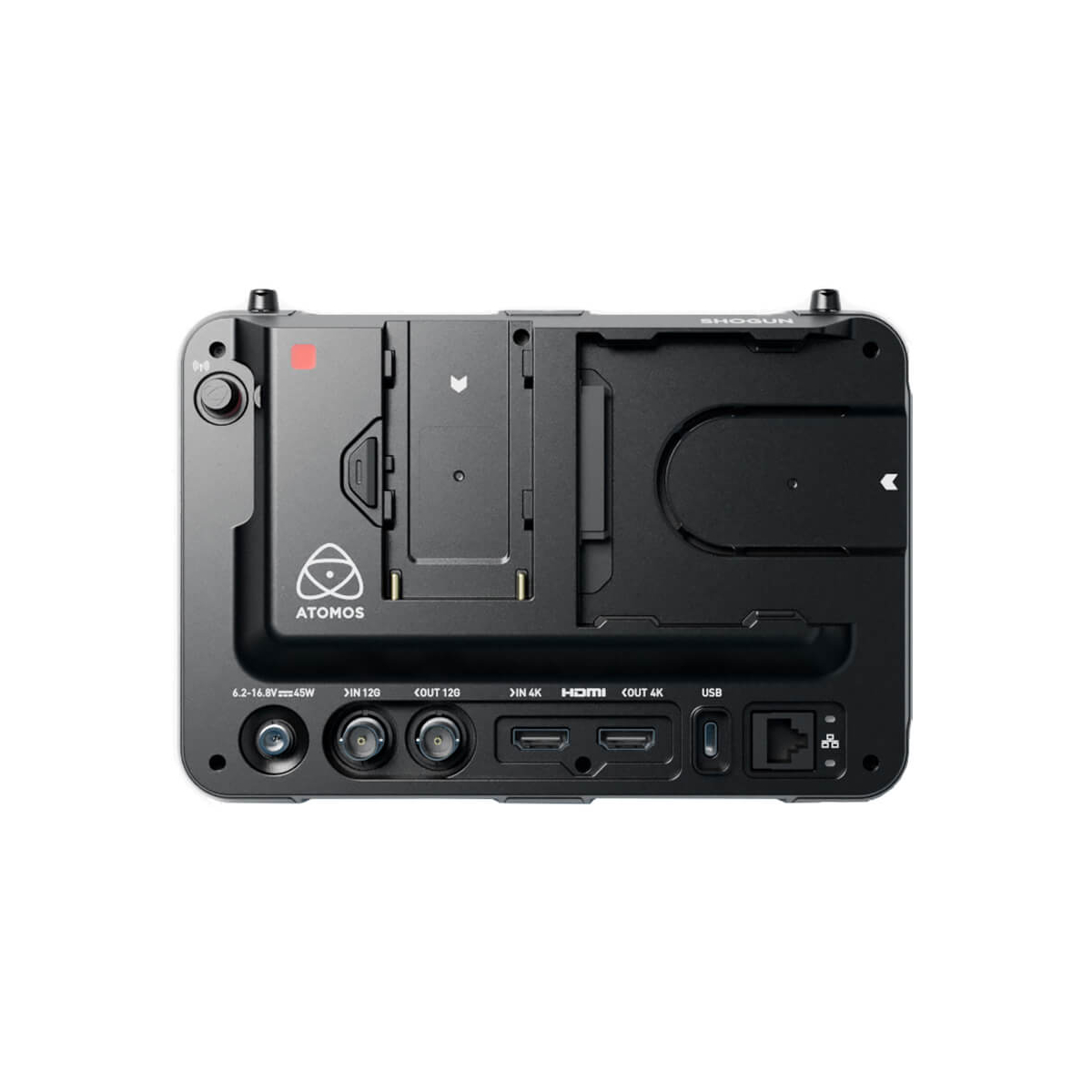

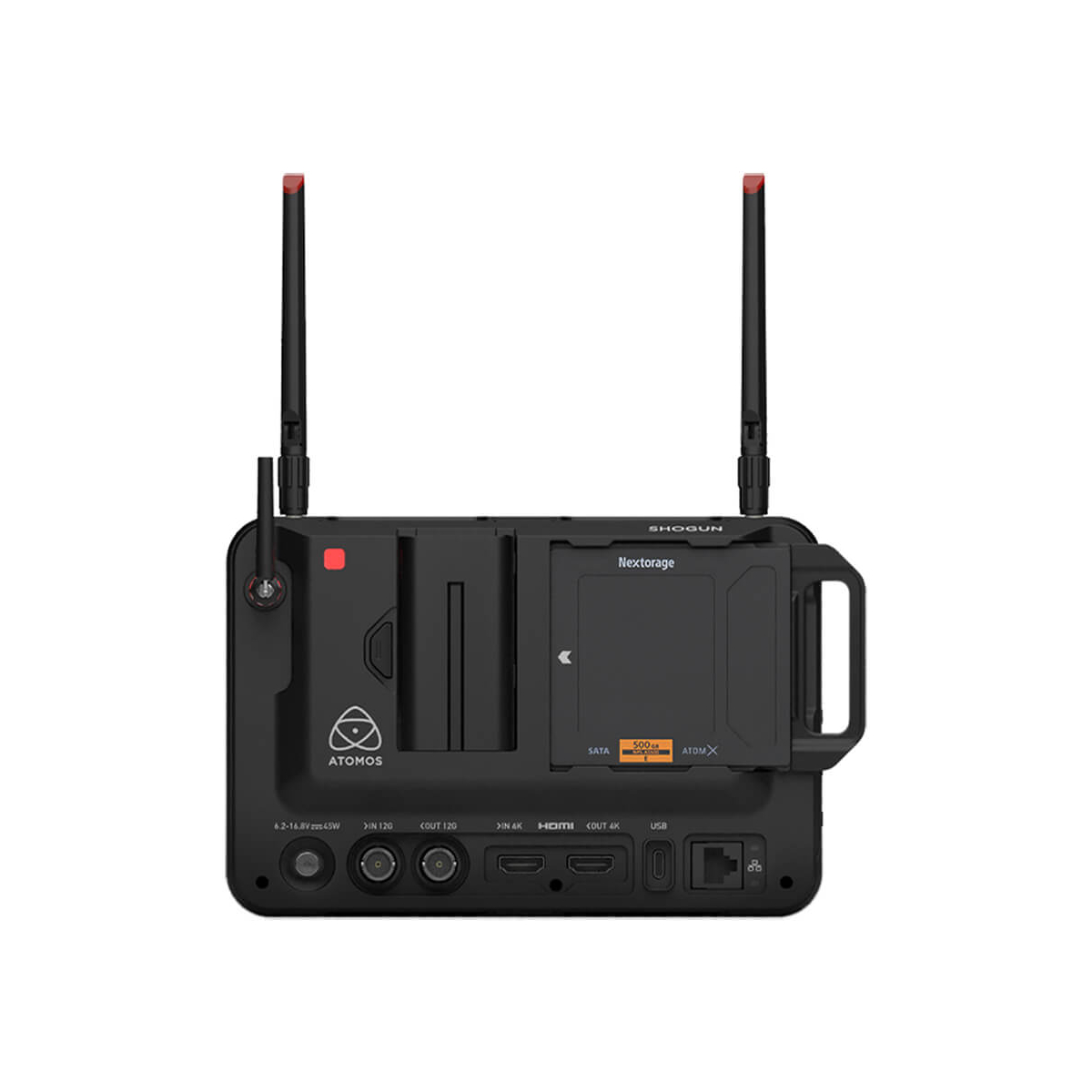

Inputs / Outputs

Antenna I/O 2 x F-Type
Video I/O 1 x HDMI 2.0a Input
1 x BNC (12G-SDI) Input
1 x HDMI 2.0a Output
1 x BNC (12G-SDI) Loop Output
1 x BNC (12G-SDI) Monitor Output
Embedded Audio HDMI: 8-Channel
SDI: 12-Channel
Audio I/O  1 x 1/8" / 3.5 mm Headphone Output
1 x 1/8" / 3.5 mm Input
1 x 1/8" / 3.5 mm Output
Power I/O  1 x Barrel Input
Other I/O 1 x 2.5 mm (LANC) Input
1 x USB-C (Serial) Input
1 x RJ45 (Gigabit Ethernet) Input
 Media/Memory Card Slot Single Slot: SSDmini/SSD with Master Caddy II/III
SIM Card Slots None
File System Support exFAT
Encryption None

Wireless

Wireless Range 0.2 Miles / 300 m
49.2' / 15 m (Line-of-Sight)
# of Channels 12
Latency None
Wi-Fi Wi-Fi 6 (802.11ax)
Bluetooth Yes

Format Support

Video Format HDMI/SDI (8/10-Bit 4:2:2/4:2:0 YCC)
DCI 4K: 60
UHD 4K: 60
DCI 2K: 60
1080p: 120
1080i: 60/50
720p: 60
HDMI (12-Bit 4:2:2/4:2:0 YCC)
8K Raw: 30
6K Raw: 60
4K Raw: 120
3.5K Raw: 60
SDI (12-Bit 4:2:2/4:2:0 YCC)
6K Raw: 30
4K Raw: 120
2K Raw: 240
Audio Format 24-Bit 48 kHz PCM Audio
Timecode Support Yes

Power

DC Input Power 6.2 to 16.8 VDC
Built-In Battery None
Battery Type 1 x L-Series

Mounting

Mounting 3 x 1/4"-20 Female
3 x 3/8"-16 Female

Environmental

Operating Temperature 72°F / 40°C
Environmental Protection None

General

Material of Construction Aluminum, Polycarbonate
Dimensions  7.8 x 5.2 x 1.6" / 198 x 133 x 40 mm
Weight 1.6 lb / 730 g
  • Atomos Shogun CONNECT 7" Network-Connected HDR Video Monitor & Recorder 8Kp30/4Kp120
  • AtomX SSD Mini Handle
  • MasterCaddy III with Screws
  • Wi-Fi Antenna
  • RF Antenna
  • Antenna Storage Pouch
  • Antenna Colored Caps
  • Antenna Mount Covers
  • 3.5mm Audio Cable
  • Power Supply
  • Screen Cloth
  • Protective Pouch (7")
  • Limited 1-Year Manufacturer Warranty
