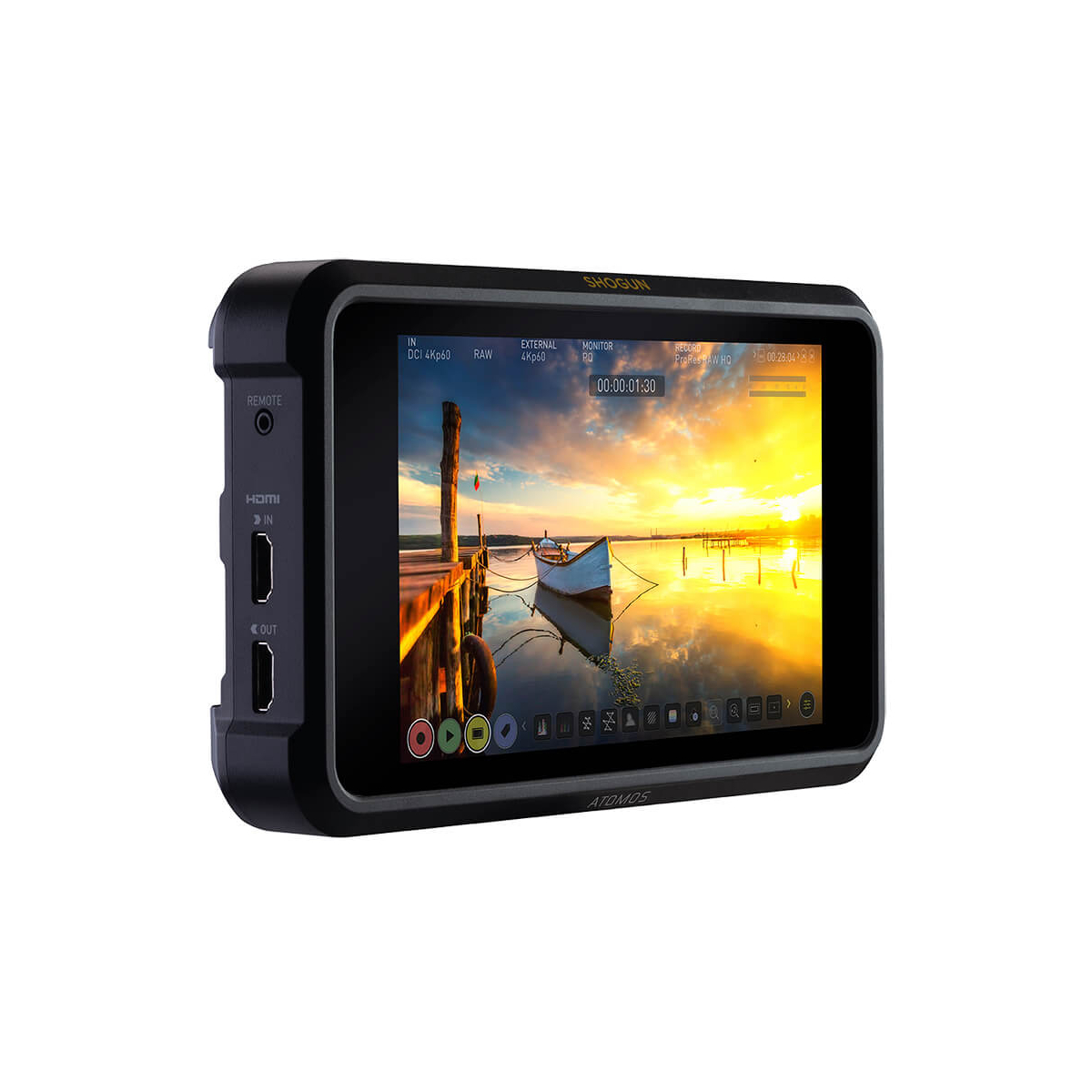

【Atomos】SHOGUN 7 7" HDR Monitor, Recorder & Switcher

  • 7" 1920 x 1200 Touchscreen Display
  • 4-Input HD Switching & ISO Recording
  • Dynamic AtomHDR, 360-Zone Backlight
  • 4 x 3G-SDI, 2 x 12G-SDI
  • 3000 cd/m² Brightness
  • 4K HDMI Input/Output
  • HDR Mode, Dolby Vision Output
  • 1,000,000:1 Dynamic Contrast
  • DCI 4K up to 60p / 1080p up to 240 fps

Notify me when this product is available:

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
Out of stock
SKU
ATOMSHG701
Write Your Own Review
You're reviewing:【Atomos】SHOGUN 7 7" HDR Monitor, Recorder & Switcher
Your Rating

Monitor, record, and switch in the field with the 7", 1920 x 1200 Shogun 7 HDR Pro from Atomos. This versatile on-camera recording monitor offers up to DCI 4K raw recording and HDMI and 12/6/3G-SDI inputs/outputs. With the AtomOS 10.4 firmware update, the Shogun 7 provides ISO recording of up to four HD-SDI camera streams plus program capture. Output your content for director or client viewing in Dolby Vision HDR using the Shogun 7, AtomOS10 platform, and a compatible display.

This touchscreen monitor supports resolutions up to DCI 4K (4096 x 2160) at 60p and up to 2K at 240p for slow-motion effects. Record to 2.5" SSDs using Apple ProRes Raw, ProRes, CinemaDMG (up to 30p), and Avid DNxHD codecs. Record all your event's action with live multicamera monitoring, recording, and switching between program and up to four 1080p60 SDI ISO camera streams. When used with Final Cut Pro, a fully configurable, multicamera .xml can be generated for easier editing.

The Shogun 7's 10-bit (8+2 FRC) panel features 360-zone backlight, 3000 cd/m² brightness, and a 1,000,000:1 contrast ratio. Its native AtomHDR (log) display enables you to more accurately monitor your log gamma footage without having to view flat, washed-out images or use a LUT to compress the dynamic range and color space. Built-in presets accurately translate popular log formats from ARRI, Canon, Fujifilm, JVC, Nikon, Panasonic, RED, and Sony cameras.

Save editing time by tagging your footage on the fly and recording directly to Final Cut Pro x, Adobe Premiere, or Avid Media Composer formats (third-party plug-ins may be required for tagging).

Power the Shogun Inferno with a single Sony L-series battery; dual battery plates support hot swapping, enabling longer uninterrupted runtimes. For audio recording, the monitor supports balanced XLR inputs with +48V phantom power via a separately available audio breakout cable. Additional Shogun 7 features include genlock input, BNC timecode input, SDI/HDMI cross conversion, and a variety of on-screen exposure analysis, framing, focus assist, and other display tools.

Monitor

  • 1920 x 1200 resolution
  • 7" LCD screen with 360-zone backlight
  • 10-bit (8+2 FRC) monitoring processing
  • 3000 cd/m² brightness
  • 1,000,000:1 contrast ratio (with zone backlight on)
  • Output using Dolby Vision HDR
  • AtomHDR technology displays native HDR (log) display footage
  • Log gamma viewing presets for ARRI, Canon, Fujifilm, JVC, Nikon, Panasonic, RED, and Sony cameras
  • Custom 3D LUT support (.cube format)
  • Anamorphic de-squeeze: 2x, 1.5x, 1.33x
  • UHD 4K downscale for HD monitoring

Input/Output

  • 4K HDMI and 12G-SDI inputs/outputs
  • Four 3G-SDI or dual 12G-SDI inputs
  • SDI/HDMI cross conversion
  • Genlock input
  • Separately available audio breakout cable for XLR audio input

Recording & Switching

  • Up to DCI 4K60 recording in ProRes Raw, ProRes, CinemaDMG (4K30), or DNxHD
  • Live switch up to four ISO HD camera feeds with AtomOS 10.4 update
  • Generates a multicam .xml for easier editing in Final Cut Pro
  • 5-channel capture with four ISO feeds plus program
  • Slow-motion recording up to 1080p at 240 fps
  • Record to 2.5" SSD/HDD media using the included Master Caddy II
  • Pre-roll record (8 seconds in HD, 2 seconds in 4K)
  • Ten metadata fields

Additional Features

  • Dual Sony L-series battery slots support hot swapping for continuous power
  • Record 4K30p up to 2.2 hours with 2 x 7.4V, 7800mAh batteries
  • Record 4K30p up to 1.5 hours with 2 x 7.4V, 5200mAh batteries
  • Top and bottom 1/4"-20 mounting threads
  • 3.5mm headphone output port

Atomos Shogun 7 Specification

Display

Panel Type IPS-Type LCD
Display Size 7.2" / 18.3 cm
Resolution 1920 x 1200
Aspect Ratio 16:9
Touchscreen Yes
Maximum Brightness 3000 nits / cd/m2
Dynamic Contrast Ratio 1,000,000:1
Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
Pixels Per Inch (ppi) 325 ppi
Color Gamut 105% DCI-P3
Real-Time LUT Monitoring SDR, HDR
Image Controls Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra

Inputs / Outputs

Video I/O 1 x HDMI 2.0 Input
1 x HDMI 2.0 Output
1 x BNC (12G-SDI) Input
1 x BNC (12G-SDI) Input/Output
1 x BNC (12G-SDI) Output
2 x BNC (3G-SDI) Input
Embedded Audio HDMI: 8-Channel
HDMI: 2-Channel
SDI: 12-Channel
Audio I/O 1 x LEMO 10-Pin Input
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Power I/O 1 x Barrel Input
Other I/O 1 x BNC (Genlock)
1 x 2.5 mm (LANC)
Media/Memory Card Slot Single Slot: SSDmini/SSD with Master Caddy II/III
Wi-Fi None

Format Support

Video Format HDMI (8/10-Bit 4:2:2)
DCI 4K: 60/59.94/50/30/29.97/25/24/23.98
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2K: 240/200/120/100/60/59.94/50/30/29.97/25/24/23.98
1080p: 240/120/100/60/59.94/50/30/29.97/25/24/23.98
SDI (8/10-Bit 4:2:2)
DCI 4K: 60/59.94/50/30/29.97/25/24
UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
DCI 2K: 240/200/120/100/60/59.94/50/30/29.97/25/23.98
1080p: 120/100/60/50/30/29.97/25/24/23.98
Gamma Curve ARRI Log C, Canon Log, Canon Log 2, DCI-P3, DCI-P3+, FUJIFILM F-Log, HDR-HLG, HDR-PQ, JVC J-Log, Panasonic V-Log, REDlogFilm, Sony S-Log 2, Sony S-Log 3
PC Resolutions 1920 x 1080 at 60 Hz
Video Signal Conversion

HDMI to SDI

SDI to HDMI

Timecode Support Yes

Recording

Pulldown Conversion 2:2, 3:2
Camera Trigger SDI, HDMI
Pre-Roll Record 4K: 2 Seconds
Full HD: 8 Seconds
Encoding Formats 4096 x 2160
ProRes Raw
CinemaDNG
DNxHD
3840 x 2160
ProRes Raw
CinemaDNG
DNxHD
2048 x 1080
ProRes Raw
CinemaDNG
DNxHD
1920 x 1080
ProRes
DNxHD
Maximum Audio Tracks 8
Metadata Tagging 10
Phantom Power +48 V

Power

DC Input Power 6.2 to 16.8 VDC
Power Consumption 33 W (Maximum)
Battery Type 2 x L-Series

Mounting

Mounting 2 x 1/4"-20 Female

Environmental

Operating Temperature 72°F / 40°C

General

Material of Construction Polycarbonate
Dimensions  8.4 x 5 x 1.8" / 214 x 127 x 45 mm
Weight 1.62 lb / 738 g
  • Atomos Shogun 7 HDR Pro/Cinema Monitor-Recorder-Switcher
  • Master Caddy II with Screws
  • AC Power Supply (12V, 3A)
  • 4 x Wall Plug
  • EPP Carrying Case
  • Limited 1-Year Manufacturer Warranty
