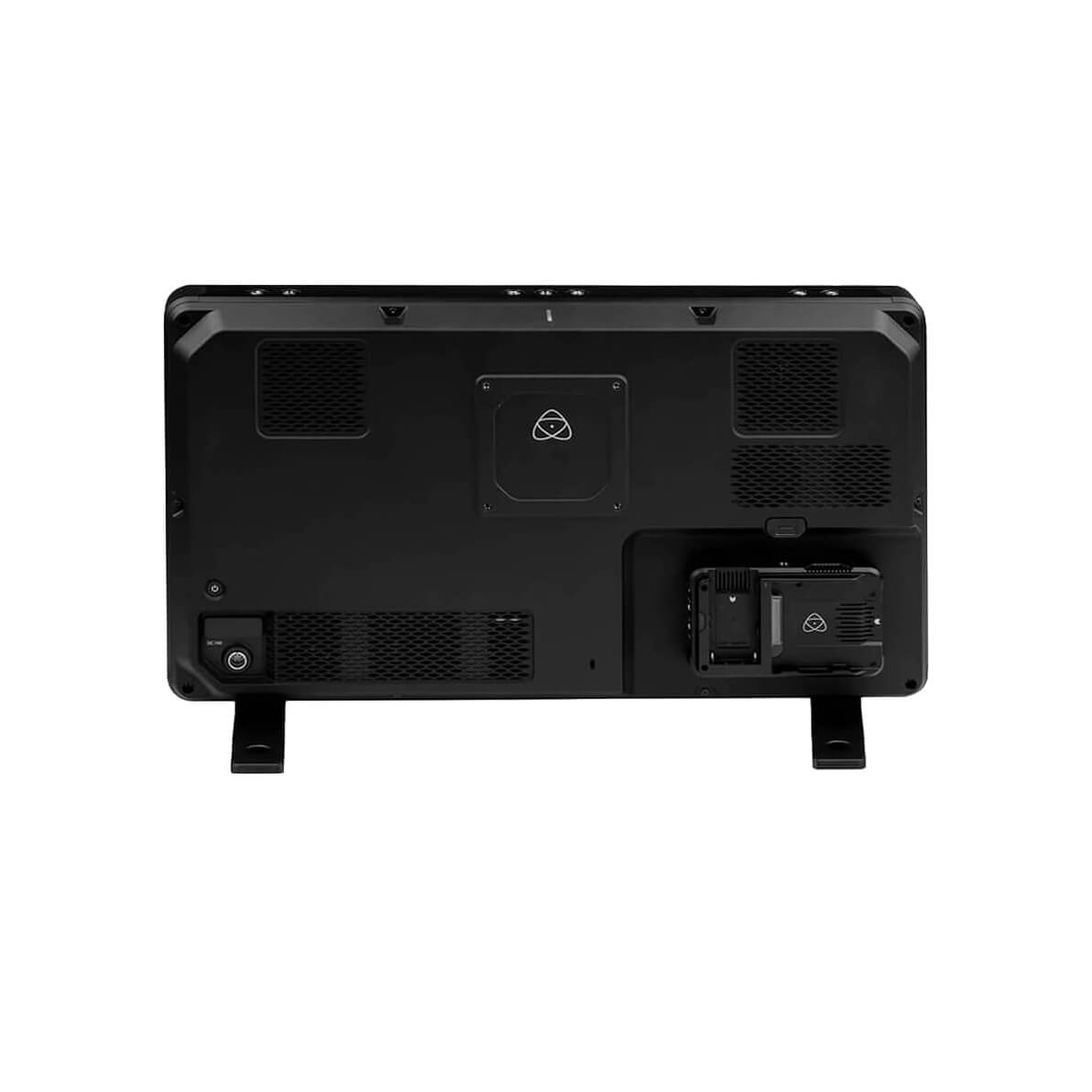

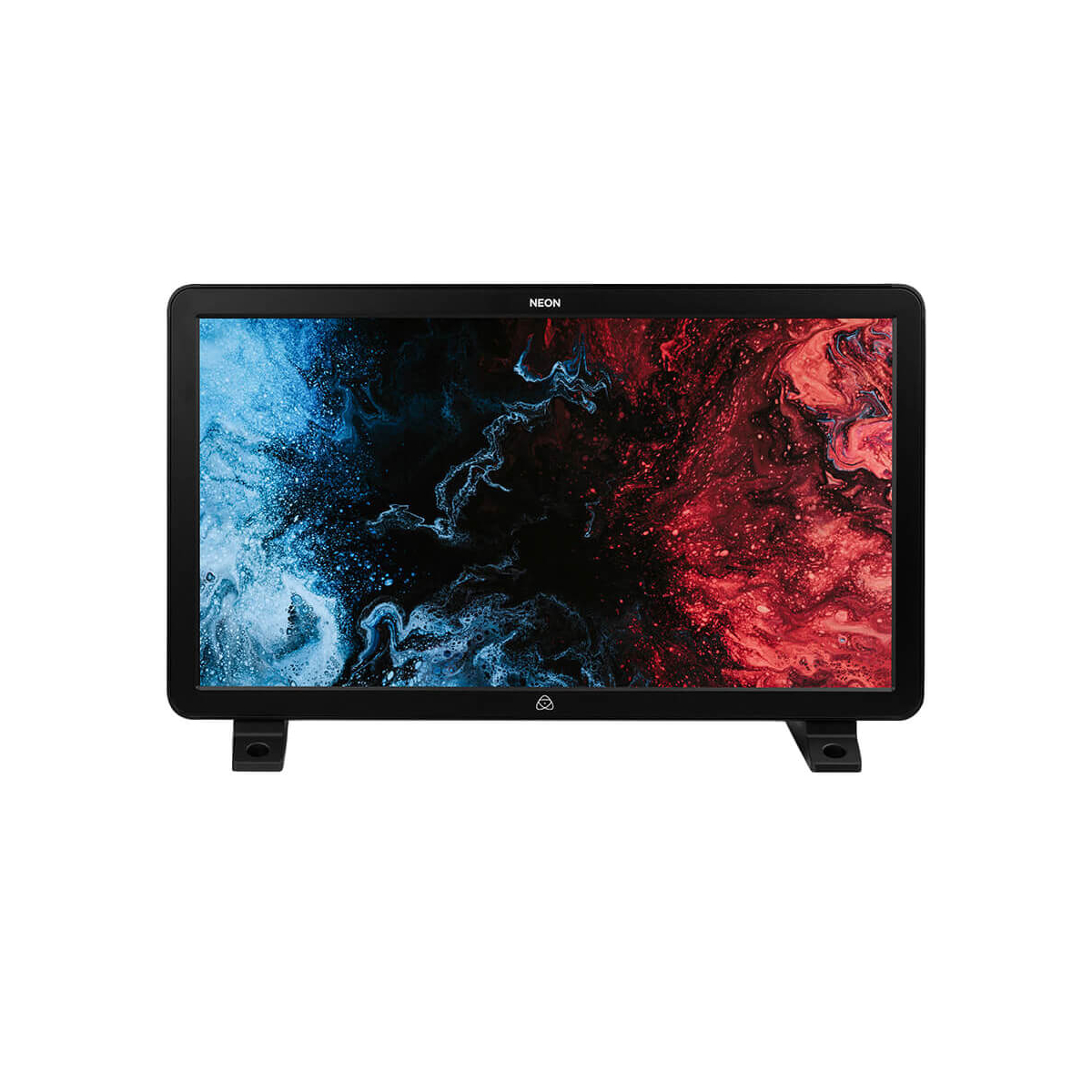

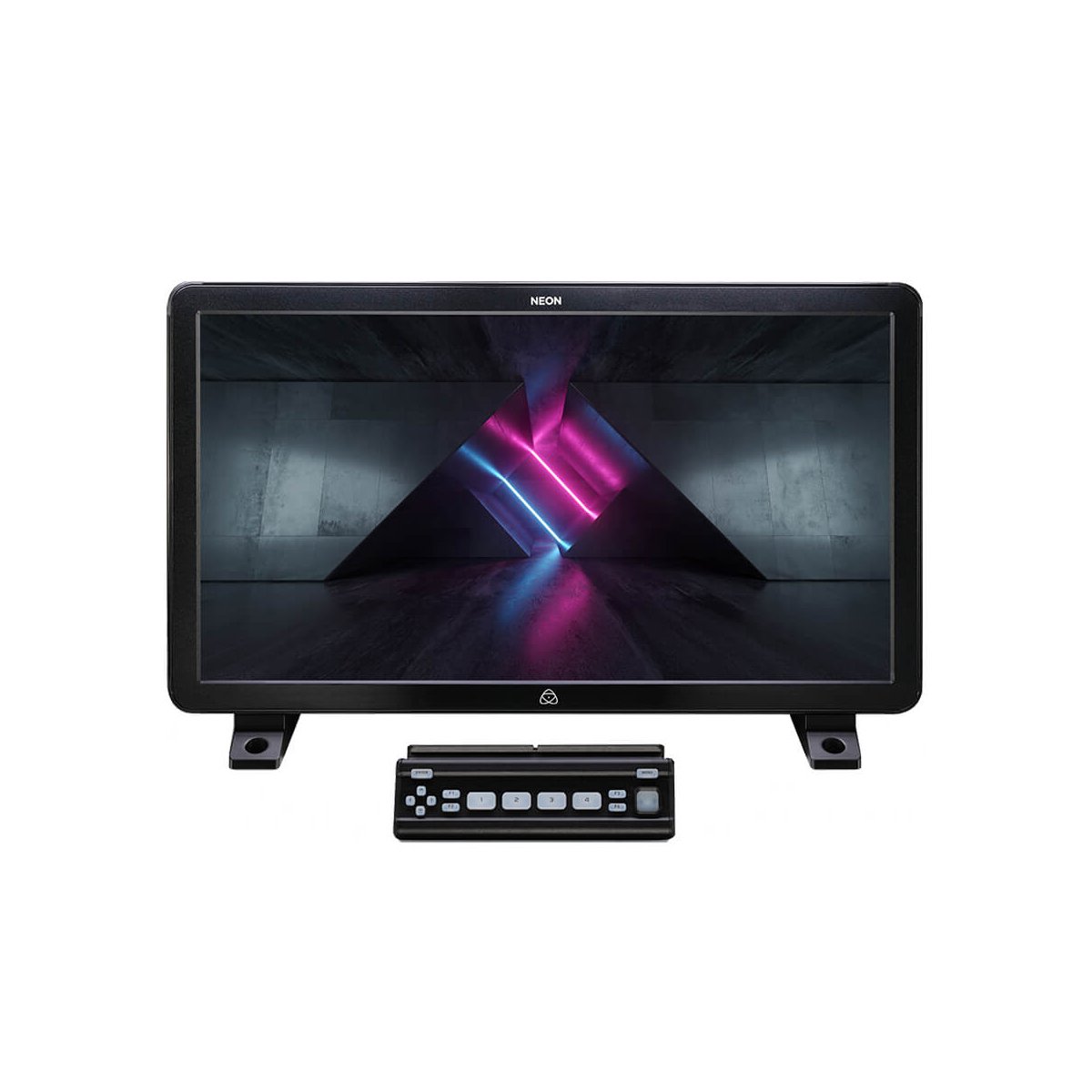

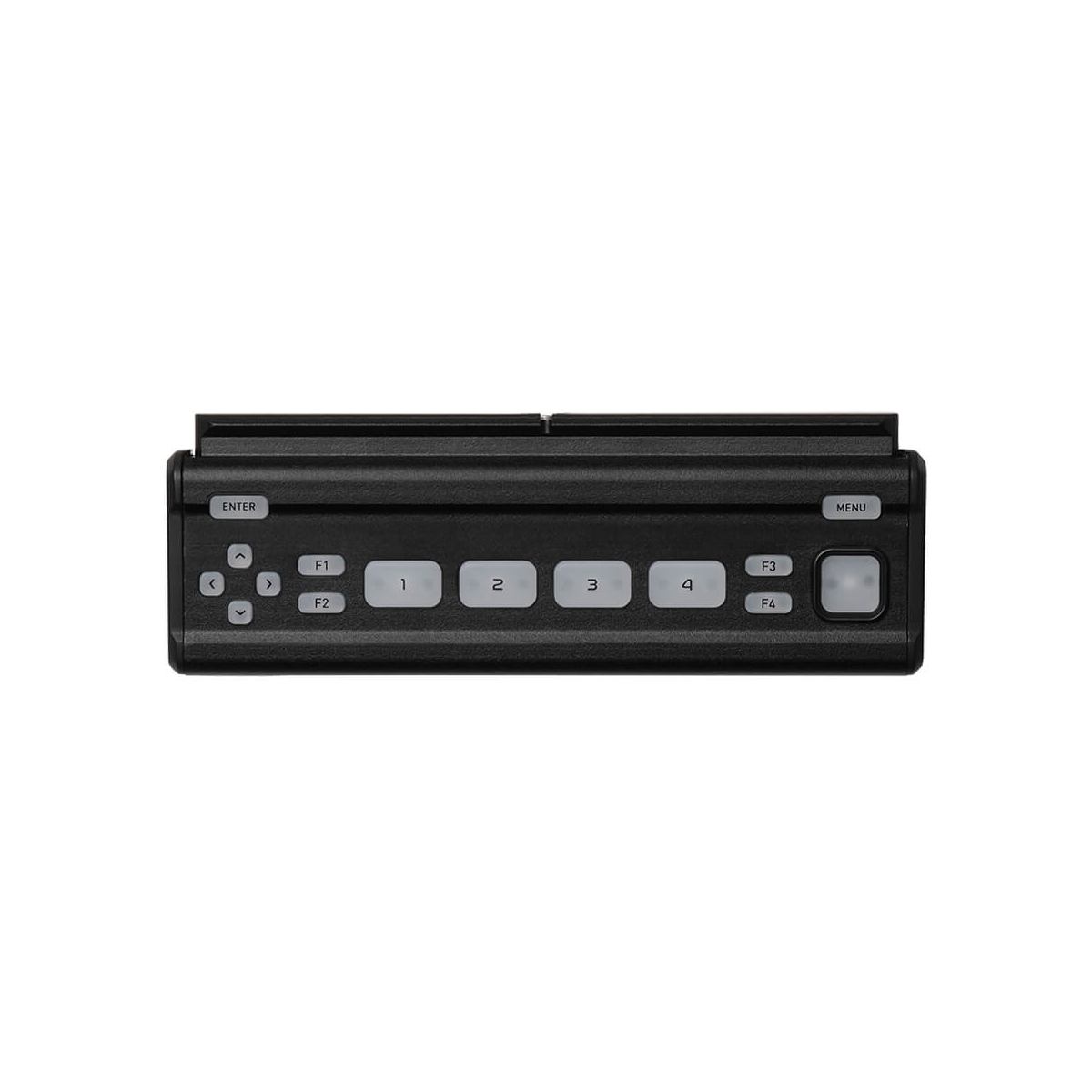

【Atomos】NEON 24 24" HDR Reference Monitor & Recorder with Button Bar Remote Control

  • 4096 x 2160 Native Resolution
  • Supports up to DCI 4K/UHD 4K
  • 10-Bit DCI P3 Color Gamut Displayed
  • 1000 cd/m² with 512 Backlight Zones
  • 1,000,000:1 Contrast Ratio
  • Features Replaceable Master Control Unit
  • Sync and Control Multiple NEONs from App
  • Rec. 709 and Dolby Vision Output
  • ProRes and DNx Recording
  • Records to 2.5" SSD via Master Caddy II

Local Delivery

CHINAM is currently shipping within Hong Kong and specific countries only. We use local courier service as our delivery company. We do not support shipping items in a single order to multiple shipping addresses. To ship items to an additional address, please place a new order to us. Unless otherwise specified, delivery charge at the rate of HK$300 will be imposed on each delivery. We currently offer free delivery for each order over HK$1,000.

For remote areas or outlying islands delivery service, please contact our sales team via email - sales@chinam.com.hk

International Delivery

We will do our best to ship internationally to countries where we do not have sales representation. Please register with us, we’ll keep you updated and notify you when this is about to happen and become available in your region. Please note, at this time the customer is responsible for the duties and taxes imposed by their country.

For international shipping please contact our sales team via email - sales@chinam.com.hk

Deliver Time

  • Once your order has been handed over to the carrier for delivery, you will receive a shipment notification email with an estimated delivery date. Please note that it is not possible to expedite your delivery and receive your package earlier than the scheduled delivery date. Therefore, we are unable to accept requests for expedited delivery. Our carriers are unable to provide an exact time of day for your delivery. If you ordered multiple items, you may receive separate shipments.
  • All estimates are based on business days. We only make deliveries in the specified areas of Hong Kong from Monday to Sunday except on the first two days of the Lunar New Year and when typhoon warning signal No. 8 or above or black rainstorm warning is in force.
  • All rescheduling of delivery, additional purchases, new sales memos and amendments must be made 3 days before the scheduled delivery date. Otherwise, a double delivery charge will be incurred.
  • We may deliver the merchandise in one or more installments, and some of the merchandises may be delivered directly from suppliers. Any times and dates given for dispatch of merchandise, or the length of time that merchandise will take to be delivered, are only estimates. If we are unable to meet any stated dispatch or delivery dates or times we will inform you as to the progress of your order. You agree and accept that under no circumstances will we accept cancellation of order or refund.

Signature On Delivery

  • Most of our shipments contain valuable items. If you will not be in attendance to accept delivery of your purchase, consider shipping to someone you trust will be able to sign for your package. For your convenience, you may prefer to have your order delivered to your office address. If you choose this option, please include the name of your business in the address. Please note, if you choose this option, goods may be left with reception or the Mail Room.
  • As our carriers require a signature on delivery, the carrier will leave a calling card if you are not at home. Please contact the carrier to reschedule delivery.
  • For postal deliveries, no signature is required and order status tracking is not available.
  • Delivery failure due to no one answering the door upon the arrival of goods at the appointed time, or to circumstantial limitations such as the entrance being too small, will require a rescheduled delivery and therefore incur double delivery charges.
  • We will deliver the merchandise ordered by you to the address you give us for delivery at the time you make your order through our staff or a third party provider. You agree to present your photo identification upon request when you acknowledge receipt of the merchandise. The merchandise shall be, and shall be deemed to be, delivered and accepted by you when the merchandise are delivered to the address you give us for delivery. You agree and accept that we are entitled, at our option, to charge you additional costs or cancel your order in the event of your failure to accept delivery for whatever reasons.

General

  • You will become the owner of the merchandise you have ordered when they have been delivered to you. Once merchandise has been delivered to you they will be held at your own risk and we will not be liable for the loss or damage.
  • You may not export any products purchased at CHINAM online store. We sells and ships products to end-user customers only. Notwithstanding order confirmation, CHINAM may cancel any order where it has reasonable grounds to believe the product is not being purchased for end use.
  • If there is any inconsistency or ambiguity between the English version and the Chinese version, the English version shall prevail.
  • We reserve the final right to terminate or alter the above terms and conditions. In the event of any dispute, our decision shall be final and conclusive.
In stock (contact us for lead time)
SKU
ATOMNEO241
Write Your Own Review
You're reviewing:【Atomos】NEON 24 24" HDR Reference Monitor & Recorder with Button Bar Remote Control
Your Rating

This Atomos NEON 24" 4K HDR Monitor/Recorder is part of the NEON family of monitor/recorders designed as an accurate and consistent monitoring solution for the field or in an edit suite. With deep blacks, excellent contrast, a 178° viewing angle, and ProRes and DNx recording capability, this monitor allows for on-location evaluation of your image and quick duplication of footage on-site without tying up a separate recorder. This 24" monitor/recorder features a 4096 x 2160 native resolution while supporting DCI and UHD 4K, as well as 1080p/i and 720p. The monitor provides a clear image capable of supporting HDR and displaying a 10-bit image that covers 100% of the DCI P3 standard. Its 1000 cd/m² brightness and 512 zones of backlight allow the monitor to achieve a contrast ratio of 1,000,000:1.

The NEON features a Master Control Unit that runs the AtomosOS, controlling the monitor. The Master Control Unit is user-replaceable, so you can have the latest Atomos technology without having to replace the entire monitor. Remote control over your NEON is via a downloadable app and your iOS mobile device. Input your video for display via HDMI or SDI (using the included SDI expansion module) and the monitor displays your video. It can also capture ProRes and DNx to a 2.5" SSD (not included) in the Master Caddy II or to a separately available AtomX SSDmini. The monitor features loop-through and cross conversion outputs, and it supports both Rec 709 and Dolby Vision.

The NEON Lineup of Monitor/Recorders
The NEON line is a series of precision on-set and in-studio 4K HDR monitor/recorders that can be synced together to provide a consistent image display and recording system. Multiple NEON monitors, up to 1000, can all be controlled by the Atomos app running on a single iOS mobile device. This allows you to have each camera outputting to its own NEON, and the synced up NEONs will record footage with matching timecode.


Brightness
The NEON features a brightness range of 0.002 to 1000 cd/m2.


The App
NEON uses Bluetooth to connect to your iOS mobile device running the Atomos iOS app that controls the built-in AtomosOS. The app provides controlled playback, slow motion, frame-by-frame analysis, and preview tools. Multiple NEONs sync to each other using sub-gigahertz RF that gives them a range up to 656'.


Imaging Tools
Imaging tools include focus peaking, exposure, calibration, zoom, waveform monitor, RGB monitor, vectorscope, and LUT selection.


SDR or HDR
Whether a project is SDR or HDR, the NEON can be configured to match camera acquisition settings or defined delivery standards, including Rec.709, Rec.2100 HLG, and PQ (ST.2084). When monitoring with NEON, color stays consistent at every stage of the production pipeline. This ensures that images look their absolute best with no unexpected surprises during the shoot, the edit, the grade, or quality control (QC).


Compatibility
The NEON series is compatible with a variety of HDMI or SDI cameras and other SDI sources. It supports HD (1080) up to 120 fps via HDMI and DCI 4K up to 60 fps, and it features 12G or Dual 6G or lower resolutions and frame rates via 1.5/3G SDI up to 2K60 with up to 12 channels of embedded audio. SDI 3G and 12G input and output make it easy to loop signals through a NEON to other devices on set or in the edit suite. HDMI sources without HDCP are supported at 4K up to 60 fps or HD up to 120 fps with up to eight channels of audio and detection of HDR info frame to automatically match the input signal type.


Recording
Each recording can be reviewed instantly on the NEON without the need to offload media. Files are captured as 10-bit 422 to industry-standard Apple ProRes or Avid DNxHR/HD. AtomRemote offers options to configure scene/shot/take file naming, including rich metadata that can be used by editing software or asset management solution for orchestration.


Removable Cover Glass
The cover glass of the NEON can be removed to help minimize any reflections.


Inputs and Outputs
The NEON is ready for your HDMI production out of the box, supporting HDMI 2.0b. The included SDI Expansion Module provides you with 12G-SDI in, out, and loop-through, as well as cross conversion between SDI and HDMI and vice versa.


Video Output
The monitor outputs to Rec.709, HLG, PQ, LUT, and it can display in SDR or HDR, converting as necessary to Rec.709, HLG, PQ, and LUT.


Flexibility
You can record in online quality at 4Kp60 in real time with ProRes, and Avid DNx with playout to Dolby Vision.


Supported Input Gamma

  • Sony: SLog / SLog2 / SLog3
  • Canon: CLog / CLog2 / Clog3
  • ARRI: Log CEI160 / LogCEI200 / LogCEI250 /LogCEI320 /LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800/ LogCEI1000 / LogCEI1280 / LogCEI1600
  • Panasonic: Vlog
  • JVC: JLog1
  • RED: RED Log3G10 / RED LogFilm
  • FUJIFILM: F-log
  • PQ10k
  • HLG

Supported Input Gamut

  • Sony: SGamut / SGamut3 / SGamut3.cine
  • Canon Cinema: / DCI P3 / DCI P3+
  • Nikon: NLog
  • Panasonic: V Gamut
  • ARRI: ALEXA Wide Gamut
  • Rec. 709 / BT.2020
  • JVC
  • RED: WideGamut / DragonColor / DragonColor2 / Color2 / Color3 / Color4

Mounting
The NEON comes with support feet and follows the following mounting protocols: ARRI compatible, 3 left, 3 right, 7 top, 7 bottom; VESA mount.

Atomos NEON 24" Specification

Display

Display Size 24.00" / 61.0 cm
Resolution 4096 x 2160
Aspect Ratio 17:9
Viewing Angle Horizontal: 180°
Vertical: 180°
Touchscreen No
Maximum Brightness 1000 nits / cd/m2
Dynamic Contrast Ratio 1,000,000:1
Bit Depth / Color Support 10-Bit (1.07 Billion Colors)
Pixels Per Inch (ppi) 193 ppi
Color Gamut 100% DCI-P3
Real-Time LUT Monitoring SDR, HDR

Inputs / Outputs

Video I/O 1 x HDMI 2.0b Input
1 x BNC (12G-SDI) Input
1 x HDMI 2.0b Output
1 x BNC (12G-SDI) Output
Embedded Audio HDMI: 8-Channel
SDI: 12-Channel
Audio I/O 2 x 1/8" / 3.5 mm Mic/Line Input
1 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker None
Media/Memory Card Slot Single Slot: SSDmini/SSD with Master Caddy II/III
Wi-Fi None
Bluetooth Yes
Mobile App Compatible Yes: iOS Only
App Name: AtomRemote
Functionality: Adjust Settings, Remote Control
*As of September, 2021: Check with manufacturer for the most up-to-date compatibility

Format Support

Video Format HDMI (10-Bit)
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
DCI 2K: 120/100/60/50/30/25/24
1080p: 240/200/120/100/60/50/30/25/24
1080i: 60/50
720p: 60/50
Video Signal Conversion HDMI to SDI
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/100/60/50/30/25/24
1080i: 60/50
720p: 60/50
SDI to HDMI
DCI 4K: 60/50/25/24
UHD 4K: 60/50/30/25/24
1080p: 120/100/60/50/30/25/24
1080i: 60/50
720p: 60/50

Recording

Pulldown Conversion 2:2, 3:2
Camera Trigger SDI, HDMI
Pre-Roll Record None
Encoding Formats Up to 4096 x 2160
ProRes 422, HQ, LT
DNxHR HQ, HQX, LB, SQ
Built-In Battery None
Battery Type None

Environmental

Operating Temperature 72°F / 40°C
57°F / 25°C (Recommended)

General

Material of Construction Aluminum, Polycarbonate
Dimensions  23.4 x 13.4 x 2.9" / 594 x 340 x 72.5 mm
Weight 18.96 lb / 8.6 kg
  • Atomos NEON 24" 4K HDR Monitor/Recorder
  • Master Control Unit
  • Master Caddy II
  • AC Power Supply
  • AtomX SDI Expansion Module
  • 2 x Support Feet (Including Mounting Screws)
  • Limited 1-Year Manufacturer Warranty
