Introducing the new high-performance studio surface monitors
The SSM series of passive loudspeakers is engineered to provide accurate, consistent monitoring when mounted on control room walls or ceilings. Featuring shallow cabinets and a versatile mounting bracket solution, these loudspeakers offer flexible installation options. They are an ideal choice for multichannel and immersive audio setups - including Dolby Atmos systems - in control rooms where space is at a premium, but reference-level performance is essential.

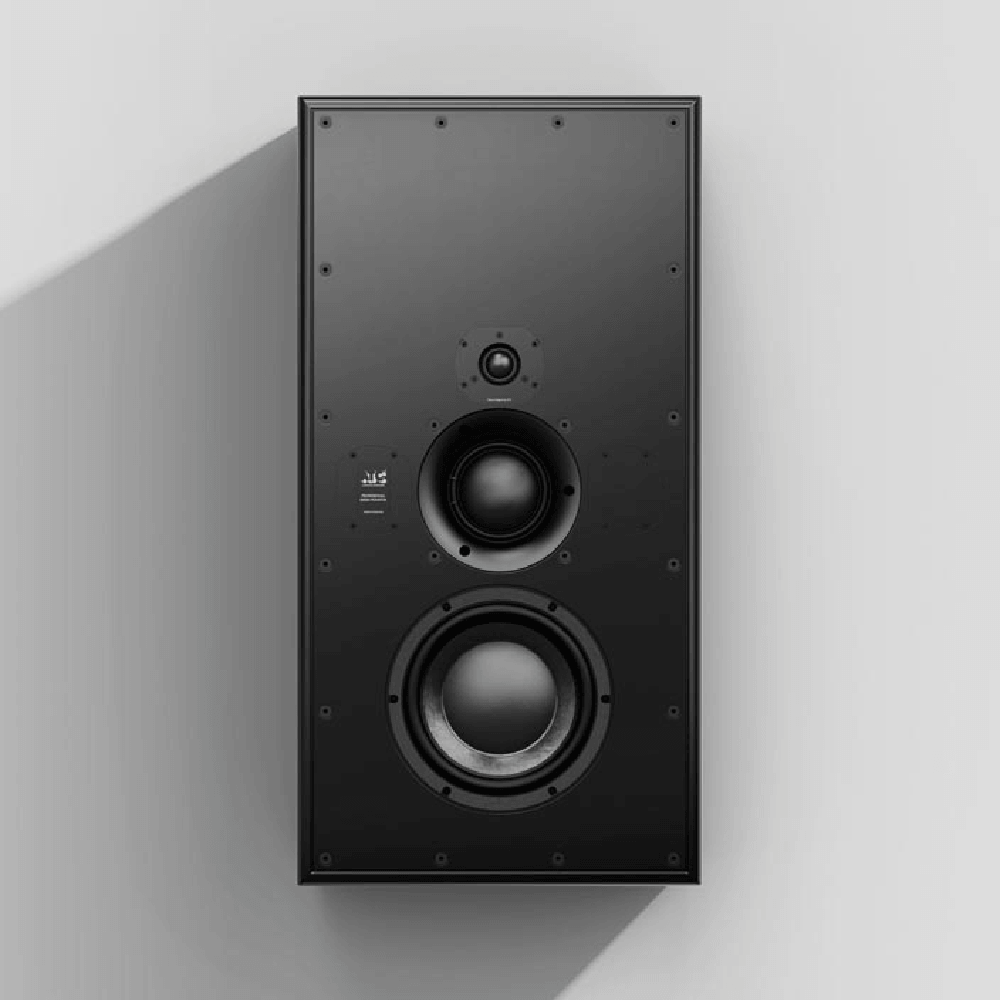

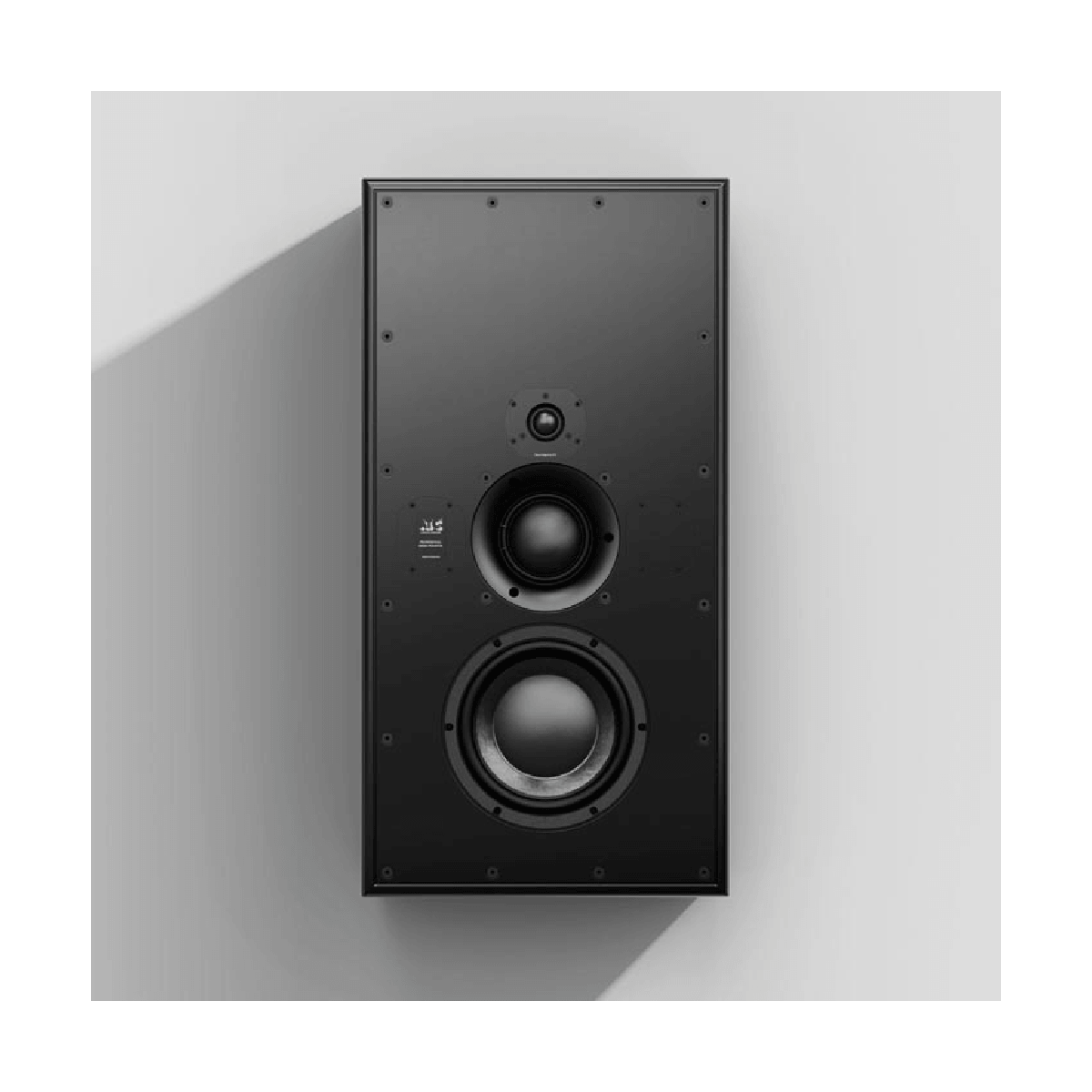

SSM25i Pro

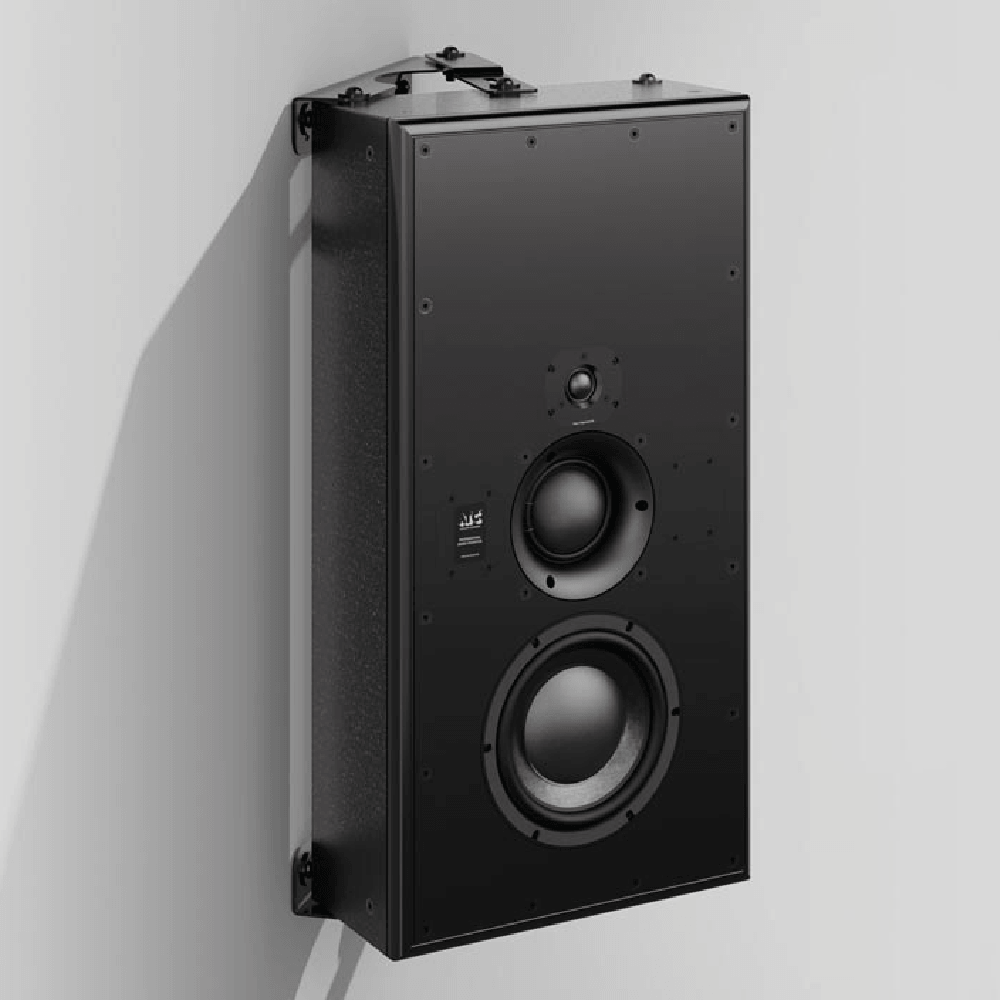

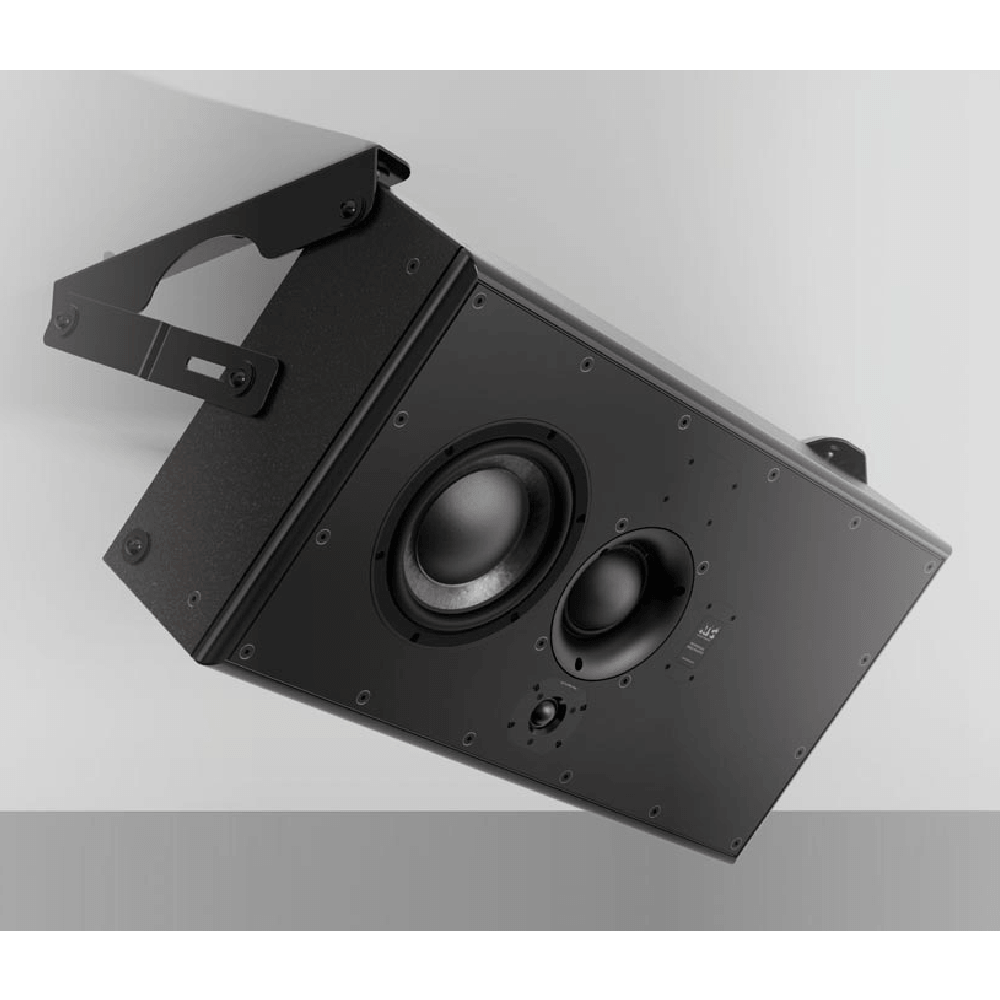

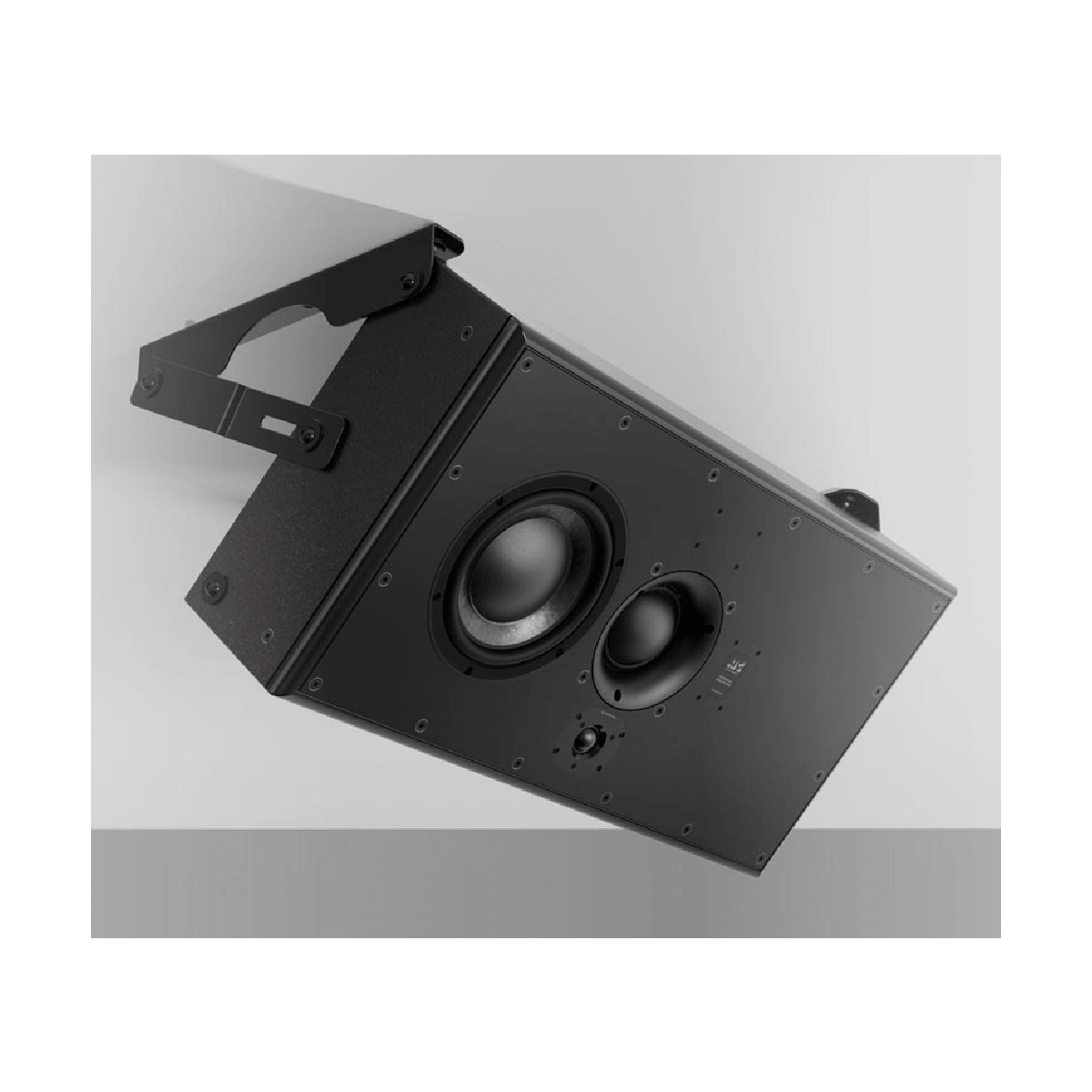

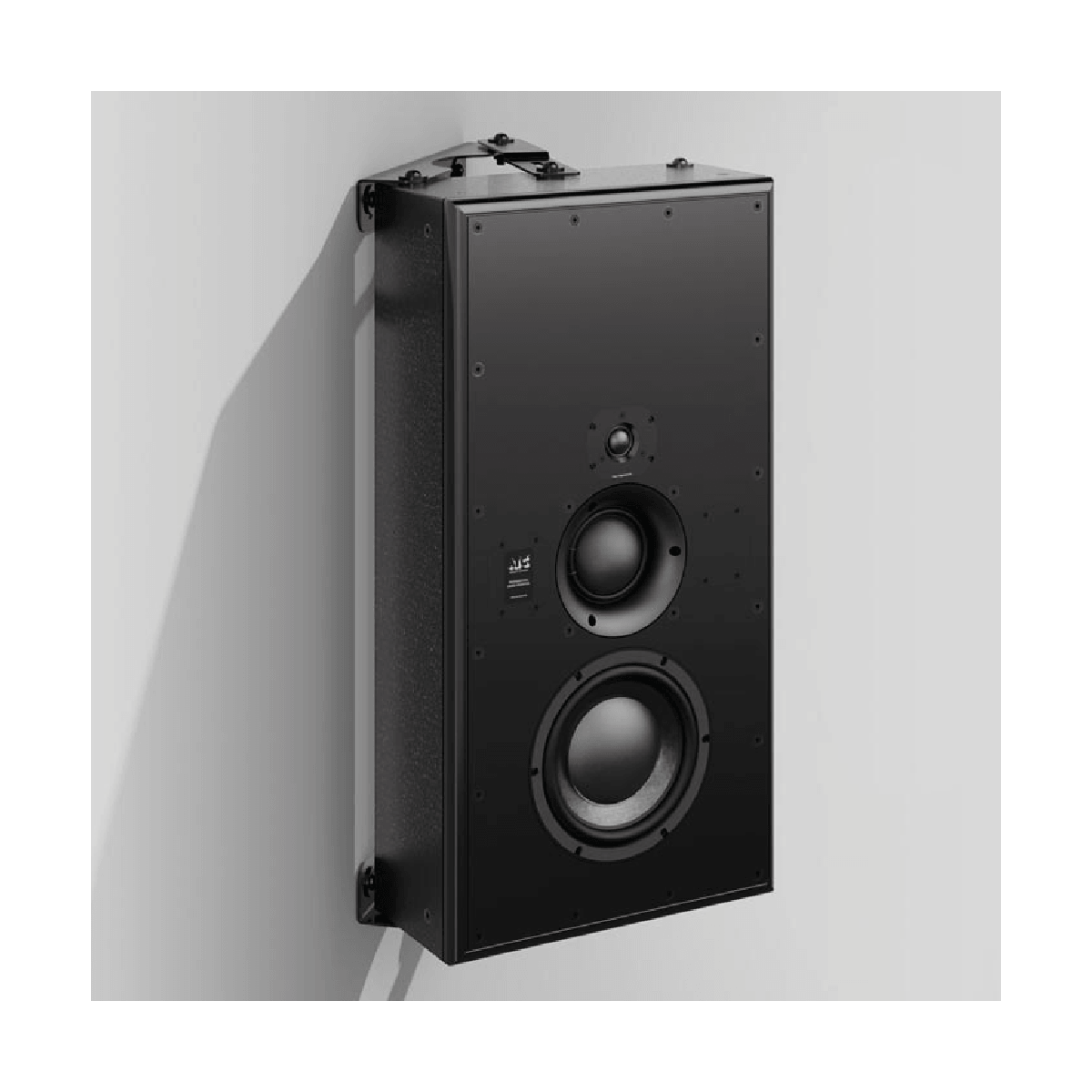

The SSM25i Pro is a mid-sized, high-performance passive 3-way loudspeaker that delivers exceptional audio quality through a combination of advanced engineering and premium components. It is designed for larger control rooms and/or systems requiring increased dynamic range & bandwidth. The speaker can be wall or ceiling mounted in vertical or horizontal orientations. In addition, the mounting hardware allows the cabinet to pivot away from the wall/ceiling surface, directing more of the output towards the listening position resulting in a superior balance and precise imaging.
|
ATC SSM12i Pro Specification |
|
| Drive Units | - Bass: 1 x SB50-164SC 8Ω - Mid: SM75-150 16Ω - HF: 1 x SH25-76S 6Ω |
| Low Frequency Cut-off | (-6dB, half-space): 40Hz |
| High Frequency Cut-off | |
| Crossover Frequency | 380Hz & 3.5kHz |
| Recommended Power Amplifier | 75W to 300W |
| Input Connectors | Binding Posts/4mm Plugs, single pair. |
| MaxSPL | 109dB continuous, 115dB peak, (per pair, IEC weighted Pink Noise,1m half-space) |
| Sensitivity | 85dB/W @1m |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 5Ω |
| Net Weight | 28.2kg / 62.2lbs. |
| Product Dimensions | 767 x 380 x 198mm / 303/16 x 1415/16 x 713/16 inches. |
