Introducing the new on-wall/on-ceiling mountable Passive 2-way Studio Monitor
The SSM series of passive loudspeakers is engineered to provide accurate, consistent monitoring when mounted on control room walls or ceilings. Featuring shallow cabinets and a versatile mounting bracket solution, these loudspeakers offer flexible installation options. They are an ideal choice for multichannel and immersive audio setups - including Dolby Atmos systems - in control rooms where space is at a premium, but reference-level performance is essential.

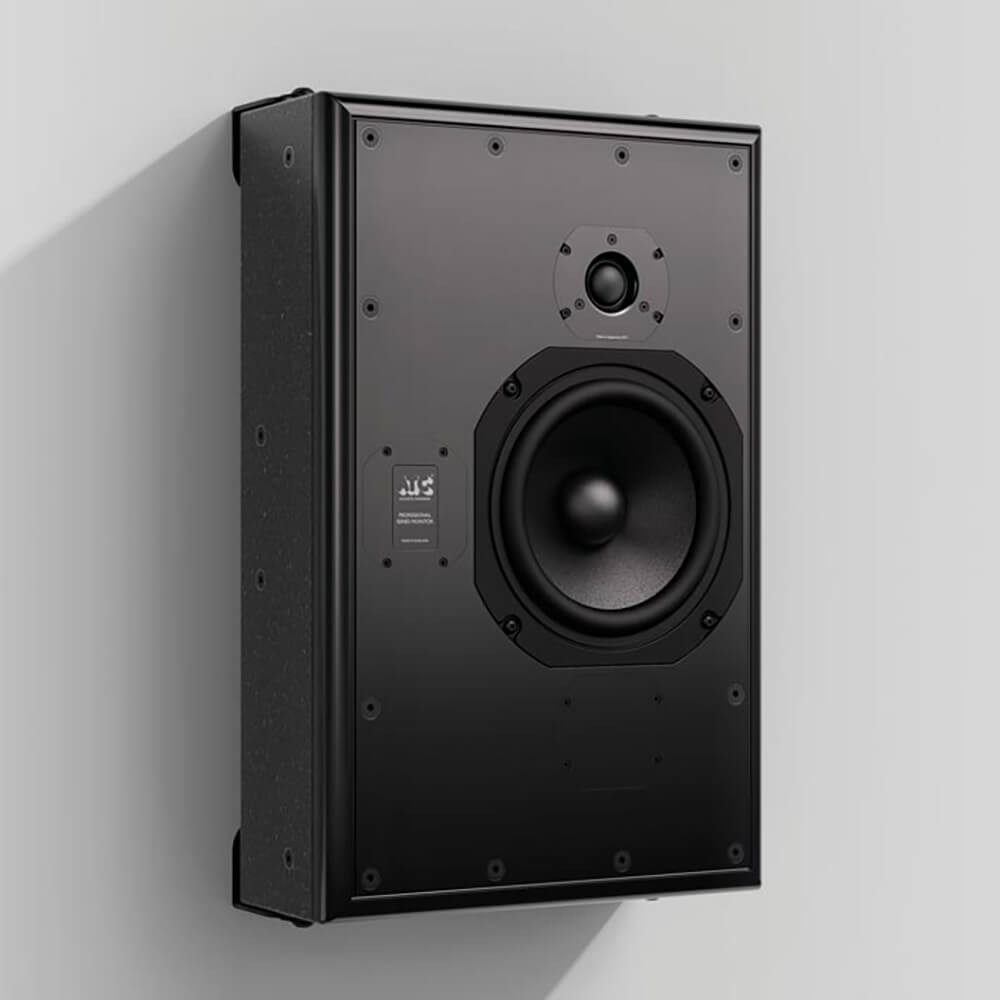

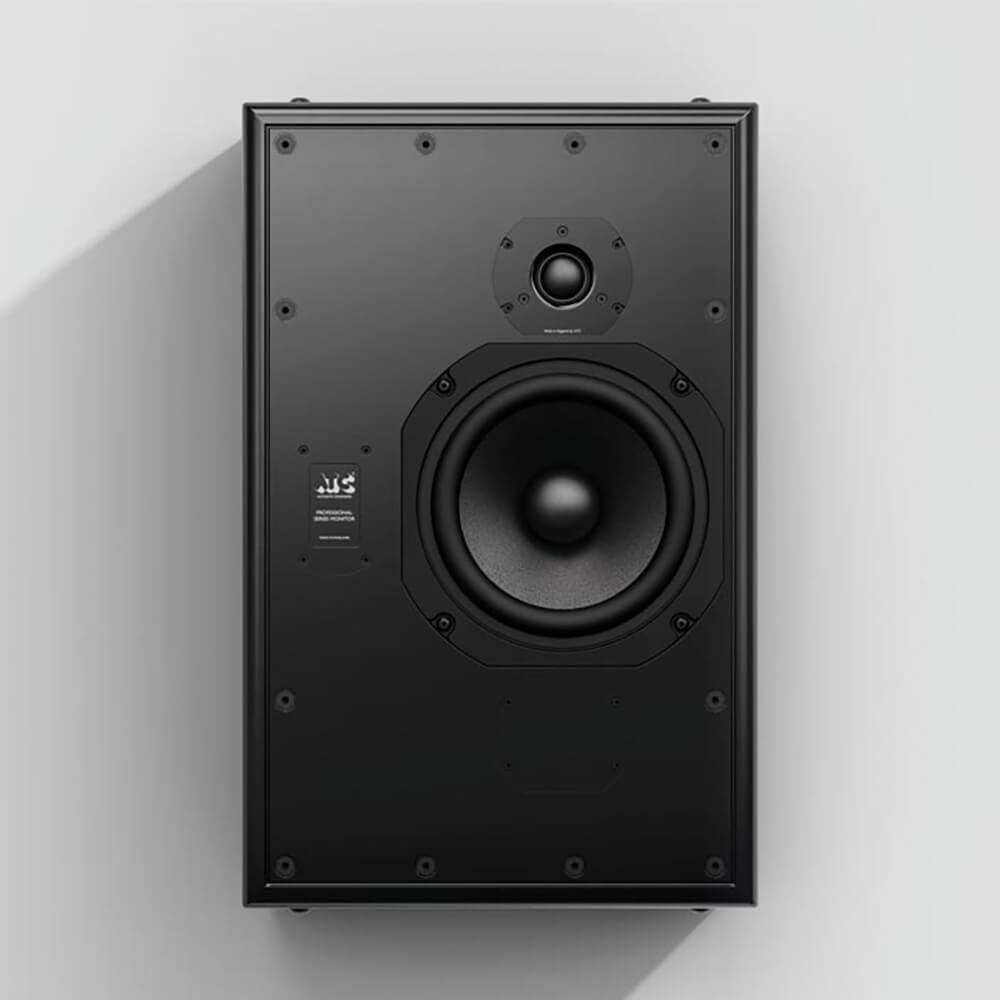

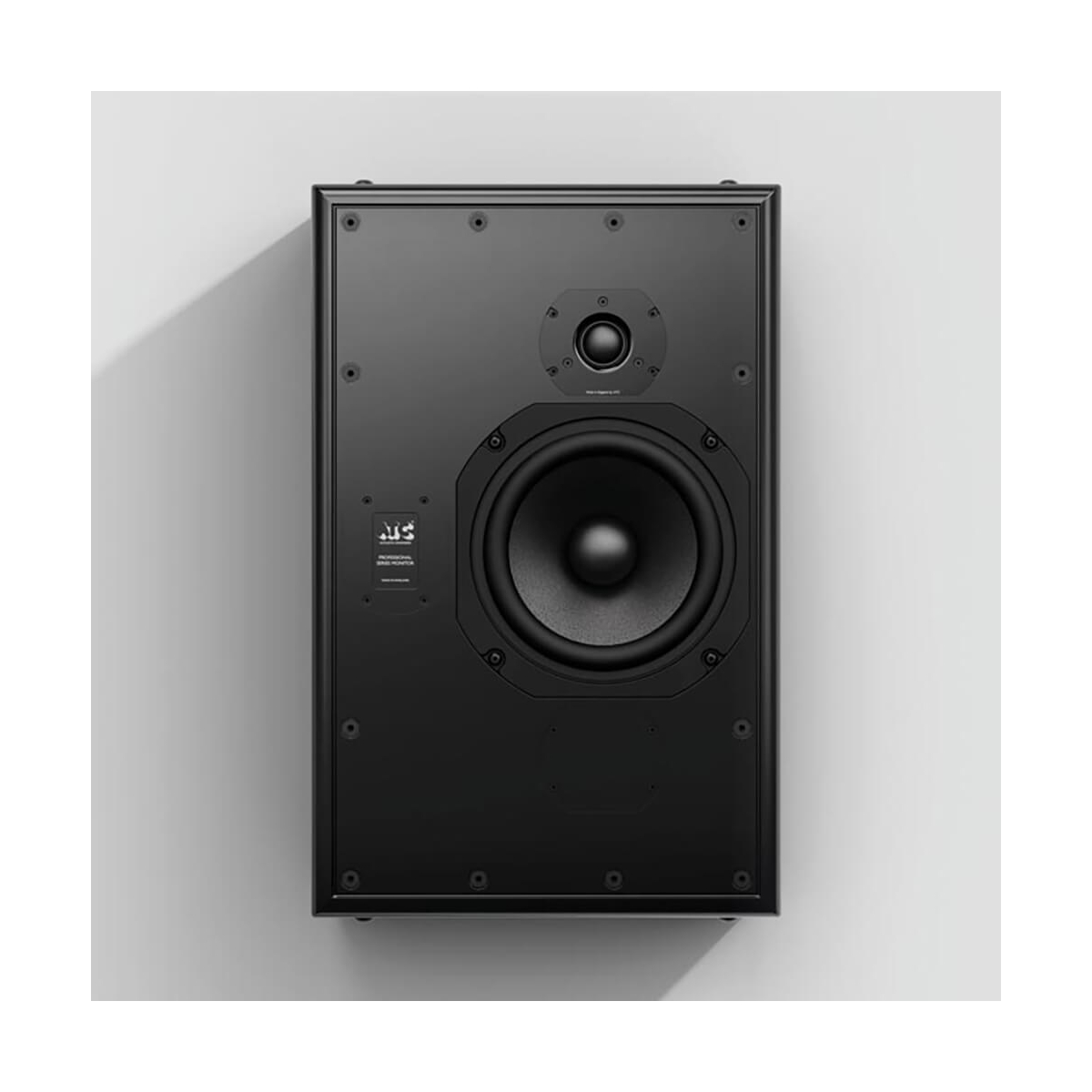

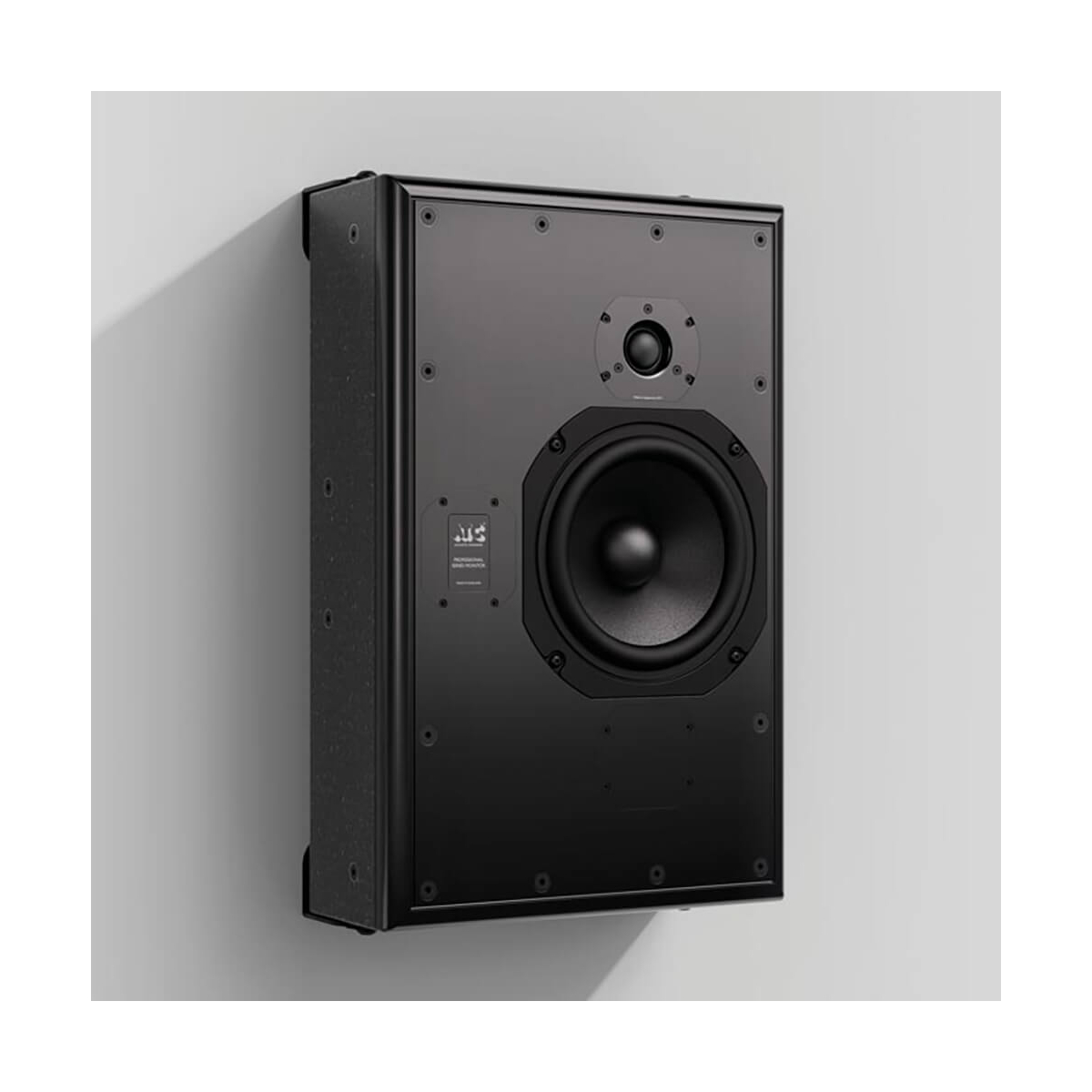

SSM12i Pro

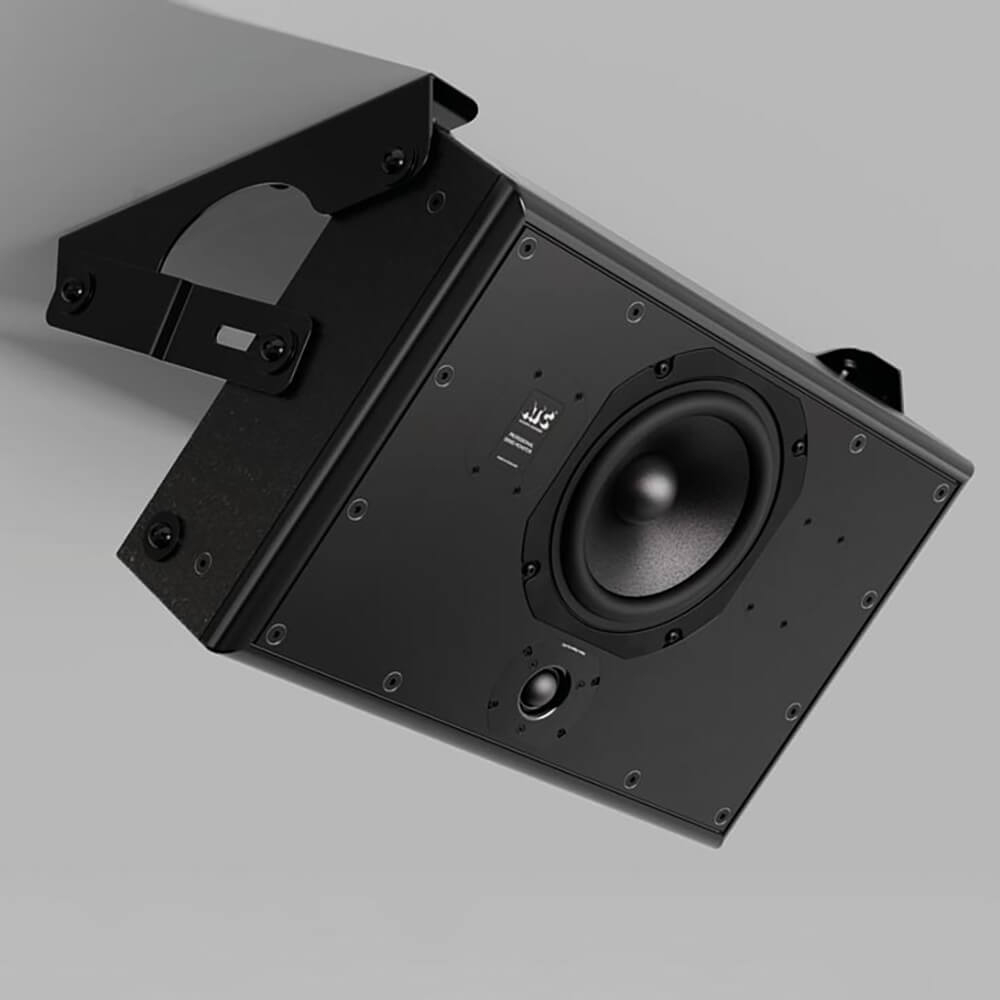

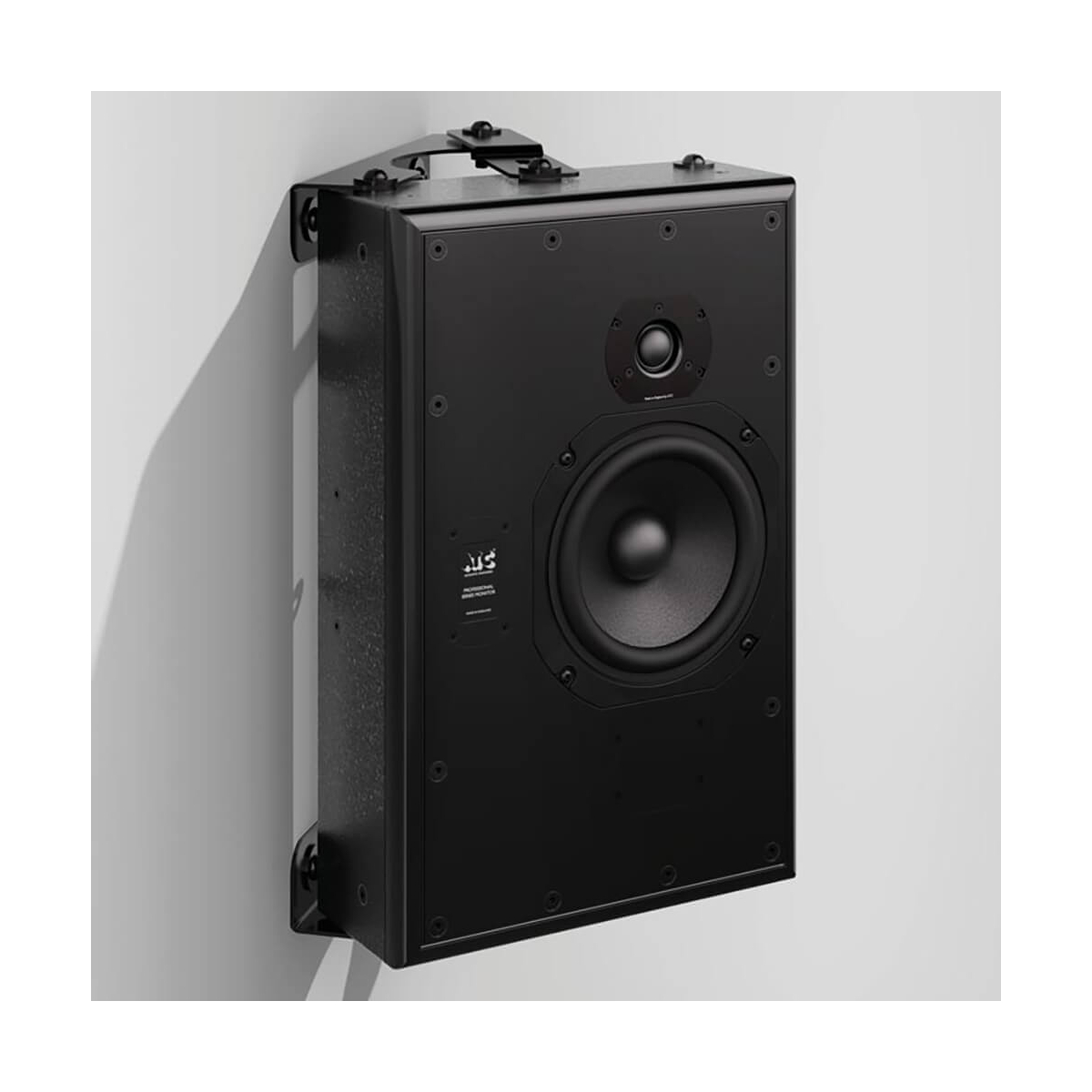

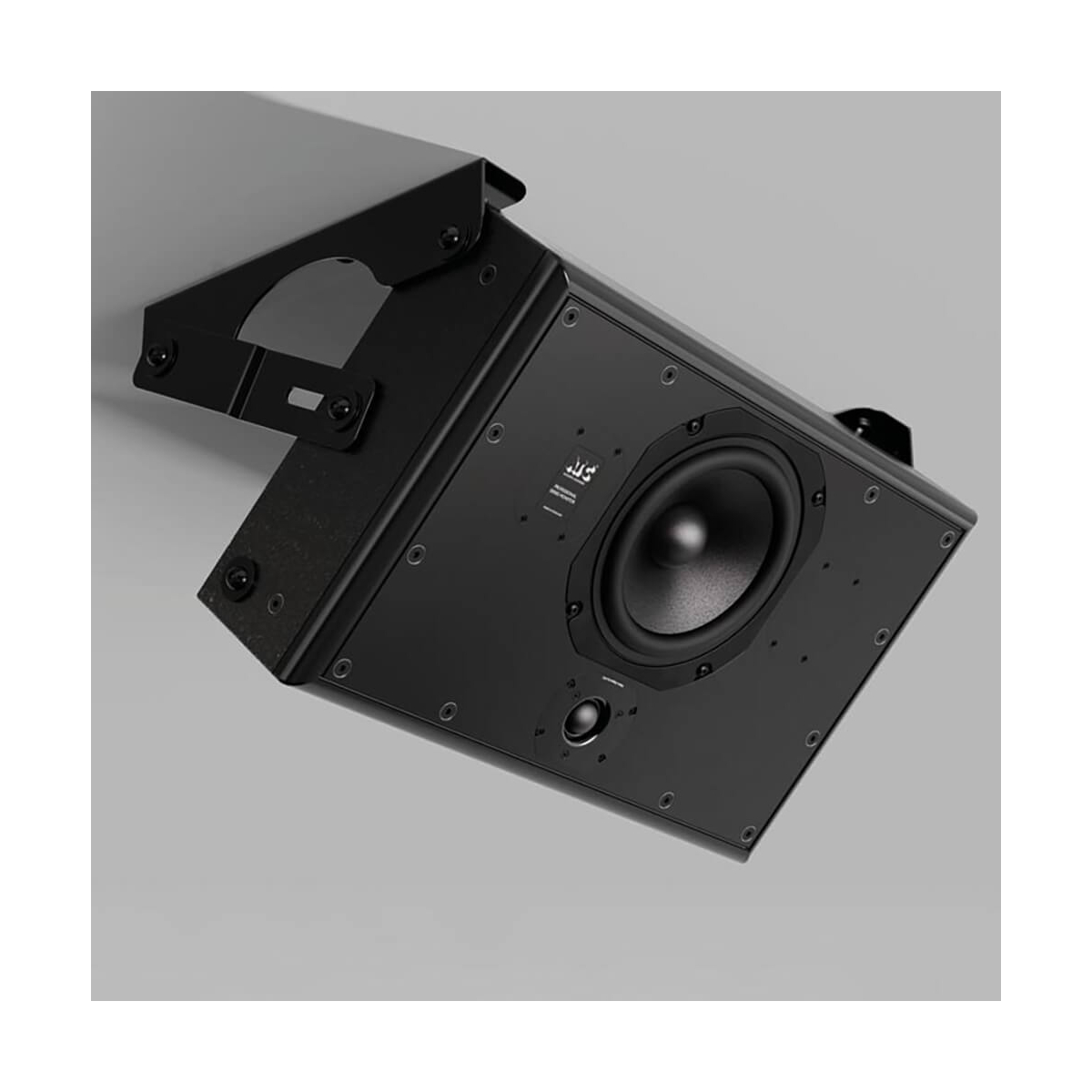

The SSM12i Pro is a compact, passive 2-way loudspeaker built around proprietary drive units designed and manufactured by ATC. The speaker can be wall or ceiling mounted in vertical or horizontal orientations. In addition, the mounting hardware allows the cabinet to pivot away from the wall/ceiling surface, directing more of the output towards the listening position resulting in a superior balance and precise imaging.
|
ATC SSM12i Pro Specification |
|
| Drive Units | - Bass/Mid: 1 x SB45-150CLD 8Ω - HF: 1 x SH25-76 6Ω |
| Low Frequency Cut-off | (-6dB, half-space): 48Hz |
| High Frequency Cut-off | 22kHz |
| Crossover Frequency | 2.2kHz |
| Recommended Power Amplifier | 75W to 300W |
| Input Connectors | Binding Posts/4mm Plugs, single pair. |
| MaxSPL | 108dB continuous, 114dB peak, (per pair, IEC weighted Pink Noise,1m half-space) |
| Sensitivity | 85dB/W @1m |
| Nominal Impedance | 8Ω |
| Minimum Impedance | 5Ω |
| Net Weight | 14.8kg / 32.6lbs |
| Product Dimensions | (H x W x D): 517 x 315 x 147mm |
- ATC SSM12i Pro
