Video |
|
| Image Sensor | 1/2.5″ Progressive CMOS |
| Sensor Size | Diagonal 7.20mm |
| Effective Pixels | Horizontal: 3840, Vertical: 2160 |
| Pixel Size | 1.62 µm (H) x 1.62 µm (V) |
| Resolution |
2160 30p/29.97p/25p/24p 1080 60p/59.94p/50p/30p/ 29.97p/25p/24p 1080 60i/59.94i/50i 720 60p/59.94p/50p/30p/25p |
| Output | HDMI 1.4 |
| Color Space | 4:2:2 (YCbCr) 10bit |
|
Function |
|
| White Balance | AWB / AE / AF |
| Exposure | Full Auto, Bright, Shutter Priority, Iris Priority, Manual |
| Other | WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection |
|
Lens |
|

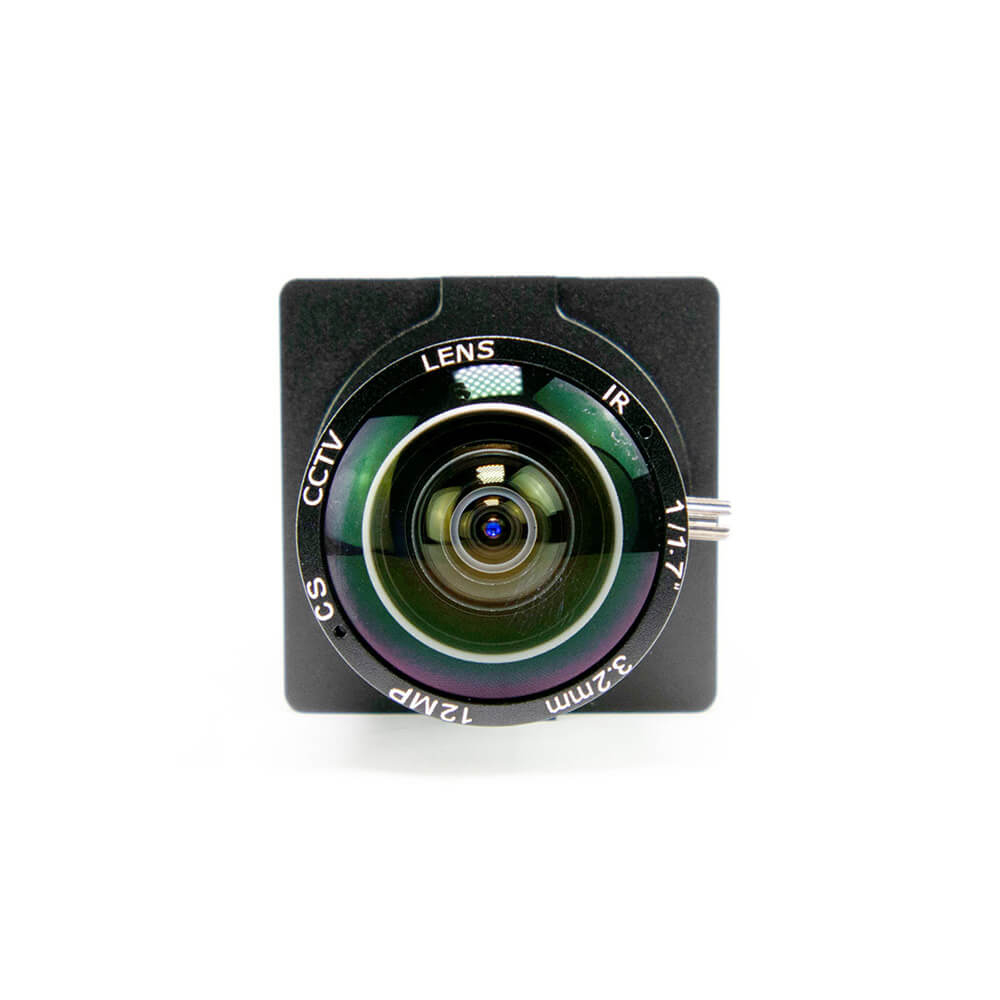

| Lens | C/CS Mount (Default UHD 3.2mm Lens) |
|
Audio |
|
| Input | 3.5mm TRS Stereo Mic-in & Line in over I/O Cable |
| Sample Rate | 16/24/32 Bits |
|
Physical |
|
| Camera Control | RS-485 VISCA, OSD Button |
| Operation Temp | 32° F – 104° F |
| Dimension | 39mm x 39mm x 50.50mm / 1.53″ x 1.53″ x 1.99 |
| Weight | 140g / 0.30lbs |
| Power | 12VDC (+9 – +15VDC) |
- UHD-100A
- I/O Breakout Cable
- DC 12v Power Supply & Sockets Adapter
- 3.2mm 12MP 4K Lens (Pre-installed)
