Video |
|
Image Sensor | 1/3″ Progressive CMOS |
Sensor Size | Diagonal 7.20mm |
Effective Pixels | Horizontal: 1920, Vertical: 1080 |
Pixel Size | 2.75 μm (H) x 2.75 μm (V) |
Resolution |
1080p / 1080i : 1920 x 1080 720p : 1280 x 720 |
Resolution | Rate |
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 1080i : 60 / 59.94 / 50i 720 720p : 60 / 59.94 / 50p |
Output | 3G-SDI |
Color Space | 4:2:2 (YCbCr) 10bit |
Function |
|
White Balance | AWB / AE / AF |
Exposure | Full Auto, Bright, Shutter Priority, Iris Priority, Manual |
Other | WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection |
Lens |
|
Lens | 3X Optical Zoom Lens, 3.85mm/78° (Wide) ~ 13.4mm/25° (Tele) |
Standard |
|
SMPTE | SMPTE 292M, SMPTE 424M |
Physical |
|
Weatherproof Rating | IP67 |
Camera Control | RS-485 OSD Button |
Operation Temp | 32° F – 104° F |
Dimension | 48mm x 48mm x 83.09mm / 1.89″ x 1.89″ x 3.27″ |
Weight | 140g / 0.30lbs |
Power | 12 VDC (+9 – +15VDC) |

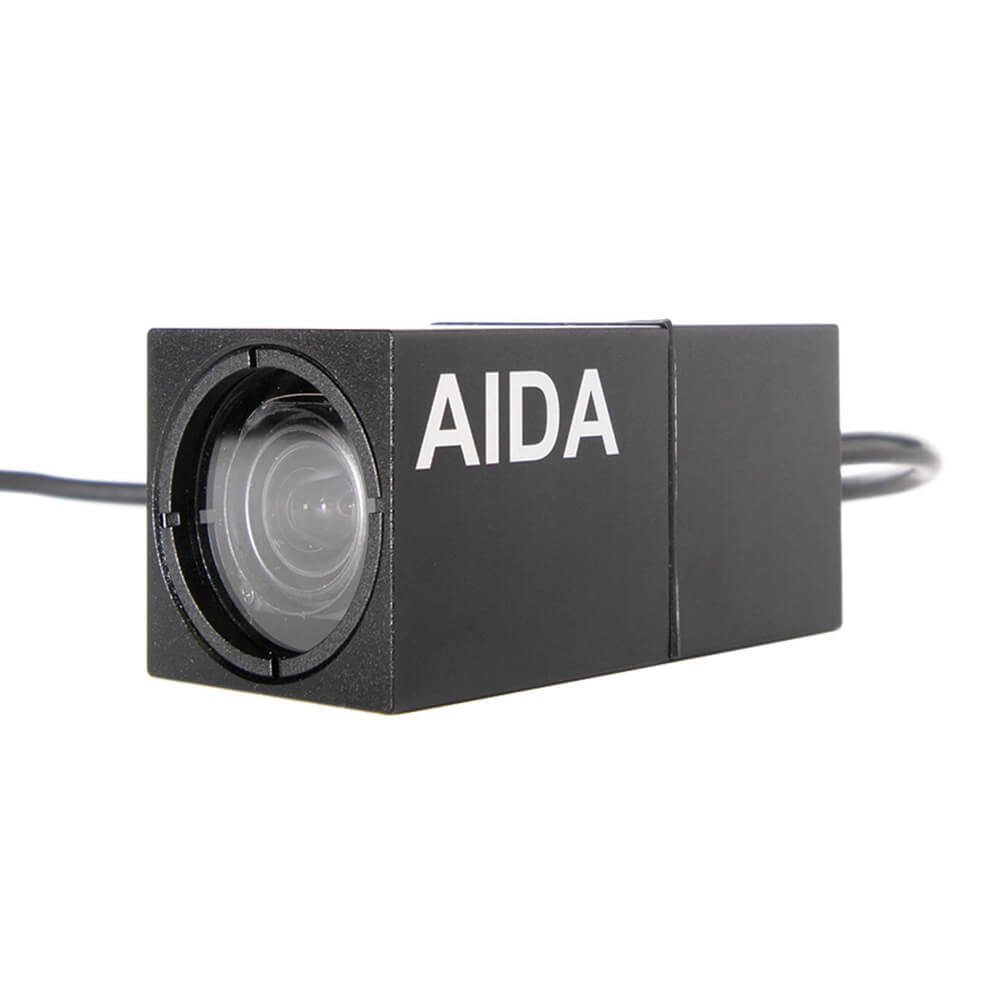

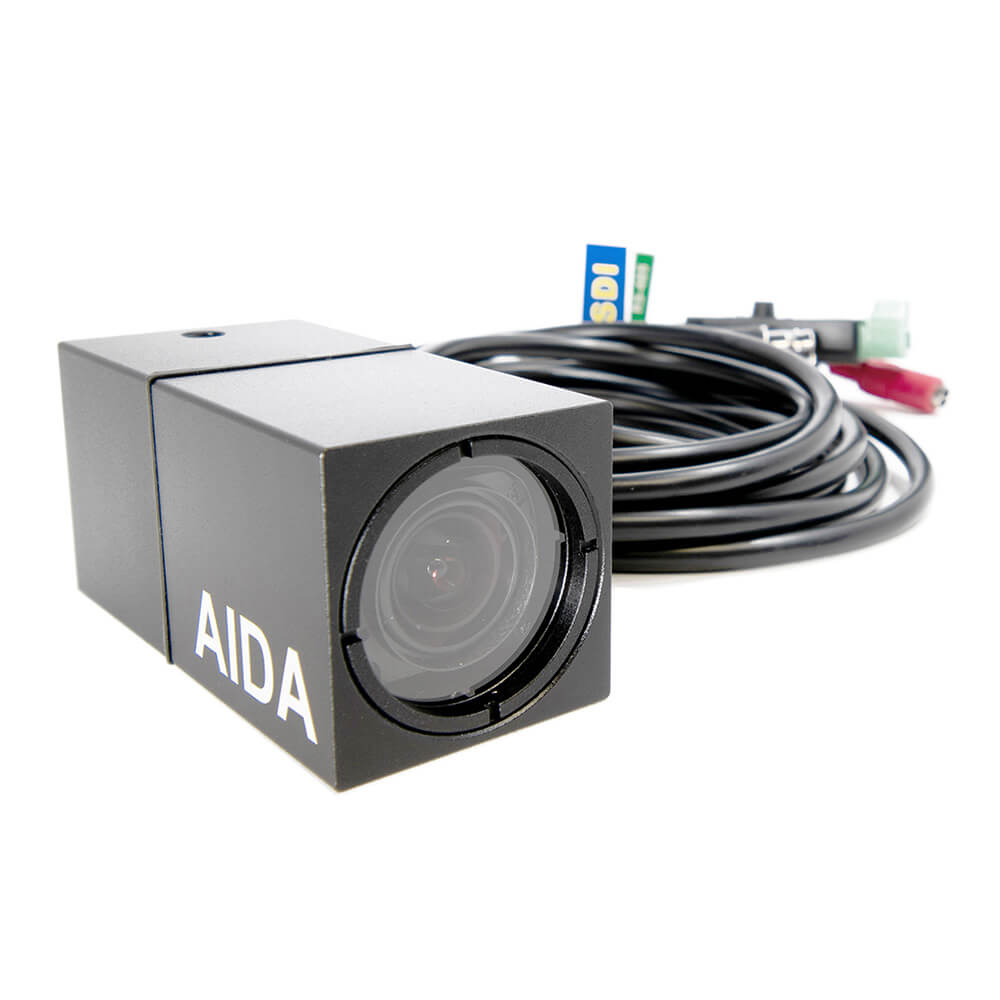

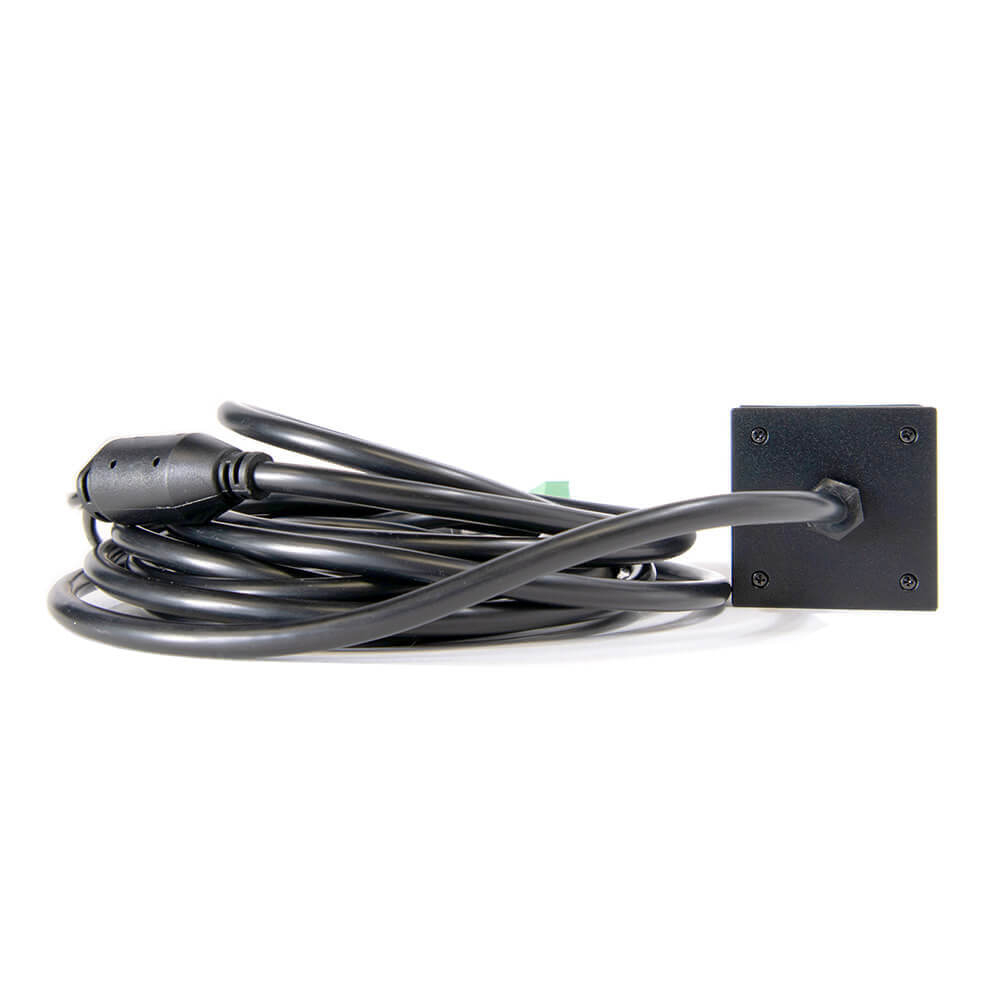

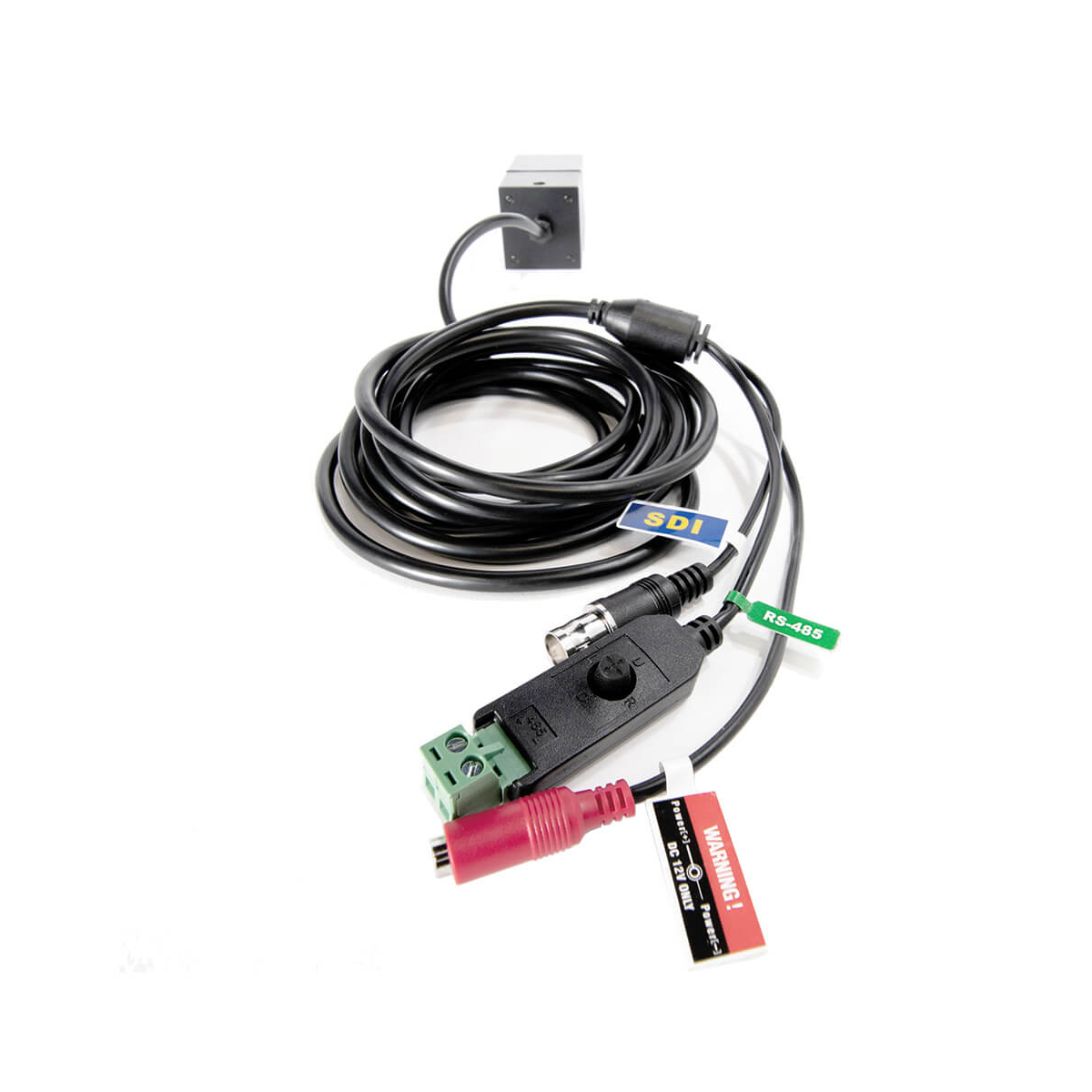

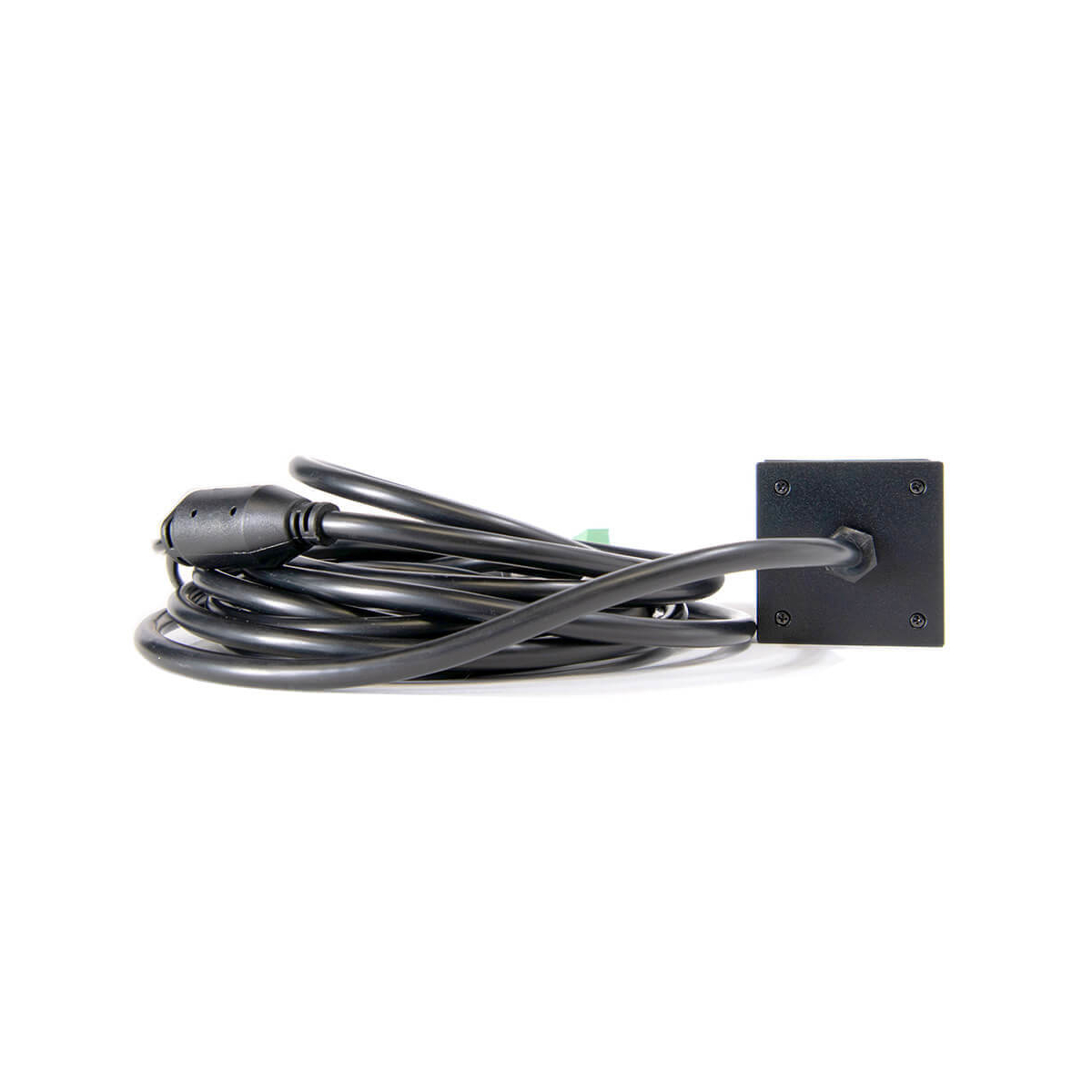

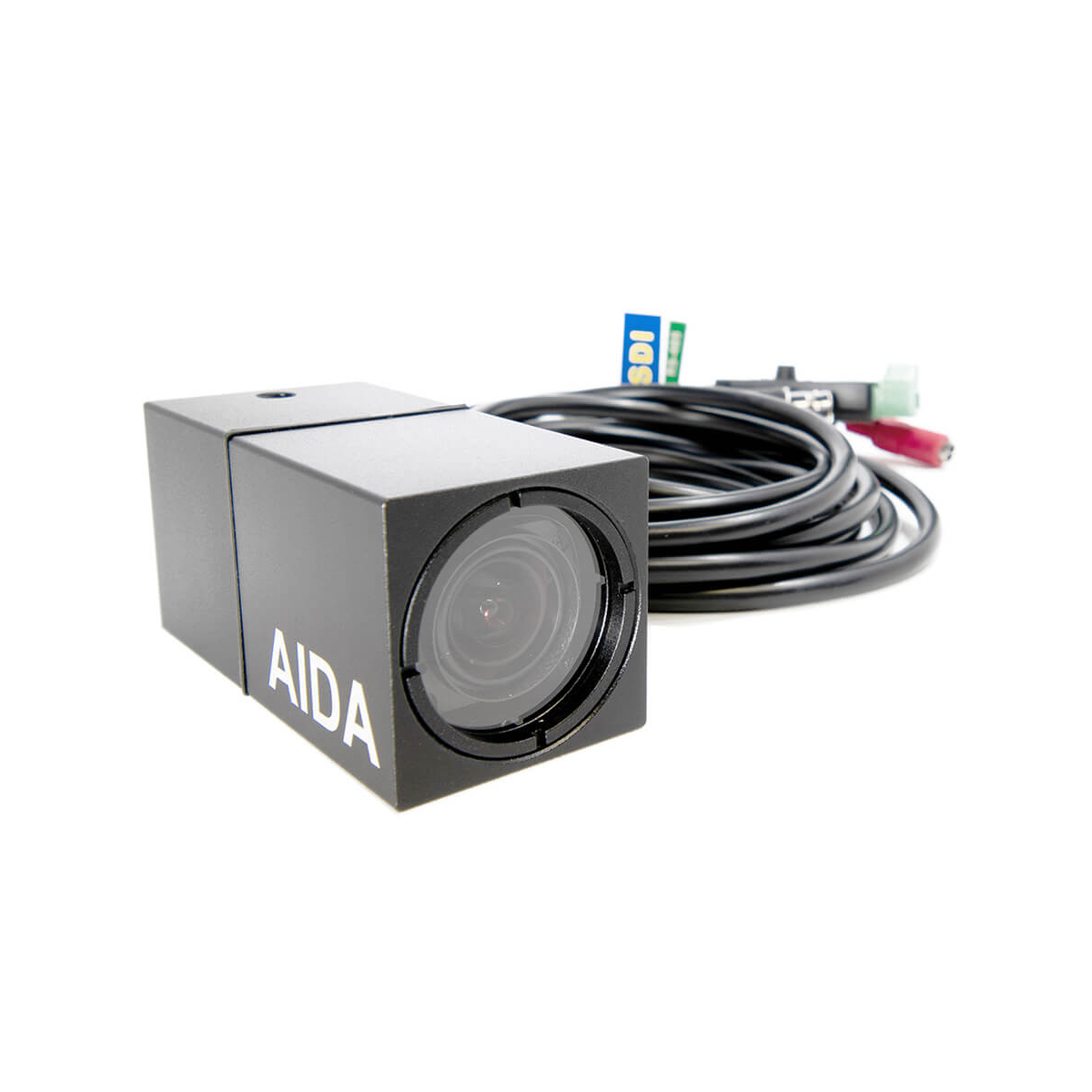

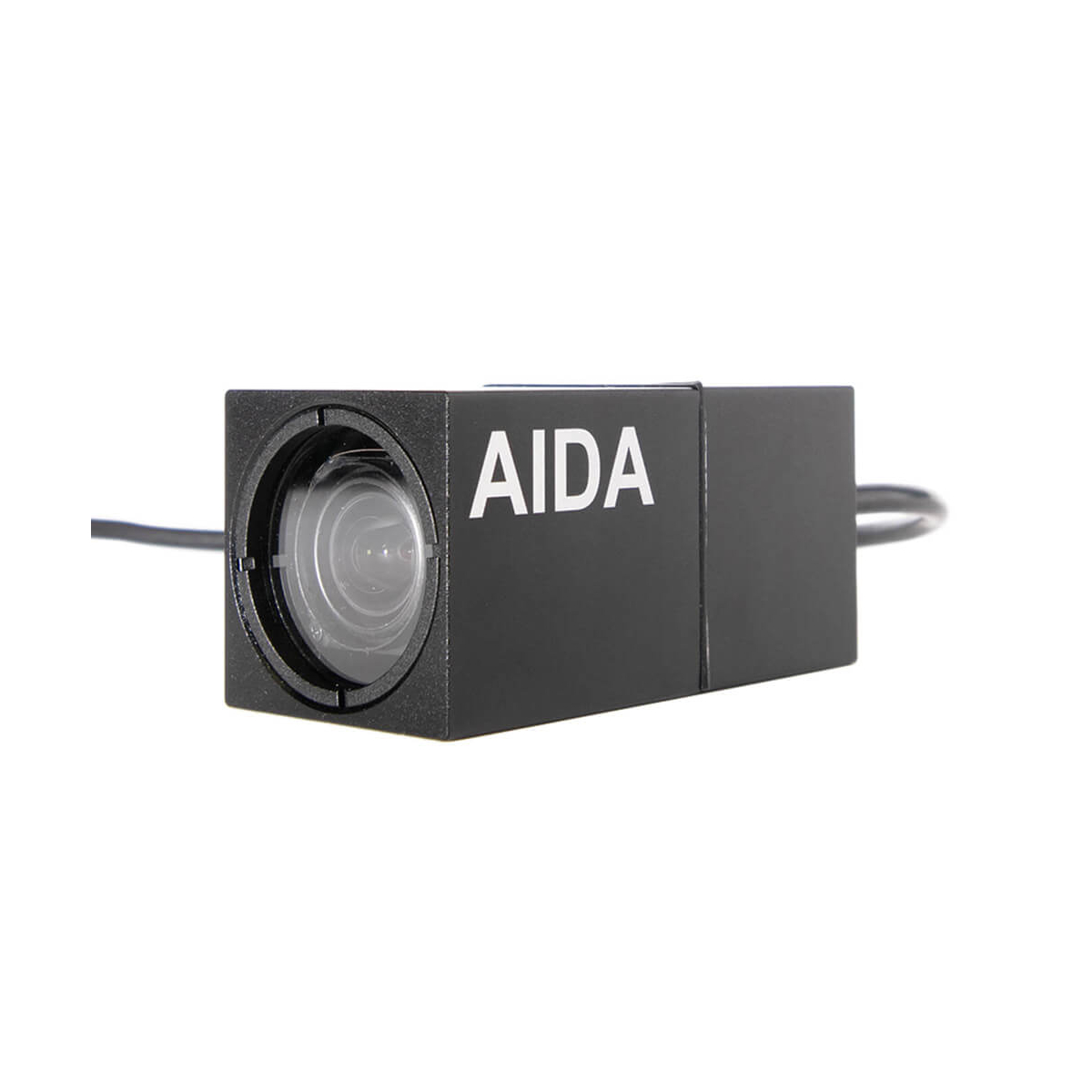

- HD-X3L-IP67
- DC 12v Power Supply & Sockets Adapter
