- Full-HD 1/2.8” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video.
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
- 20x optical zoom for FHD shots over distances of up to 140 ft.
- OSD Breakout cable provides power or control of zoom over serial RS485 communication.
- Flawlessly relays multi-channel embedded audio via NDI®|HX.
- Perfectly suited for beginning and exisisting NDI® setups.
- PoE Compatible to ease cable runs with 1 ethernet cable.
|
Video |
|
| Image Sensor | 1/2.8” Progressive CMOS |
| Effective Pixels | Horizontal: 1920, Vertical: 1080 |
| Pixel Size | 2.9 μm (H) x 2.9 μm (V) |
| Resolution | 1080p, 1080i, 720p |
| Resolution | Rate |
1080 60p / 59.94 / 50p / 30p / 29.97p / 25p / 24p 1080 60i / 59.94i / 50i 720 60p / 59.94p / 50p |
| Output | HDMI, IP (NDI|HX/SRT/RTMP/RTSP) |
| Color Space | 4:2:2 (YCbCr) 10bit |
| Min Illumination | 0.2Lux (Day), 0.1Lux (Night) |
|
Optics |
|
| Lens | 20X HD Optical Zoom, F1.5 ~ F3.0 |
| Field of View | 61° WIDE, 3.4° TELE’d |
|
Audio |
|
| Input | 3.5 TRS Stereo Audio Port |
| Sample Rate | 16 / 24 / 32 Bits |
|
Standard |
|
| SMPTE | UDP|IP, RTSP|RTMP, SRT, NDI|HX |
|
Physical |
|
| Camera Control |
Protocol: VISCA Over IP Control: OSD Button, Web UI or Controller |
| Operation Temp | 32° F – 104° F |

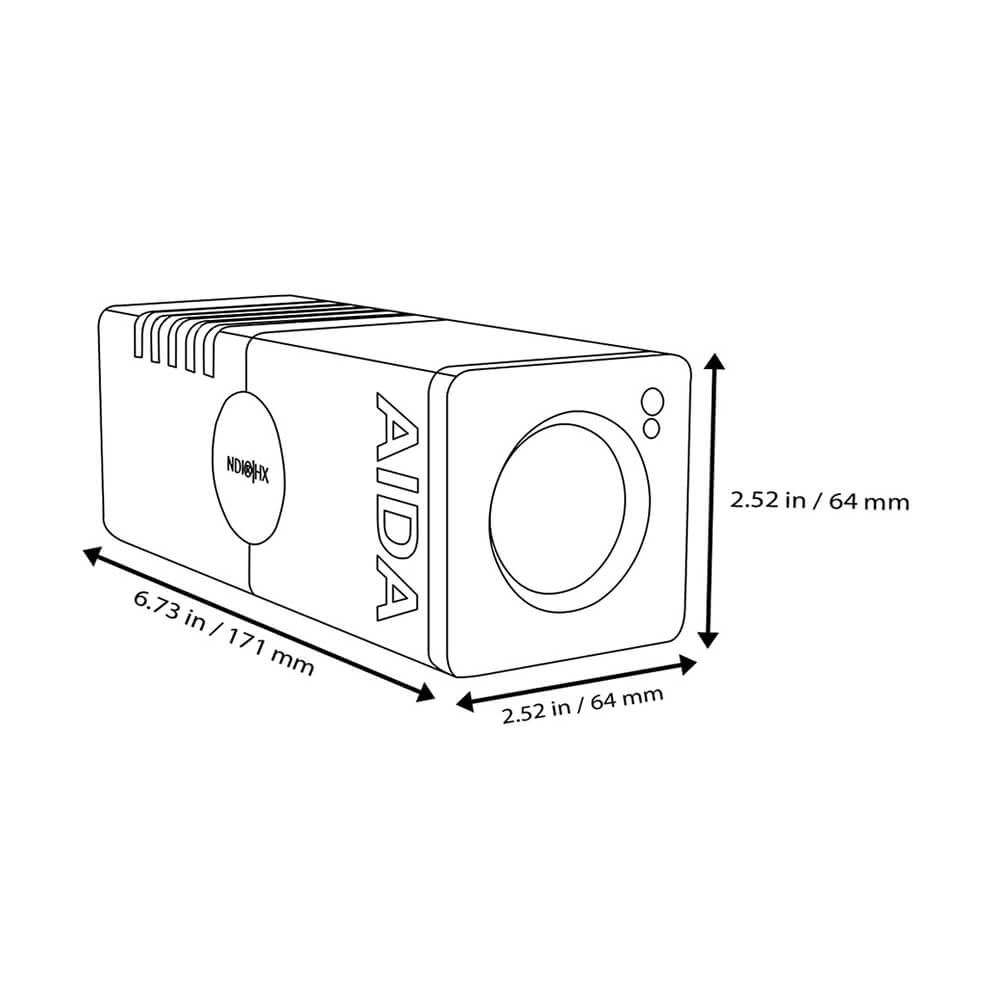

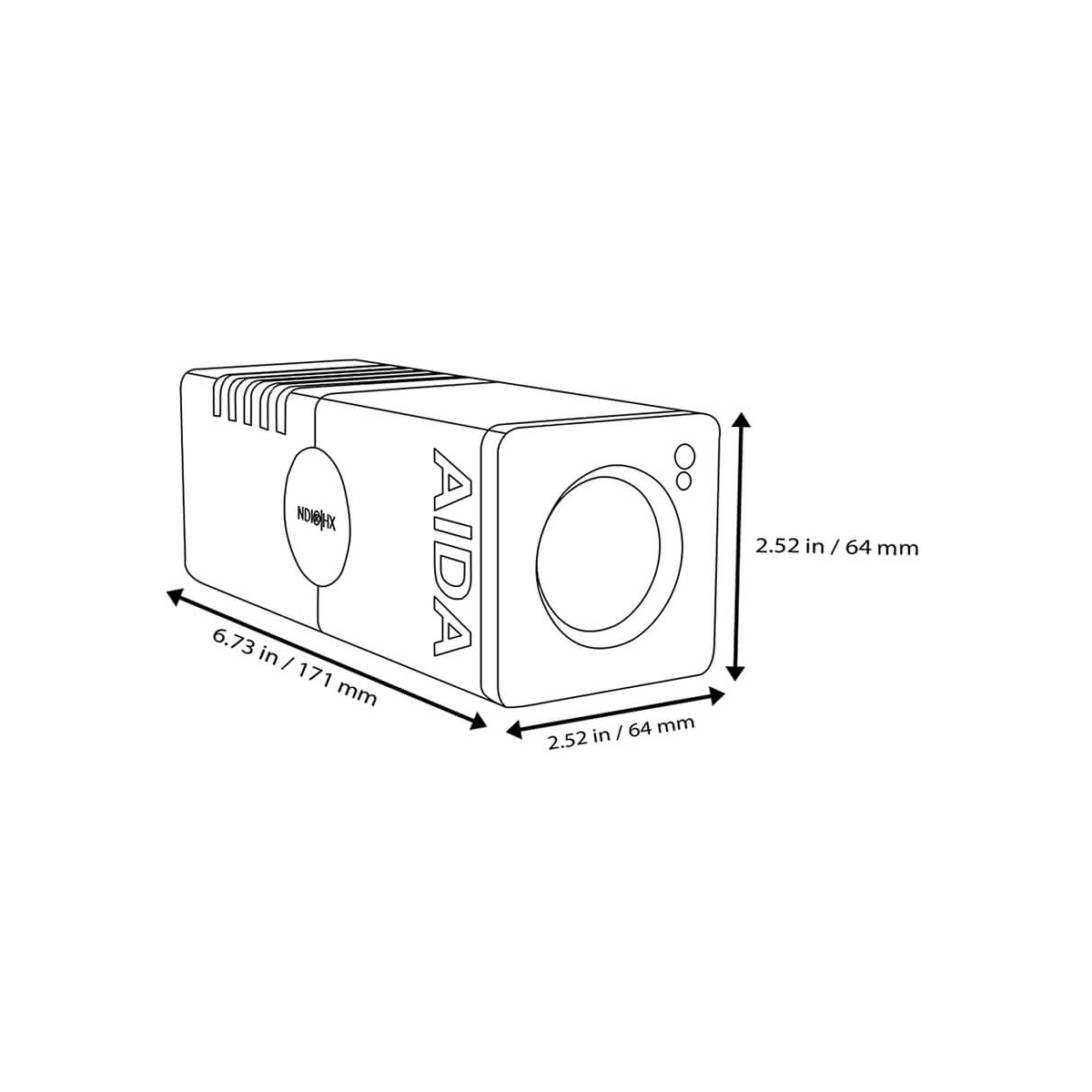

| Dimension | 171mm x 64mm x 64mm (6.73in x 2.52 in x 2.52 in) |
| Weight | 800g / 1.76lbs (with default WP cap) |
| Power | 12VDC (+9 - +15VDC) (PoE+ 24Watts) |
- HD-NDI-X20
- IR Remote Control
- DC 12v Power Supply & Sockets Adapter
- I/O Breakout Cable
