- • Full-HD 1/3” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video.
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
- Versatile design with top and bottom tripod mounts for uniques shot creation.
- CS mount lens allows for extra clarity over other types of lenses
- Weatherproof rating allows for extra protection against enviromental elements
- Small form-factor and rugged designed makes all video streaming applications possible
- Perfectly suited for outdoor shots any new or existing NDI®|HX setup.
|
Video |
|
| Image Sensor | 1/3″ Progressive CMOS |
| Sensor Size | 5.346mm x 3.003mm (16:9) |
| Effective Pixels | Horizontal: 1920, Vertical: 1080 |
| Pixel Size | 2.75 μm (H) x 2.75 μm (V) |
| Resolution | 1080p / 1080i : 1920 x 1080 720p : 1280 x 720 |
| Resolution | Rate |
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 1080i : 60 / 59.94 / 50i 720 720p : 60 / 59.94 / 50p |
| Output | IP (NDI|HX/SRT/RTMP/RTSP) |
| Color Space | 4:2:2 (YCbCr) 10bit |
| Min Illumination | 0.2Lux (Day), 0.1Lux (Night) |
| White Balance | Auto & Manual (9,000 K – 11,000 K) |
|
Lens |
|
| Lens | C/CS Mount (Default 4mm HD Lens with CAP) |
|
Standard |
|
| SMPTE | UDP|IP, RTSP|RTMP, SRT, NDI|HX |
|
Physical |
|
| Camera Control | Protocol: VISCA Over IP |
| Operation Temp | 32° F – 104° F |
| Dimension |
78mm x 41mm x 41mm 3.07” x 1.61” x 1.61” (with default WP cap) |
| Weight | 454g / 1 lb (with default WP cap) |
| Power | 12VDC (+9 - +15VDC) (PoE Adapter Included) |

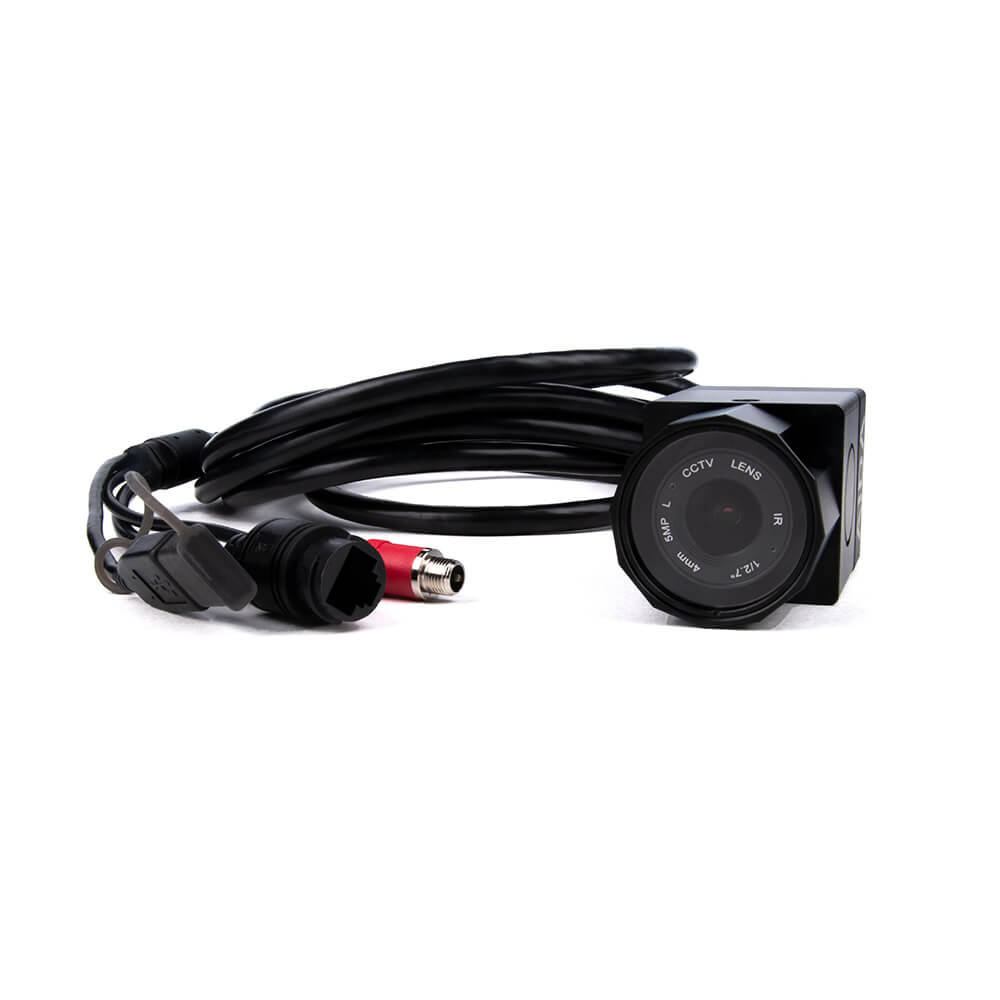

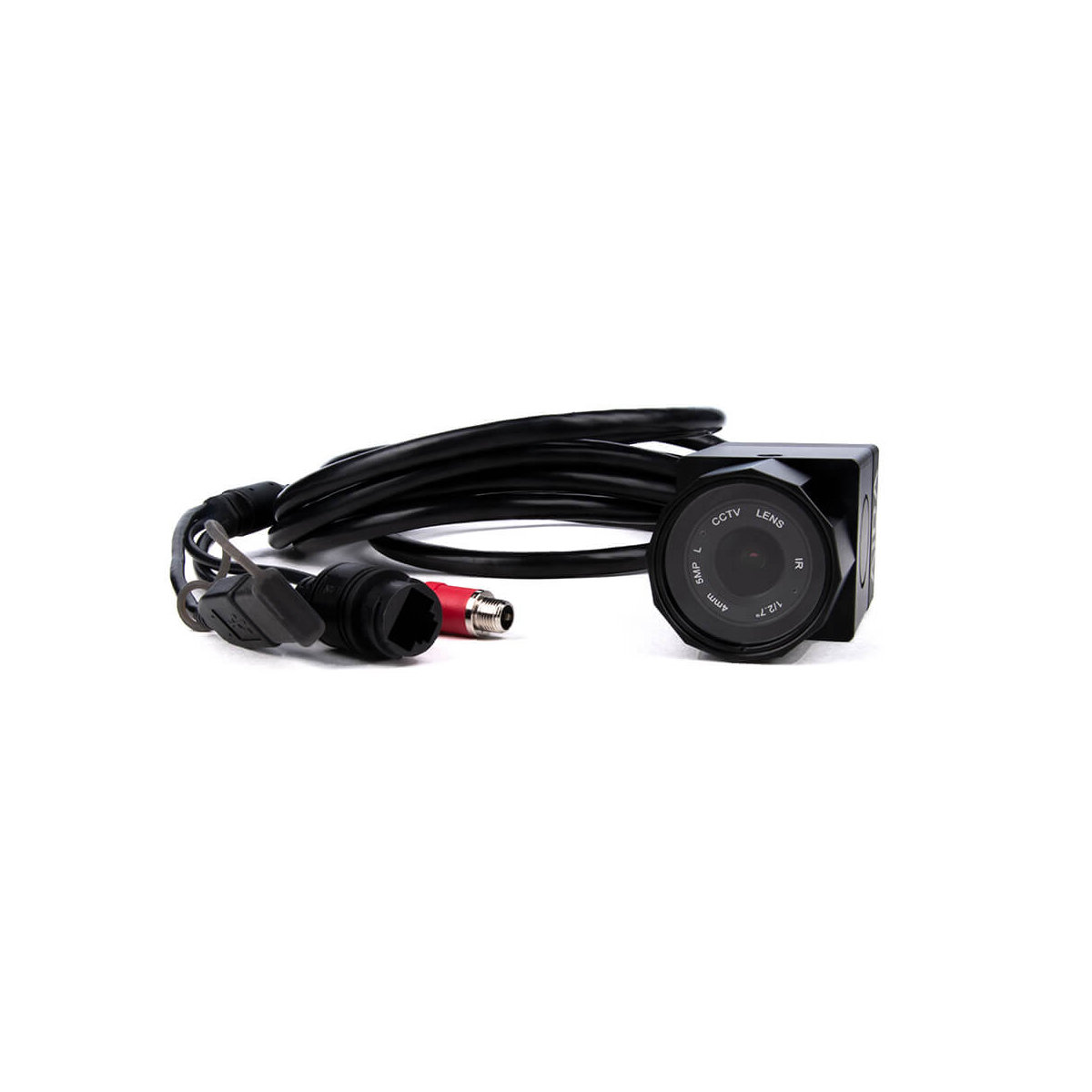

- HD-NDI-IP67
- PoE Dongle Adapter
- DC 12v Power Supply & Sockets Adapter
- 4mm 5MP Lens (Pre-Installed)
