- Full-HD 1/3” Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video.
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
- Versatile design with top and bottom tripod mounts for unique shot creation.
- USB SVC port for easy network setting adjustments and updates.
- Small form-factor makes it placeable in discreet places.
- Perfectly suited as extra angles for any new or existing NDI®|HX setup.
Video |
|
Image Sensor | 1/3″ Progressive CMOS |
Sensor Size | 5.346mm x 3.003mm (16:9) |
Effective Pixels | Horizontal: 1920, Vertical: 1080 |
Pixel Size | 2.75 μm (H) x 2.75 μm (V) |
Resolution | 1080p, 1080i, 720p |
Resolution | Rate |
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 1080i : 60 / 59.94 / 50i 720 720p : 60 / 59.94 / 50p |
Output | IP (NDI|HX/SRT/RTMP/RTSP) |
Color Space | 4:2:2 (YCbCr) 10bit |
Min Illumination | 0.2Lux (Day), 0.1Lux (Night) |
White Balance | Auto & Manual (9,000 K – 11,000 K) |
Lens |
|
Lens | C/CS Mount (Default 4mm HD Lens) |
Standard |
|
IP Protocol | UDP|IP, RTSP|RTMP, SRT, NDI|HX |
Physical |
|
Camera Control | Protocol: VISCA Over IP |
Operation Temp | 32° F – 104° F |

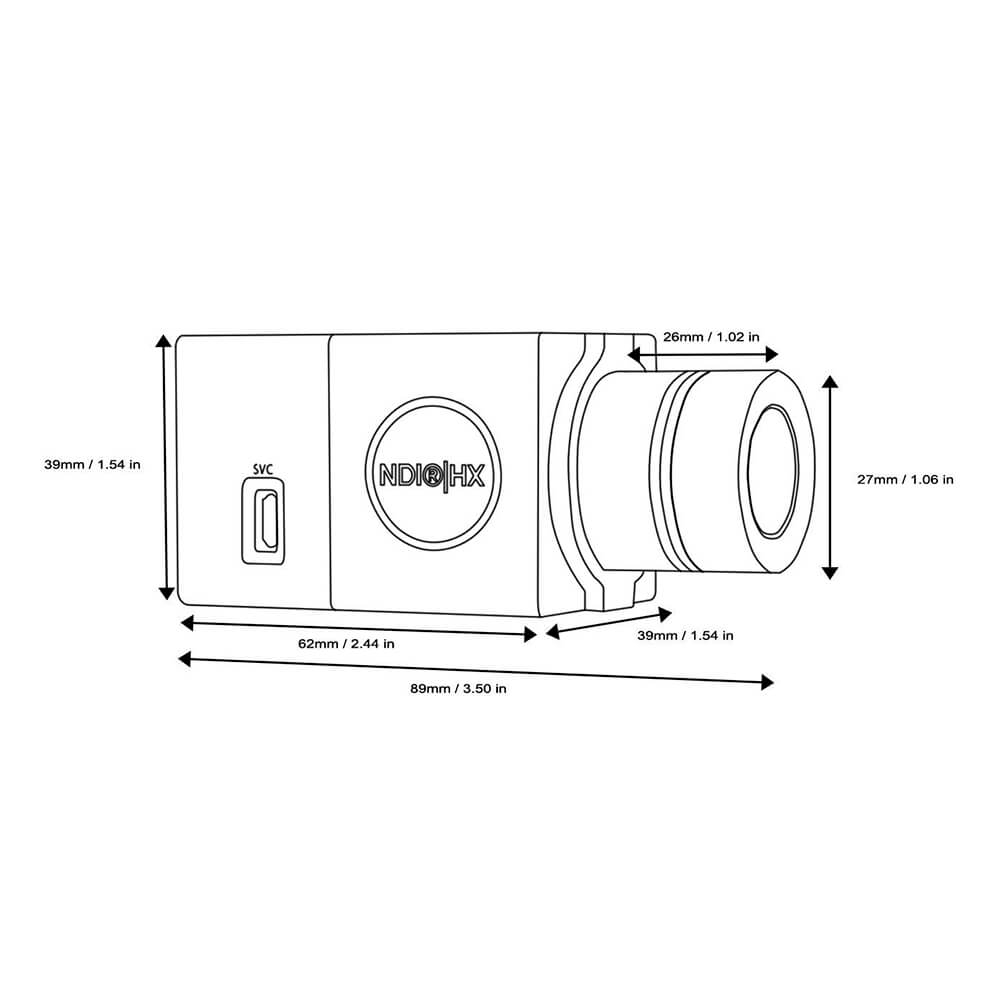

Dimension | 86mm x 40mm x 40mm / 3.38” x 1.57” x 1.57” (with default 4mm lens) |
Weight | 180g / 0.39lbs (with default 4mm lens) |
Power | 12VDC (+9 - +15VDC) (PoE Adapter Included) |
- HD-NDI-CUBE
- PoE Dongle Adapter
- DC 12v Power Supply & Sockets Adapter
- 4mm 5MP Lens (Pre-Installed)
- USB Cable
- C-Mount Cap Adapter
- Sensor Cap
