NDI|HX on the go

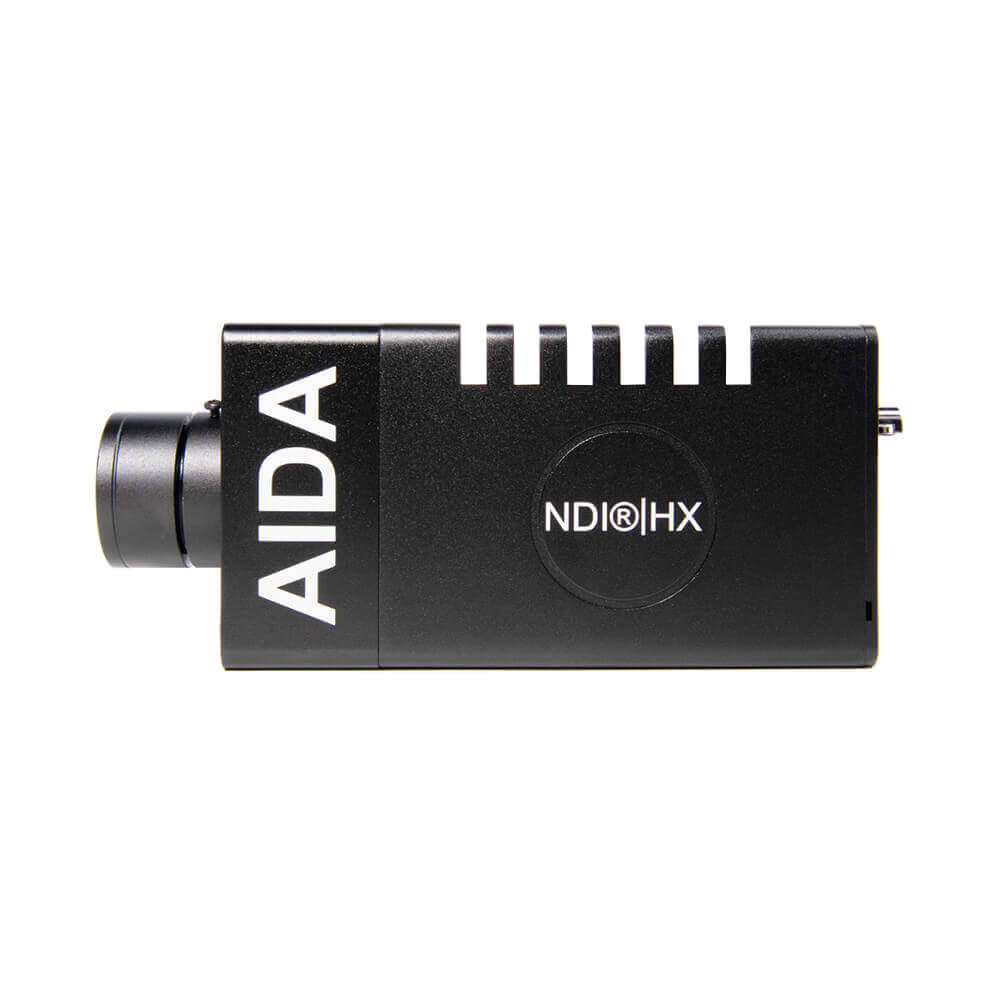

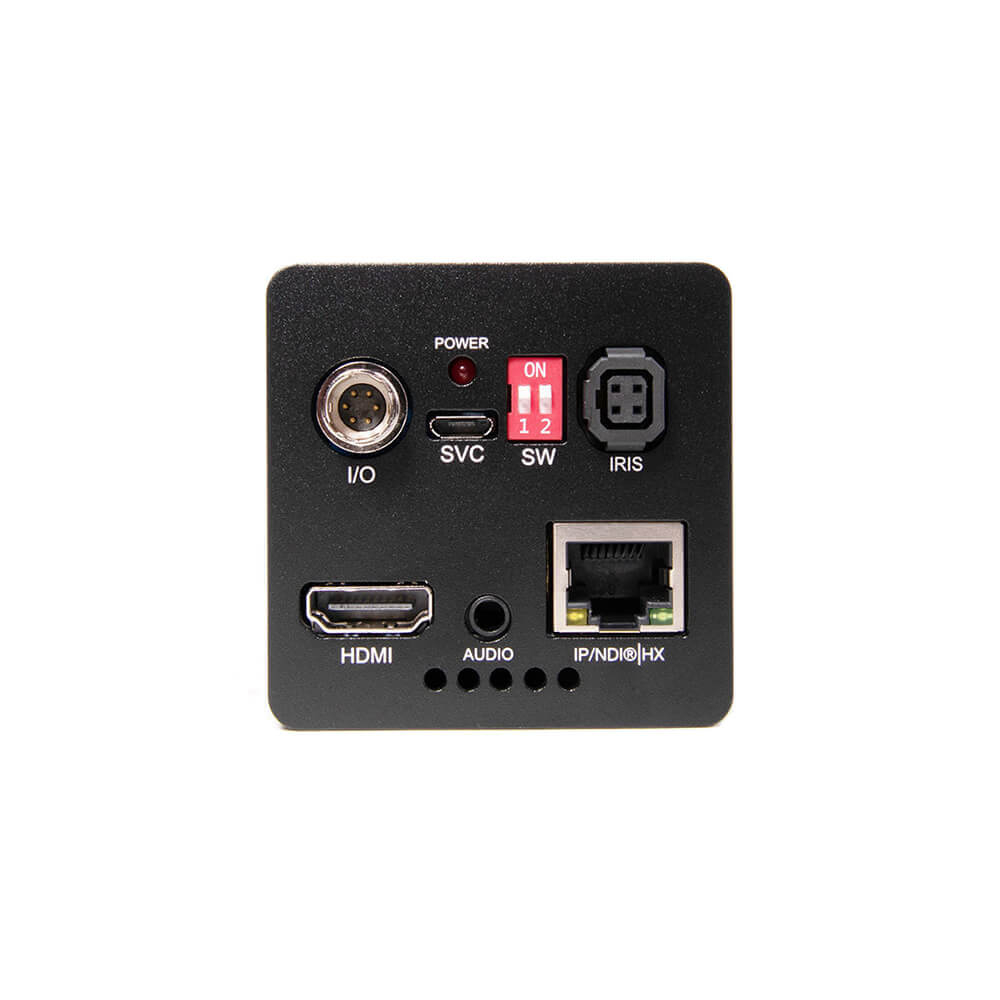

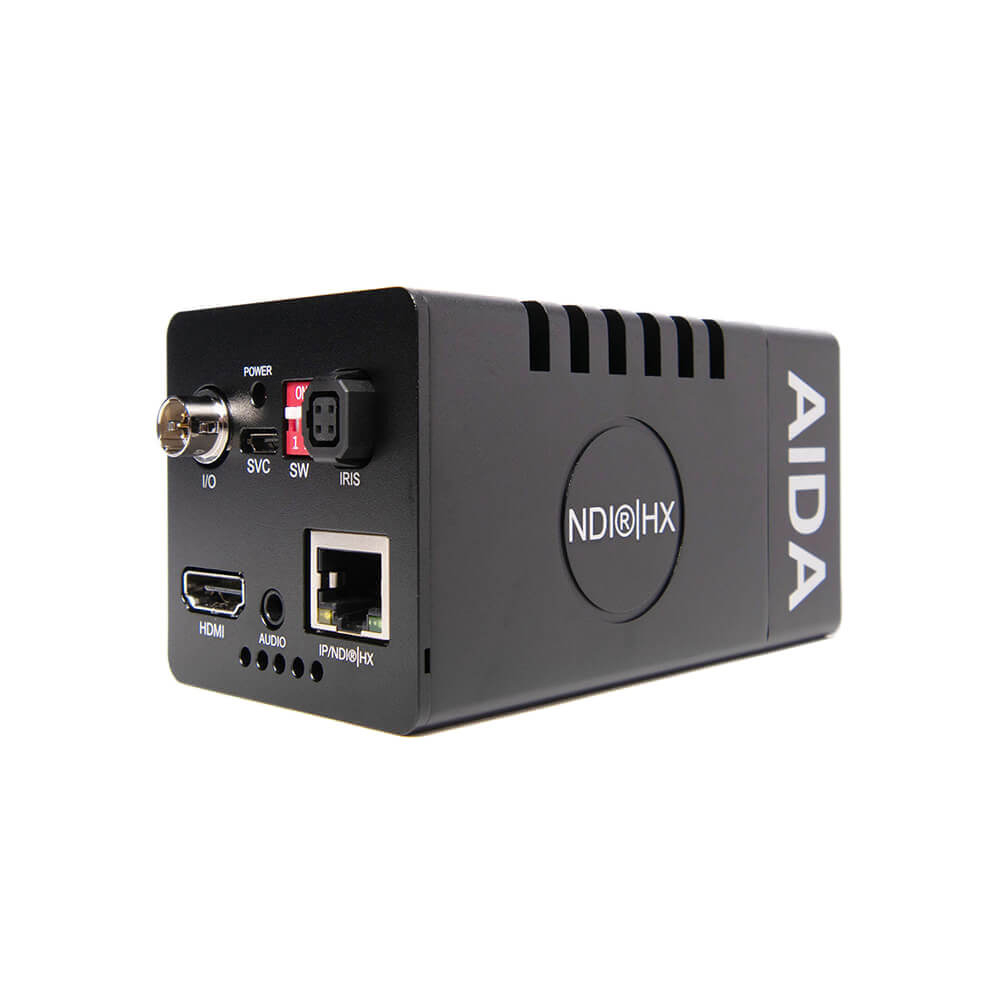

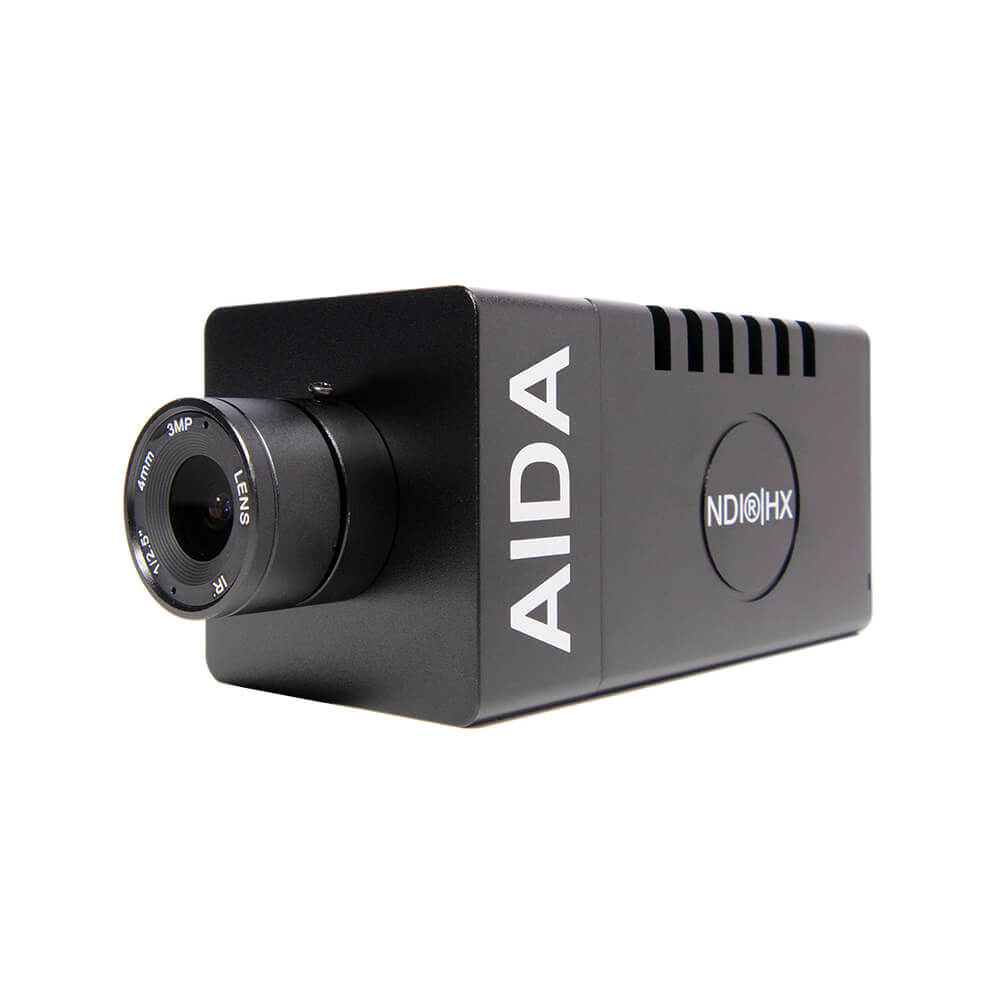

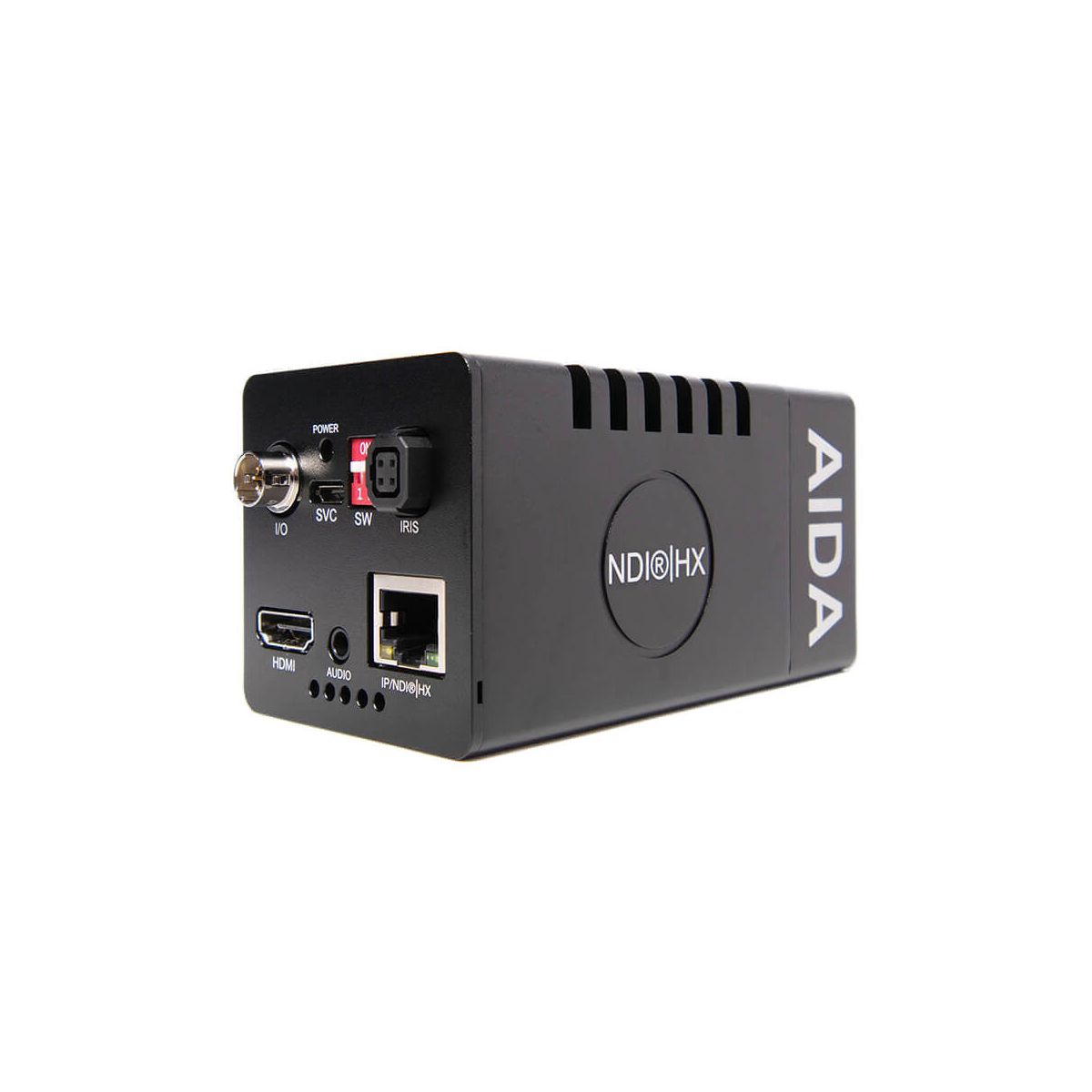

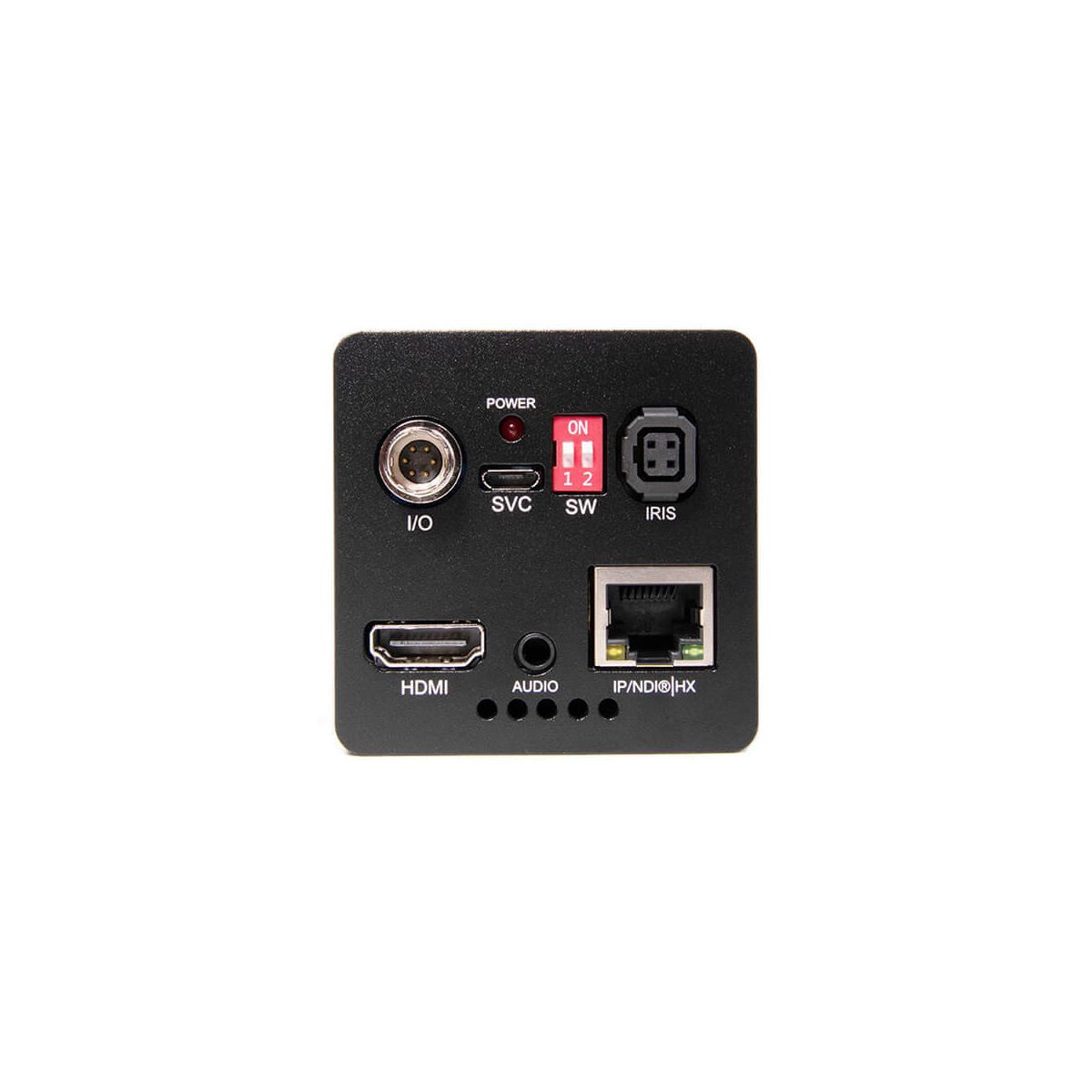

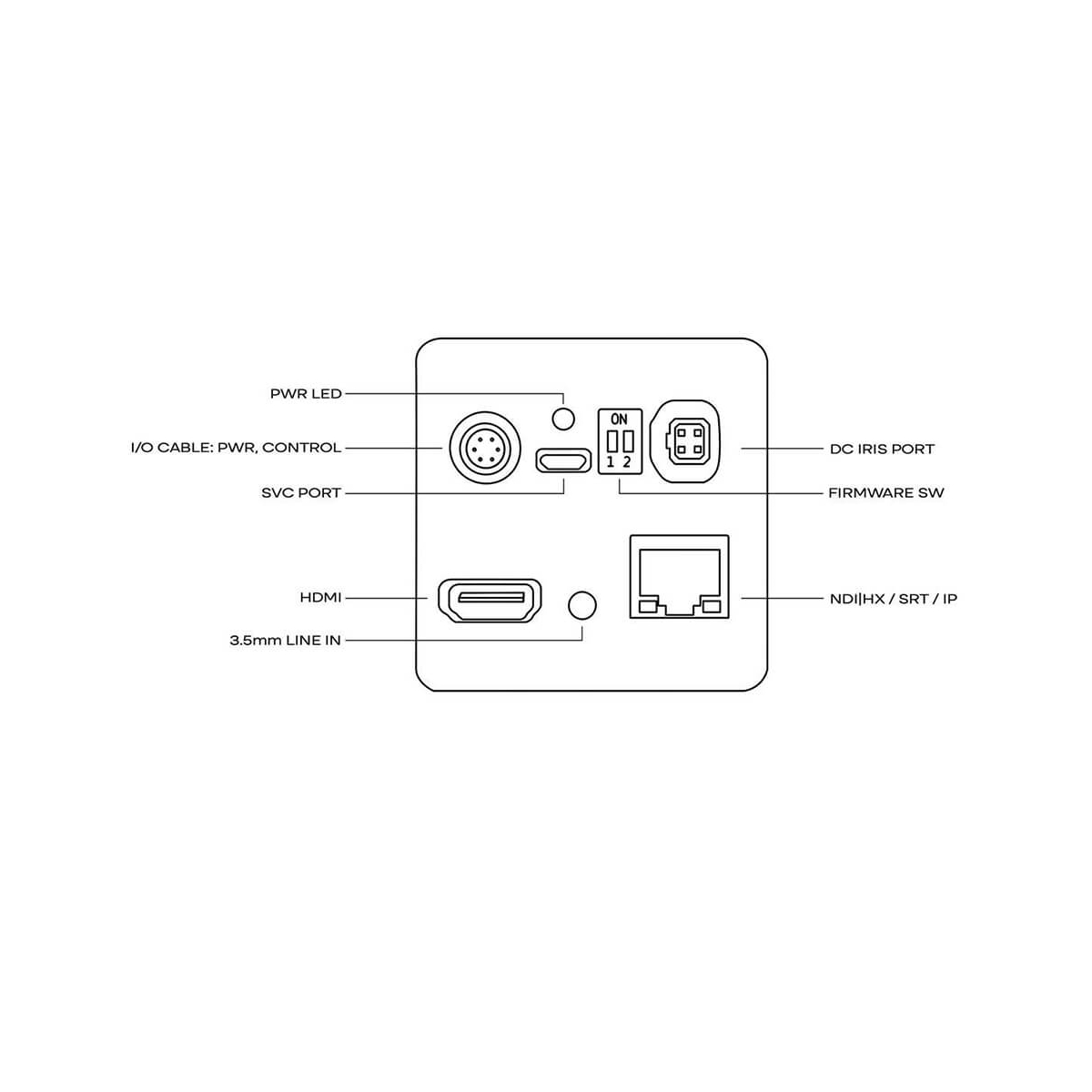

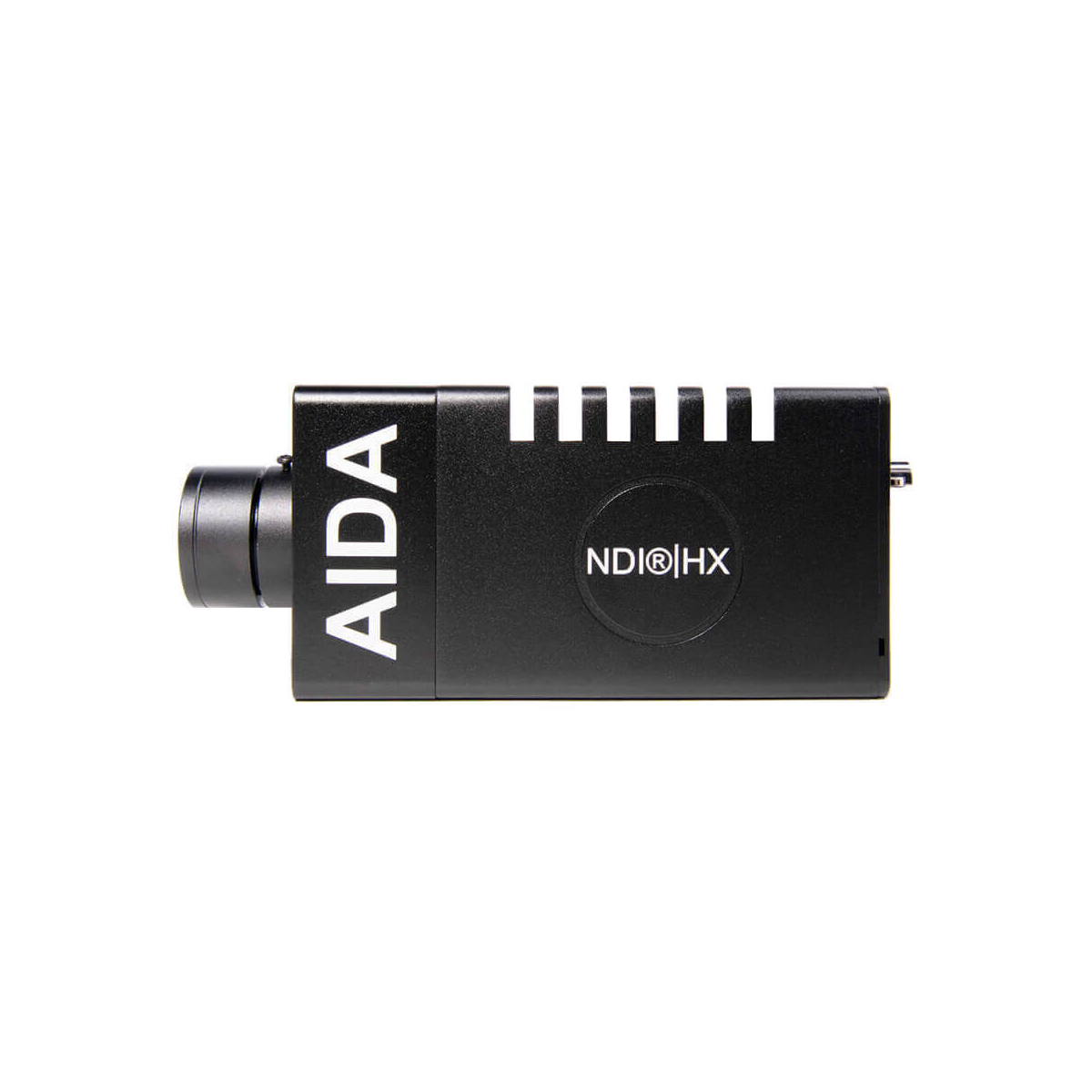

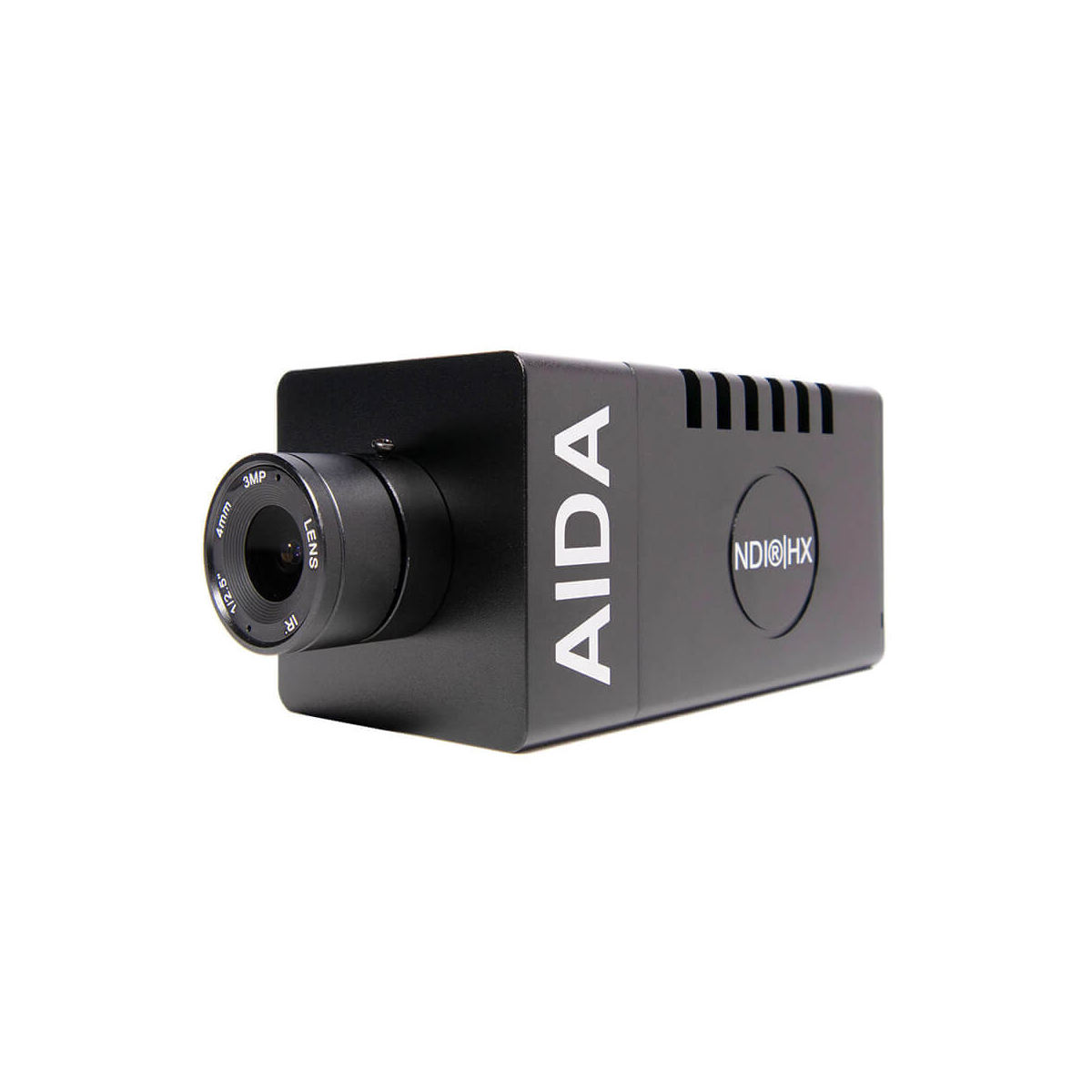

The NDI|HX POV camera that started it all. The HD-NDI-200 is a compact Full-HD camera, which features a 1/2.8″ progressive CMOS sensor that captures crystal clear imaging in various lighting scenarios. Coming with both an HDMI and RJ45 port for simultaneous streaming options, there is nothing the HD-NDI-200 can’t do!
This was the true conception of AIDA meeting NDI. Harness the power of NDI|HX through AIDA’s world renowned POV form factor.
No-Hassle Integration
The HD-NDI-200 comes pre-loaded with its NDI|HX license key. That means less time figuring out whether the activation key has an I or l, and more time streaming.
Run power, video, and control over 1 cable
With PoE support, simplify your cable setup with just 1 ethernet cable. As we like to say; less mess, less stress.
Tally Light Integration
Have your talents know when the light is being shined on them. The HD-NDI-200 comes with a small discreet tally light next to the lens, ensuring there’s no more awkward stares during your broadcast.
No Complex Web UI Here
Control and preview your camera settings using the cameras IP address, allowing for adjustable shutter, white-balance, and much more on the fly.
Adjustable CS/C Mount Lens
Lets face it, sometimes 4mm is just not enough to get the job done. With a native CS mount type mount, the HD-NDI-200 can utilize other HD lenses such as our CS6.0F, or CS-0550V.
PTZ control interface enables remote NDI control of connected camera
Magewell Pro Convert NDI encoders can receive PTZ commands from the NDI decoder and convert them into protocols that can be recognized by ordinary cameras to implement specific operations and simplify on-site production workflows based on NDI technology.
Support five PTZ control protocols, namely Visca, Visca UDP, Visca UDP2rs232, PELCO-D and PELCO-P, to satisfy users to control PTZ cameras in different usage scenarios.
1/4"-20 Mount Here, and There
The HD-NDI-200 comes standard with two 1/4″-20 standard tripod mounts on the top and bottom of the camera. Placing the camera has never been easier!
|
AIDA Imaging HD-NDI-200 Specifications |
|
| Image Sensor |
1/2.8” Progressive CMOS
|
| Effective Pixels |
Horizontal: 1920, Vertical: 1080
|
| Pixel Size | 2.9 μm (H) x 2.9 μm (V) |
| Resolution | 1080p, 1080i, 720p |
| Resolution Rate | - 1080 60p/59.94/50p/30p /29.97p/25p/24p/23.98p - 1080 60i/59.94i/50i - 720 60p/59.94p/50p/30p /29.97p/25p |

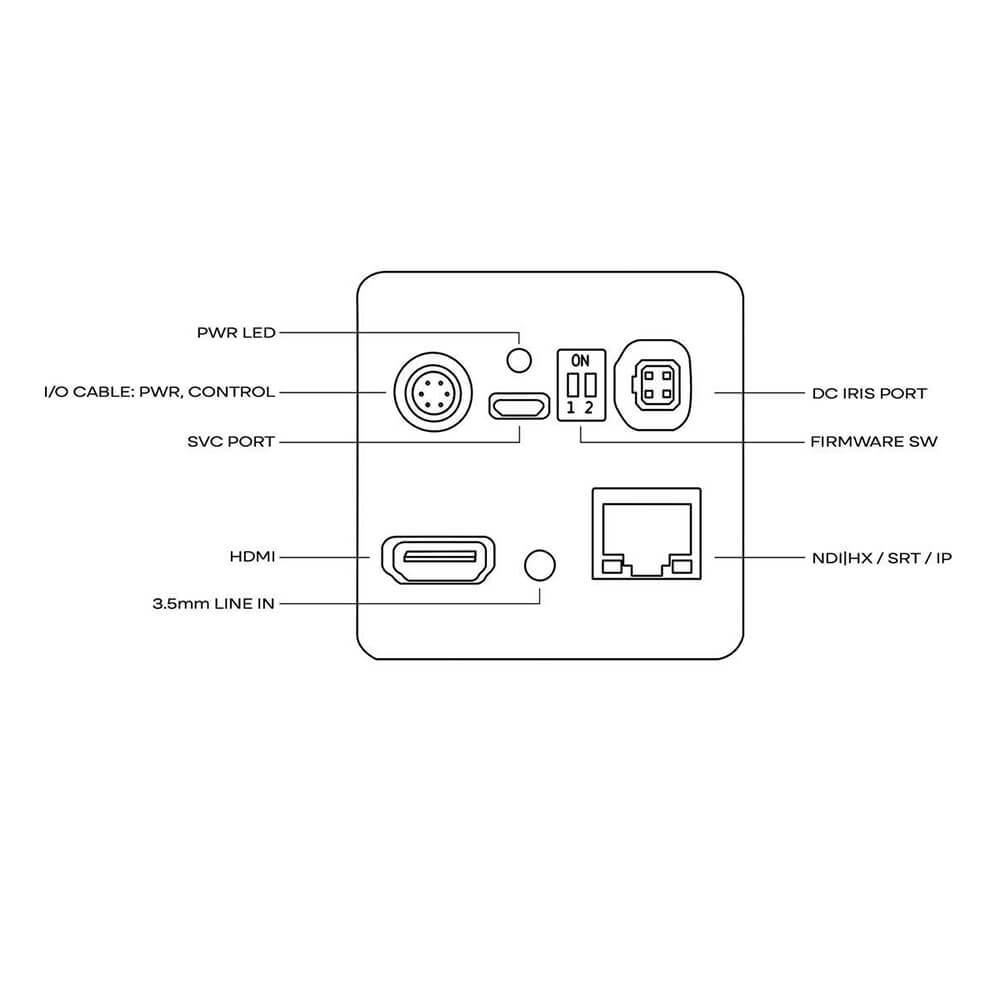

| Video Output | HDMI, RJ45, NDI®|HX2 |
| IP Rate | 1920 x 1080 @ 3~60 1280 x 720 @ 3~60 1024 x 576 @ 3~60 620 x 360 @ 3~60 |
| Color Space | 4:2:2 (YCbCr) 10bit |
| Lens | C/CS Mount (Default 4mm HD Lens) |
| Audio Input | 3.5mm TRS Stereo Audio Port |
| Sample Rate | 16/24/32 Bits |
| Camera Control | Protocol: VISCA RS485, VISCA Over IP Control: OSD Button or Web UI |
| Operation Temp | 32°F - 104°F |

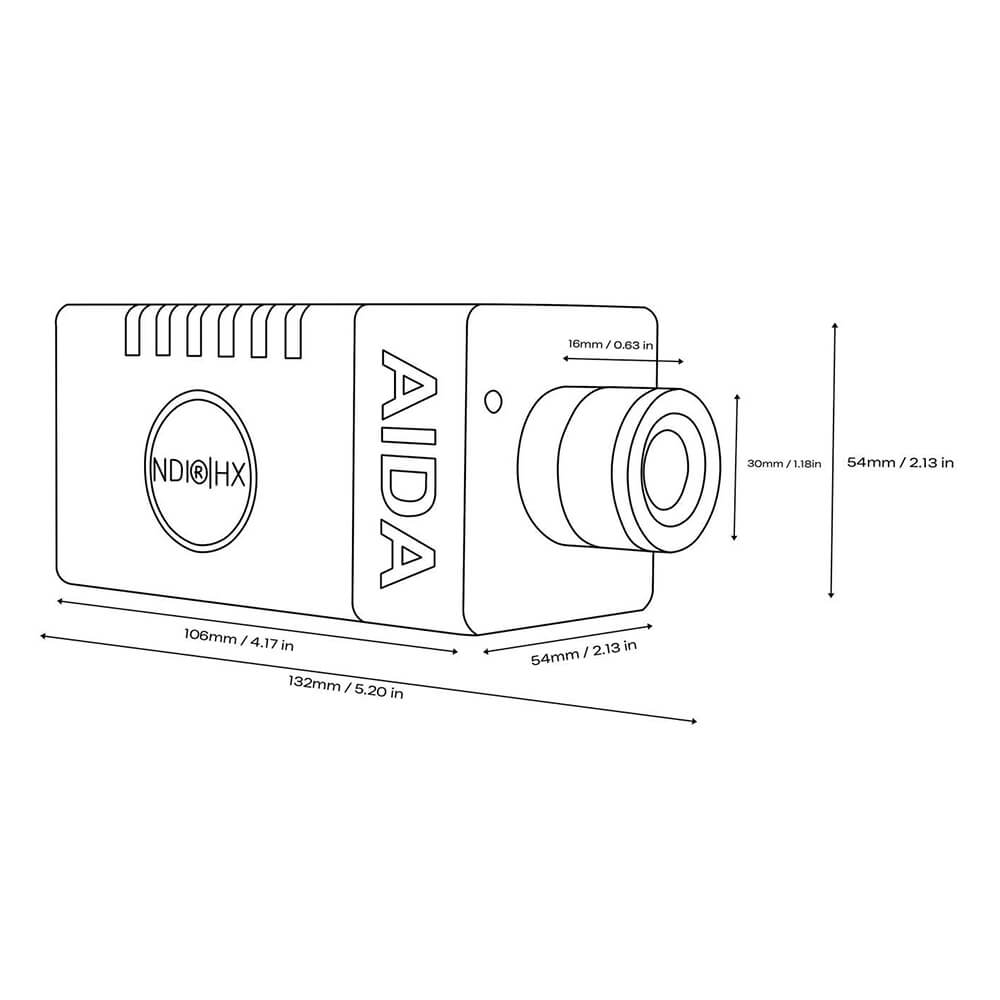

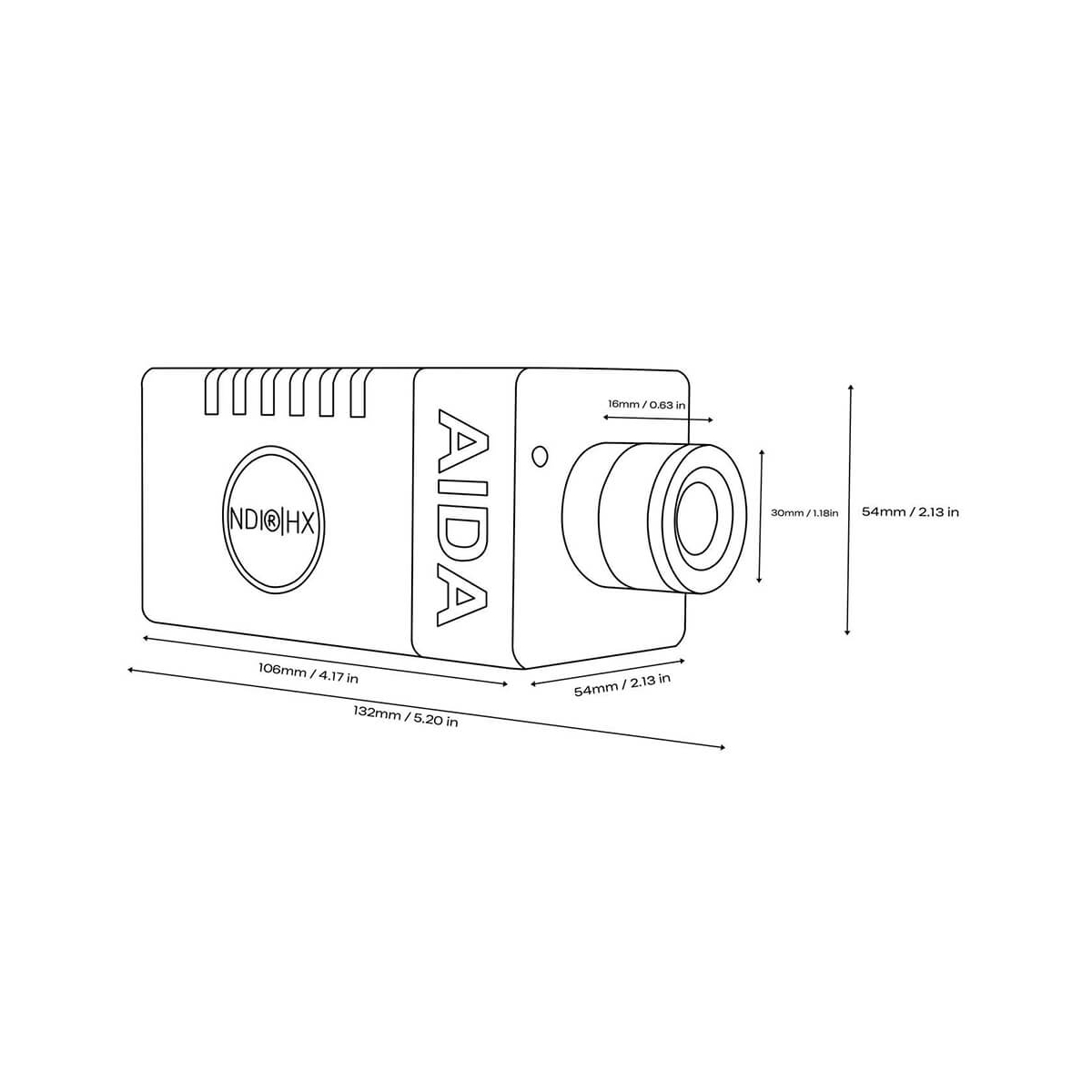

| Dimension | 54mm x 54mm x 127mm / 2.125” x 2.125” x 5” (With default 4mm Lens) |
| Power | 12VDC (+9 - +15VDC)/ POE |
- AIDA Imaging HD-NDI-200
- I/O Breakout Cable
- USB Cable
- DC 12v Power Supply & Sockets Adapter
- C-Mount Cap Adapter
- 4mm Megapixels Lens(Pre-Installed)
- Sensor Cap
