Video |
|
Image Sensor | 1/3″ Progressive CMOS |
Sensor Size | 5.346mm x 3.003mm (16:9) |
Effective Pixels | Horizontal: 1920, Vertical: 1080 |
Pixel Size | 2.75 μm (H) x 2.75 μm (V) |
Resolution |
1080p / 1080i : 1920 x 1080 720p : 1280 x 720 |
Resolution | Rate |
1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 1080i : 60 / 59.94 / 50i 720 720p : 60 / 59.94 / 50p |

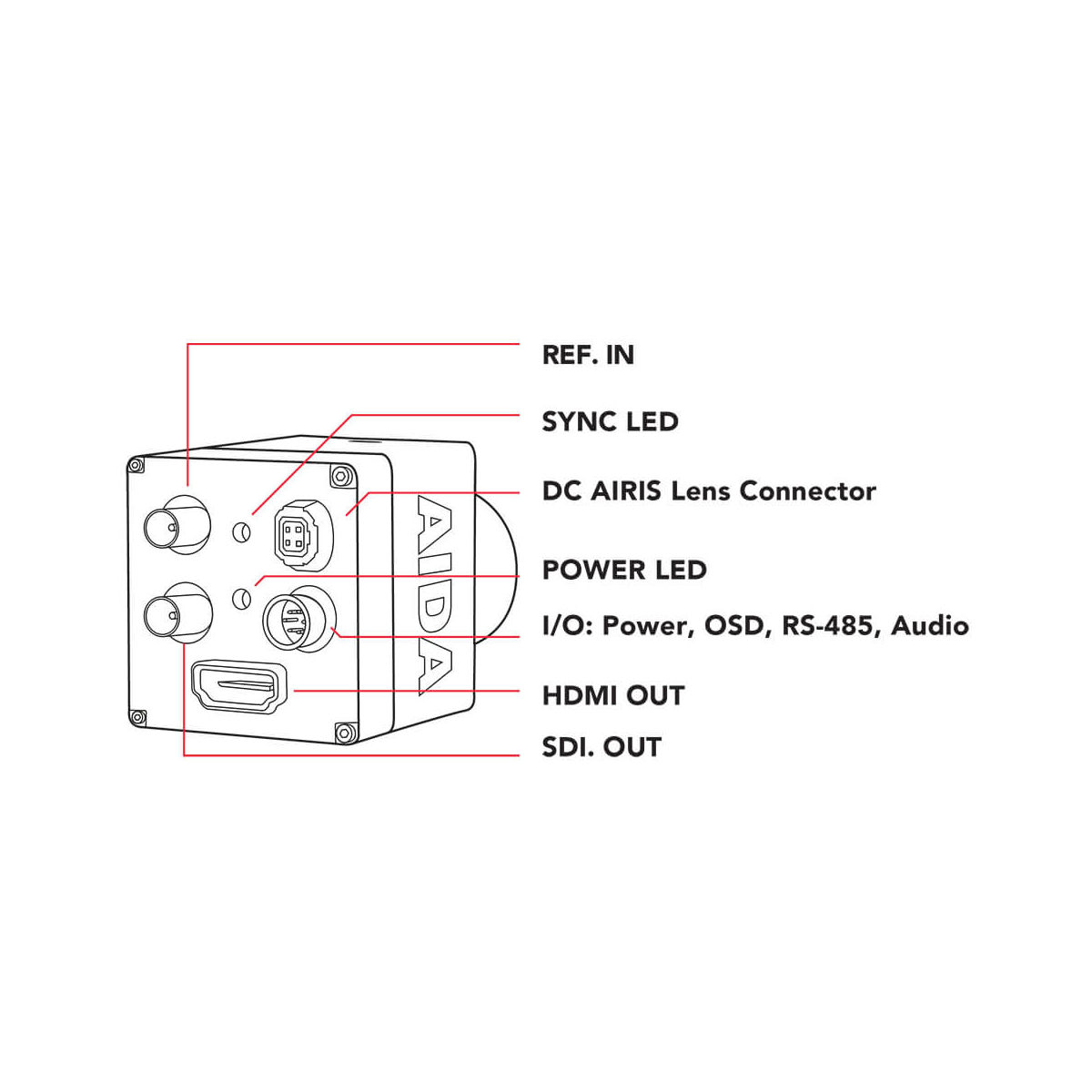

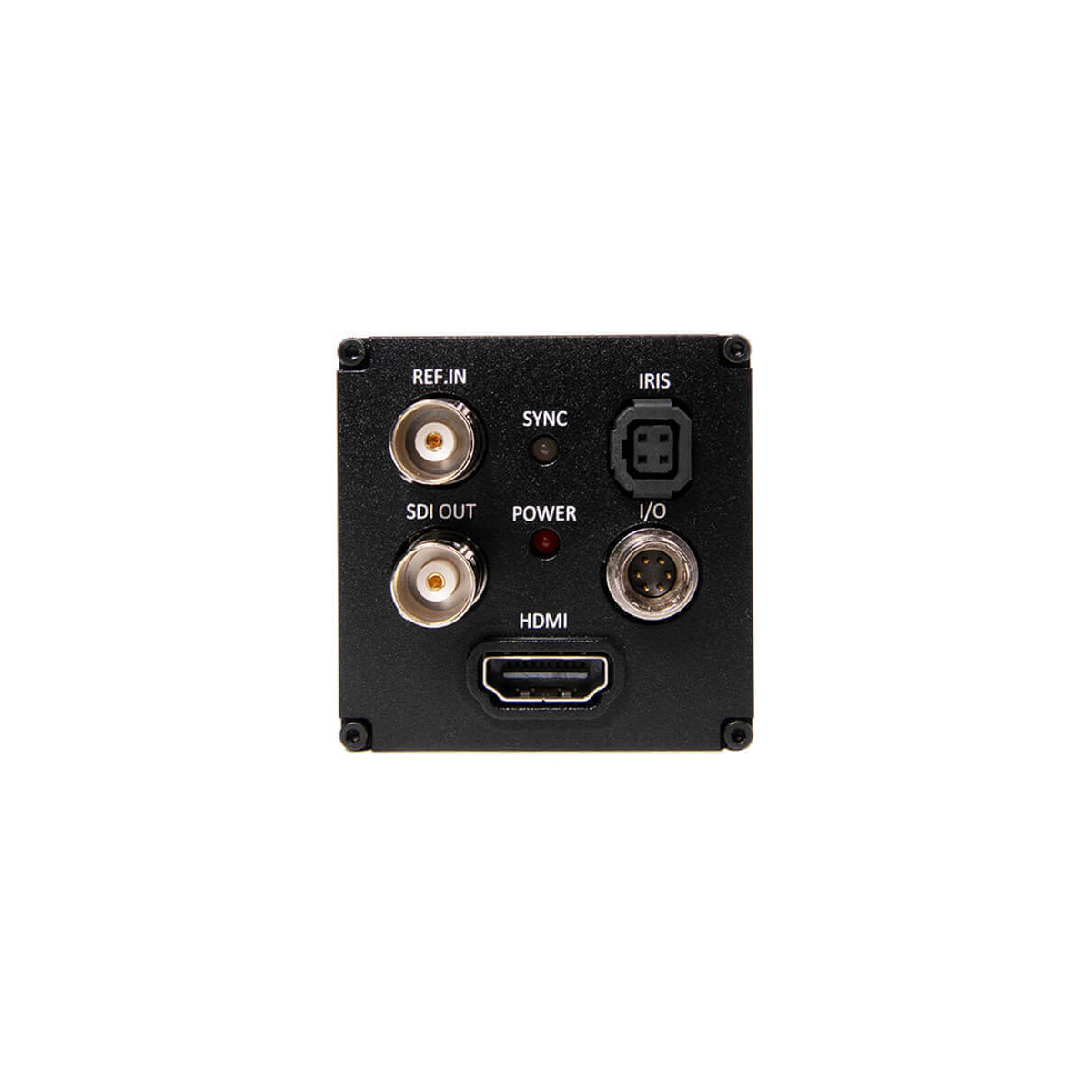

Output | HD-SDI/3G-SDI (1 BNC) HDMI 1.3a |
Color Space | 4:2:2 (YCbCr) 10bit |
Min Illumination | 0.2Lux (Day), 0.1Lux (Night) 0.005Lux (Slow Shutter ON) |
White Balance | Auto & Manual (9,000 K – 11,000 K) |
Lens |
|

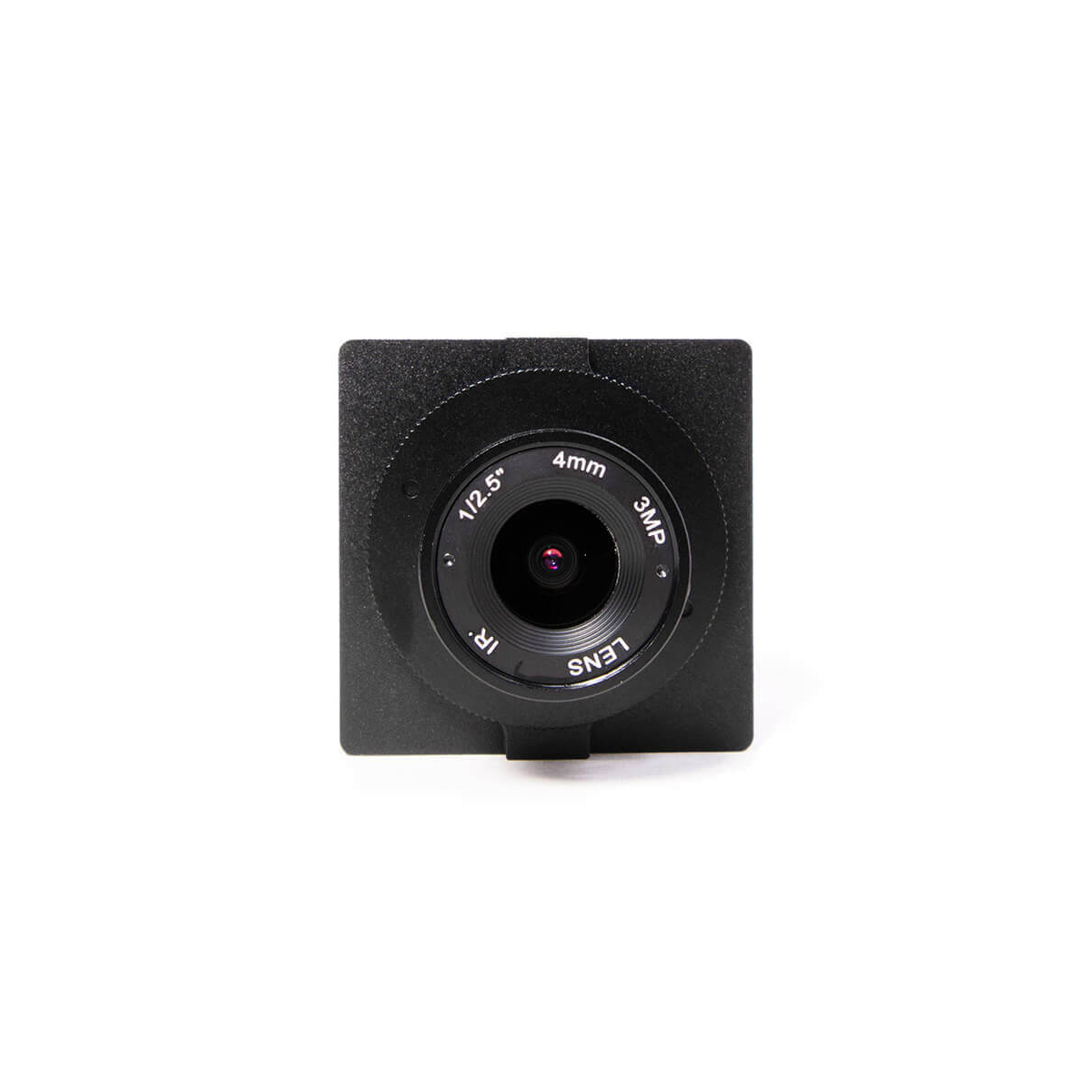

Lens | C/CS Mount (Default 4mm HD Lens) |
Audio |
|
Input | 3.5mm TRS Stereo Mic-in & Line in over I/O Cable |
Sample Rate | 16/24/32 Bits |
Standard |
|
SMPTE | SMPTE 292M, SMPTE 424M |
SYNC |
|
GENLOCK | External Tri-Level Input |
Physical |
|
Camera Control | RS-485 VISCA, OSD Button |
Operation Temp | 32° F – 104° F |
Dimension | 49mm x 49m x 71mm / 1.92” x 1.92” x 2.79” (With default 4mm Lens) |
Weight | 180g / 0.39lbs (With default 4mm Lens) |
Power | 6W at 12VDC (+9 – +15VDC) |
- AIDA Imaging GEN3G-200
- I/O Breakout Cable DC 12v Power Supply & Sockets Adapter
- C-Mount Cap Adapter
- 4mm Megapixels Lens(Pre-Installed)
- Sensor Cap
