- Full-HD 1/3” Progressive Scan CMOS sensor capable of 1080 60p NDI® HX Video.
- Accessible Web UI to stream directly to social media platforms and control image parameters over IP.

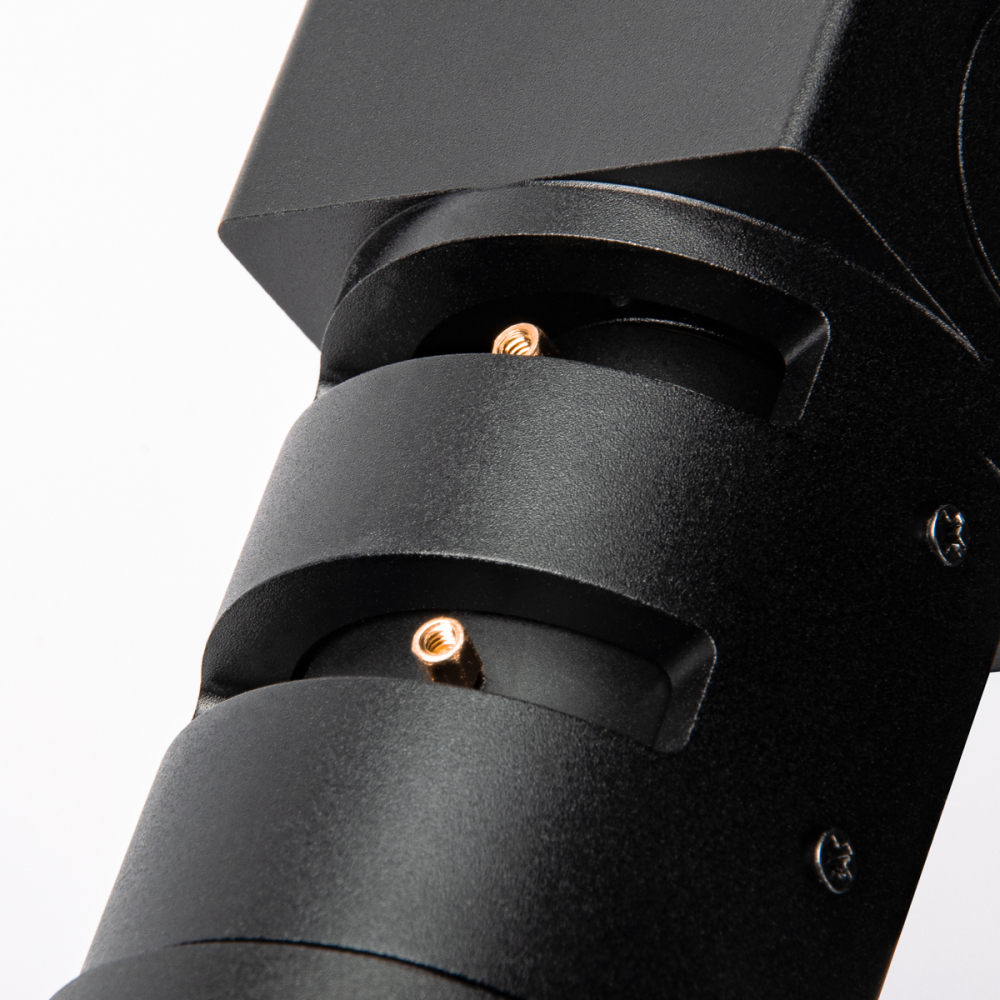

- Versatile design with top and bottom tripod mounts for uniques shot creation.
- PoE+ adaptable with adapter (comes with purchase of the camera)
- Custom IP54 rated Varifocal lens providing a FOV of 51° wide, and 6.1° tele to help get that perfect shot.
- Weatherproof rating allows for extra protection against enviromental elements
- Small form-factor and rugged designed makes all video streaming applications possible
- Perfectly suited for outdoor shots any new or existing NDI® HX setup.
VIDEO |
|
Image Sensor | 1/3” Progressive CMOS |
Sensor Size | 5.346mm x 3.003mm (16.9) |
Effective Pixels | Horizontal: 1920, Vertical: 1080 |
Pixel Size | a2.75 μm (H) x 2.75 μm (V) |
Resolution | 1080p, 1080i, 720p |
Resolution Rate |
1080 60p/59.94/50p/30p/29.97p/25p 24p 1080 60i/59.94i/50i 720 60p/59.94p/50p |
Output | IP (NDI|HX/SRT/RTMP/RTSP) |
Color Space | 4:2:2 (YCbCr) 10bit |
Min Illumination | 0.2Lux (day), 0.1Lux (Night) |
White Balance | Auto & Manual (9000 - 11,000 K) |
Audio Input | 3.5mm TRS Stereo Input, Embed over SDI |
PHYSICAL | |
Camera Control | Protocol: VISCA Over IP |
Operation Temp | 32°F - 104°F |
Dimension |
73mm x 41mm x 41mm 2.86” x 1.61” x 1.61” (With added lens) |
Weight | 454g / 1 lb |
Power | 12VDC (+9 - +15VDC) (PoE Adapter Included) |
LENS | |
Lens |
5 mm ~ 50mm Custom Lens FOV Wide: 51° Tele’d: 6.1° |
STANDARD | |
IP Protocol |
UDP|IP, RTSP|RTMP, SRT, NDI|HX |
- PoE Dongle Adapter
- DC 12v Power Supply & Sockets Adapter
- Lens Hex Adapter
