Camera |
|
Sensor | 1/1.8-inch 9MP Sony CMOS Sensor |
S/N Ratio | ≥50dB |
Min. Lux | 0.5Lux (50 IRE Max AGC,1/30, F1.8) |
Zoom Module: |
|
Zoom Capability | 30X Optical zoom, with 8X digital zoom. Combined 240X zoom |
Focal Length (wide/tele) | f= 6.87mm ~ 212.48mm |
F-Stop (w/t) | F1.4~F4.6 |
Horizontal Viewing Angle (w/t) | 60° ~ 2° |
Vertical Viewing Angle (w/t) | 34~1.1° |
Diagonal Viewing Angle (w/t) | 67°~2.3° |
Minimum Focus Distance (w/t) | 12” / 60” (30cm / 150cm) |
Focus Modes | Manual / Auto |
Pan/Tilt Head Specs : |
|
Presets | IR Controller = 10 IP/Serial = 250+/- |
Preset Accuracy | 0.1° |
Pan Rotation Angle | -170°~+170° Eff. 340° rotation |
Pan Rotation Speed | 0.1° ~ 80°/s |
Tilt Rotation Angle | -90°~+90° Eff. 180° rotation |
Tilt Rotation Speed | 0.1° ~ 60°/s |
General Specs : | |
Input Voltage | DC12V, PoE++ (IEEE802.BT standard) |
Operating Temperature | 32°F~108°F 0°C~42°C (+/- 10%) |
Operating Humidity | <80% |

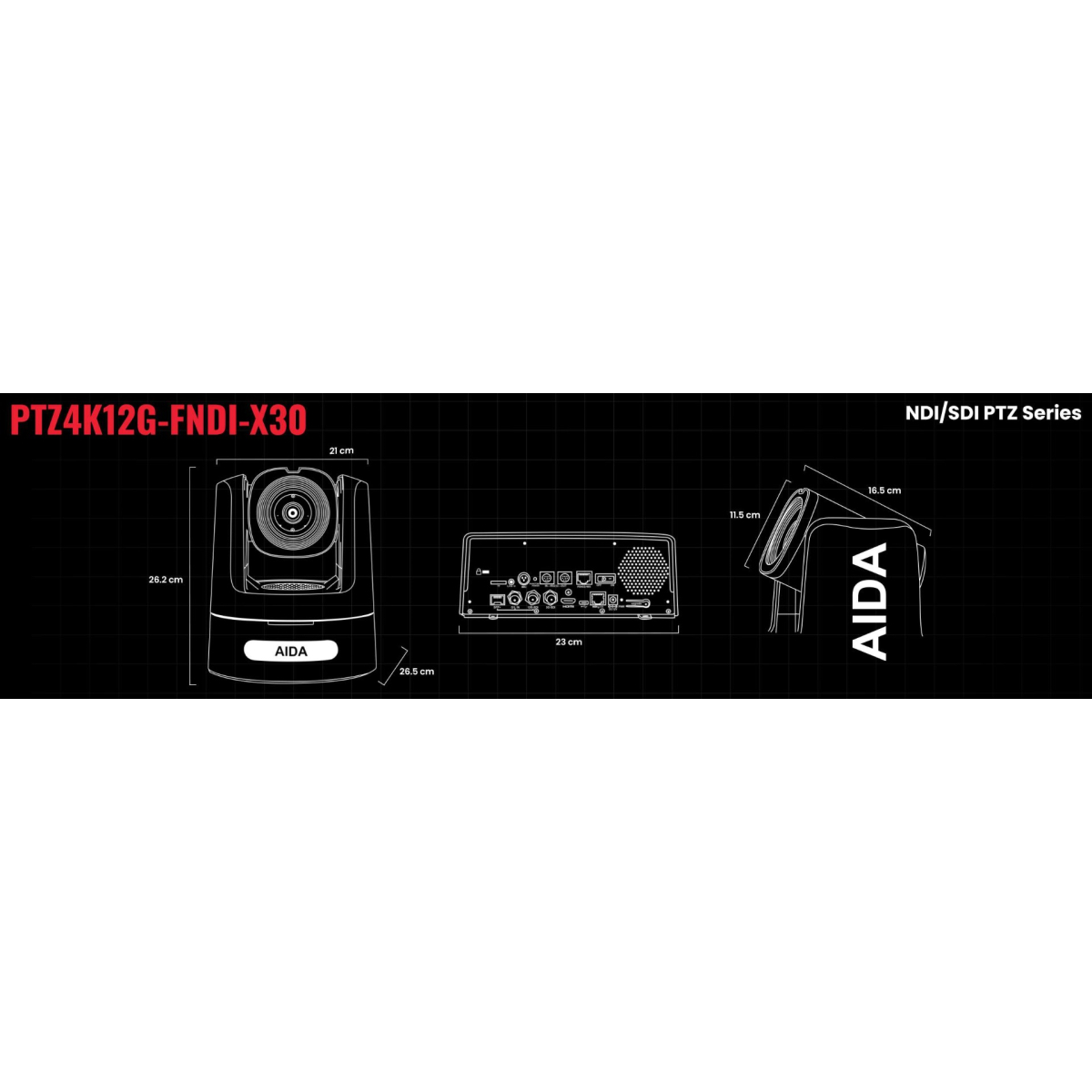

Camera Dimensions | 8.3”/10.44”/10.32” 21cm/26.5cm/26.2cm |
Camera Net Weight | 10.12lb (4.59kg) |
PTZ Shell Colors | Black/White |
Network Streaming :
Video Encoding Protocols | H.264/H.265 |
Bitrate | VBR / CBR |
Bitrate Range | Adjustable: 1mb~32mb Potential: 1mb~200mb |
Network Port Speed | 1gb |
Streaming Protocols | NDI® High Bandwidth, NDI® HX2, NDI® HX3, SRT, RTSP, RTMP, HTTP, webRTC |
Control Protocols | ONVIF, VISCA over IP (UDP), NDI®, HTTP API* |
Video Formats (res/fps)
12G-SDI |
3840x2160p (UHD): 60/59.94/50/30/29.97/25/24/23.98 1920x1080p (FHD): 60/59.94/50/30/29.97/25/24/23.98 1920x1080i (FHD-i): 60/59.94/50 1280x720p (HD): 60/59.94/50/30/29.97/25 |
SFP+ |
3840x2160p (UHD): 60/59.94/50/30/29.97/25/24/23.98 1920x1080p (FHD): 60/59.94/50/30/29.97/25/24/23.98 1920x1080i (FHD-i): 60/59.94/50 1280x720p (HD): 60/59.94/50/30/29.97/25 |
ROI [3G-SDI] |
1920x1080p (FHD): 60/59.94/50/30/29.97/25/24/23.98 1920x1080i (FHD-i): 60/59.94/50 1280x720p (HD): 60/59.94/50/30/29.97/25 |
HDMI |
3840x2160p (UHD): 60/59.94/50/30/29.97/25/24/23.98 1920x1080p (FHD): 60/59.94/50/30/29.97/25/24/23.98 1920x1080i (FHD-i): 60/59.94/50 1280x720p (HD): 60/59.94/50/30/29.97/25 |
NDI® High Bandwidth* |
3840x2160p (UHD): 60/59.94/50/30/29.97/25/24/23.98 1920x1080p (FHD): 60/59.94/50/30/29.97/25/24/23.98 1920x1080i (FHD-i): 60/59.94/50 1280x720p (HD): 60/59.94/50/30/29.97/25 |
NDI® HX2, RTSP, RTMP & SRT |
3840x2160p (UHD): 60/59.94/50/30/29.97/25/24/23.98 1920x1080p (FHD): 60/59.94/50/30/29.97/25/24/23.98 1920x1080i (FHD-i): 60/59.94/50 1280x720p (HD): 60/59.94/50/30/29.97/25 |
NDI® HX3* | 1920x1080p (FHD): 60/50 |
USB | UHD/FHD/HD: 60/30 |
- PTZ4K12G-FNDI-X30B/W Camera
- Power Adapter
- Power Cable + Intl. Conversions
- RS232 Cable
- USB Type-C Cable
- IR Remote Controller
- Mini-XLR to XLR adapter
- Safety Carabiner
- Thank you card
